AT-5220 Wireless Microphone System

A great, affordable 2-channel wireless kit that includes two bodypack microphones.

From the Manufacturer

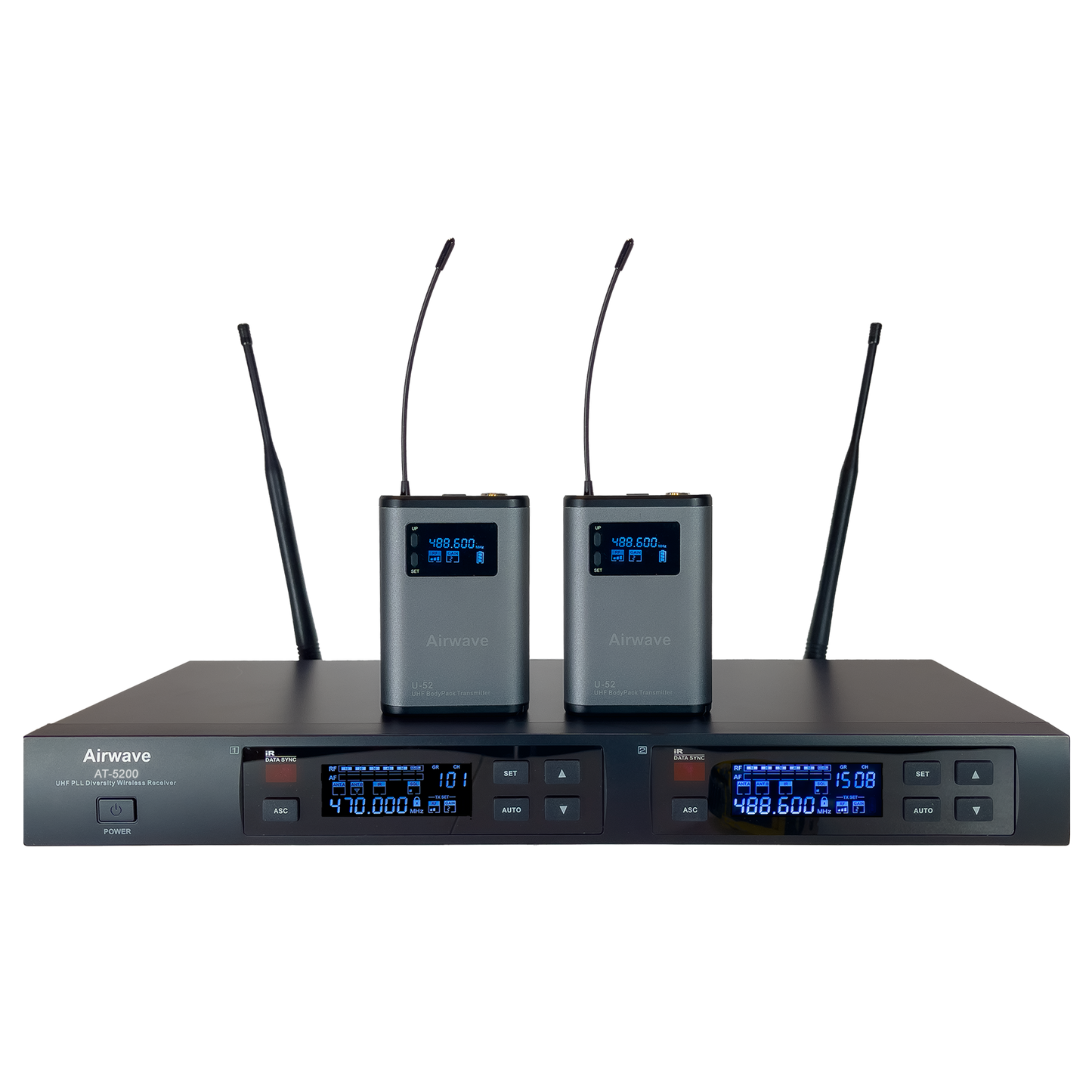

Airwave Technologies AT-5220

Unlock the power of wireless freedom with our all-new 5th generation of 2 Channel Wireless Microphone System. The Airwave Technologies AT-5220 features a 1U rack mount receiver, 2 AT-U52 wireless bodypack transmitters, and 2 LAV-2 lavaliere Microphones. The system’s 144 digital switchable UHF channels and strong signal connection make it capable for settings such as conferences, performances, corporate presentations, and House of Worship. The bodypack and lavalier with this system offer flexibility for those that prefer hands free use. Optional items that can be used with this system include a wide variety of single ear and dual ear headsets as well as an upgrade to professional lavalieres.  Several features are designed to be user friendly on the receiver and transmitter including volume and gain controls, an auto scan button, and up to 10 hours of continuous battery life. Embrace seamless connectivity and superior sound quality. Embrace freedom with reliable connectivity and pristine sound quality. Elevate your audio game today!

Unleashing Seamless Sound: The 5th Generation of Wireless from Airwave Technologies

In the dynamic realm of live events, conferences, schools, theaters, and places of worship, harnessing superior audio quality is non-negotiable. Enter the Airwave Technologies AT-5200 Series of 2 Channel Wireless Microphone Systems, a revolutionary new solution designed to elevate every spoken word and performance to new heights.  Whether you're addressing a packed auditorium or leading a worship service, its reliability ensures uninterrupted audio performance, leaving you free to focus on what truly matters—your message.

Imagine a system that effortlessly bridges the gap between clarity and versatility. The AT-5200 Series achieves just that, ensuring every syllable and note is transmitted with pristine fidelity. Adaptability is key in any setting, and the 5thgeneration of technology in wireless audio from Airwave Technologies delivers with two channels of handheld, headset, or lavalier microphones in a single rack mount space. Seamlessly switch between speakers or performers without missing a beat, thanks to its robust frequency agility of 144 digital channels, and stable transmission with a choice of 2 different frequency ranges. To add more versatility, this series is designed to be used as multiple units of up to 14 channels in turnkey flight case based systems that offer different configuration solutions to a variety of applications.

Built with the demands of modern events in mind, Airwave Technologies integrates ease of use with professional-grade features. Whether in the hands of a seasoned presenter or a first-time user, operation remains intuitive, allowing for effortless setup and operation.

Invest in excellence. Invest in clarity. Invest in the Airwave Technologies AT-5200 Series and transform your events, conferences, schools, theaters, and places of worship into showcases of seamless sound. Because when it comes to communication, every word deserves to be heard—and with Airwave Technologies, it will be heard perfectly.

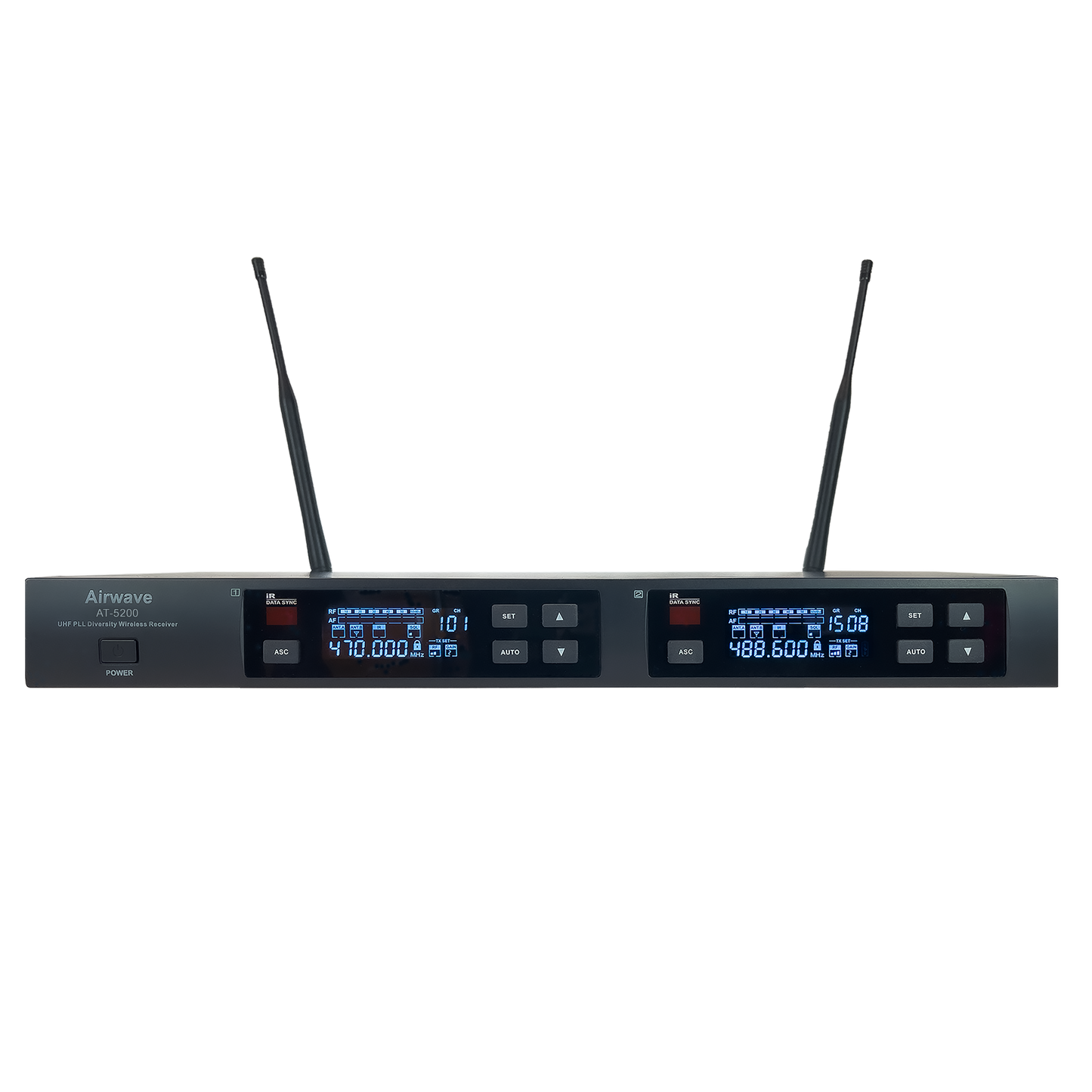

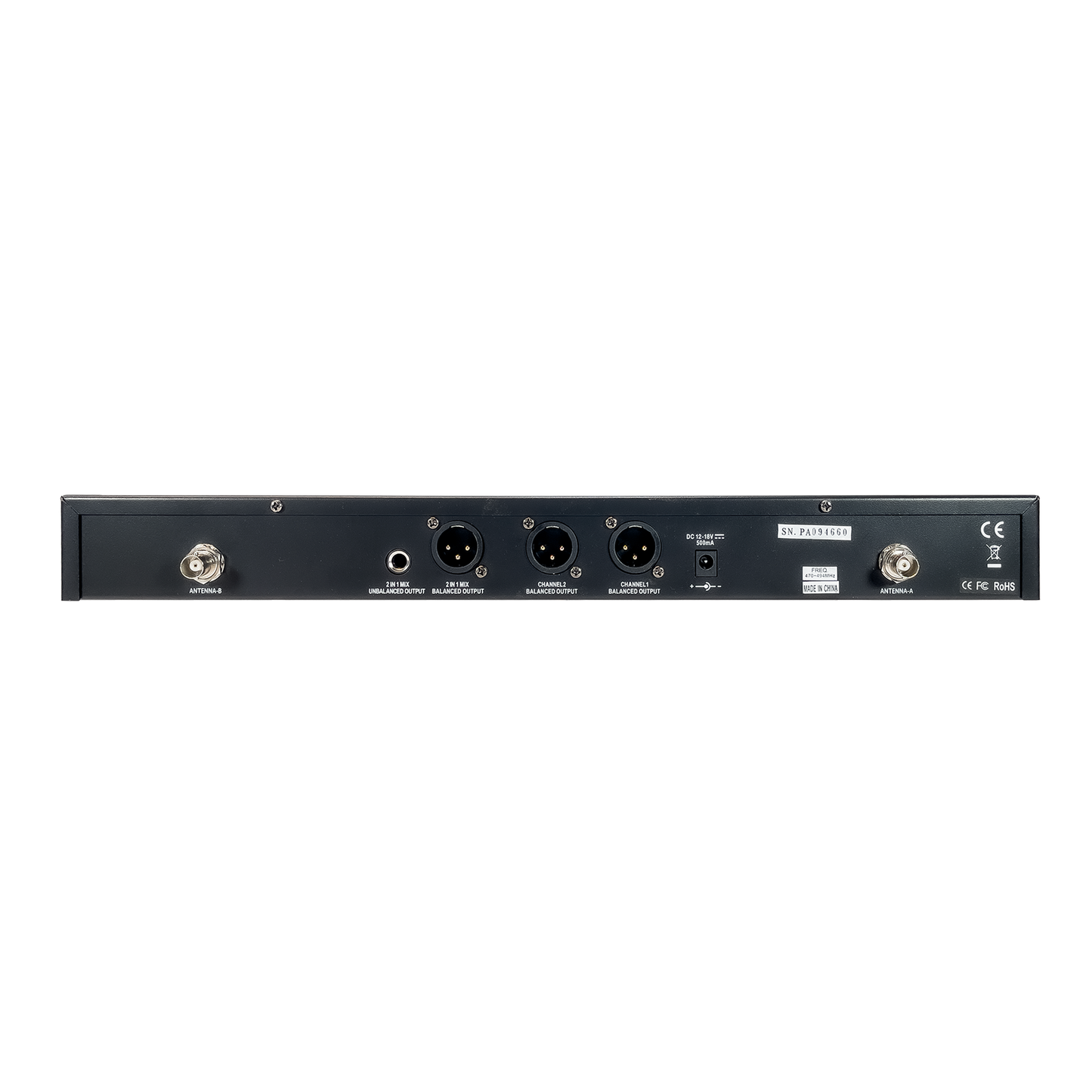

AT-5200 DUAL CHANNEL WIRELESS RECEIVER SPECIFICATIONS

• Frequency Range: 470~489MHz / 514~542 MHz

• Infrared Data Synchronization

• Band Width: 19MH / 28MHz

• Working Range: 328’

• Receiving Sensitivity: < -92dBm for 30dB S/N Ra

• Frequency Response: 50Hz~15KHz (±3dB)

• Maximum Frequency Offset: >+/-50KHz

• Signal to Noise Ratio: >100dB (A)

• THD: <1% to 1KHz

• Gain Control Range: 0 to 63dB per 1dB Step

• Dynamic Range: >102dB

• Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

• Audio Output Connectors: XLR Each Channel / XLR Mix / 1/4-inch connector

• Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ

• Antenna Connectors: 2 BNC 50Ω

• Display: LCD

• Power Requirements:  12V/0.5A DC

• Operating Temperature Range: 28°F - 122°F

• Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)

• Weight: 3.86 lb.

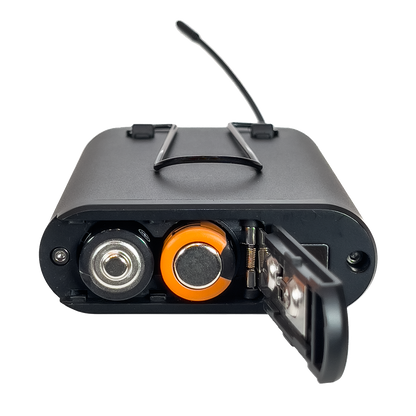

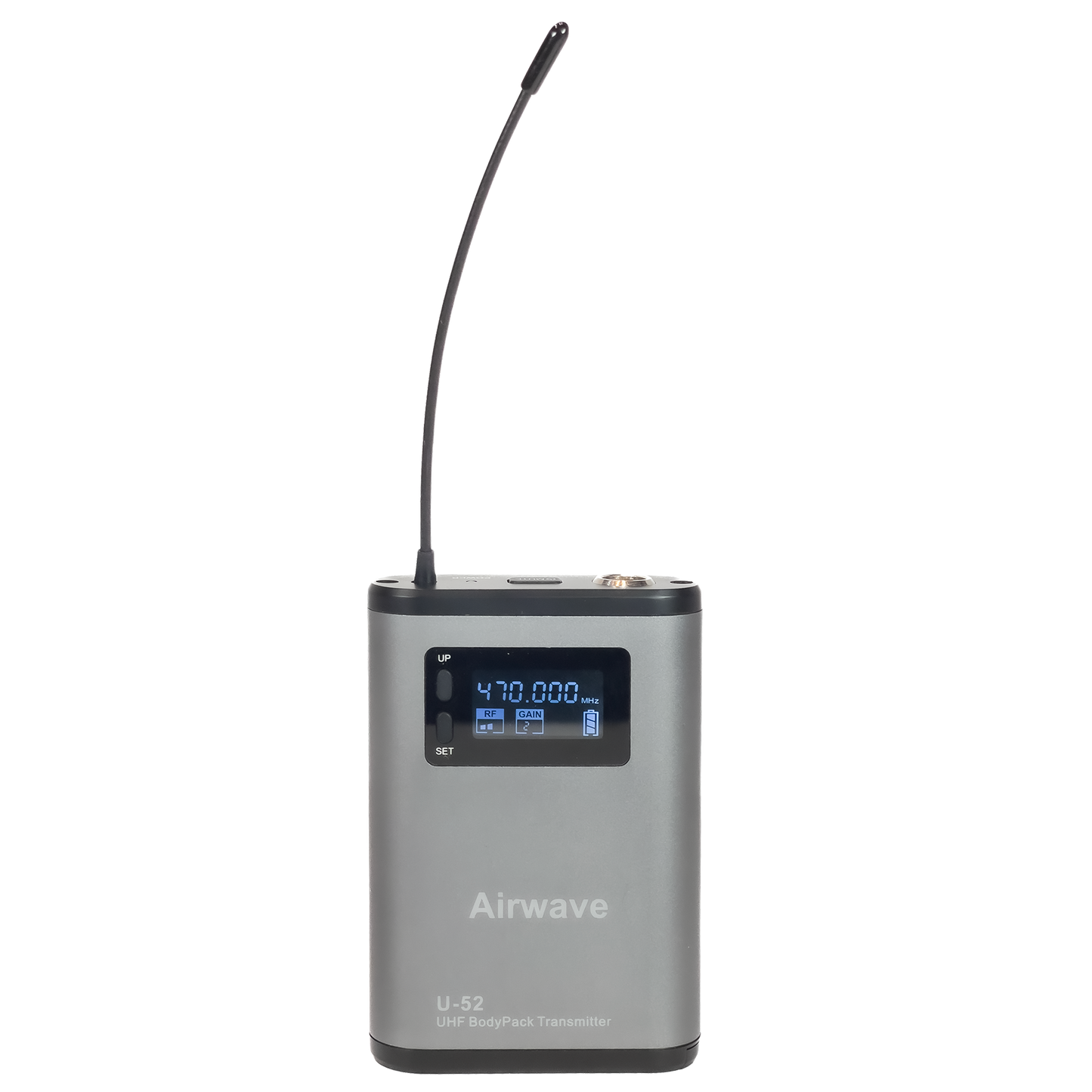

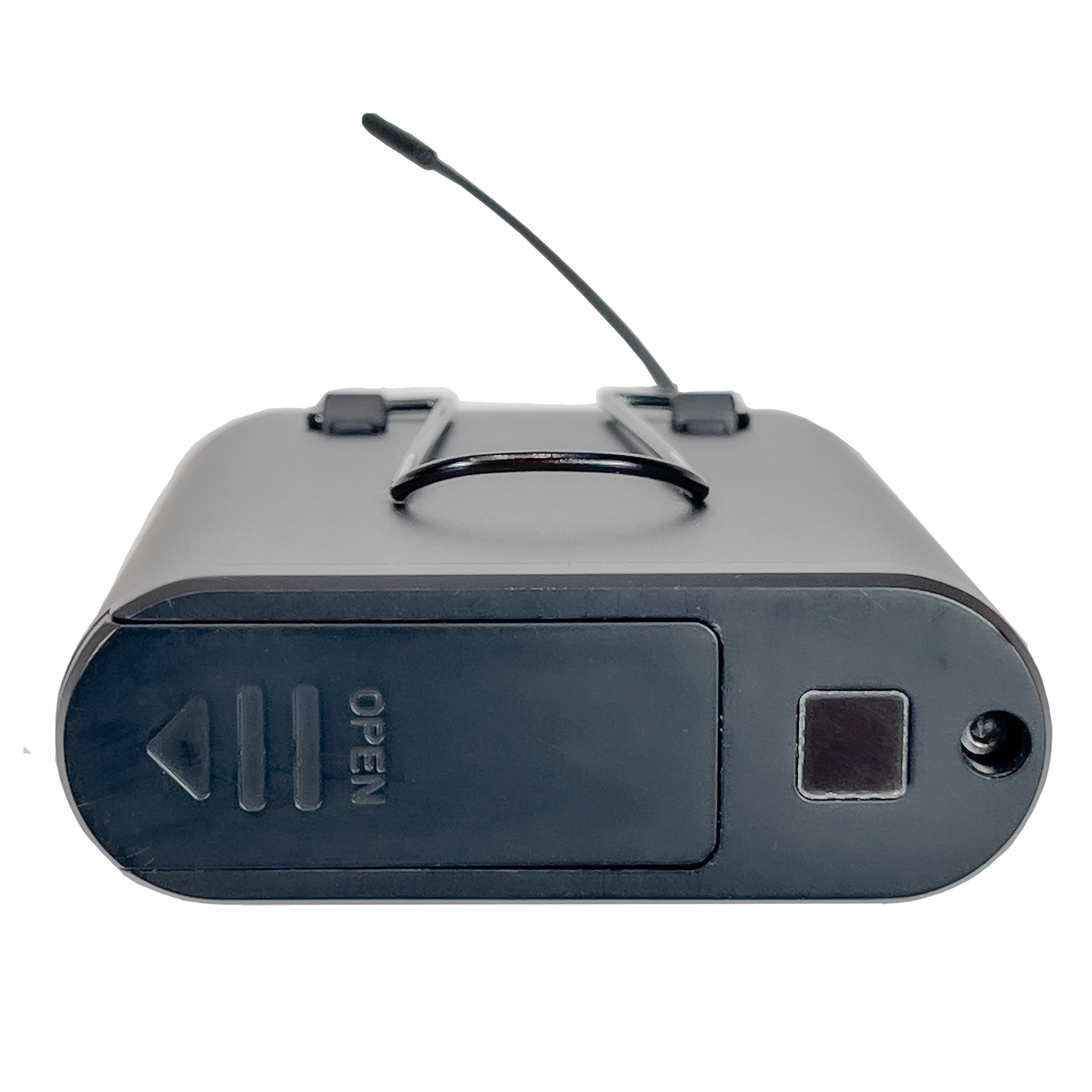

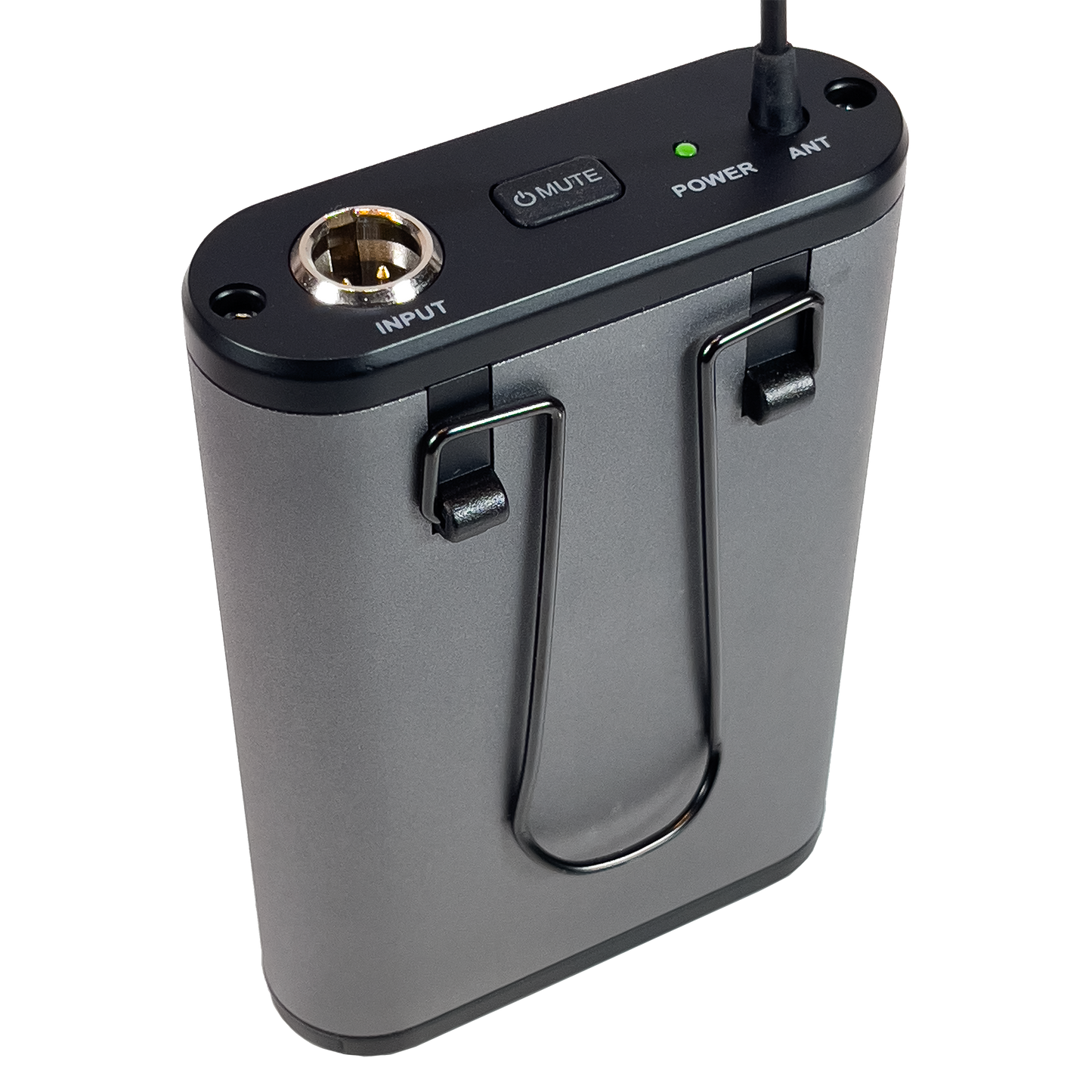

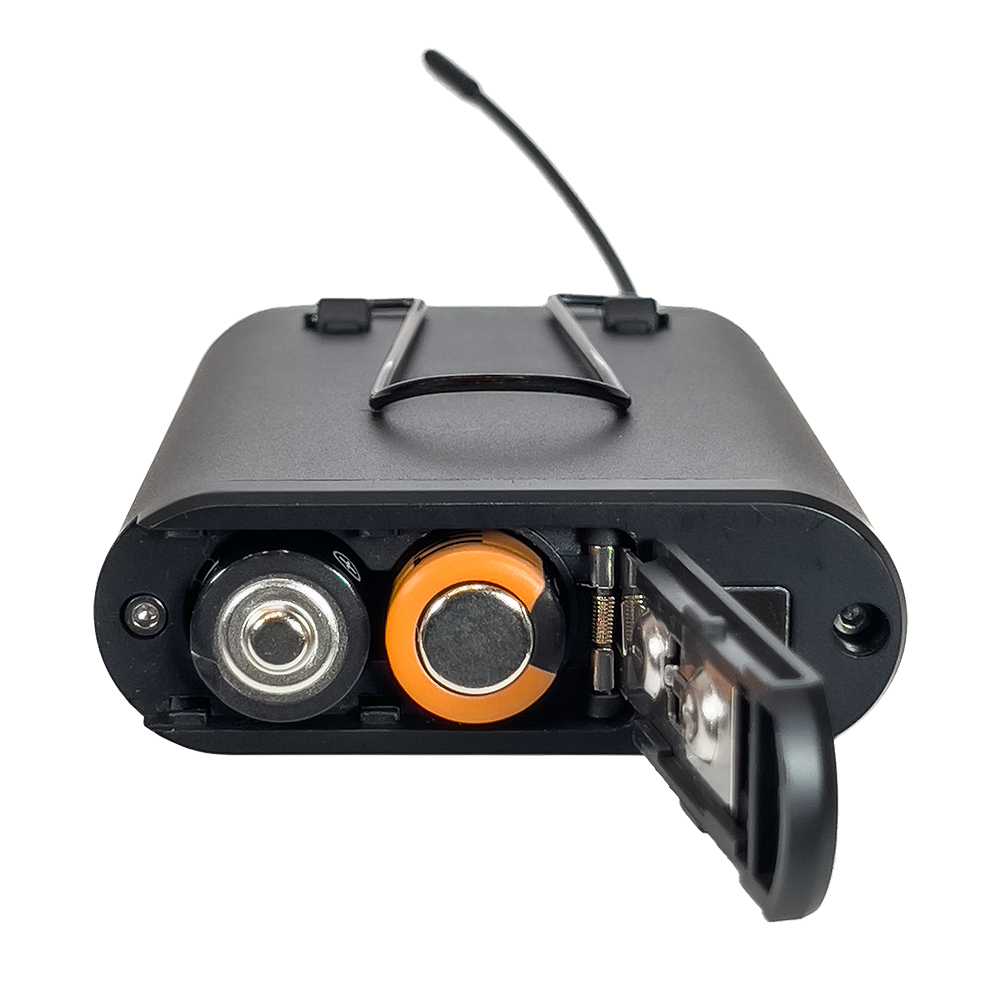

AT-U52 BODYPACK TRANSMITTER SPECIFICATIONS

• Frequency Range: 470~489MHz / 514~542 MHz

• Infrared Data Synchronization

• Frequency Response: 50Hz~15KHz (±3db)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KΩ

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >10H/1300mAH

• Dimensions: 6.5” x 2.56” x .91”

• Weight: 4.59oz
