AT-6210D | 2 Channel Digital Wireless Handheld Microphone System

The Airwave Technologies AT-6210D is a dual-channel digital wireless handheld microphone system for live events, presentations, and performances requiring two wireless handheld mics.

From the Manufacturer

The Airwave Technologies AT-6210D is a professional dual-channel digital wireless system built for live events, presentations, performances, schools, theaters, and houses of worship. The system includes a single-rack-space true-diversity digital receiver and two U-61D wireless handheld microphones, giving two presenters or performers reliable wireless freedom from one streamlined system.

Digital transmission and 24-bit audio conversion deliver clear, detailed sound with minimal noise. Each U-61D handheld features a durable design, interchangeable microphone capsule, adjustable gain, and a maximum sound pressure level of 140 dB, allowing it to handle everything from spoken presentations to powerful vocal performances. Infrared synchronization and automatic frequency scanning help simplify setup, while individual channel controls allow the system to be adjusted for different voices and applications.

The receiver provides separate XLR outputs for each channel, along with mixed XLR and ¼-inch outputs for flexible connection to mixers, powered speakers, and installed sound systems. With an operating range of up to 260 feet and more than eight hours of handheld transmitter battery life, the AT-6210D is ready for extended events and demanding productions.

Whether used for two vocalists, a moderator and guest, or multiple presenters, the AT-6210D delivers dependable wireless performance with the clarity and control expected from a professional digital system.

Frequency Options

• AT-6210D A Band: 470–510 MHz
• AT-6210D B Band: 512–562 MHz

Features

• True-diversity digital wireless transmission
• 24-bit A/D audio conversion
• 120 dB receiver dynamic range
• Automatic frequency scanning
• Infrared synchronization
• Adjustable digital volume, squelch, and gain
• Up to 16 simultaneous channels using both frequency bands and an antenna distribution system
• Operating range of up to 260 feet
• Individual XLR channel outputs plus mixed XLR and ¼-inch outputs
• More than eight hours of handheld transmitter battery life
• Recommended use: Live events, presentations, performances, schools, theaters, houses of worship

Specifications

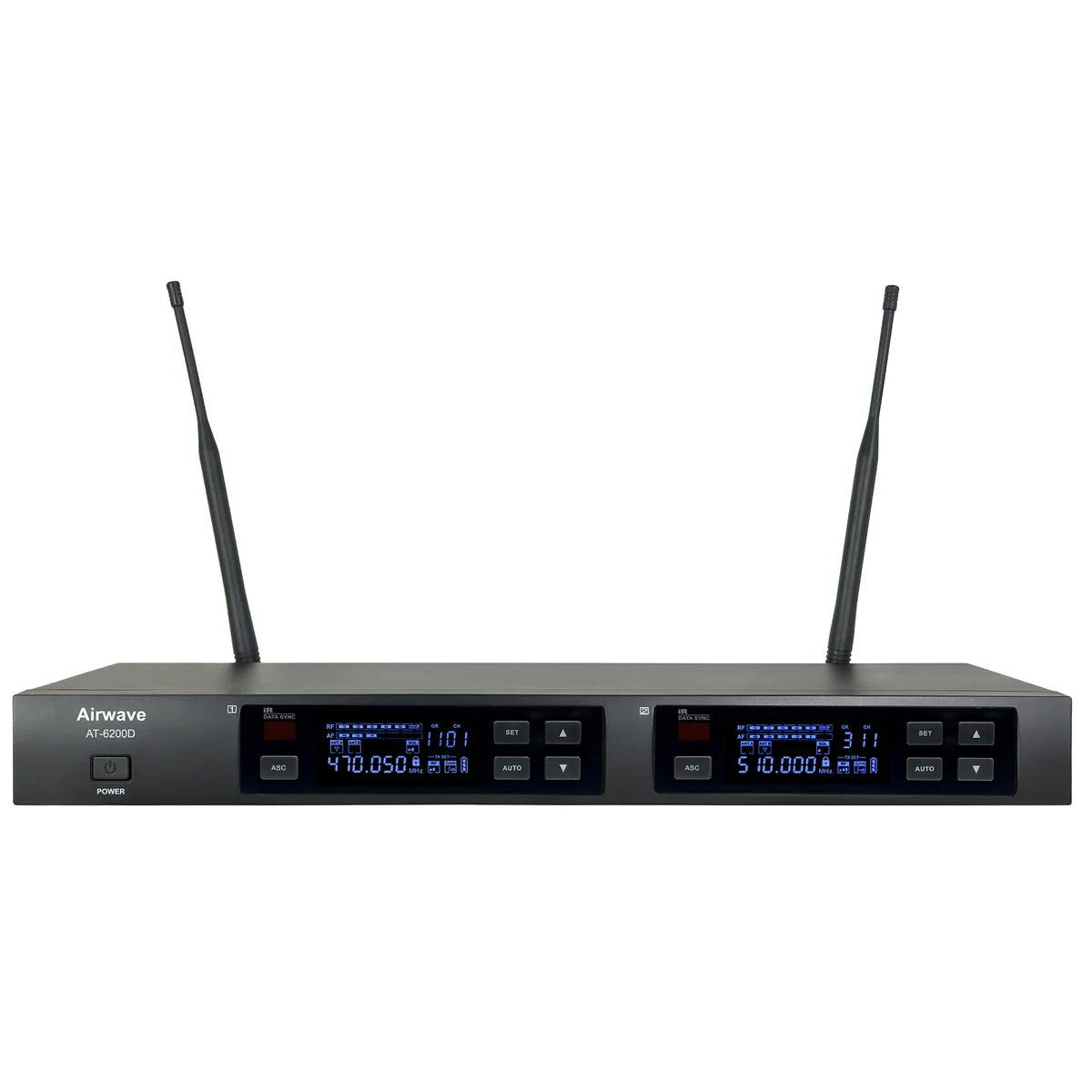

AT-6200D Receiver

• RF Frequency Range: 470–510 MHz, 512–562 MHz
• Digital Modulation Mode: QPSK
• Digital Audio Resolution: 24-bit A/D conversion
• Dynamic Range: 120dB (A-Weighted)
• Frequency Response: 50Hz–18KHz (±3dB)
• Signal to Noise Ratio: >95dB (A)
• System Distortion: <0.1% (THD+N @ AF 1KHz)
• Noise Floor: <-93dBV (A) XLR
• Maximum Output: +5dBV
• AF System Gain: +15dB
• Gain Control Range: 0 to 63dB per 1dB step
• Audio Output: XLR CH1 & CH2 / XLR Mix / ¼" Mix
• Impedance: XLR: 3kΩ / ¼-inch connector: 3kΩ
• System Operating Range: ≤260 ft
• Antenna Connectors: 2 BNC, ¼-wave, rear mount
• Power Requirements: 12V/0.5A DC
• Power Consumption: <500mA @ DC12V
• Operating Temperature Range: 28°F–122°F
• Dimensions: 16.142" (L) x 6.299" (W) x 1.732" (H)
• Weight: 3.71 lbs

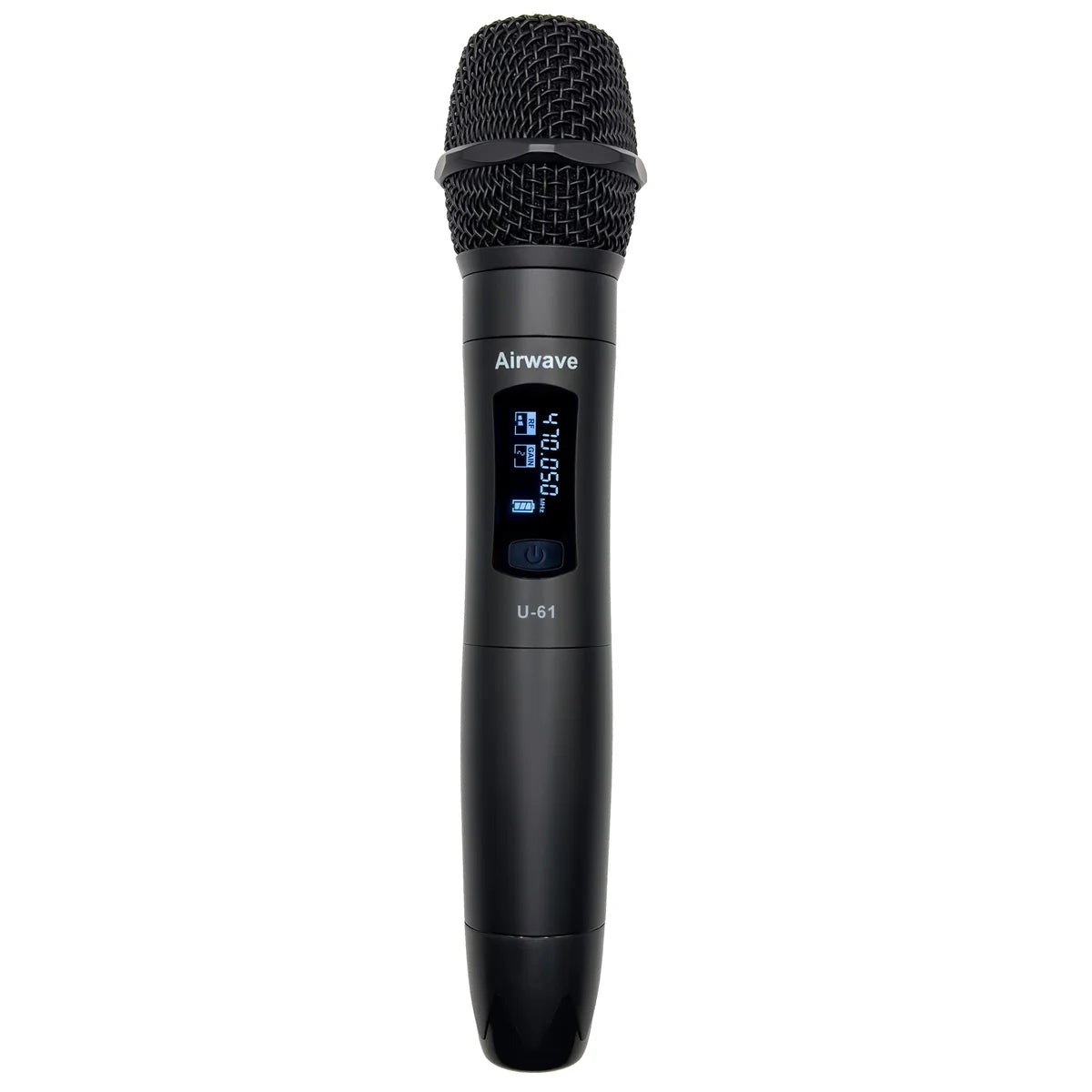

U-61D Handheld Microphone Transmitter

• Digital Audio Resolution: 24-bit A/D conversion

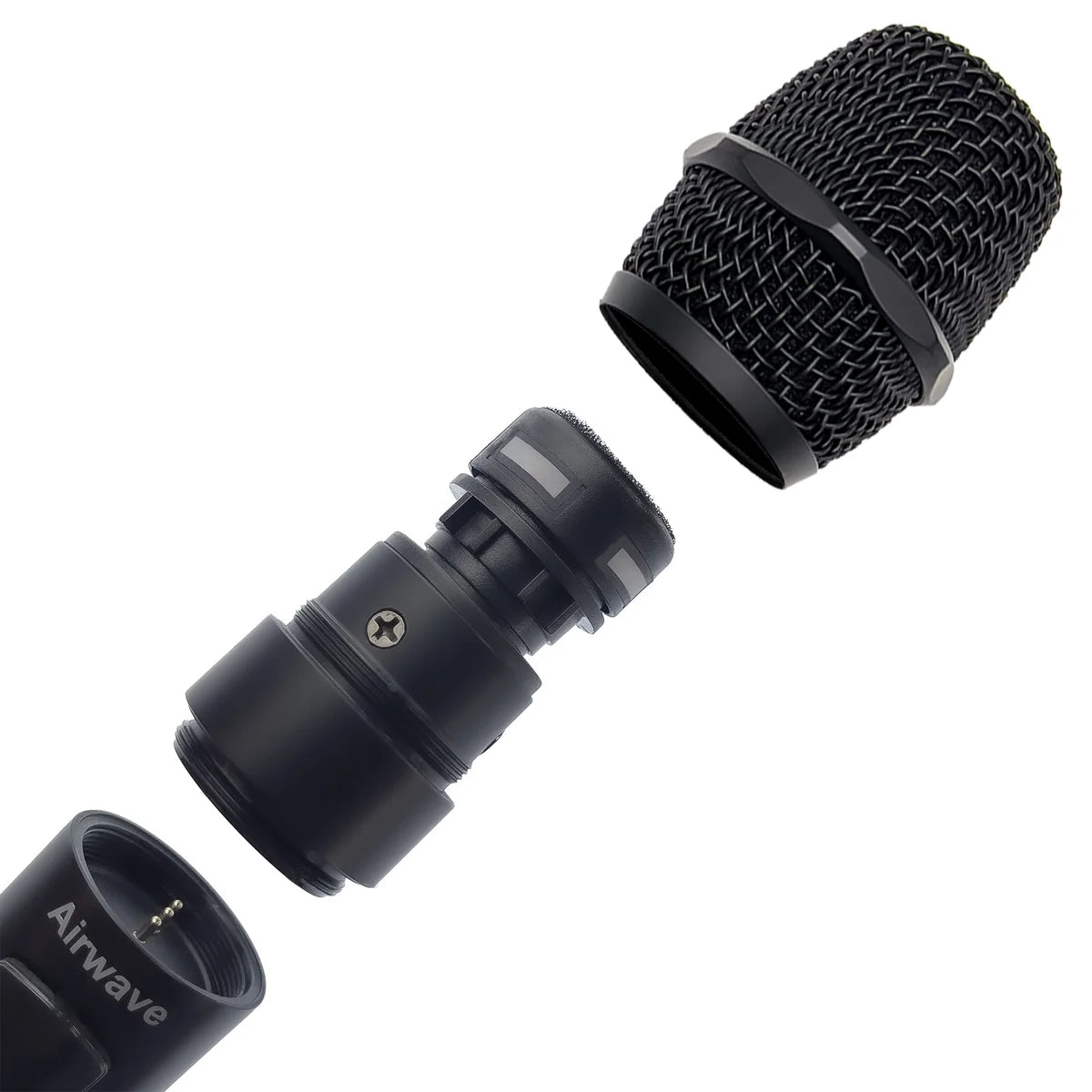

• Capsule: Interchangeable
• Synchronization: Infrared data sync
• Frequency Range: 470–510 MHz, 512–562 MHz
• Dynamic Range: 110dB (A-Weighted)
• Max SPL: 140dB
• Capsule Frequency Response: 50Hz–16KHz (±3dB)
• Capsule Sensitivity: -50dB ±2dB V/Pa @ 1KHz
• Capsule Directivity: Single point
• Signal to Noise Ratio: >100dB (A)
• RF Output Power: H-15dBm, M-10dBm, L-5dBm
• Gain Adjustment Range: 0/-3/-6/-9 dB
• Power Requirements: <190mA @ 3.0V – 2 x 1.5V (AA)
• Battery Life: >8H / 1300mAh
• Dimensions: 9.51" x 1.97"
• Weight: 10.37 oz

Certifications

• FCC ID: 2AINTU-61

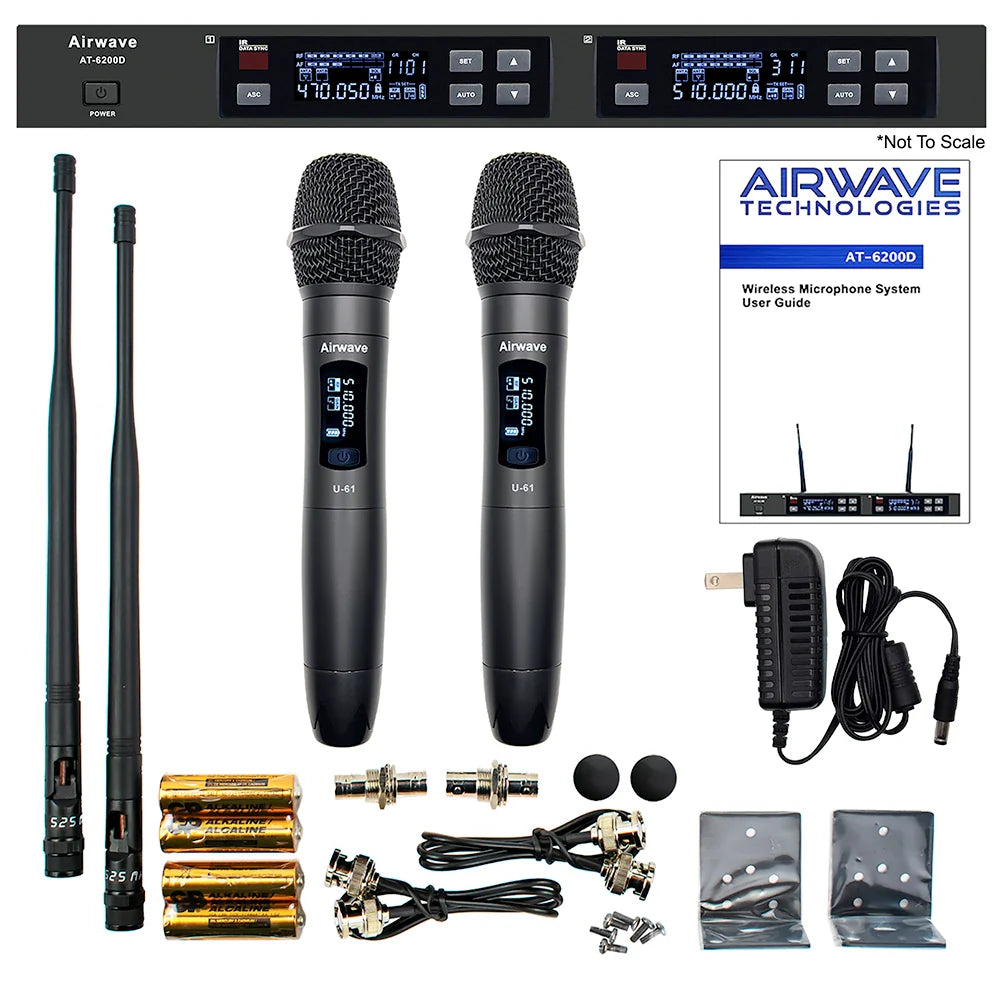

What's in the Box

• AT-6200D digital wireless receiver
• 2 x U-61D handheld microphone transmitter
