AT-HH4CH Wireless Microphone System

Airwave is the best kept secret in wireless mics today.  This is a brand that we've been watching and using for years - when you don't need top-dollar, high-end wireless, these Airwave mic's provide an exceptional value and quality at a reasonable price.

By bundling 2 channels of wireless together into one rack unit, Airwave saves on cost and complexity.  Smaller installations LOVE the fact that you can simple use (1) XLR output for both microphones when you're short on inputs.

All of the microphones sound good and have quality that is comparable to mid-level microphones from the major players.   When we have gotten these for customers, the feedback we get is that they love the mics, and they are comparable to systems that cost almost twice as much!

You'll notice that the receivers have a battery level and RF/AF indicator and IR sync.  Other wireless systems in this price range have none of that.

It's not a $3000/channel wireless system, but what it is, is a tremendous value for many churches, bands, installations, corporate AV, and more!

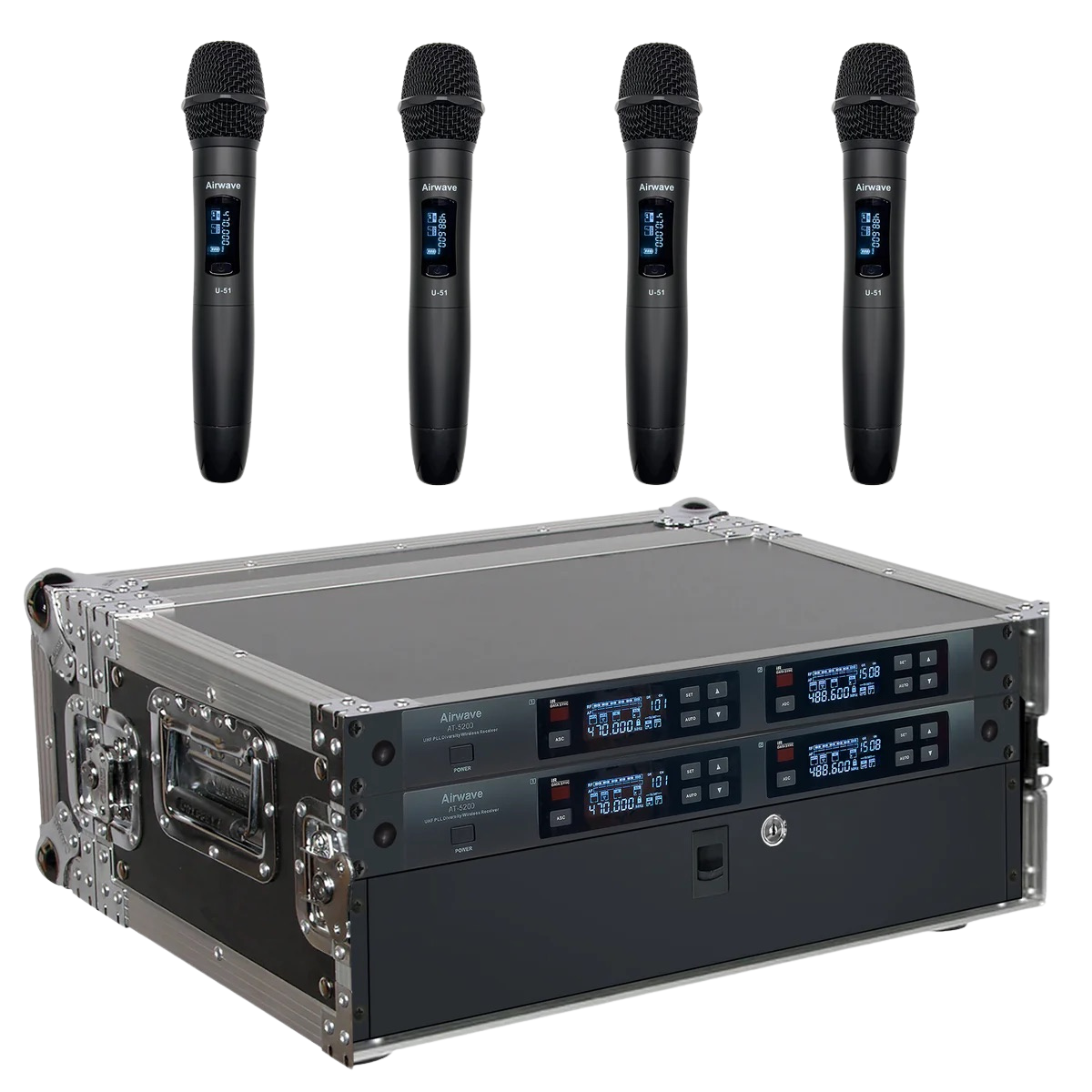

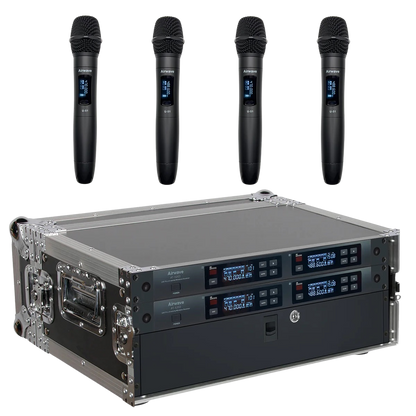

This package features (2) Rackmount receivers and (4) Wireless Handhelds in a 4u rack case with 2u drawer with custom foam.

From the Manufacturer:

Elevate your audio setup with this premium 4-channel wireless microphone system, designed for facilities and audio engineers who demand crystal-clear, reliable sound for their venue. Whether you need a portable or stationary solution for handheld microphone needs, this system offers the perfect combination of flexibility and performance, making it the ideal choice for any professional audio application.

Housed in a rugged, 4-space flight case, every component is securely protected, ensuring your gear is always ready to deliver flawless performance, wherever you go. The compact design and easy portability make this setup perfect for quick setups or permanent installations without compromising on the quality or reliability of your wireless microphones.

This 4-channel system is a powerhouse for wireless audio, delivering the versatility and performance needed to meet the demands of your venue. Plus, with multiple configurations available, you can tailor this system to perfectly suit your specific needs.

System Includes:

2 Airwave Technologies AT-5200 Dual Channel Wireless Systems

4 AT-U51 Wireless Handheld Microphones

4 Wireless Microphone Clips

4 Space Flight Rack

2 Space Rack Drawer

514-542 MHz

Wireless Microphone System Features

• 144 Digital switchable UHF Channels

• Choice of Frequency Range: A 470-489 MHz or B 514-542 MHz

• Infrared Data Synchronization

• Auto Button for Fast Frequency Sweep

• Digital Adjustable Volume, Squelch and Gain Control

• Battery Indicators on Handhelds and Base Station

• Uses 2 AA batteries for up to 10 Hours of continuous use

• System uses one rack space

• 1/4" and XLR mix outputs

• Separate XLR channel output

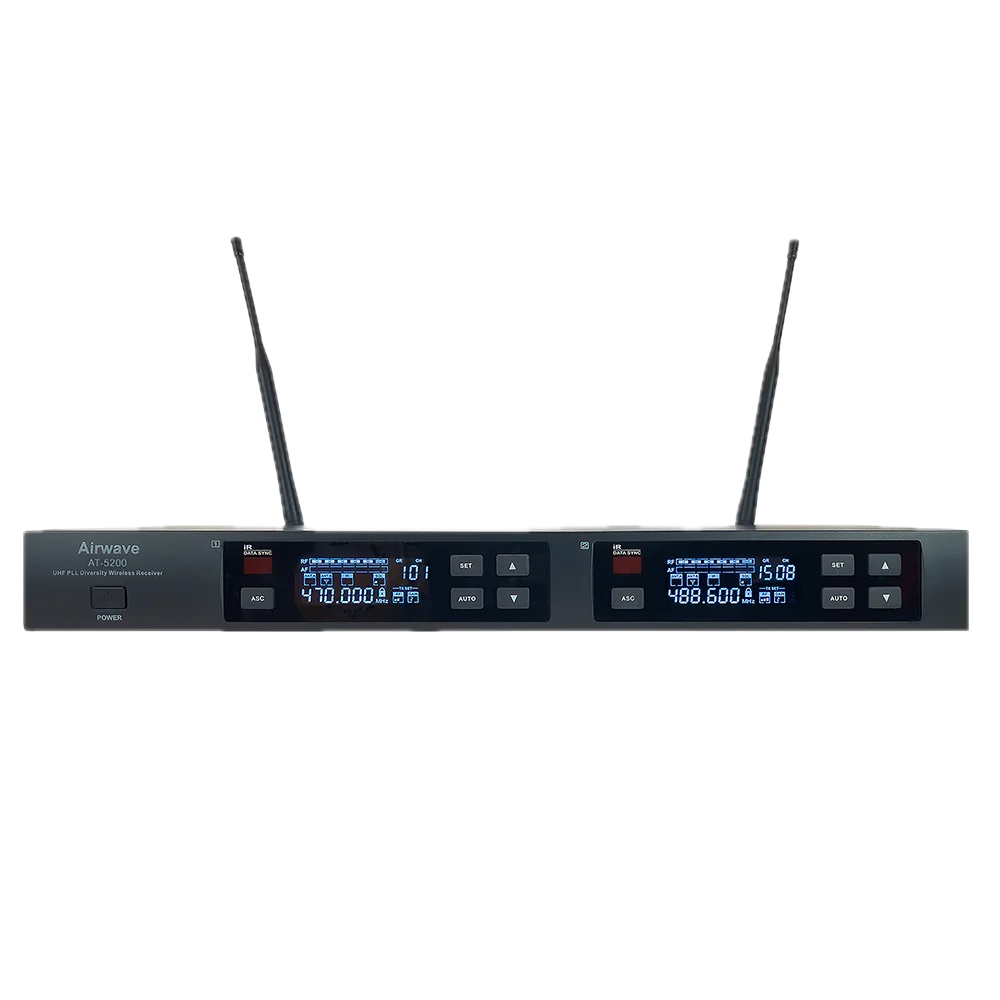

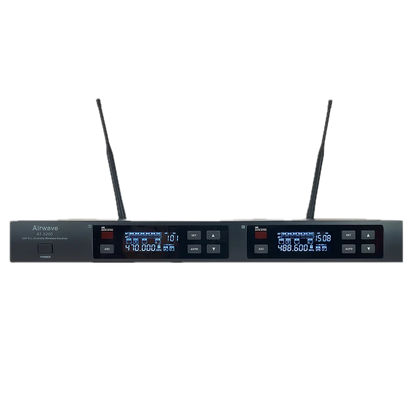

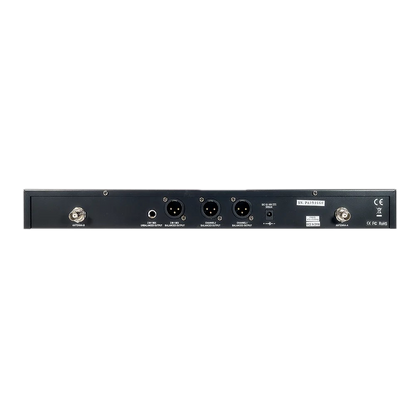

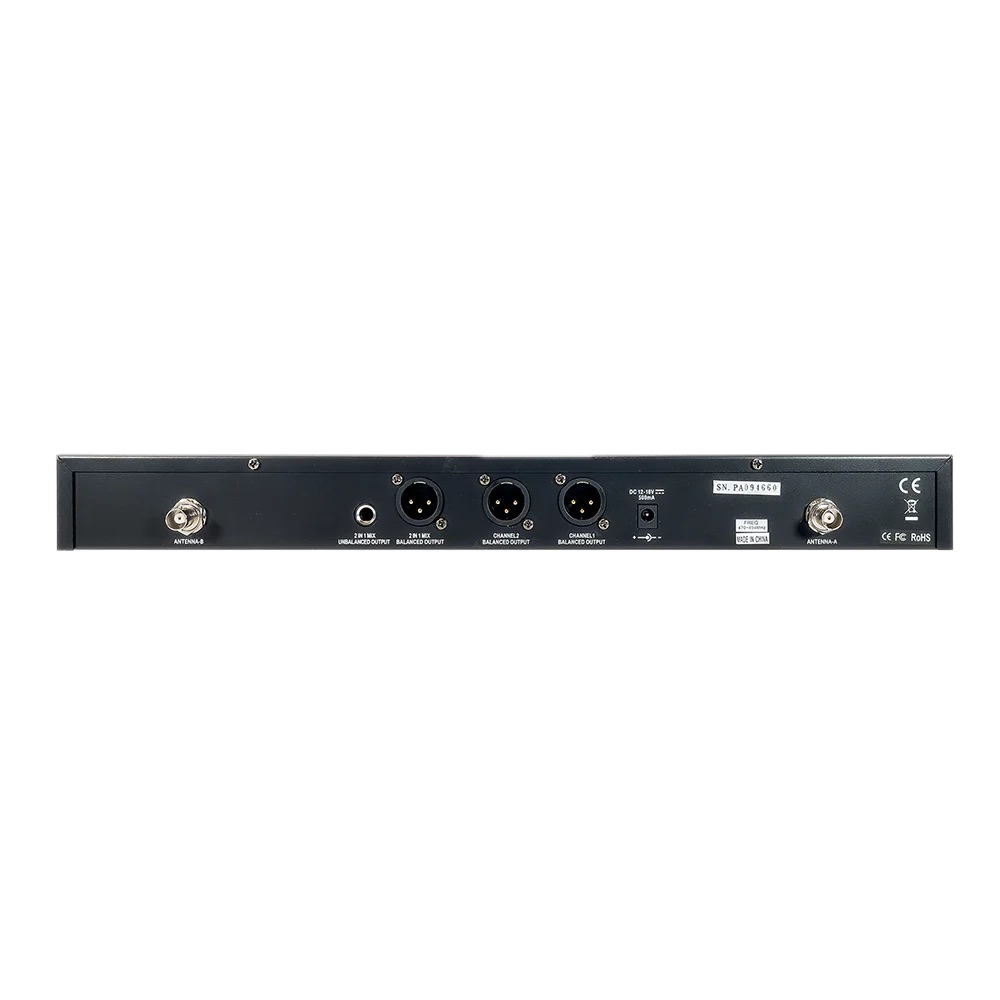

AT-5200 Wireless Microphone Receiver Features

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Band Width: 19MH / 28MHz

• Working Range: 328'

• Receiving Sensitivity: < -92dBm for 30dB S/N Ra

• Frequency Response: 50Hz-15KHz (±3dB)

• Maximum Frequency Offset: >+/-50KHz

• Signal to Noise Ratio: >1 00dB (A)

• THO: <1 % to 1 KHz

• Gain Control Range: 0 to 63dB per 1dB Step

• Dynamic Range: >102dB

• Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

• Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector

• Impedance: XLR: 3KO / 1/4-inch connector: 3KO

• Antenna Connectors: 2 BNC 500

• Display: LCD

• Power Requirements: 12V/0.5A DC

• Operating Temperature Range: 28°F - 122°F

• Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)

• Weight: 3.86 lb.

• FCC ID: 2AINTU-51

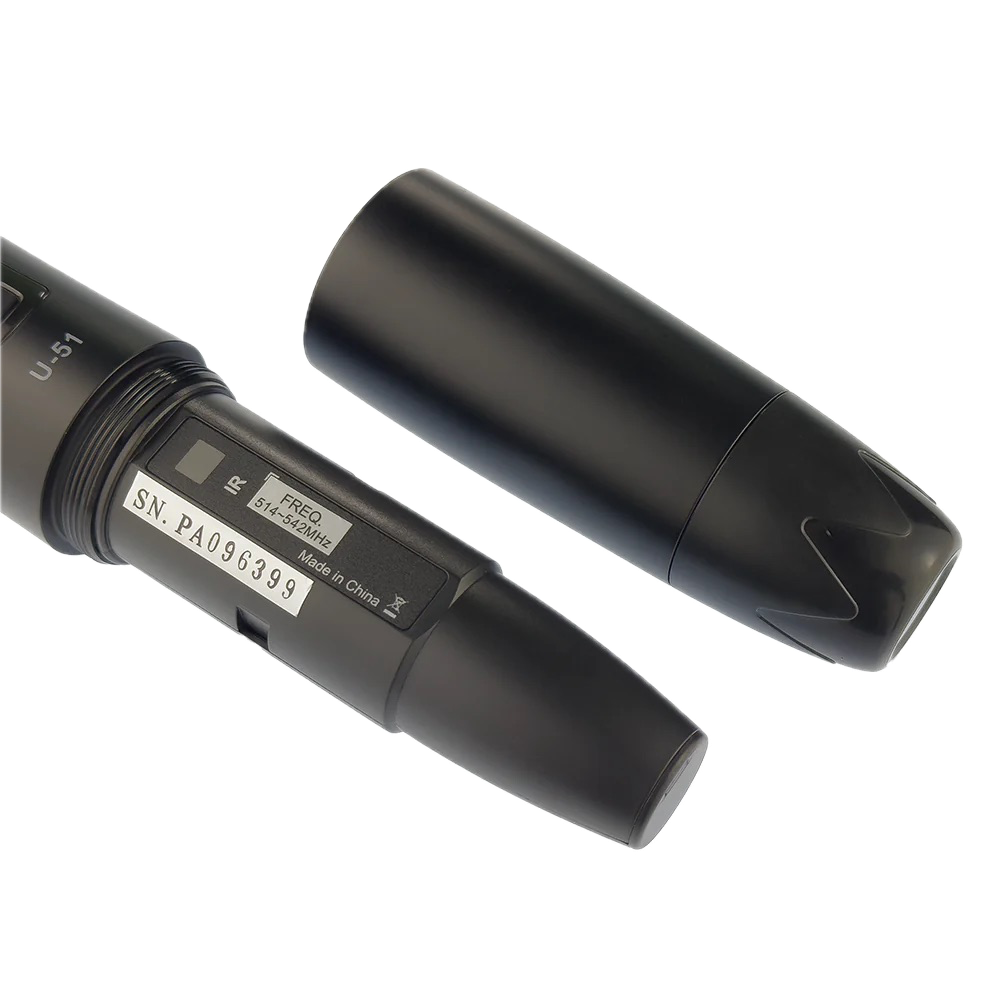

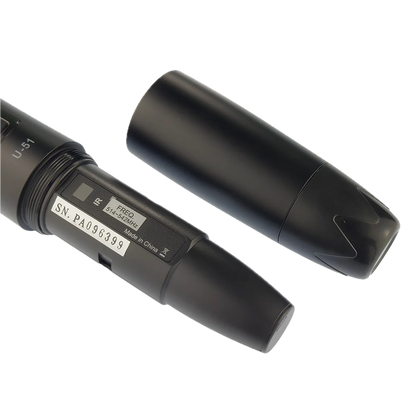

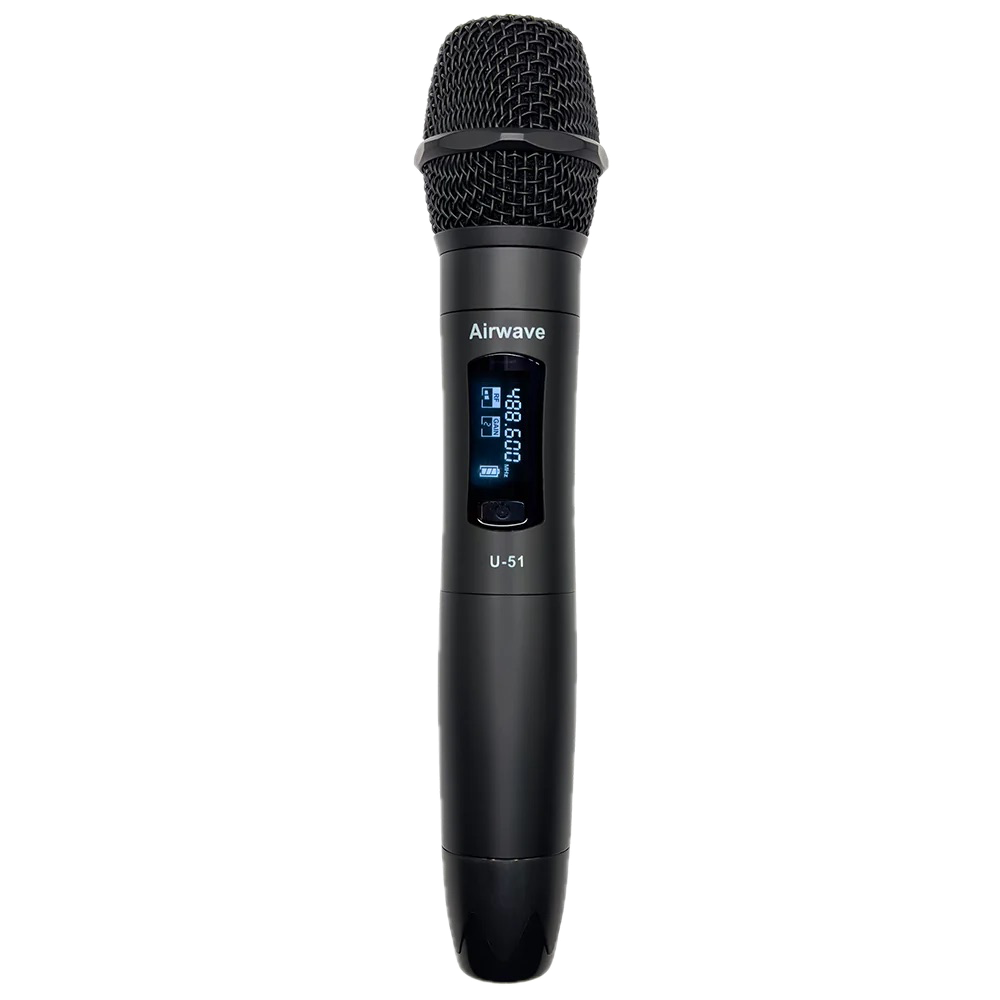

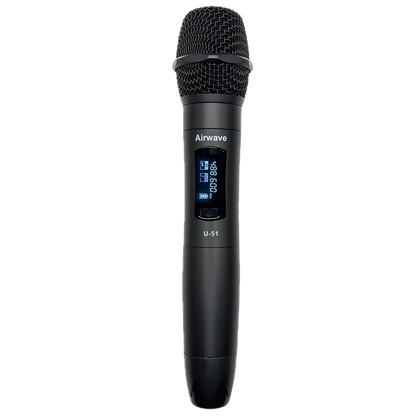

AT-U51 Handheld Microphone Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

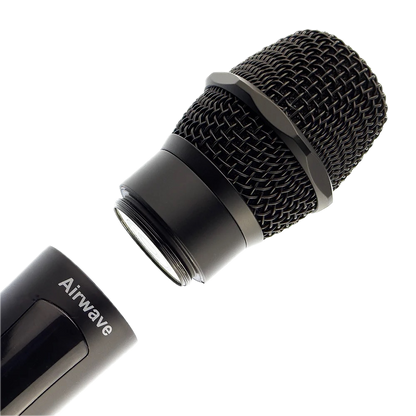

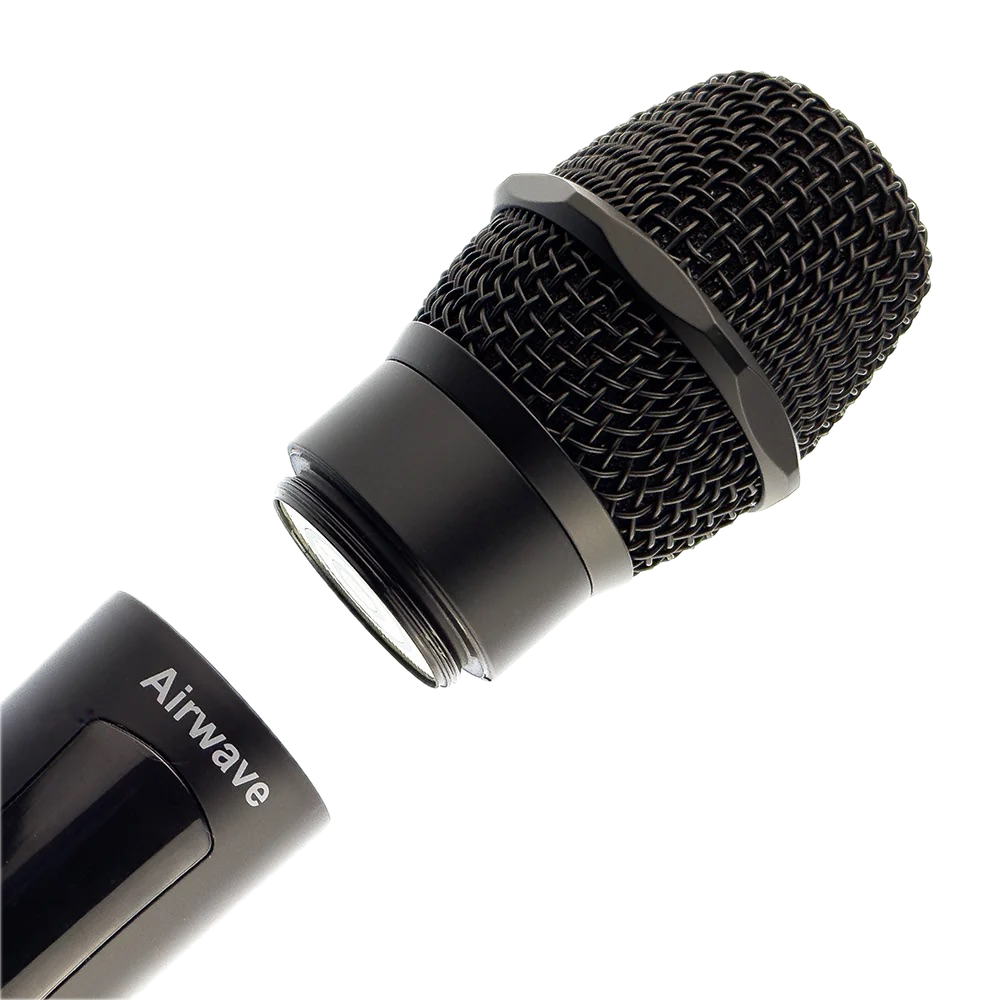

• Replaceable Capsule

• Infrared Data Synchronization

• Capsule Frequency Response: 50Hz-15KHz (±3db)

• Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz

• Capsule Directivity: Single Point

• Signal to Noise Ratio: >1 00dB (A)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO ± 30% @ 1 KHz

• Output Impedance: 4000 ± 30% @ 1 KHz

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Display: LCD

• Power Requirements: 2 x 1.5V (AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84" x 1.97"

• Weight: 12.7oz

• FCC ID: 2AINTU-51
