AT-RS4

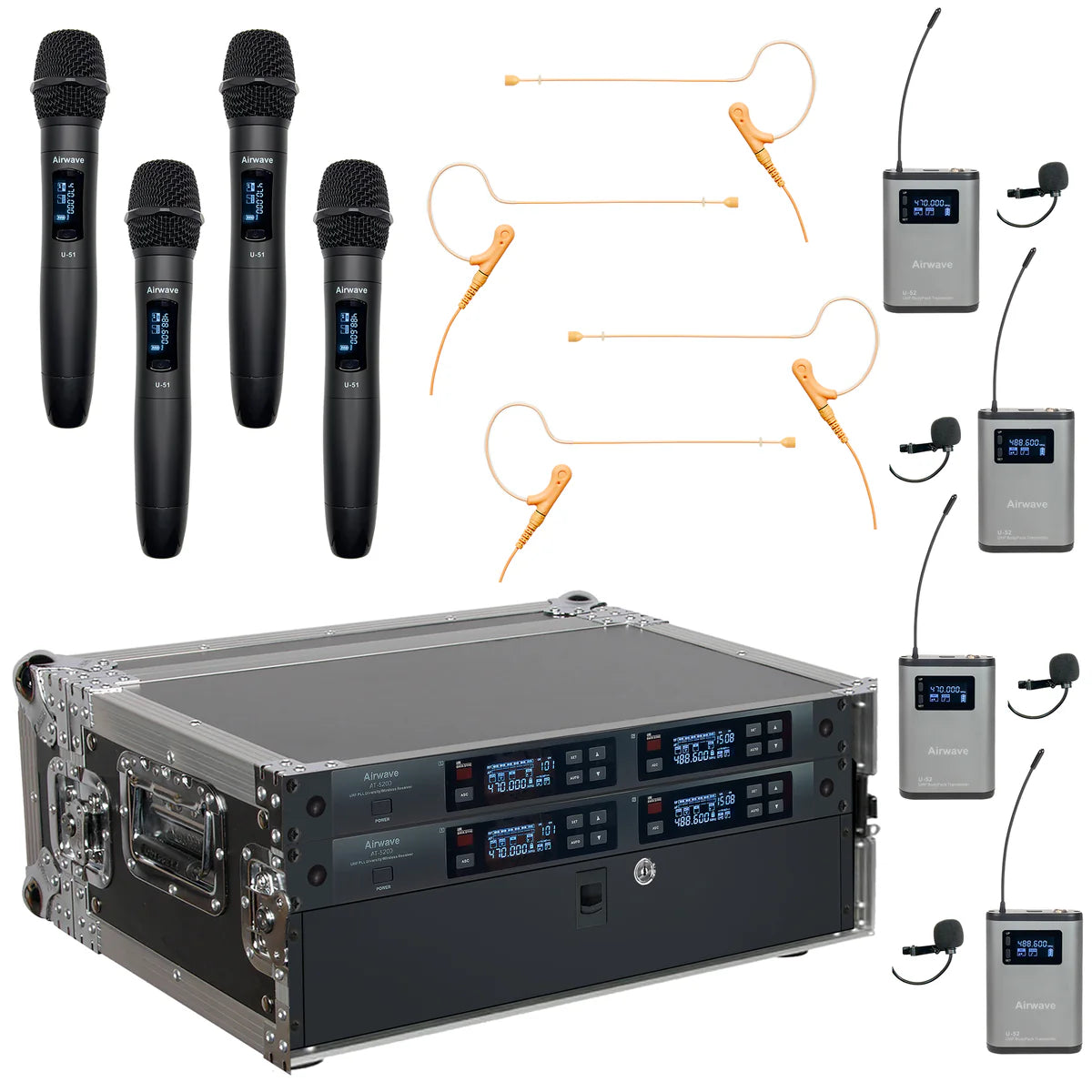

Four wireless microphone receivers, each with the option of a handheld or bodypack, built into a portable rack.  Includes lav and headset microphones.

From the Manufacturer

Turnkey 4 Channel Wireless Microphone System Package with 4 Handhelds, 4 Lavaliers, and 4 Single Ear Wireless Headsets with Body Packs

This 4 channel wireless microphone system is the perfect 4 channel wireless microphone system for a rental company that needs a medium-sized portable solution for their customers.  Compact and easy to transport this setup with 3 different options for each of the 4 channels offers multiple solutions in one package for wireless microphone rental services. This 4 channel wireless microphone system is also available in multiple configurations.

Features

• 2 Airwave Technologies AT-4200 Dual Channel Wireless Systems

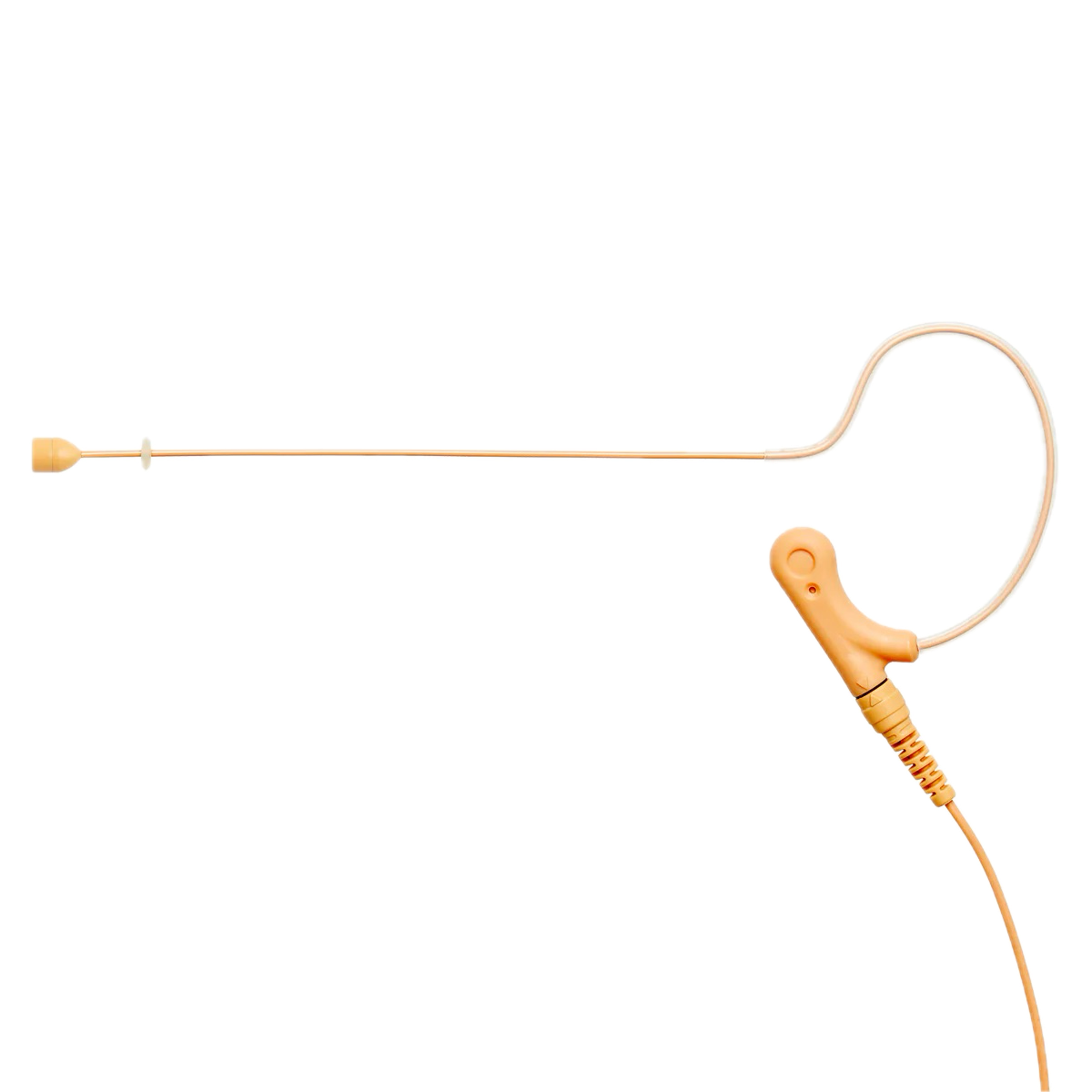

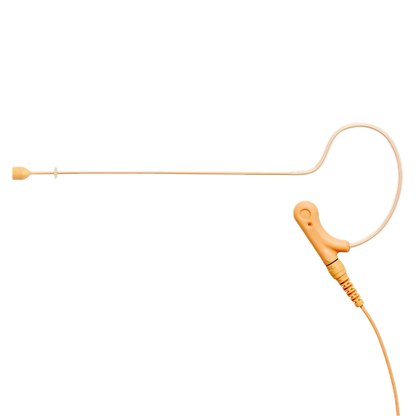

• 4 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets

• 4 AT-4000 Series U-41 Wireless Handheld Microphones

• 4 AT-4000 Series U-42 Wireless Body Packs

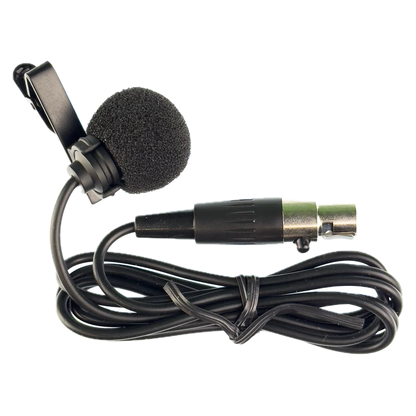

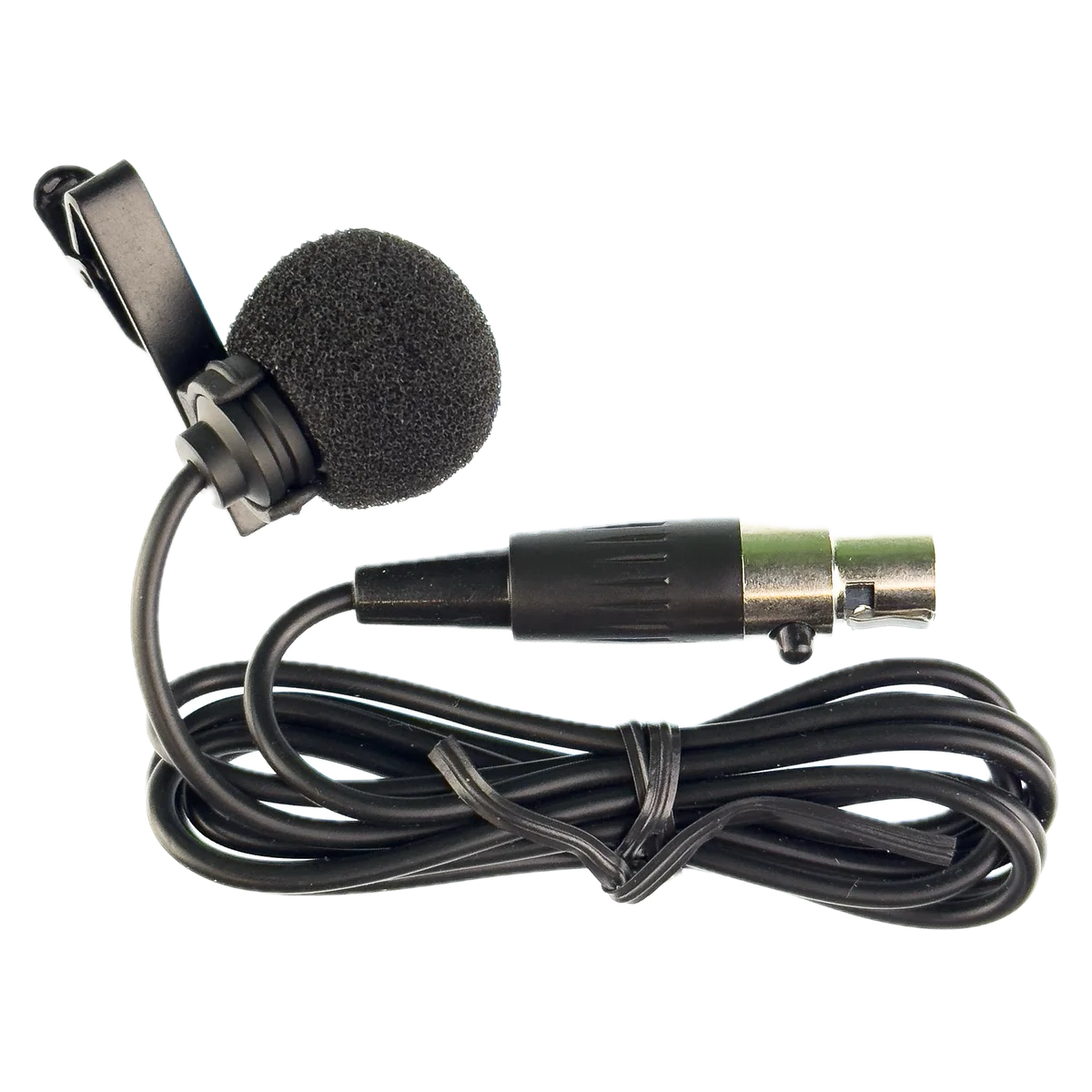

• 4 AT-LAV2 Lavalier Microphones

• 4 Wireless Microphone Clips

• 6 Space Flight Rack

• 2 Space Rack Drawer with Diced Foam

• 514-542 MHz

• FCC Tested and Approved: FCC ID  2AINTAT-4200

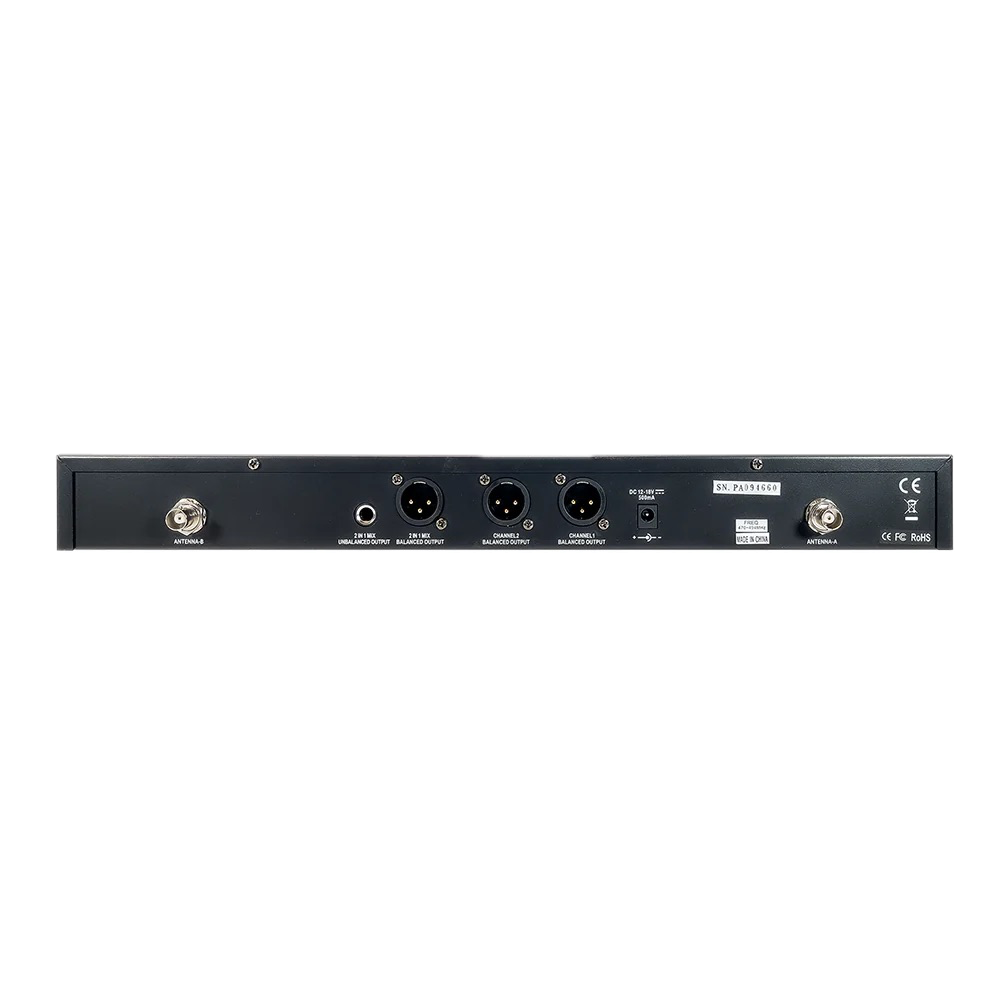

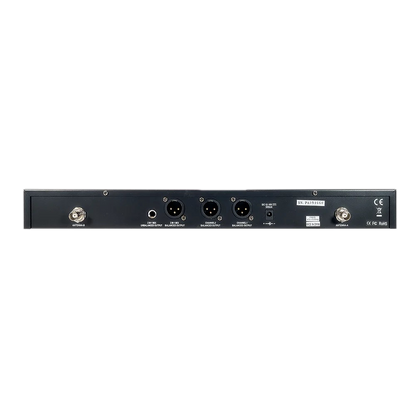

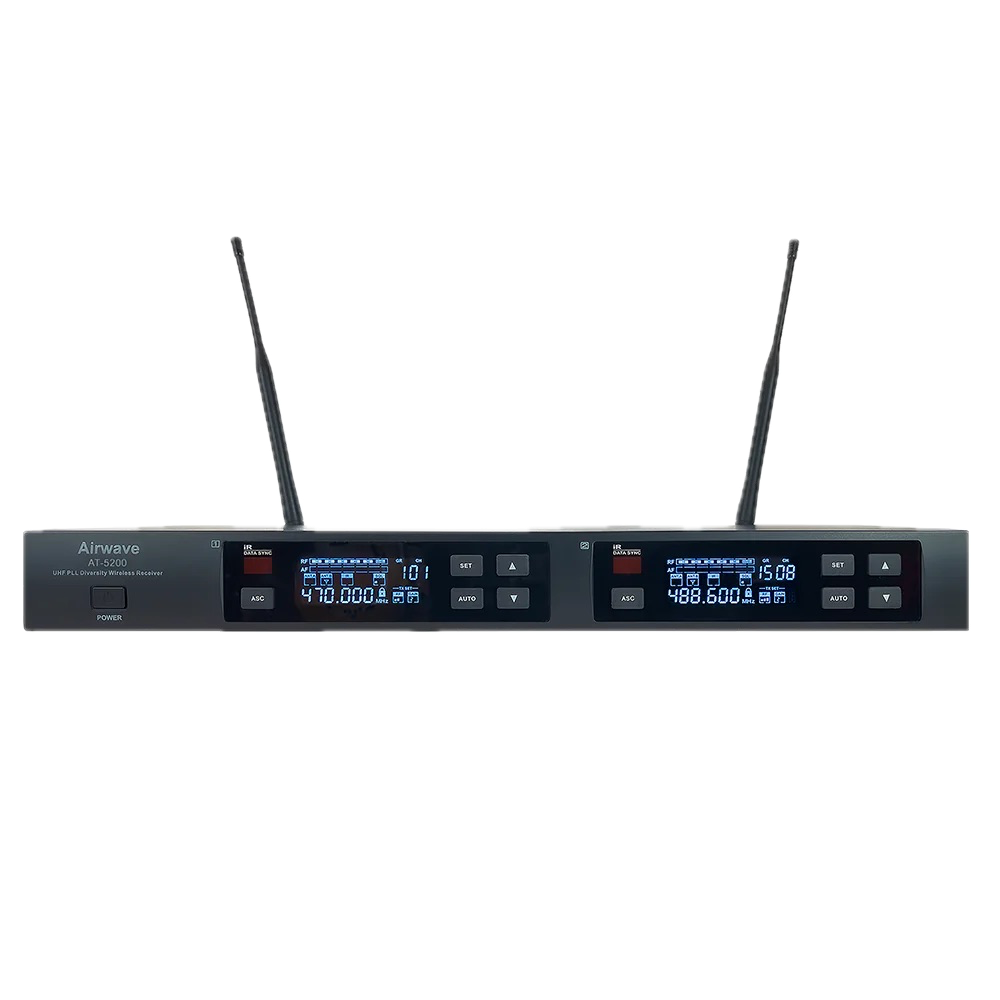

AT-4200 Wireless Microphone Receiver Specifications

• Frequency Range: 470~489MHz / 514~542 MHZ

• Modulation : FM

• Working Range: 328’

• Optional Frequency: 192

• Frequency Response: 50Hz ~ 15KHz (±3dB)

• Dynamic Range: > 105dB

• THD: < 0.5%

• S/N Ratio: > 102dB(A)

• RF Sensitivity: < -95dBm

• Image Rejection: > 60dB

• Output Connectors: XLR×1/ 1/4-inch connector×1

• Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV

• Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements:  12V/0.5A DC

• Operating Temperature Range: 32°F - 122°F

• Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)

• Weight: 3.858 lb.

• FCC ID: 2AINTAT-4200

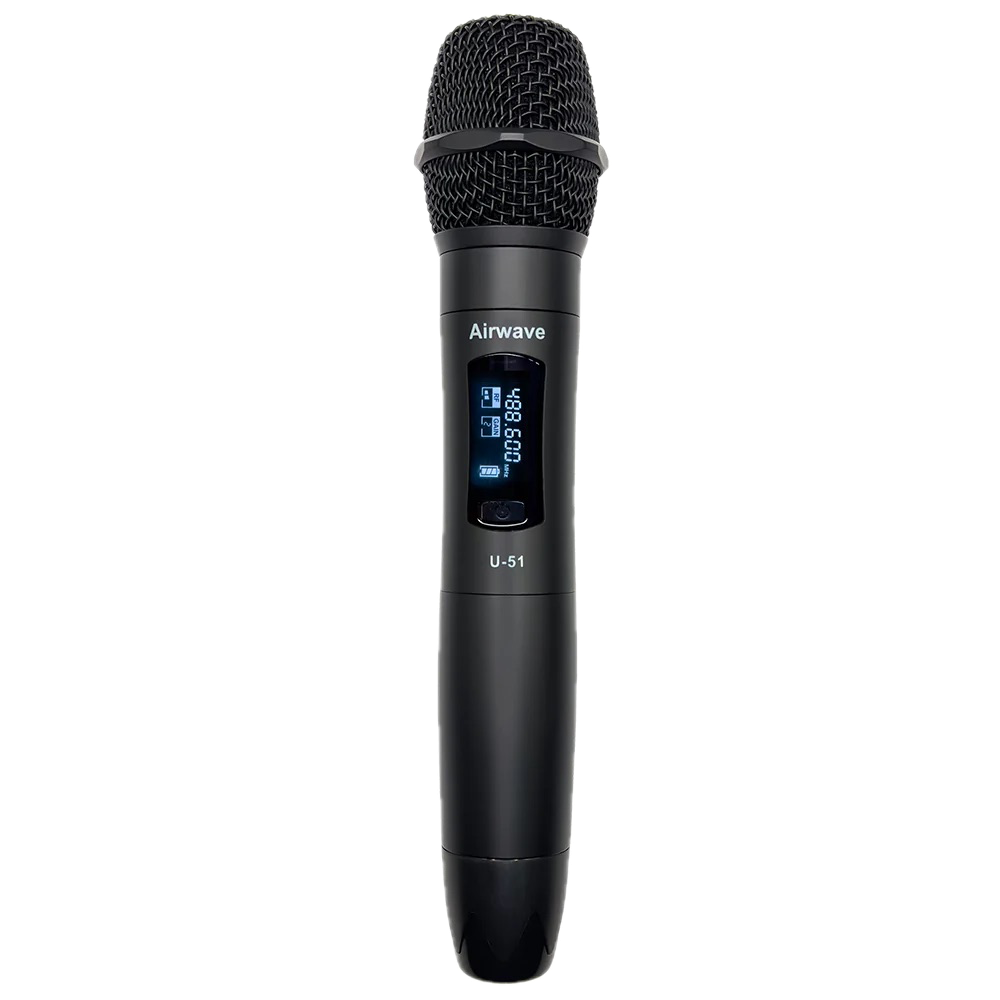

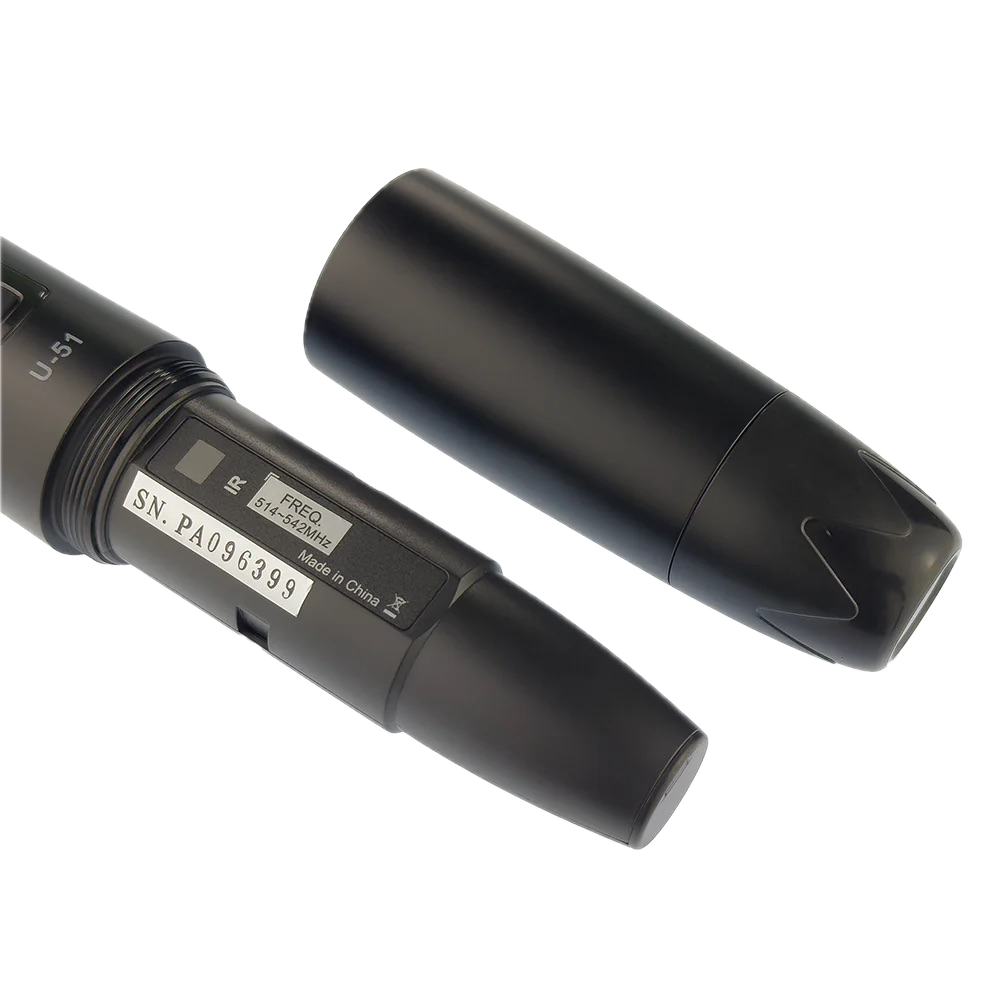

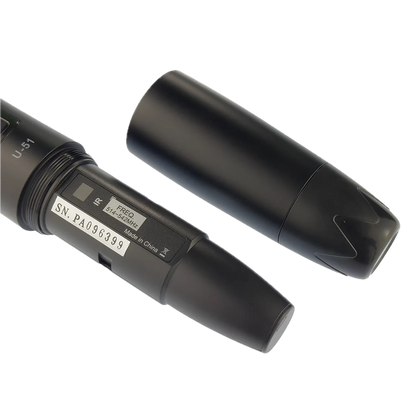

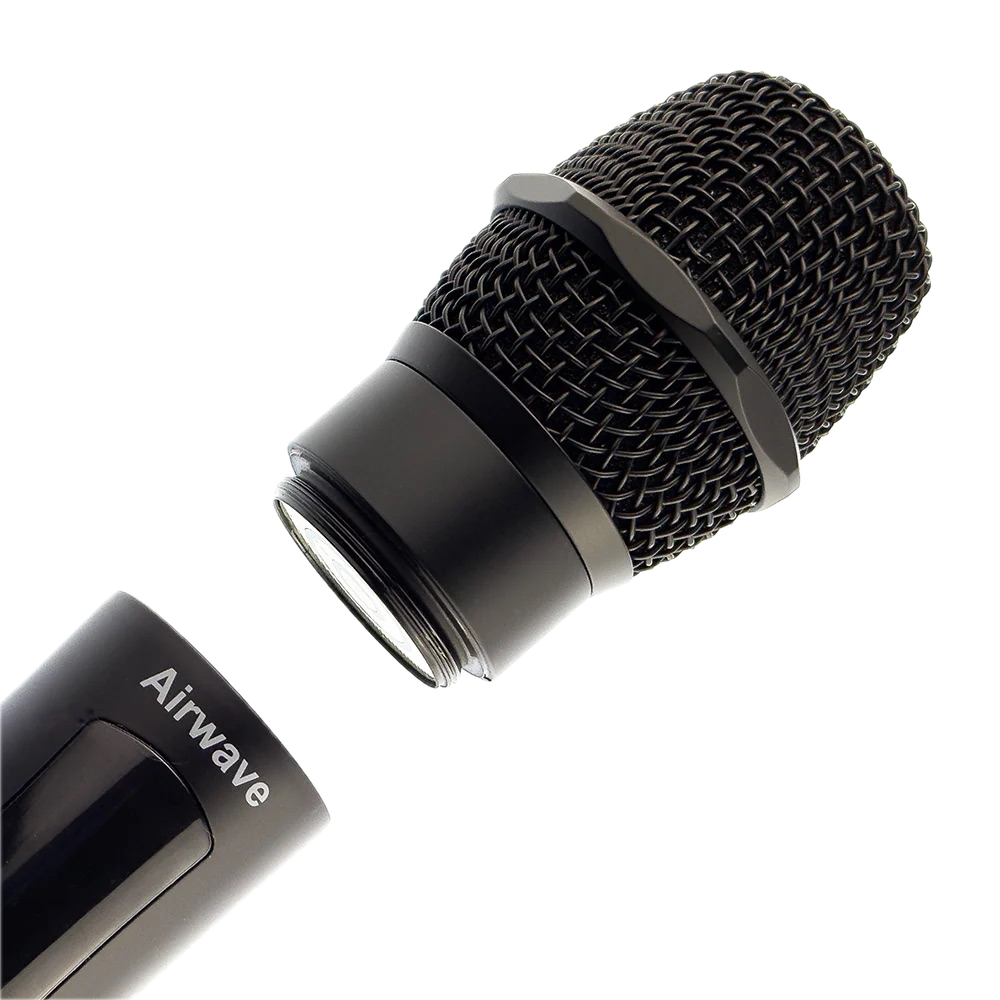

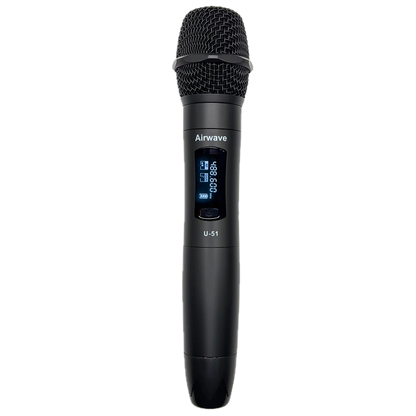

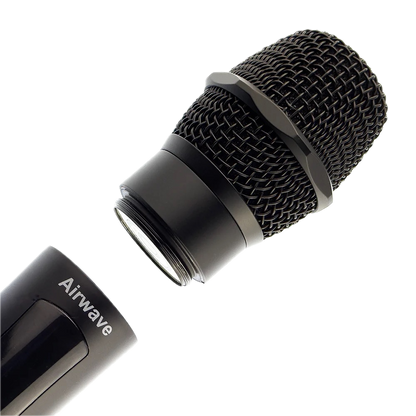

AT-U41 Handheld Microphone Specifications

• Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz

• Capsule Frequency Response: 50Hz ~ 16KHz

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Spurious: >dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84” x 1.97”

• Weight: 12.7oz

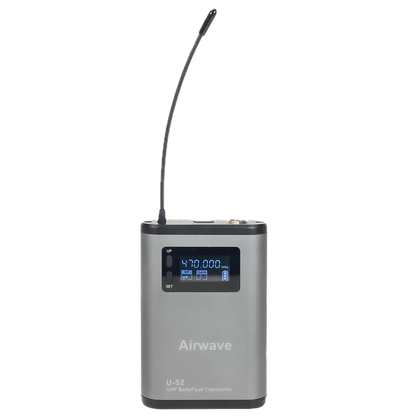

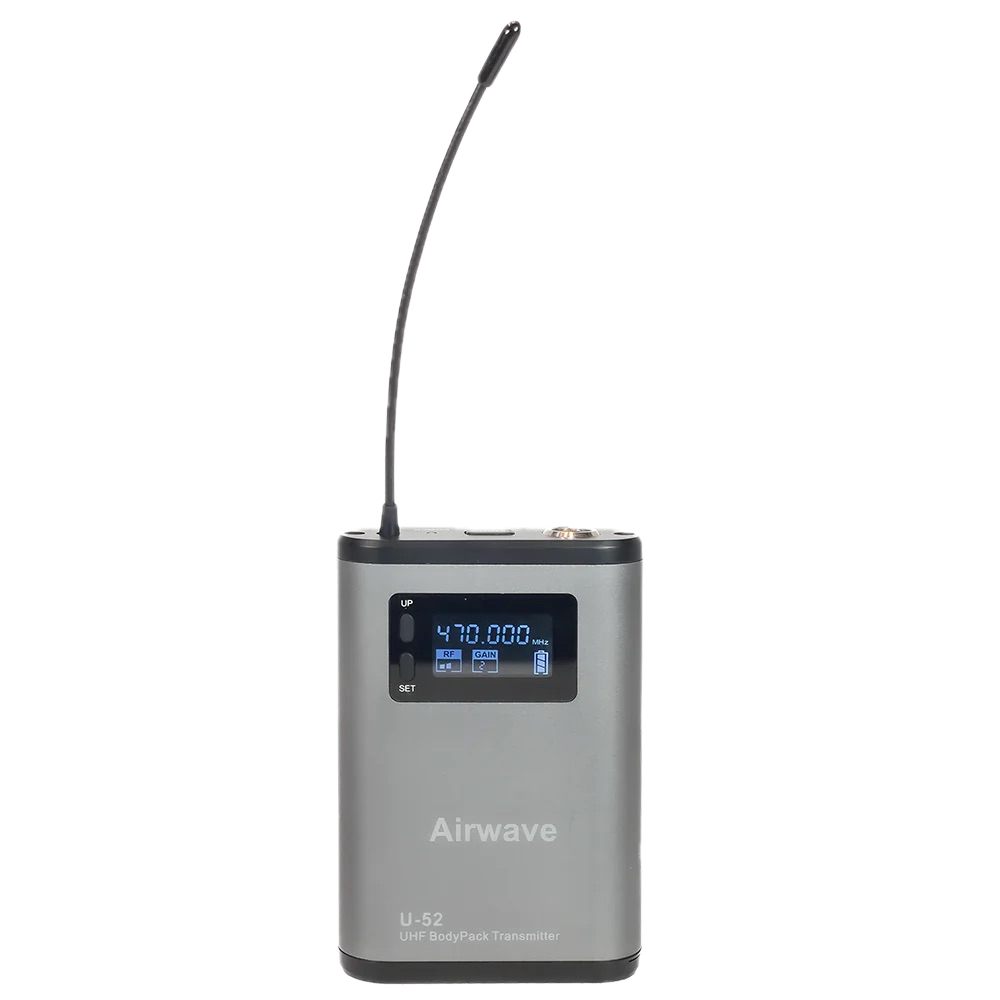

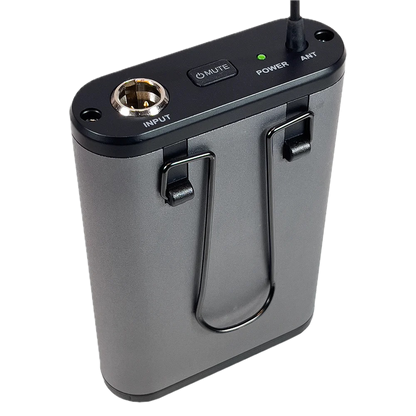

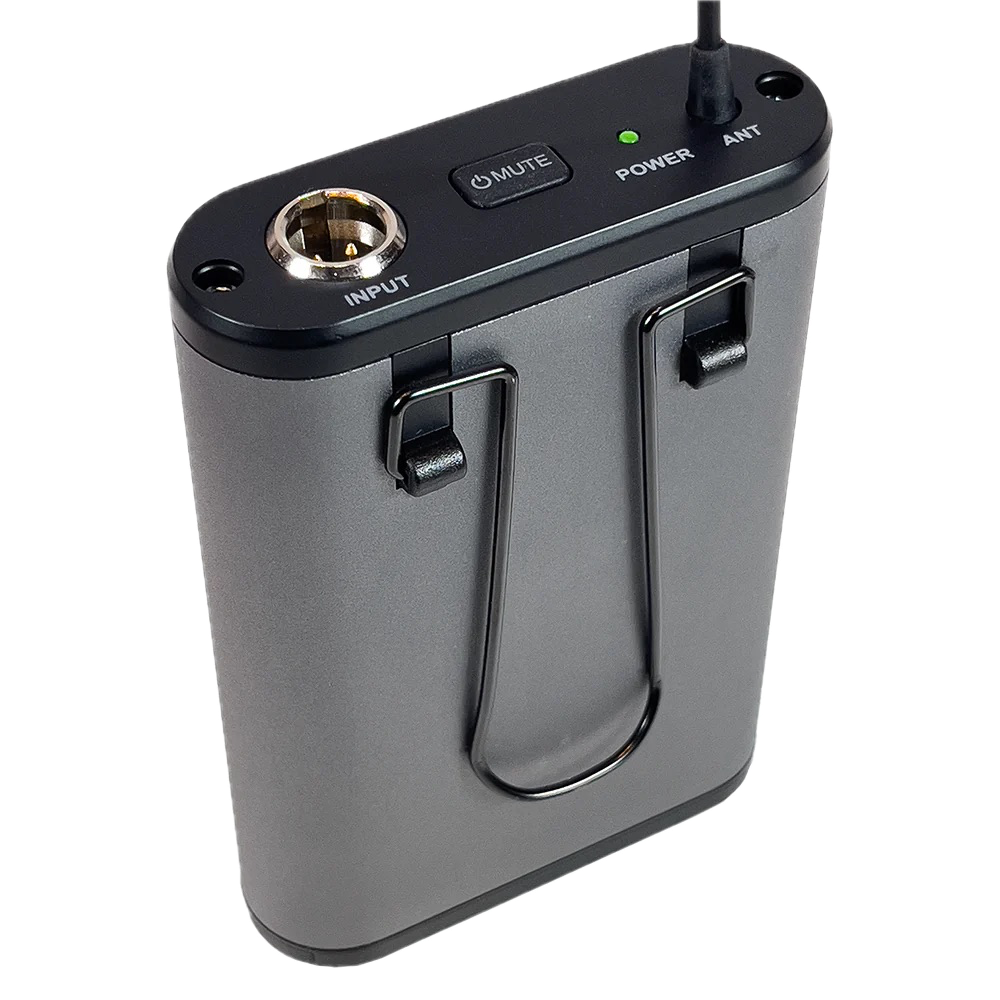

AT-U42 Bodypack Transmitter Specifications

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 6.5” x 2.56” x .91”

• Weight: 4.59oz
