AT-SYS-10 COMBO

Portable kit with five handhelds, and 5 bodypacks.  Includes lav and headset microphones.

From the Manufacturer

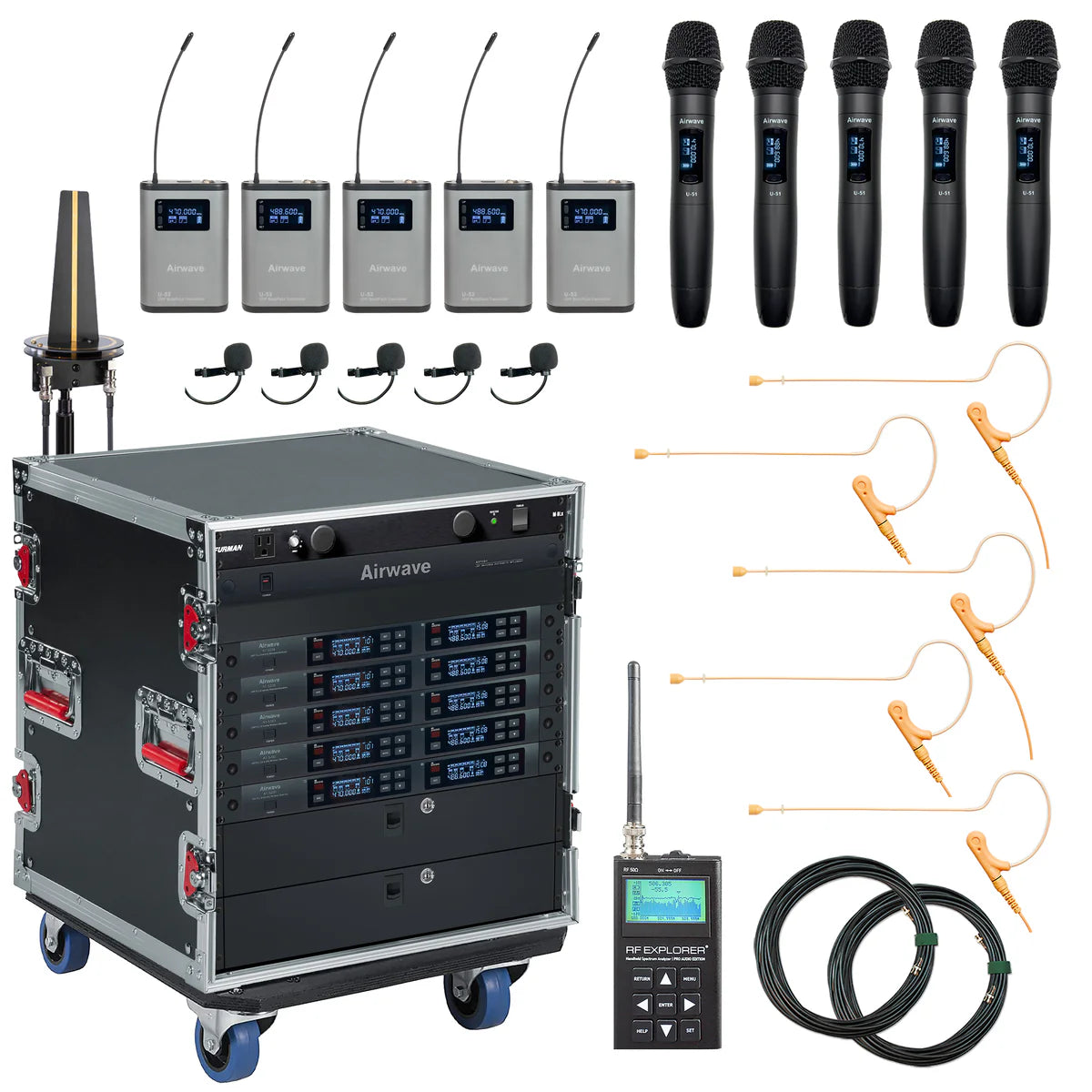

Turnkey 10 Channel Wireless System Package with 5 Handhelds, 5 Single Ear Wireless Headsets and 5 Lavaliers with Body Packs

This is the an ideal 10 channel system for a facility or audio engineer that needs to provide the ultimate audio solution for their venue.  The entire system is housed in a 12 space rolling flight case that securely protects each component of the system. Easy to transport, this setup with 3 different options for each of the 10 channels is the perfect portable or stationary solution for wireless microphones. Also available in multiple configurations.

Features

• 5 Airwave Technologies AT-4200 Dual Channel Wireless Systems

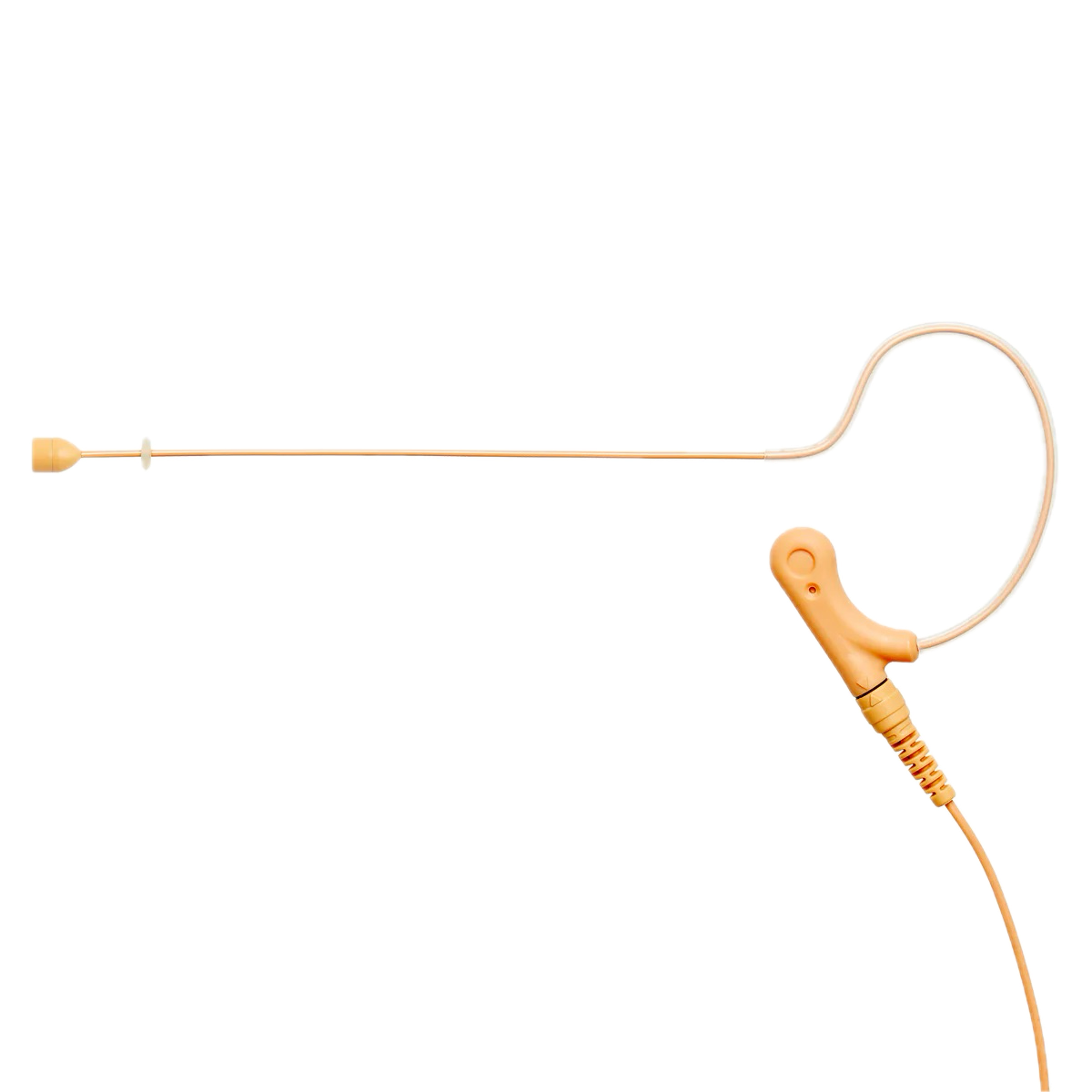

• 5 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets

• 5 AT-4000 Series U41 Wireless Handheld Microphones

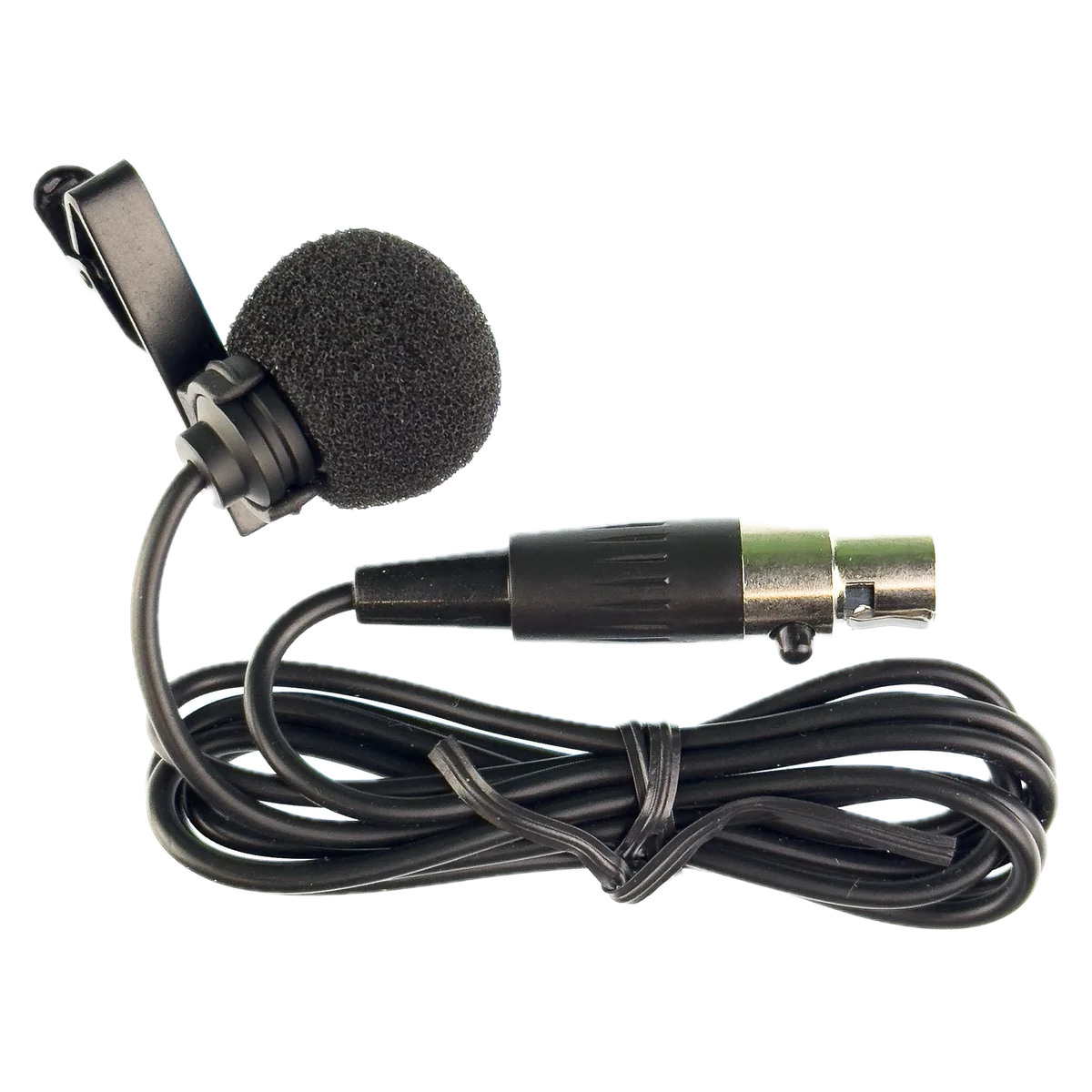

• 5 AT-LAV2 Lavalier Microphones

• 5 AT-4000 Series U42 Wireless Body Packs

• Furman M-8Lx Power Conditioner with Lights

• RF Explorer® Frequency Coordination Scanner

• ANT-001 Rack Mount Antenna Distro

• RF Venue Diversity Omni™ Antenna

• 2 Band-Pass Filters

• 2 25ft Antenna Cables

• 5 Wireless Microphone Clips

• 12 Space Flight Rack with Casters

• 2 Two Space Rack Drawers with Diced Foam

• 1 Blank Rack Panel

• 514-542 MHz

• FCC Tested and Approved: FCC ID  2AINTAT-4200

• *Microphone stand for RF Venue DFIN not included

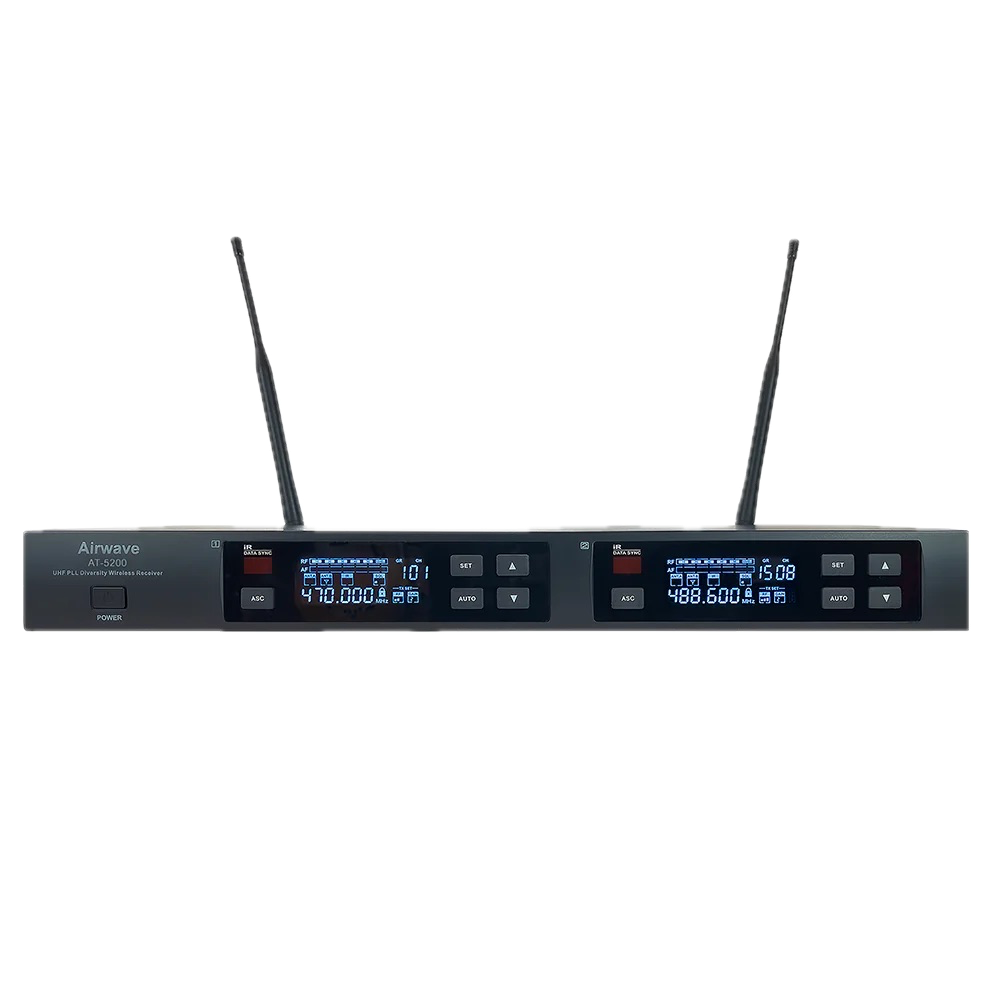

AT-4200 Wireless Microphone Receiver Specifications

• Frequency Range: 470~489MHz / 514~542 MHZ

• Modulation : FM

• Working Range: 328’

• Optional Frequency: 192

• Frequency Response: 50Hz ~ 15KHz (±3dB)

• Dynamic Range: > 105dB

• THD: < 0.5%

• S/N Ratio: > 102dB(A)

• RF Sensitivity: < -95dBm

• Image Rejection: > 60dB

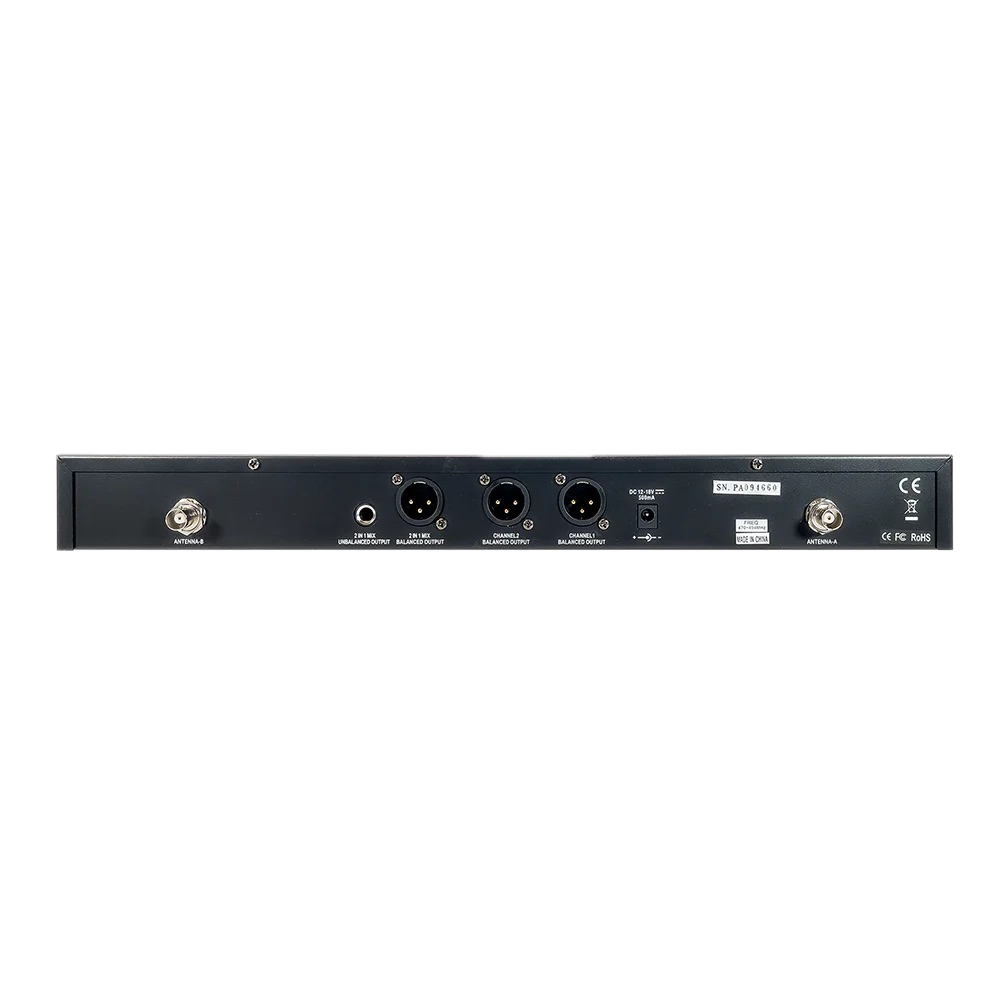

• Output Connectors: XLR×1/ 1/4-inch connector×1

• Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV

• Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements:  12V/0.5A DC

• Operating Temperature Range: 32°F - 122°F

• Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)

• Weight: 3.858 lb.

• FCC ID: 2AINTAT-4200

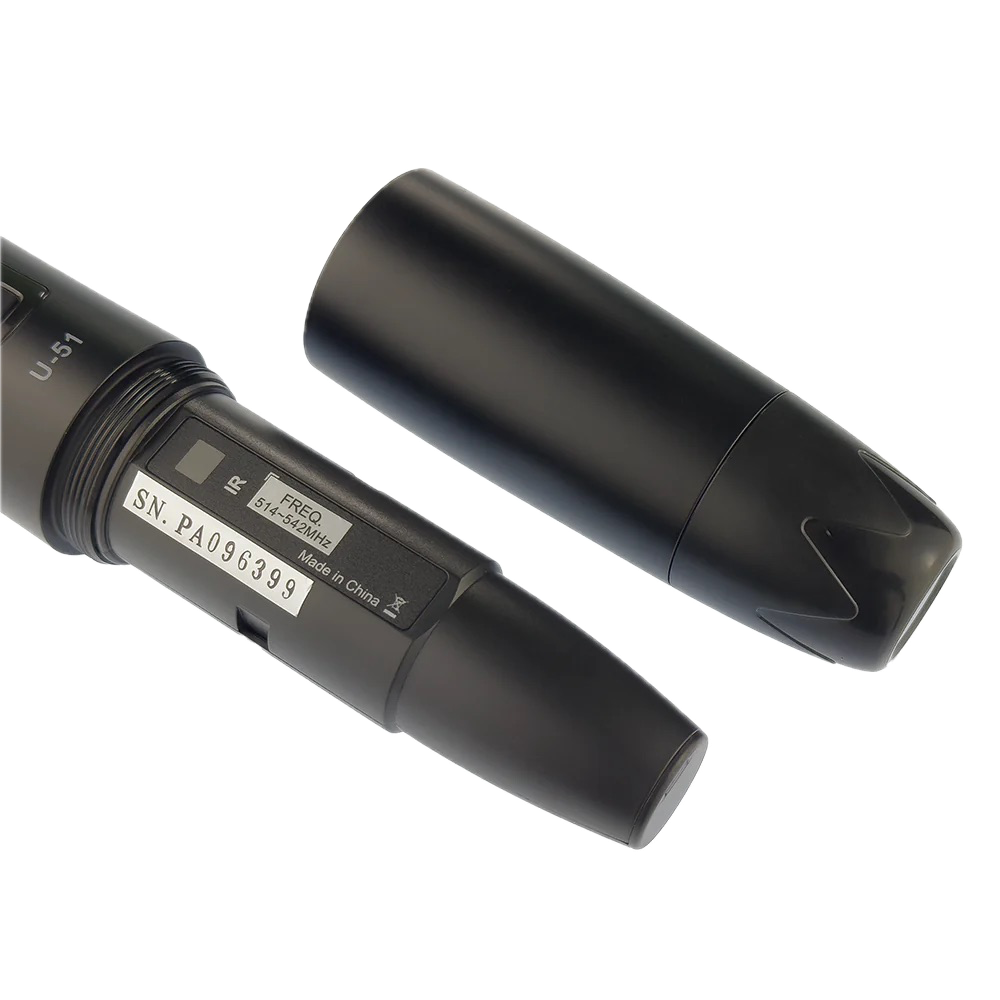

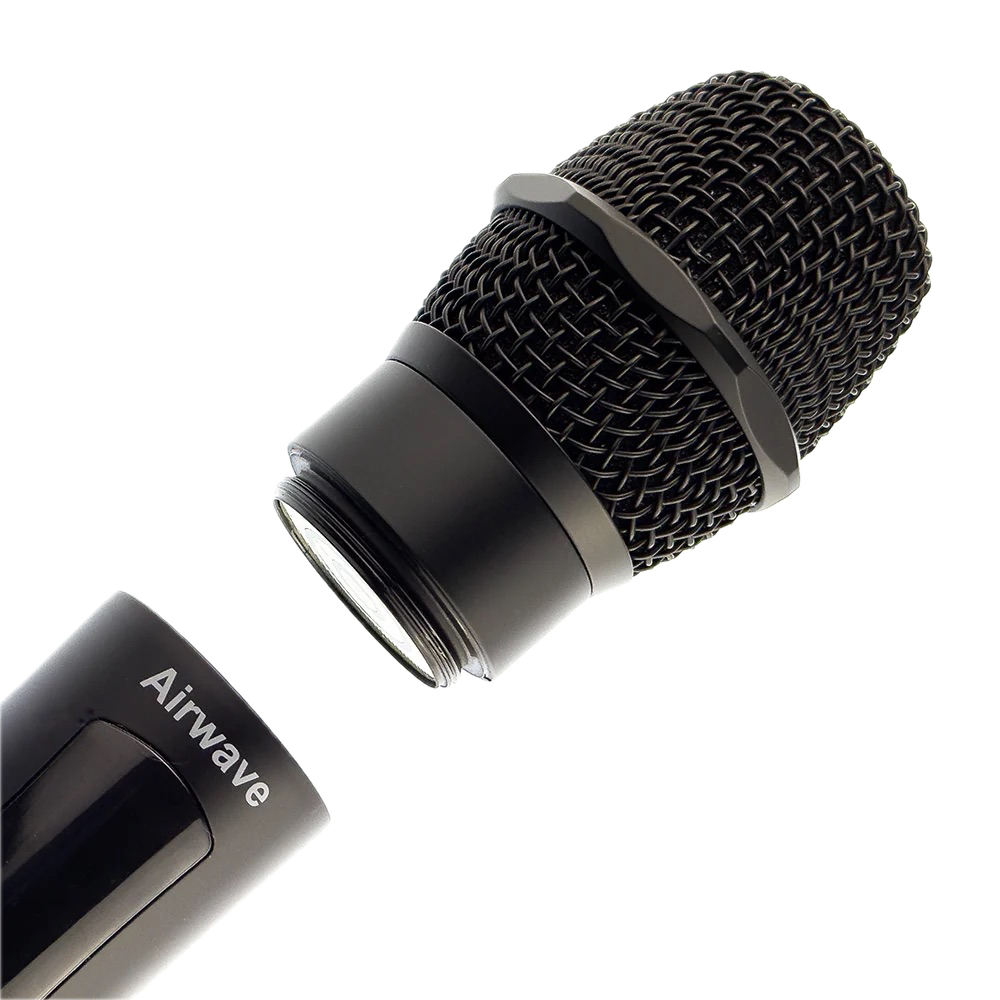

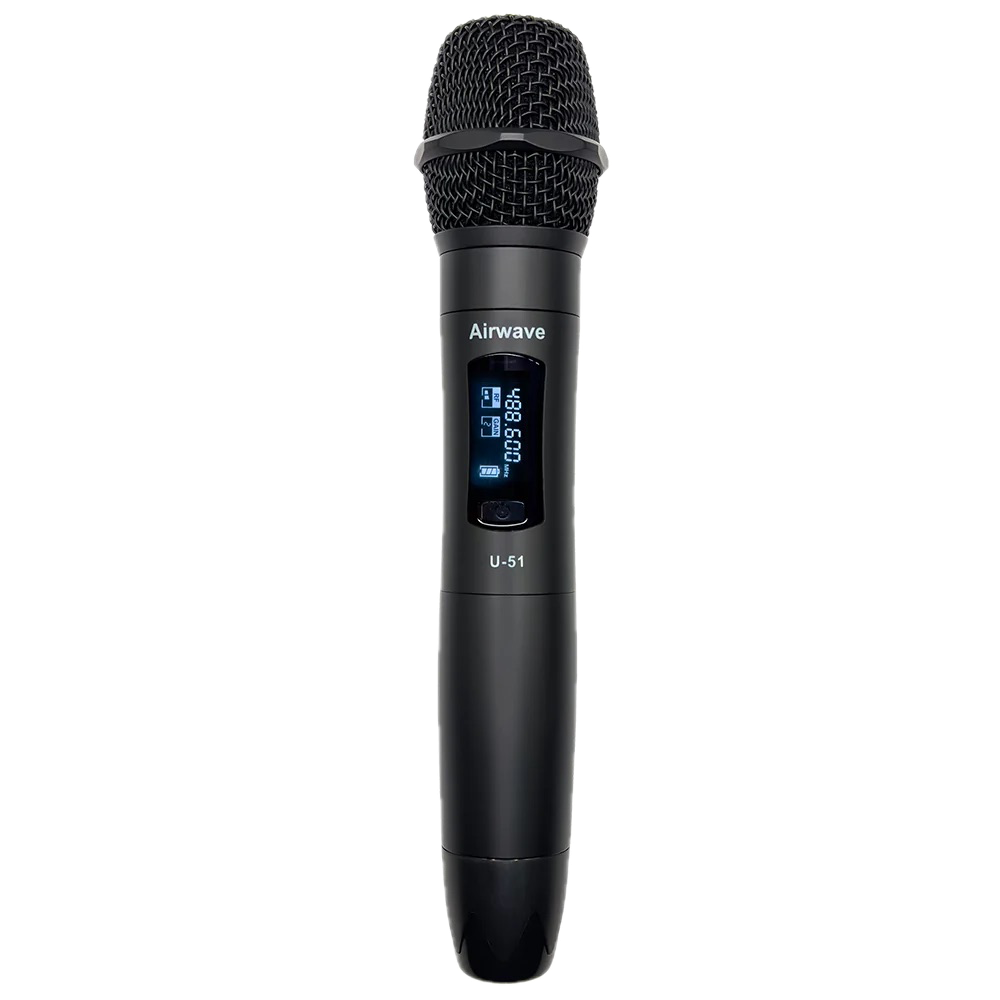

AT-U41 Handheld Microphone Specifications

• Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz

• Capsule Frequency Response: 50Hz ~ 16KHz

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Spurious: >dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84” x 1.97”

• Weight: 12.7oz

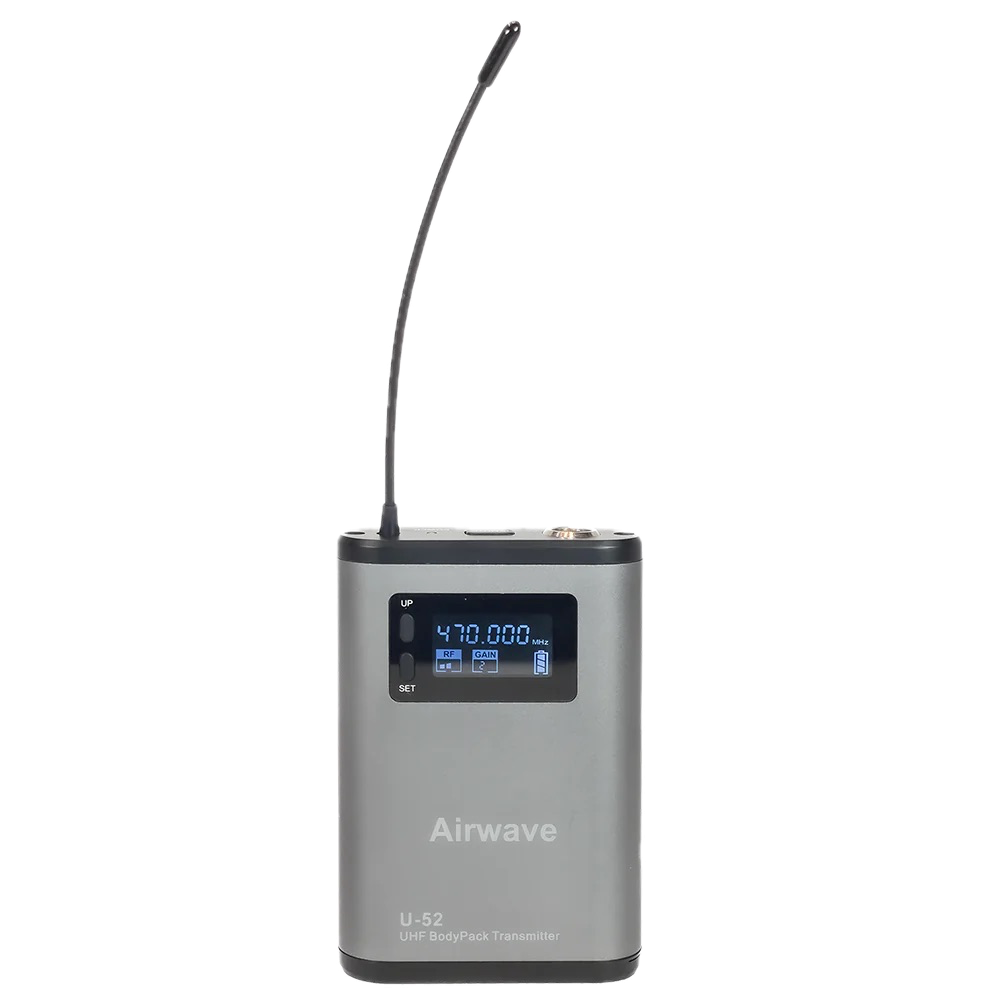

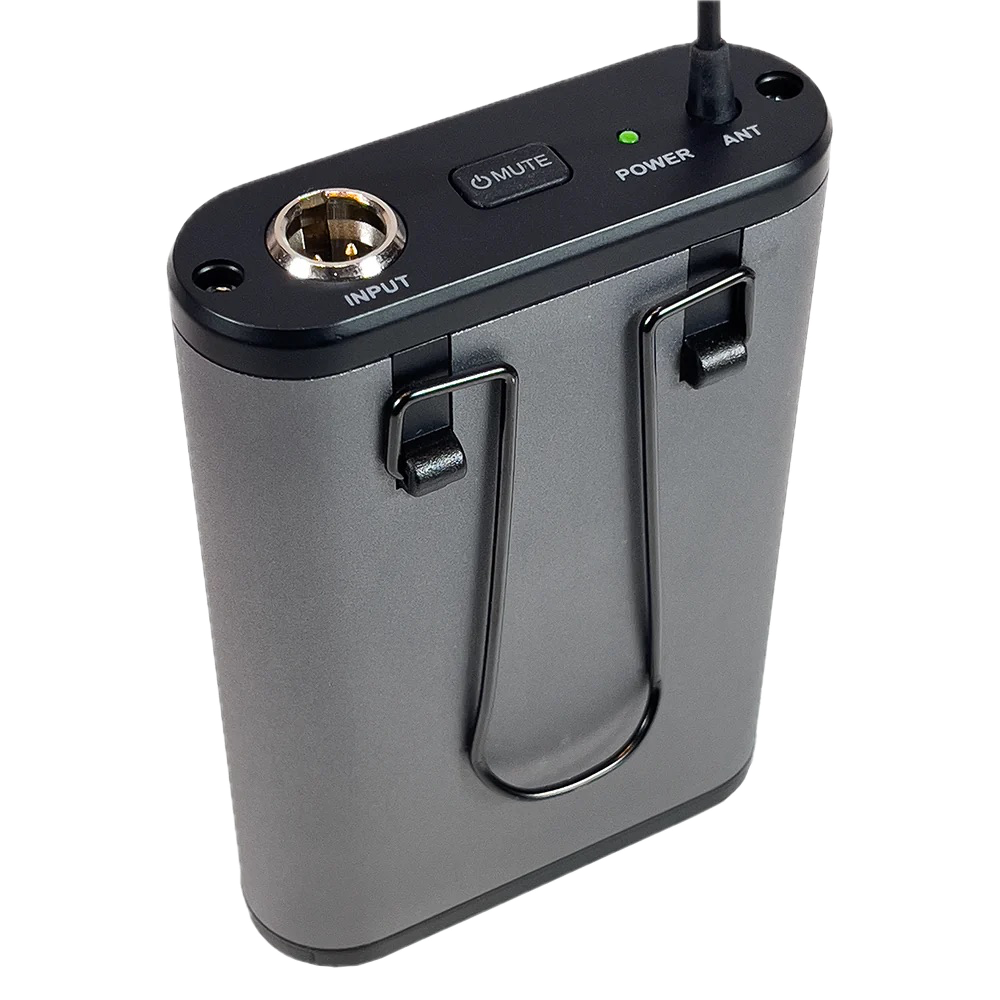

AT-U42 Bodypack Transmitter Specifications

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 6.5” x 2.56” x .91”

• Weight: 4.59oz
