AT-SYS-10 HH

Portable kit with ten handheld microphones, and included antenna.

From the Manufacturer

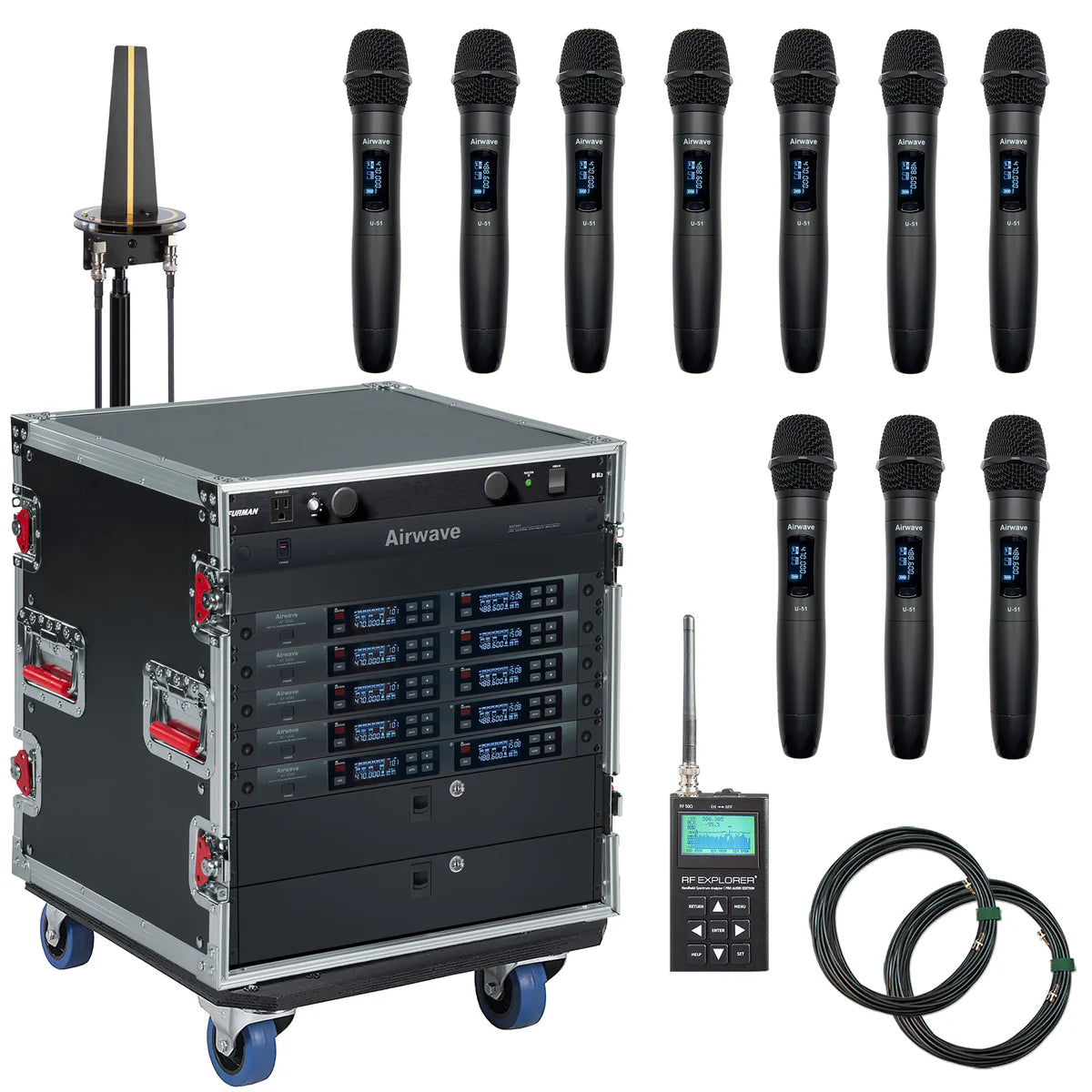

Turnkey 10 Channel Wireless System Package with 10 Handheld Microphones

A 10 channel system for a rental company that needs to provide a multiple handheld microphone solution for their customers.  The entire system is housed in a 12 space rolling flight case that securely protects each component of the system. Easy to transport, this setup with 10 channels is the perfect solution for powerhouse wireless microphone rental services. Also available in multiple configurations.

Features

• 5 Airwave Technologies AT-4200 Dual Channel Wireless Recievers

• 10 AT-4000 Series U-41 Wireless Handheld Microphones

• Furman M-8Lx Power Conditioner with Lights

• RF Explorer® Frequency Coordination Scanner

• ANT-001 Rack Mount Antenna Distro

• RF Venue Diversity Omni™ Antenna

• 2 Band-Pass Filters

• 2 25ft Antenna Cables

• 10 Wireless Microphone Clips

• 12 Space Flight Rack with Casters

• 2 Two Space Rack Drawers with Diced Foam

• 514-542 MHz

• FCC Tested and Approved: FCC ID  2AINTAT-4200

• *Microphone stand for RF Venue DFIN not included

AT-4200 Wireless Microphone Receiver Specifications

• Frequency Range: 470~489MHz / 514~542 MHZ

• Modulation : FM

• Working Range: 328’

• Optional Frequency: 192

• Frequency Response: 50Hz ~ 15KHz (±3dB)

• Dynamic Range: > 105dB

• THD: < 0.5%

• S/N Ratio: > 102dB(A)

• RF Sensitivity: < -95dBm

• Image Rejection: > 60dB

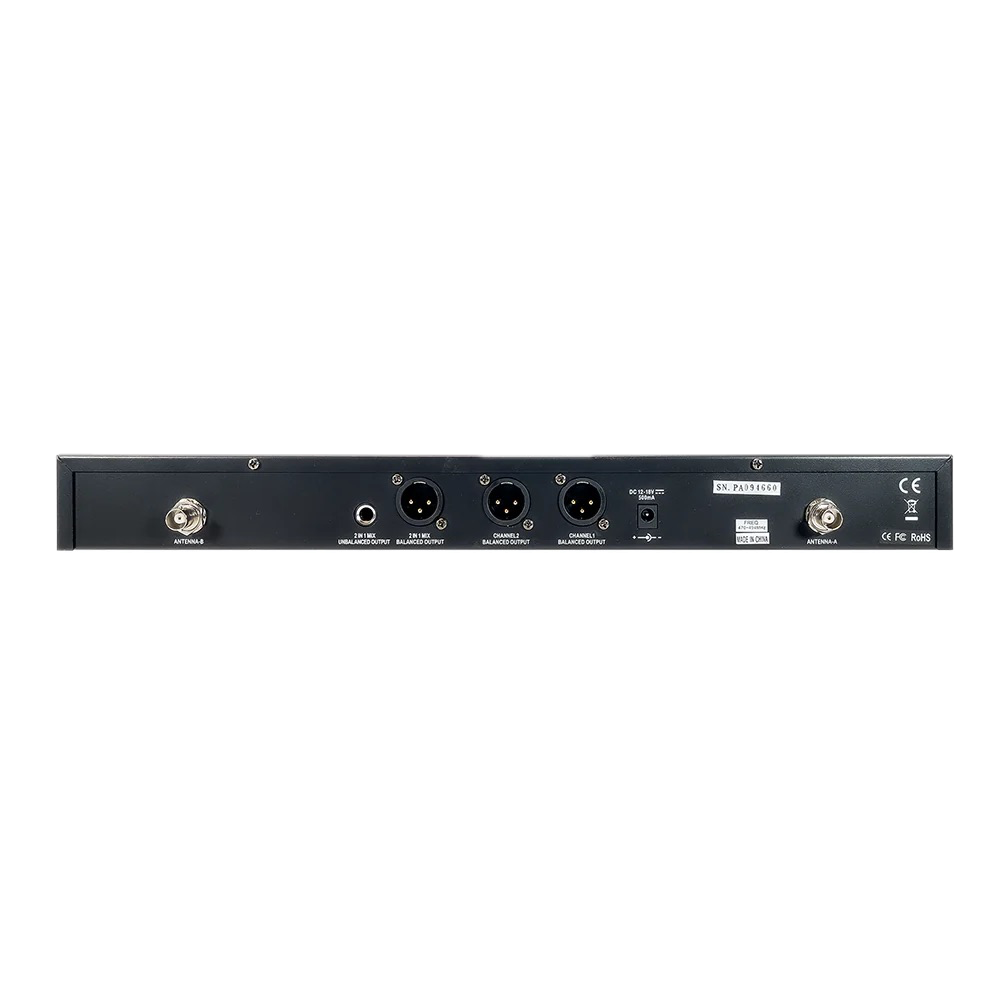

• Output Connectors: XLR×1/ 1/4-inch connector×1

• Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV

• Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements:  12V/0.5A DC

• Operating Temperature Range: 32°F - 122°F

• Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)

• Weight: 3.858 lb.

• FCC ID: 2AINTAT-4200

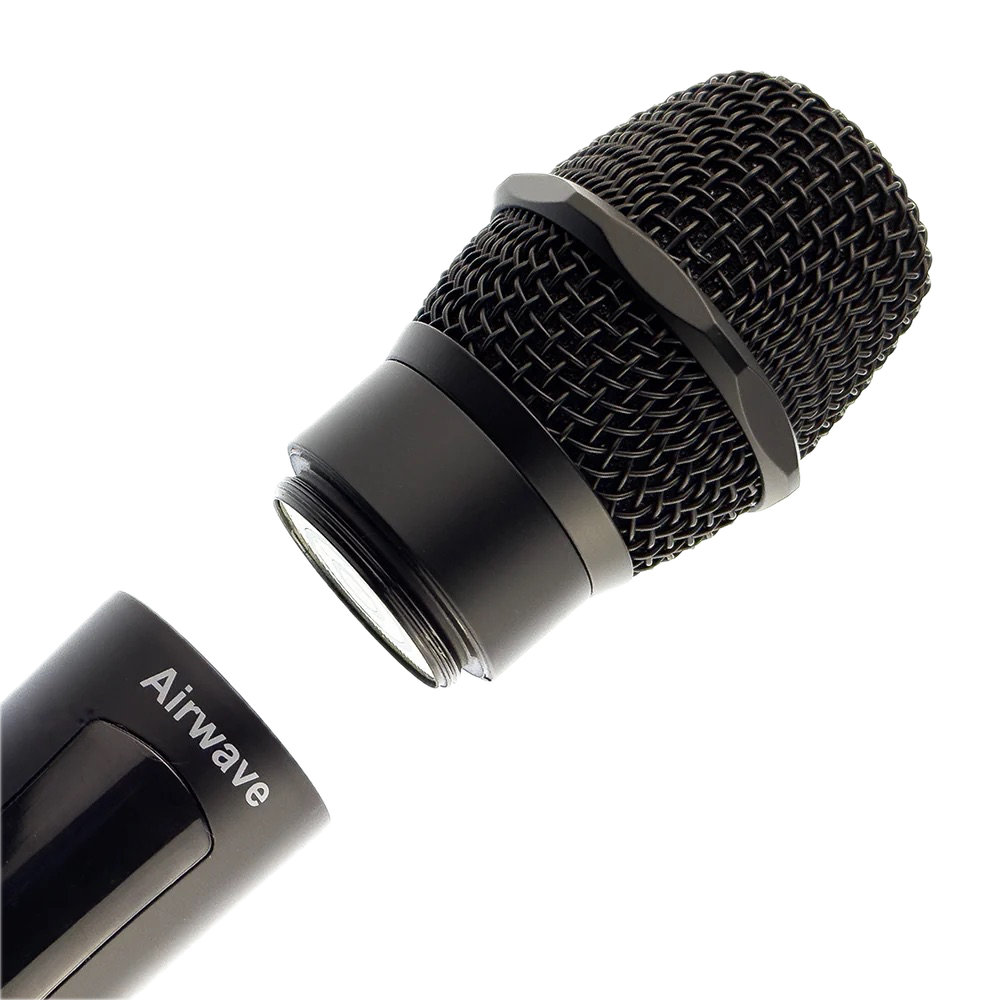

AT-U41 Handheld Microphone Specifications

• Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz

• Capsule Frequency Response: 50Hz ~ 16KHz

• Gain Adjustment Range: 0/3/6dB

• Input Impedance: 5KΩ

• Output Power: 2mW / 10mW / 30mW

• Spurious: >dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84” x 1.97”

• Weight: 12.7oz
