Sku: AT-SYS-6-HHA

AT-SYS-6-HH PACK Pack Wireless Microphone System

Regular price
$4,799.95
Regular price
Sale price
$4,799.95
Shipping calculated at checkout.
Vendor: Airwave Technologies

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Style: Frequency Range A: 514-542 MHz

Description

Caret Down

Airwave is the best kept secret in wireless mics today.  This is a brand that we've been watching and using for years - when you don't need top-dollar, high-end wireless, these Airwave mic's provide an exceptional value and quality at a reasonable price.

By bunding 2 channels of wireless together into one rack unit, Airwave saves on cost and complexity.  Smaller installations LOVE the fact that you can simple use (1) XLR output for both microphones when you're short on inputs.

All of the microphones sound good and have quality that is comparable to mid-level microphones from the major players.   When we have gotten these for customers, the feedback we get is that they love the mics, and they are comparable to systems that cost almost twice as much!

You'll notice that the receivers have a battery level and RF/AF indicator and IR sync.  Other wireless systems in this price range have none of that.

It's not a $3000/channel wireless system, but what it is, is a tremendous value for many churches, bands, installations, corporate AV, and more!

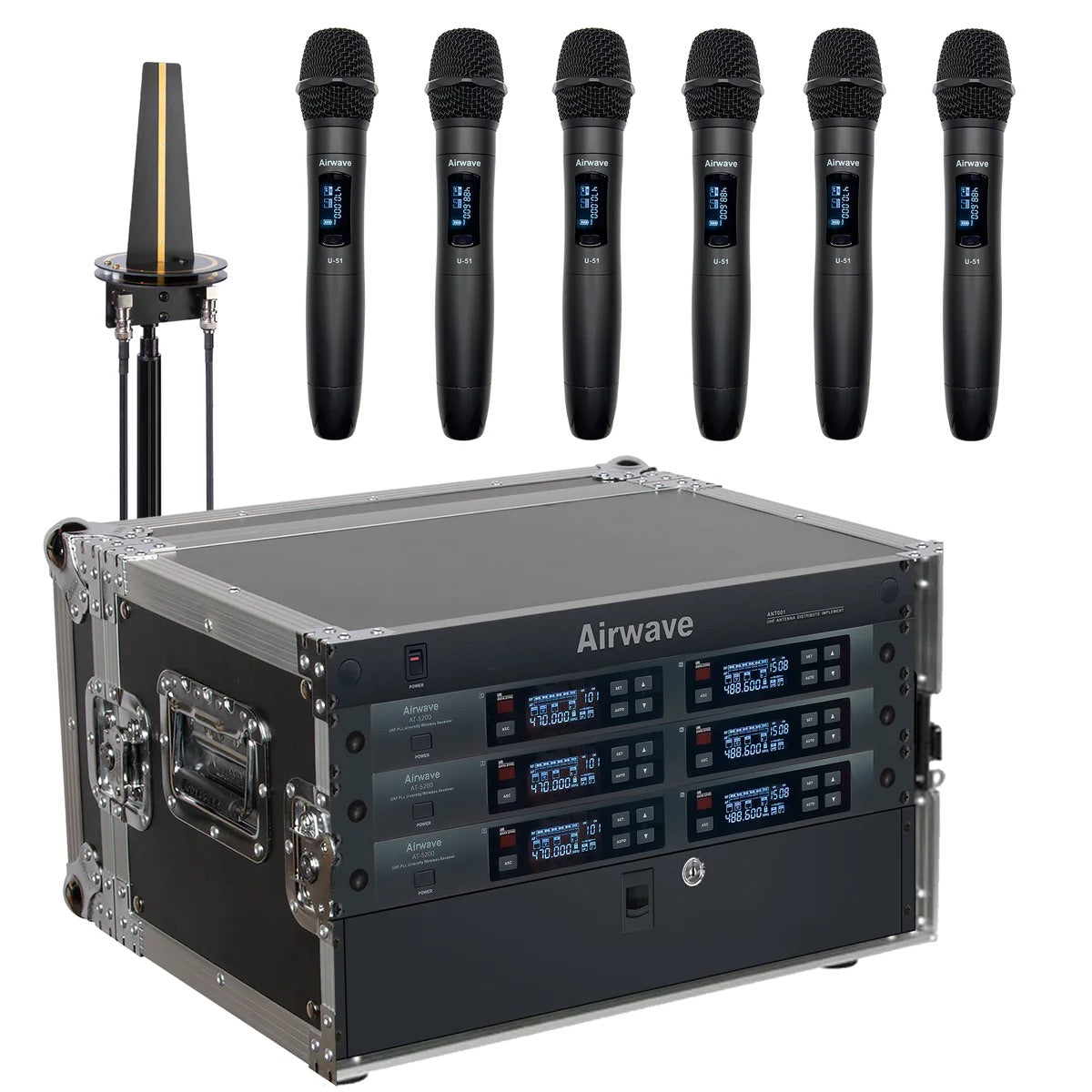

This package features (3) Rackmount receivers and (6) Wireless Handhelds, (1) Antenna Distro, and 4u rack case with 2u drawer with custom foam.

From the Manufacturer:

Turnkey 6 Channel Wireless System Package with 6 Handheld Microphones

A 6 channel system for a rental company that needs to provide a multiple handheld microphone solution for their customers.  The entire system is housed in a  space rolling flight case that securely protects each component of the system. Easy to transport, this setup with 6 channels is the perfect solution for powerhouse wireless microphone rental services. Also available in multiple configurations.

3 Airwave Technologies AT-4200 Dual Channel Wireless Systems

6 AT-4000 Series U-41 Wireless Handheld Microphones

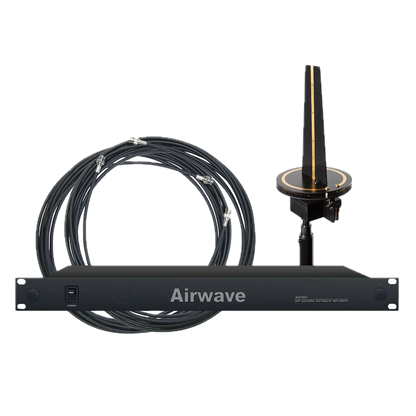

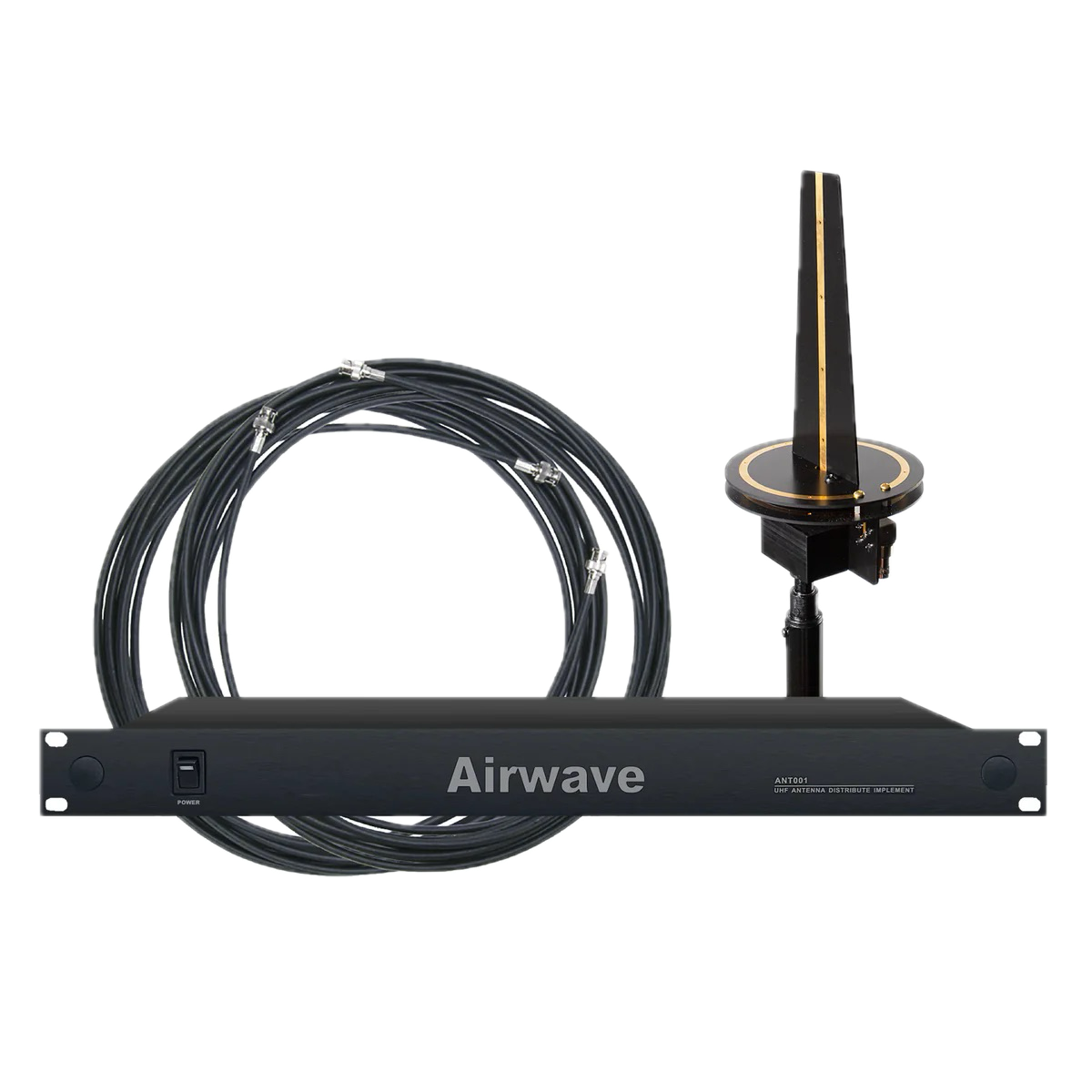

Rack Mount Antenna Distro

RF Venue Omni Directional Antenna

2 25ft Antenna Cables

6 Wireless Microphone Clips

6 Space Flight Rack

Two Space Rack Drawer with Diced Foam

FCC Tested and Approved: FCC ID  2AINTAT-4200

*Microphone stand for RF Venue DFIN not included

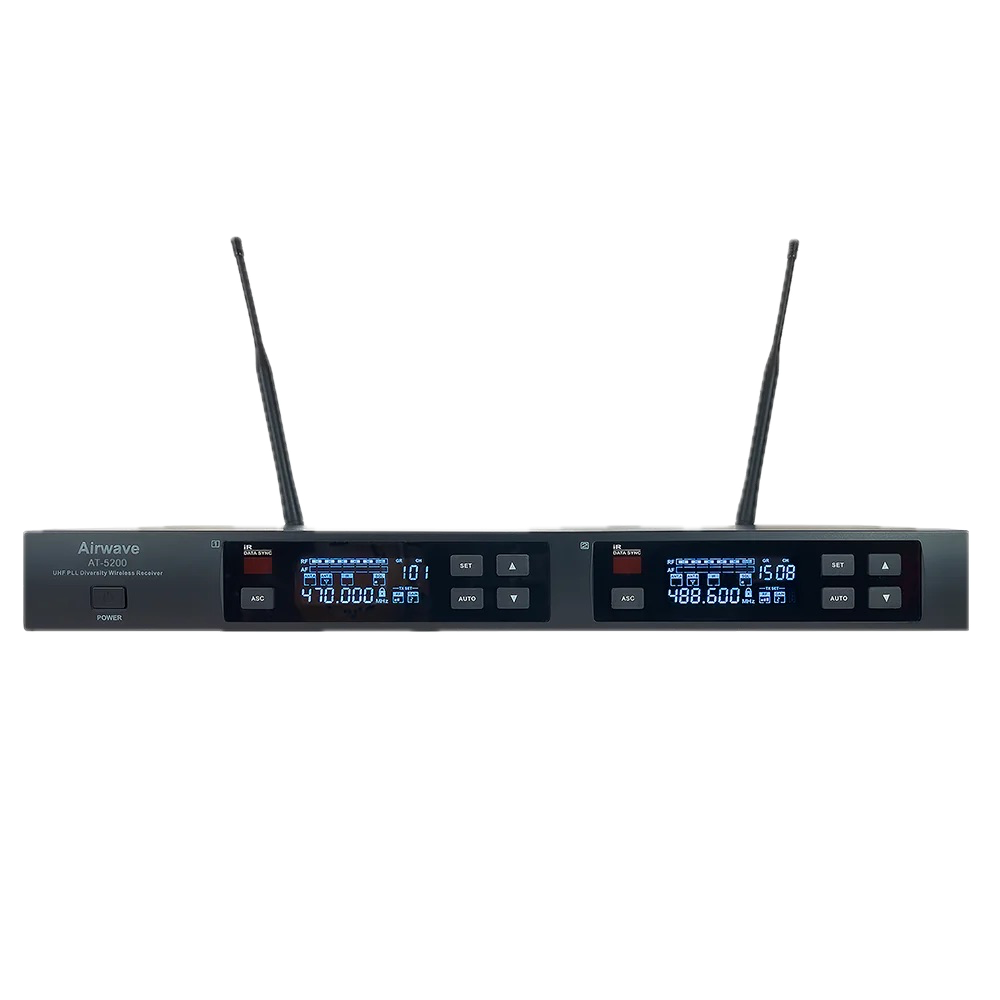

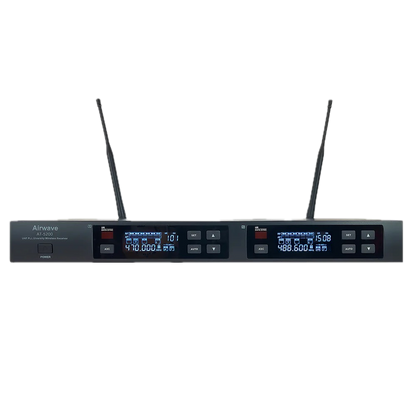

AT-4200 WIRELESS MICROPHONE RECEIVER SPECIFICATIONS



Frequency Range: 470~489MHz / 514~542 MHZ
Modulation : FM
Working Range: 328’
Optional Frequency: 192
Frequency Response: 50Hz ~ 15KHz (±3dB)
Dynamic Range: > 105dB
THD: < 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dBm
Image Rejection: > 60dB

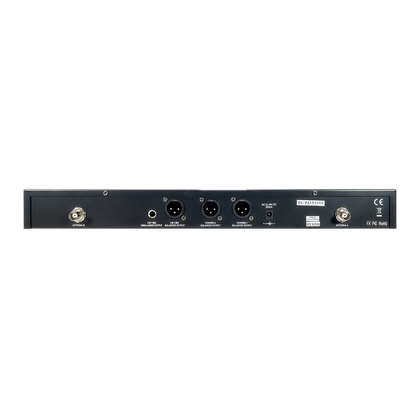

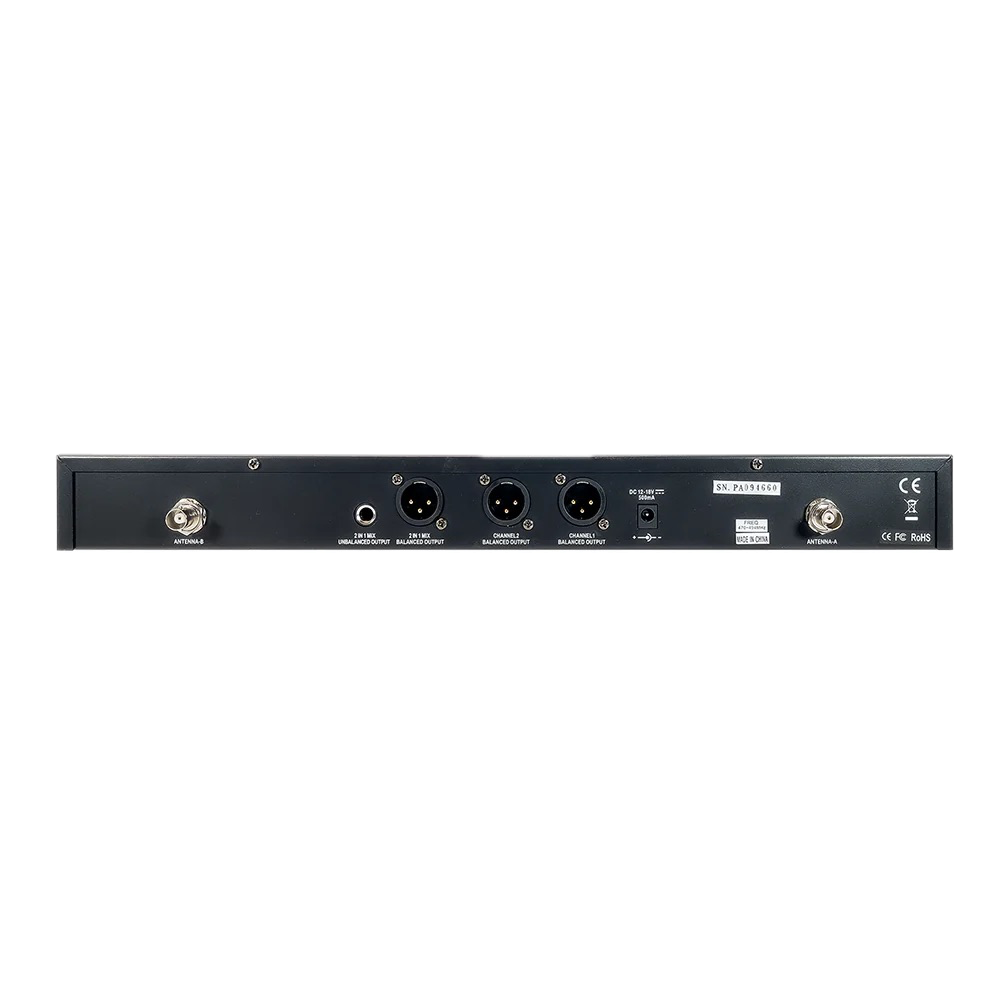

Output Connectors: XLR×1/ 1/4-inch connector×1
Audio Output Level: XLR: +10dBV / 1/4-inch connector: +8dBV
Impedance: XLR: 3KΩ / 1/4-inch connector: 3KΩ
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements:  12V/0.5A DC
Operating Temperature Range: 32°F - 122°F
Dimensions: 6.299” (W) x 16.142” (L) x 1.732” (H)
Weight: 3.858 lb.
FCC ID: 2AINTAT-4200

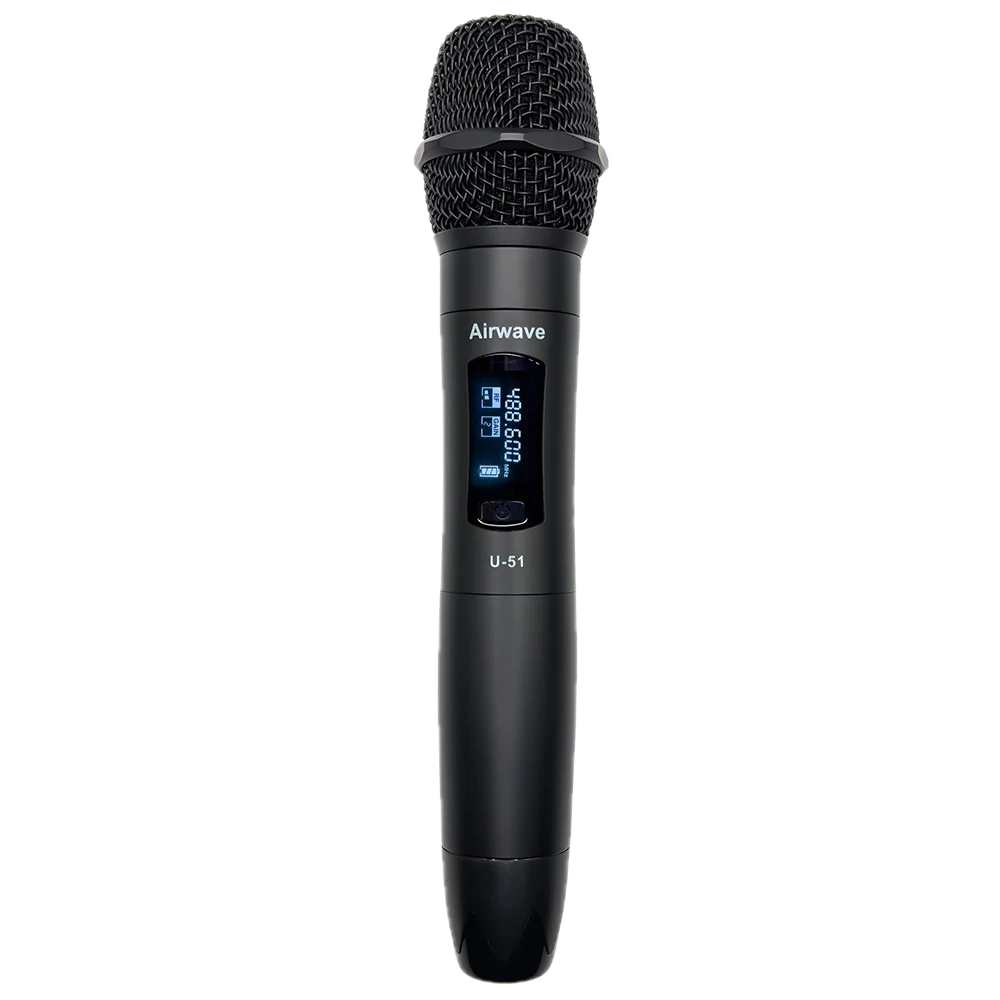

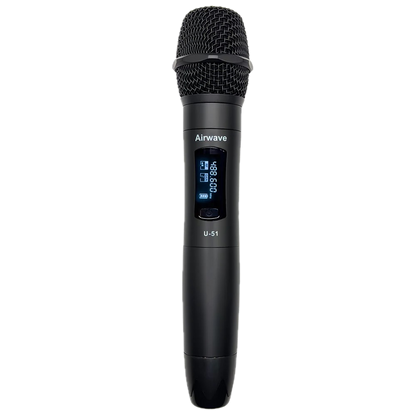

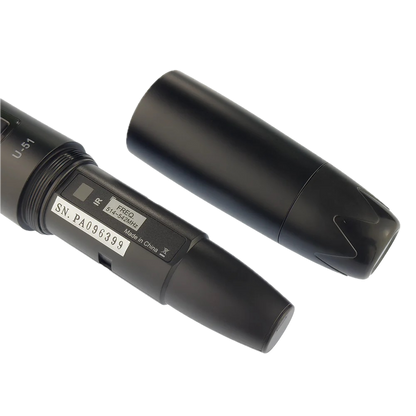

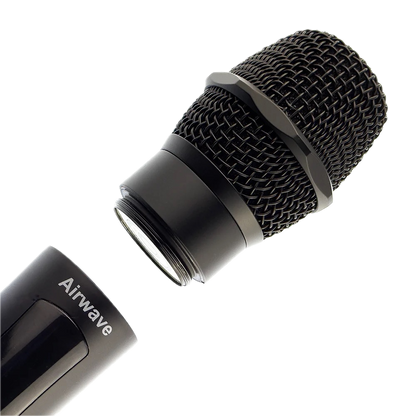

AT-U41 HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS

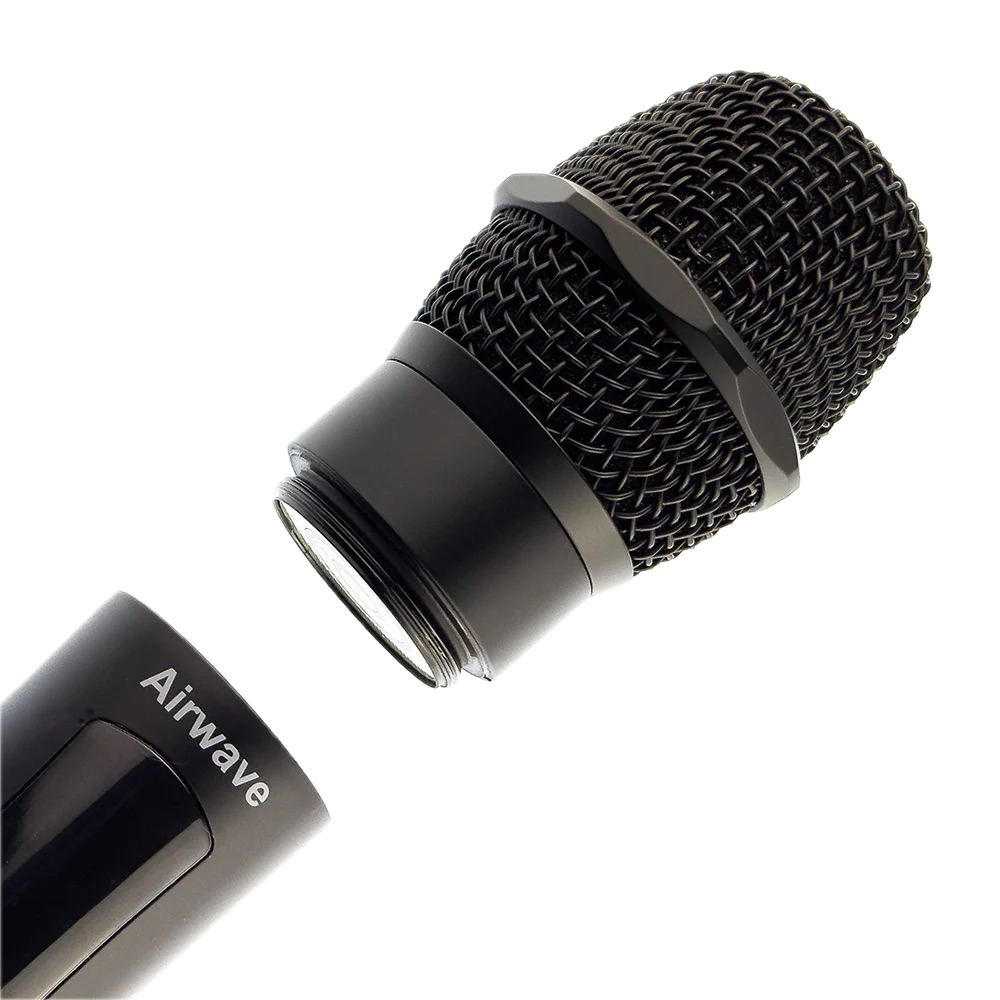

Capsule Sensitivity: -50dB ± 2dB V/PA@1KHz
Capsule Frequency Response: 50Hz ~ 16KHz
Gain Adjustment Range: 0/3/6dB
Input Impedance: 5KΩ
Output Power: 2mW / 10mW / 30mW
Spurious: >dB
Pilot Tone: 32.768KHz
Display: LCD

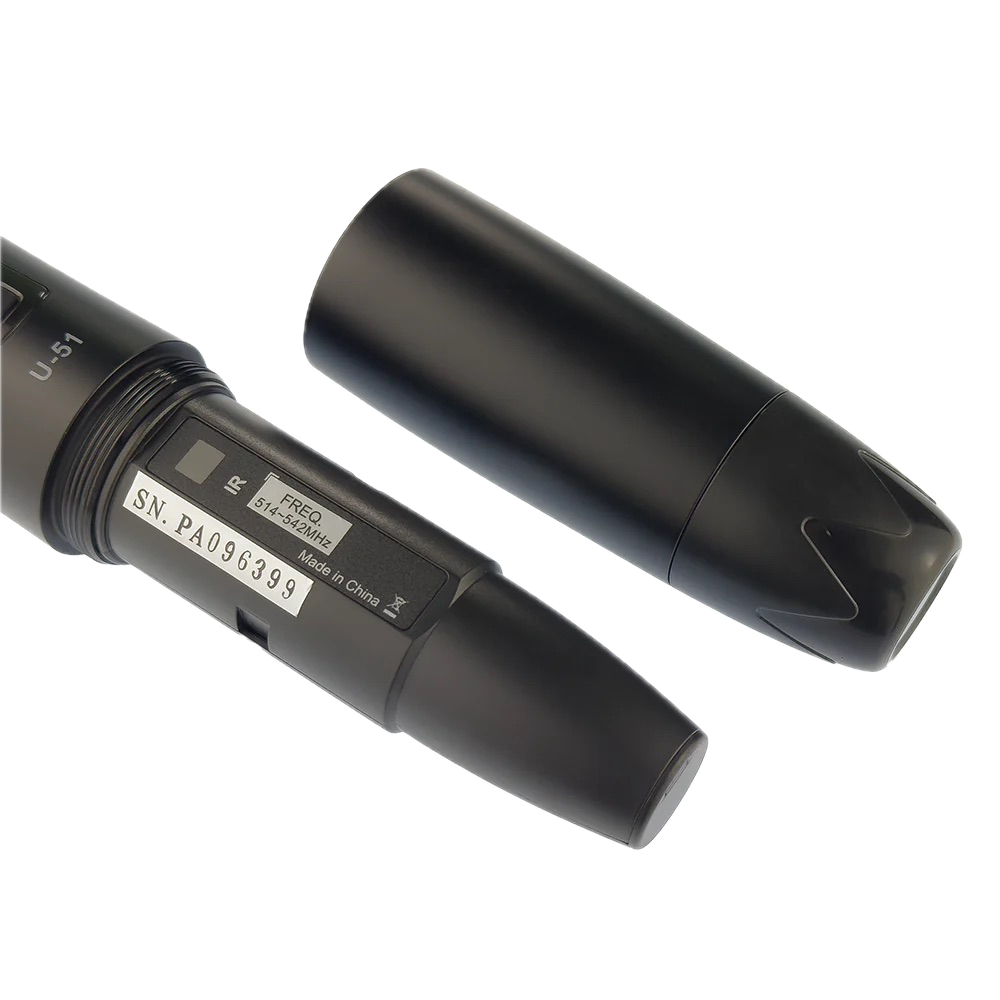

Power Requirements: 1.5V x 2(AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84” x 1.97”
Weight: 12.7oz

4200 Series Manual Link

If using up to 2 units (up to 4 channels) the system does not require an antenna combiner under normal conditions.  If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended. The official Antenna distribution partner of Airwave Technologies is RF Venue.   They are without question, the leaders of antenna distribution.
