AT-SYS-8-COMBO

Airwave is the best kept secret in wireless mics today.  This is a brand that we've been watching and using for years - when you don't need top-dollar, high-end wireless, these Airwave mic's provide an exceptional value and quality at a reasonable price.

By bundling 2 channels of wireless together into one rack unit, Airwave saves on cost and complexity.  Smaller installations LOVE the fact that you can simple use (1) XLR output for both microphones when you're short on inputs.

All of the microphones sound good and have quality that is comparable to mid-level microphones from the major players.   When we have gotten these for customers, the feedback we get is that they love the mics, and they are comparable to systems that cost almost twice as much!

You'll notice that the receivers have a battery level and RF/AF indicator and IR sync.  Other wireless systems in this price range have none of that.

It's not a $3000/channel wireless system, but what it is, is a tremendous value for many churches, bands, installations, corporate AV, and more!

From the Manufacturer:

Unlock the full potential of your venue with this high-performance 8-channel wireless system. Designed for facilities and audio engineers who demand exceptional clarity and reliability, this premium package includes 4 handheld microphones, 4 single-ear wireless headsets, and 4 lavaliers with body packs – everything you need for flawless sound coverage.

Seamlessly portable and housed in a rugged 10-space rolling flight case, this system ensures secure, hassle-free transport and easy setup, making it the perfect solution for both mobile events and permanent installations. With 3 microphone options per channel, you can tailor the sound experience to your needs, while enjoying ultimate flexibility across all 8 channels.

Elevate your audio game with this complete, turnkey wireless system – available in multiple configurations to match your specific demands.

Experience the next level of wireless performance today!

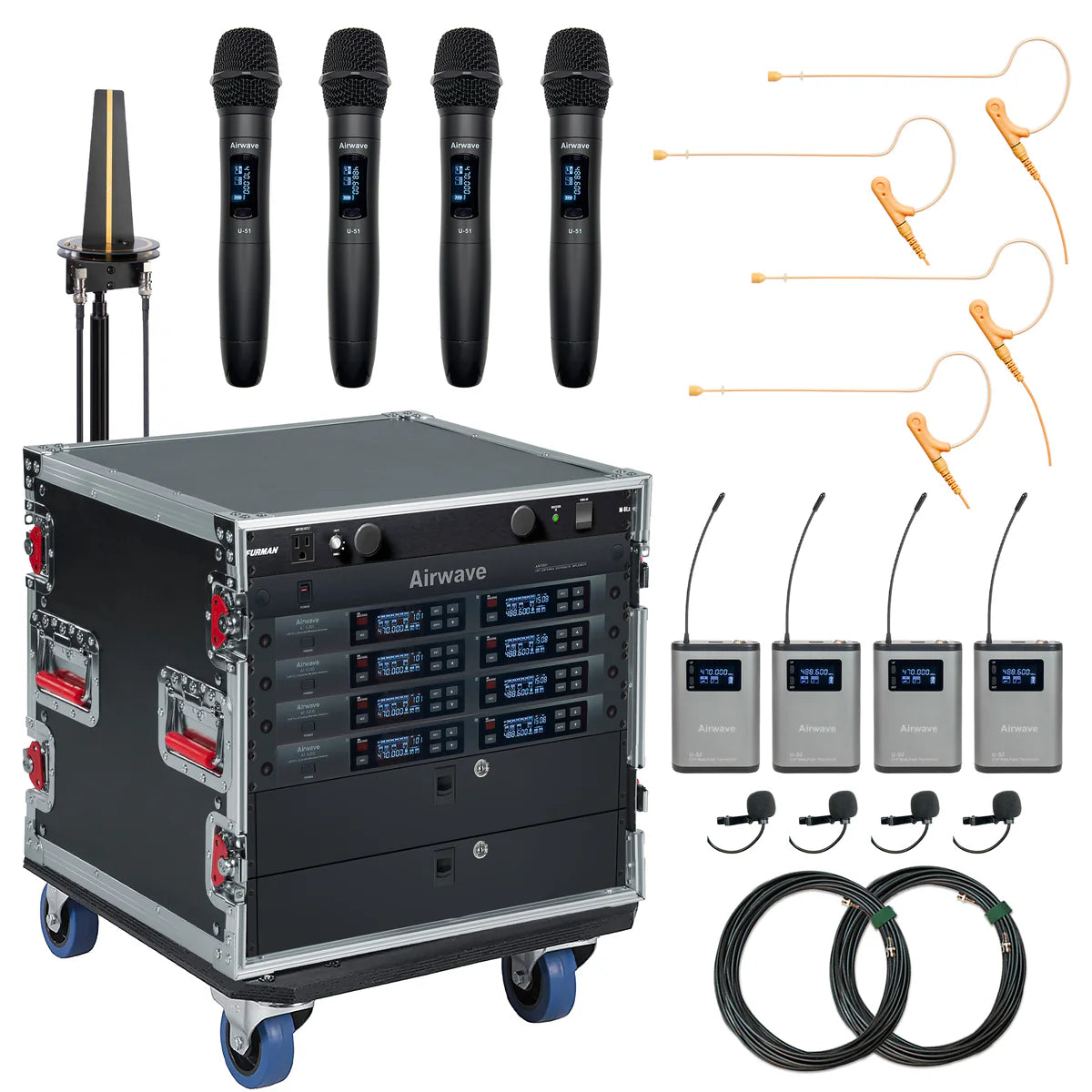

System Includes:

• 4 Airwave Technologies AT-5200 Dual Channel Wireless Systems

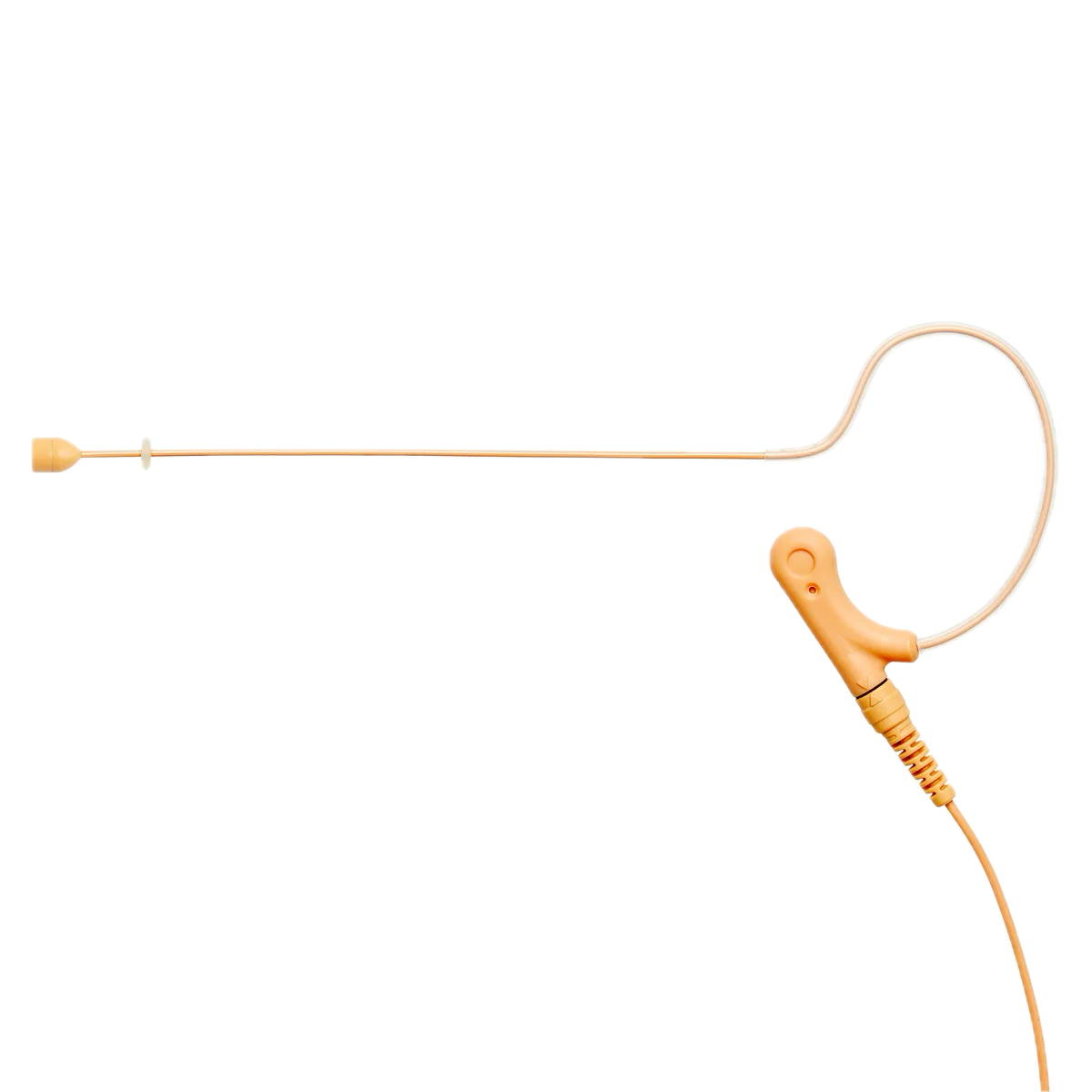

• 4 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets

• 4 AT-U51 Wireless Handheld Microphones

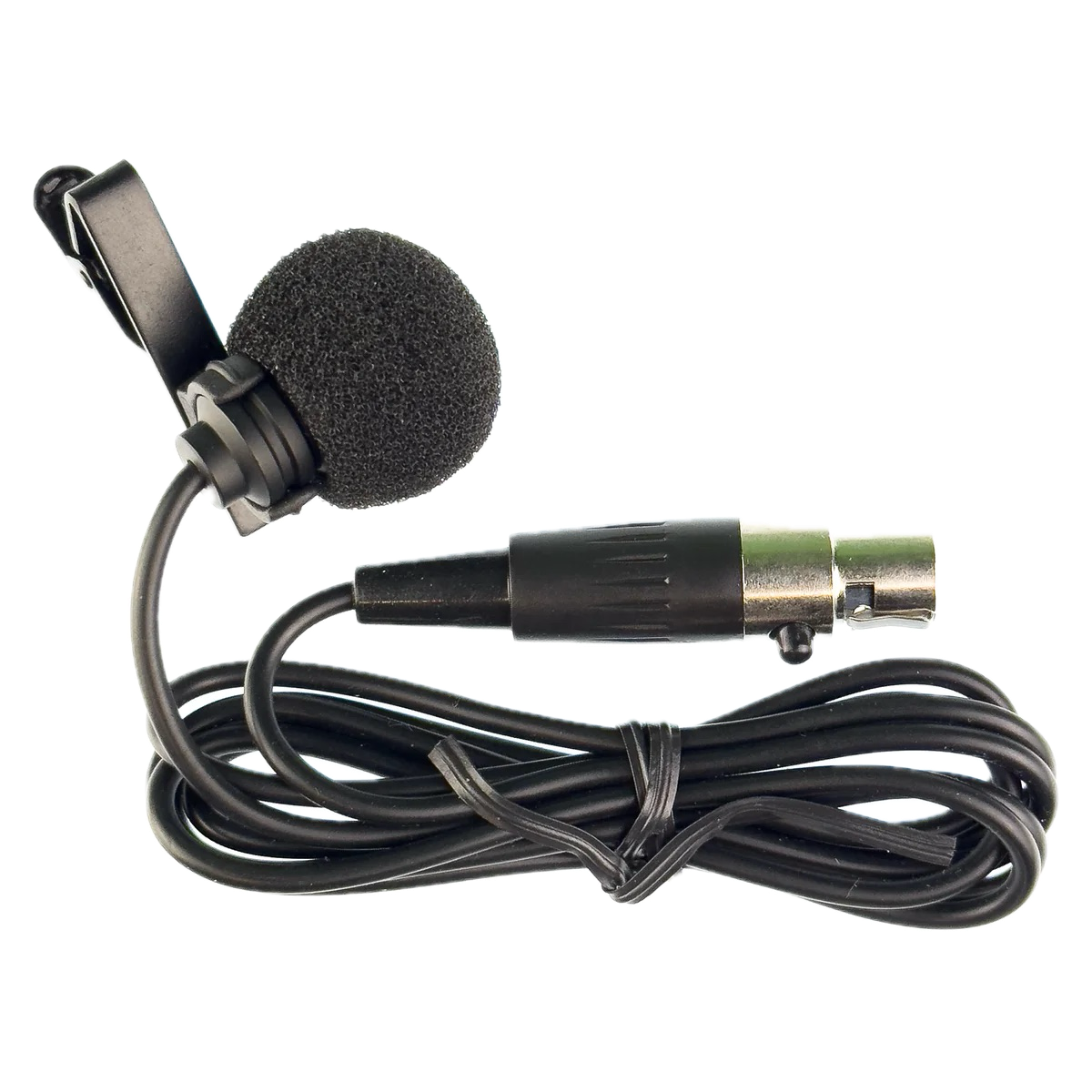

• 4 AT-LAV2 Lavalier Microphones

• 4 AT-U52 Wireless Body Packs

• Furman M-8Lx Power Conditioner with Lights

• ANT-001 Rack Mount Antenna Distro

• RF Venue Diversity Omni™ Antenna

• 2 Band-Pass Filters

• 2 25ft Antenna Cables

• 4 Wireless Microphone Clips

• 10 Space Flight Rack with Casters

• 2 Two Space Rack Drawers with Diced Foam

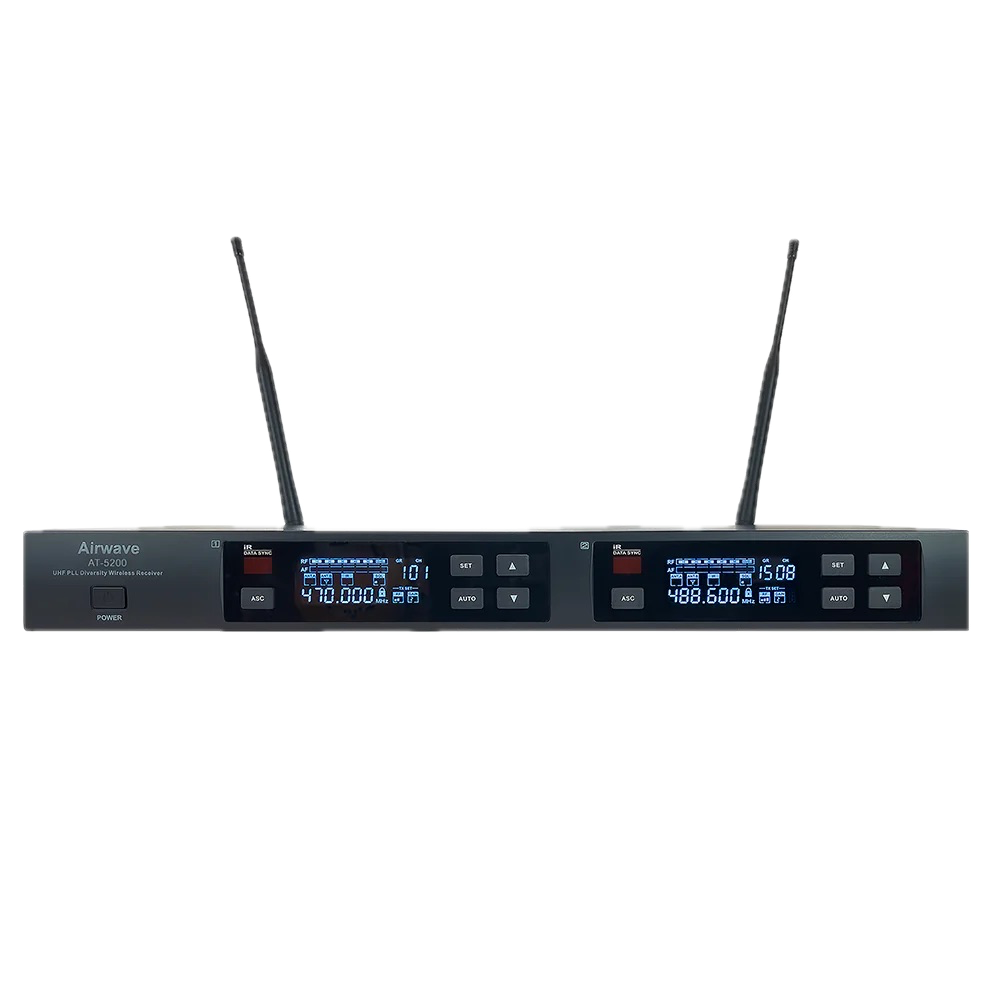

AT-5200 Wireless Microphone Receiver Features

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Band Width: 19MH / 28MHz

• Working Range: 328'

• Receiving Sensitivity: < -92dBm for 30dB S/N Ra

• Frequency Response: 50Hz-15KHz (±3dB)

• Maximum Frequency Offset: >+/-50KHz

• Signal to Noise Ratio: >1 00dB (A)

• THO: <1 % to 1 KHz

• Gain Control Range: 0 to 63dB per 1dB Step

• Dynamic Range: >102dB

• Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

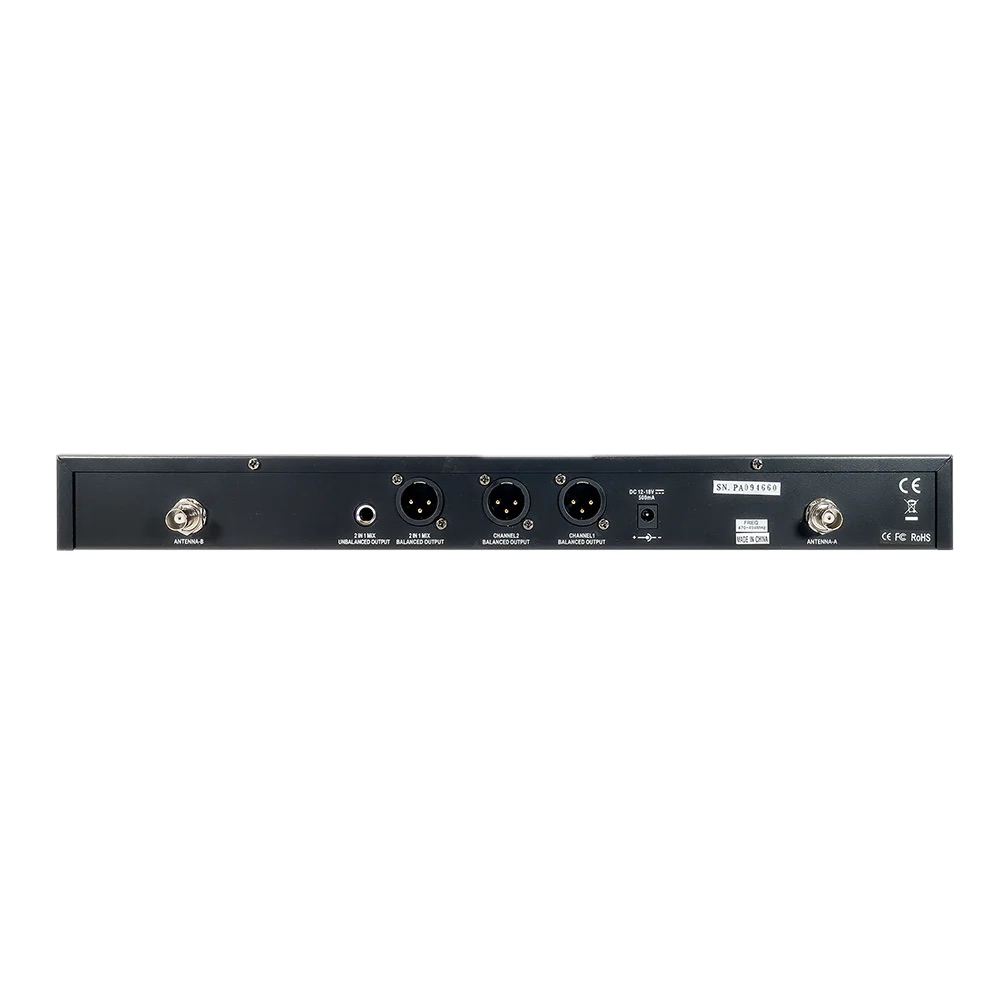

• Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector

• Impedance: XLR: 3KO / 1/4-inch connector: 3KO

• Antenna Connectors: 2 BNC 500

• Display: LCD

• Power Requirements: 12V/0.5A DC

• Operating Temperature Range: 28°F - 122°F

• Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)

• Weight: 3.86 lb.

• FCC ID: 2AINTU-51

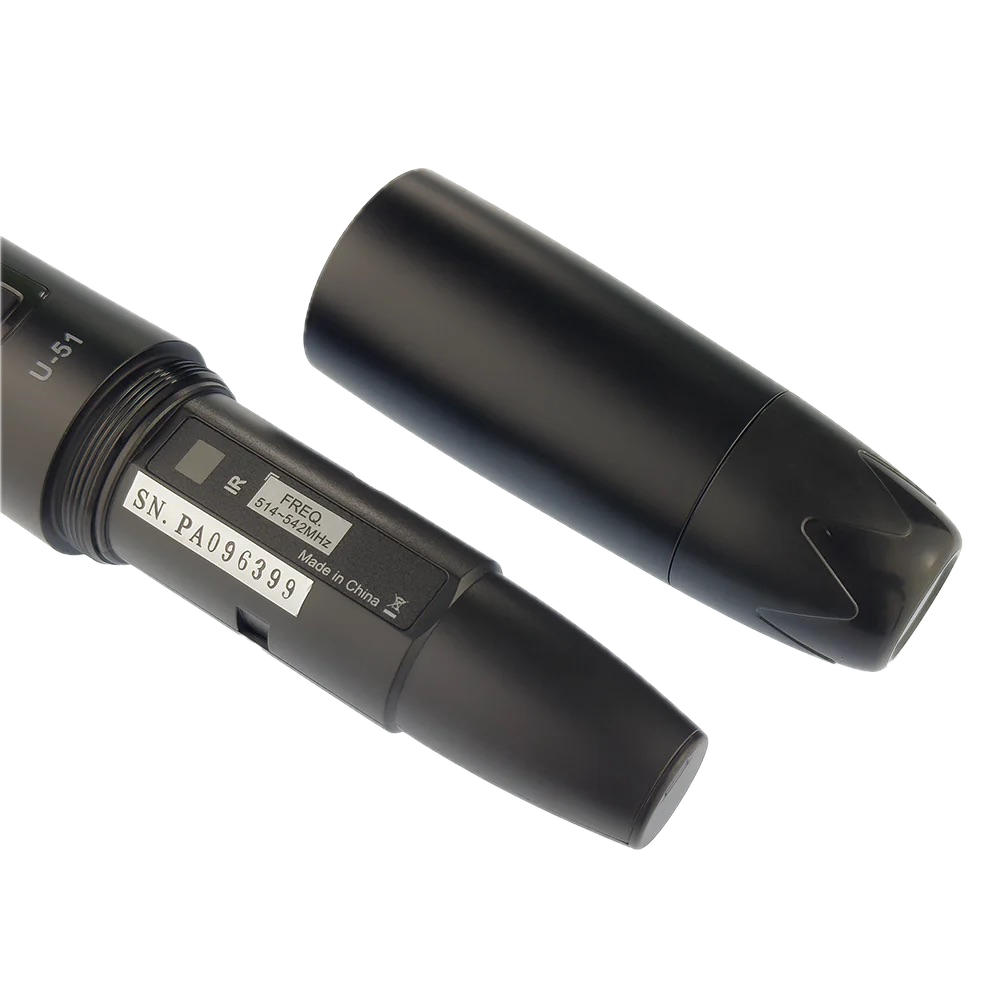

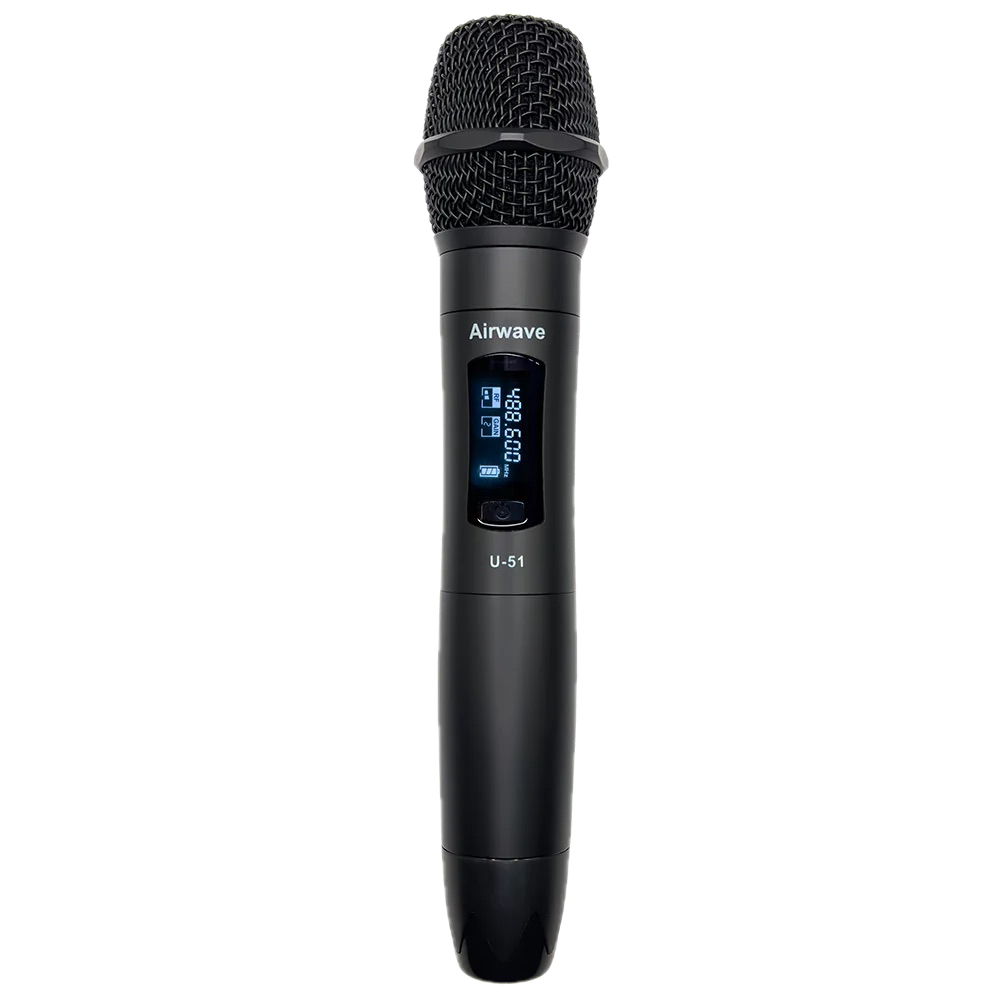

AT-U51 Handheld Microphone Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

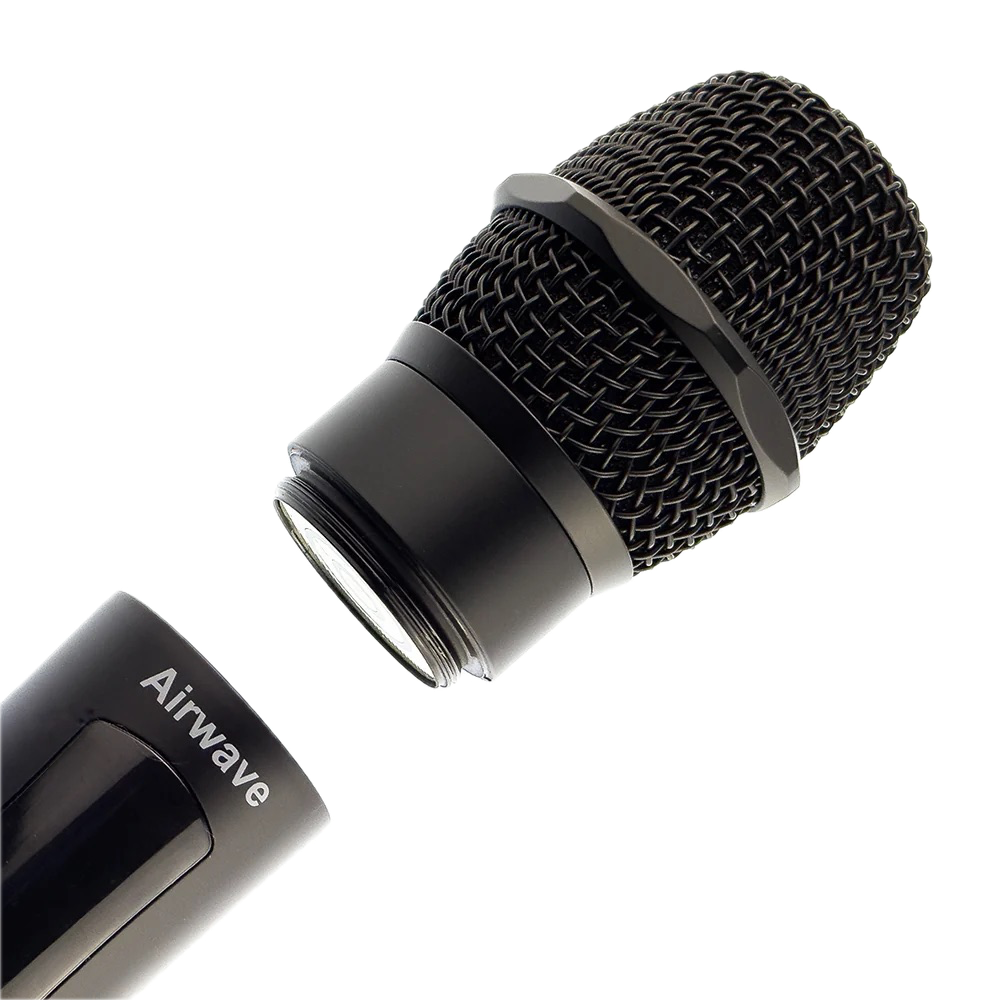

• Replaceable Capsule

• Infrared Data Synchronization

• Capsule Frequency Response: 50Hz-15KHz (±3db)

• Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz

• Capsule Directivity: Single Point

• Signal to Noise Ratio: >1 00dB (A)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO ± 30% @ 1 KHz

• Output Impedance: 4000 ± 30% @ 1 KHz

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Display: LCD

• Power Requirements: 2 x 1.5V (AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84" x 1.97"

• Weight: 12.7oz

• FCC ID: 2AINTU-51

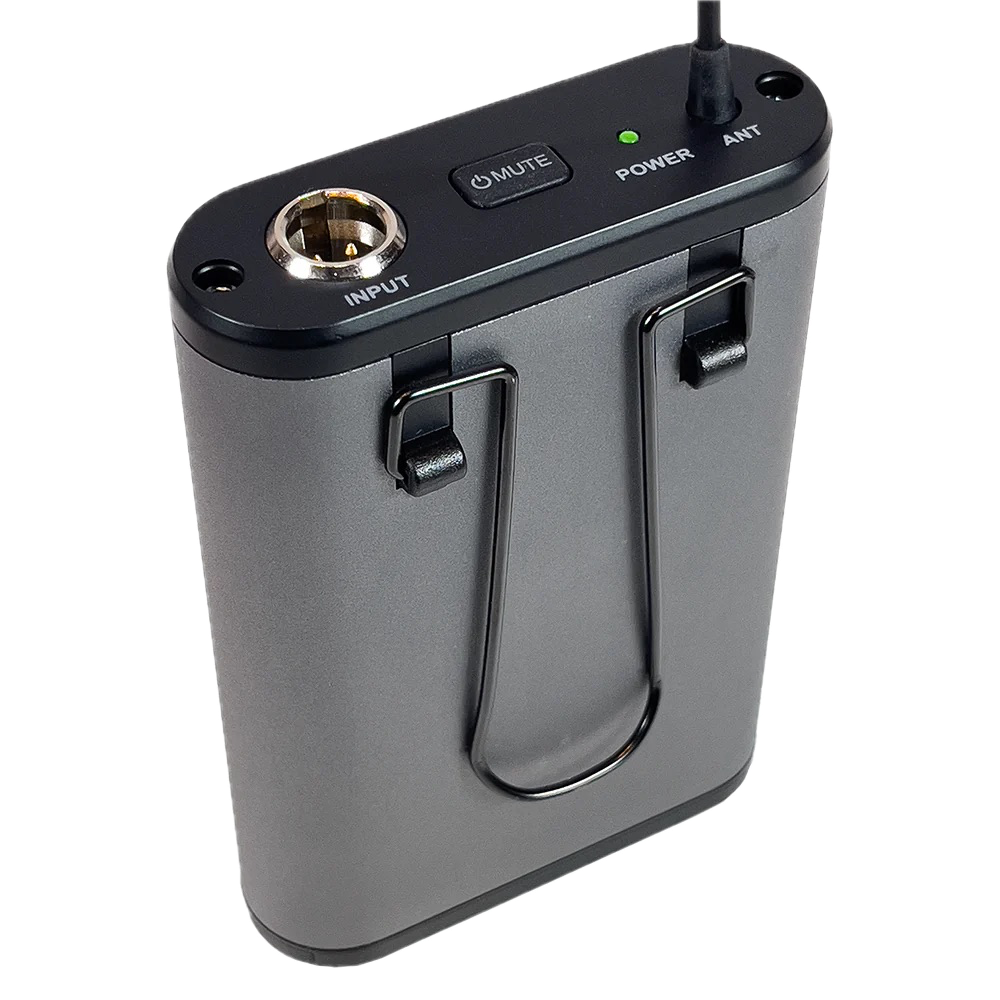

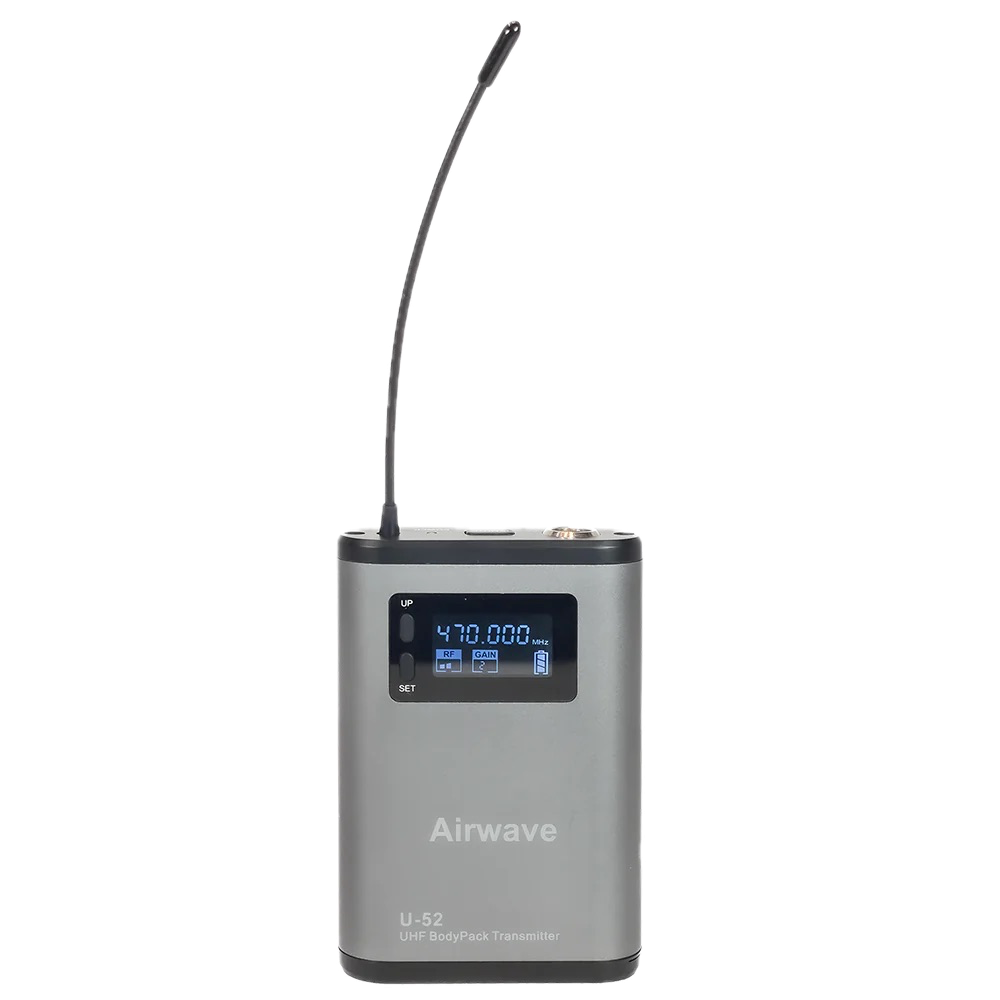

AT-U52 Body Pack Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Frequency Response: 50Hz-15KHz (±3db)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >1 0H/1300mAH

• Dimensions: 6.5" x 2.56" x .91"

• Weight: 4.59oz

• FCC ID: 2AINTU-52
