AT-SYS-8-HHT Wireless Microphone System

From the Manufacturer:

Elevate your sound system with the powerful, versatile 8-channel wireless solution, designed for houses of worship and rental companies that demand seamless audio delivery. Featuring multiple handheld microphones for background use and a premium dual-ear headset microphone for your central speaker, this system ensures crystal-clear sound and flawless performance every time.

Featuring our crystal-clear Titanium Series dual-ear headset that is perfect for a featured presenter paired with 7 wireless handheld mics.

Packed into a rugged 10-space rolling flight case, this robust setup keeps every component secure and ready to go, whether you're on the move or setting up for a major event. The easy-to-transport flight case makes setup a breeze, while the unmatched flexibility of 8 channels delivers the coverage you need for even the most demanding environments.

Perfect for houses of worship and high-demand wireless rental services, this system offers an all-in-one solution to take your audio experience to the next level. Plus, it's available in multiple configurations to suit your exact needs.

Ready for the big leagues? Upgrade your audio with this complete, rock-solid wireless microphone system today!

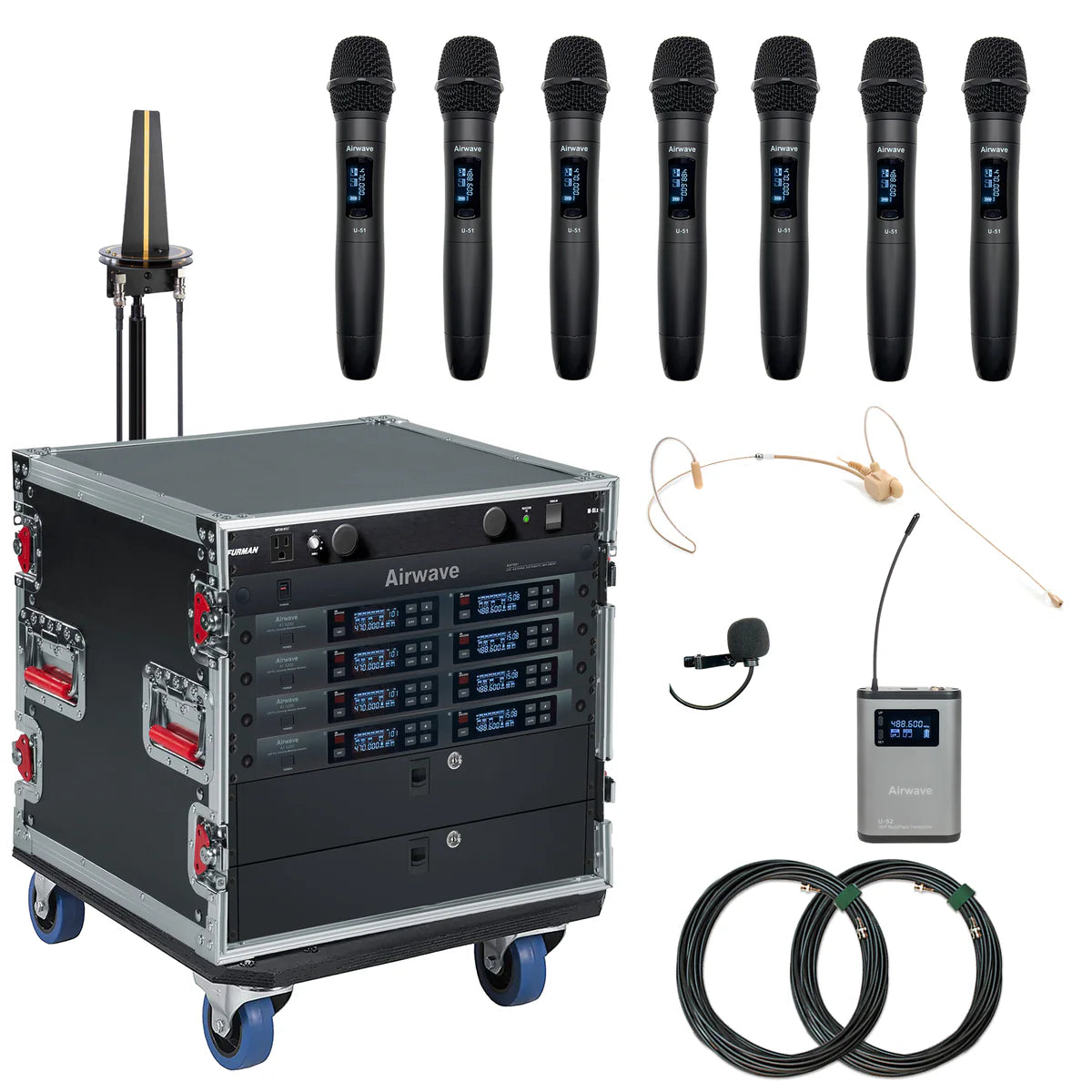

System Includes:

4 Airwave Technologies AT-5200 Dual Channel Wireless Systems

1 HSD Titanium Slim Clip System Dual Ear Wireless Headset in Tan or Black

1 AT-U52 Wireless Bodypack

7 AT-U51 Wireless Handheld Microphones

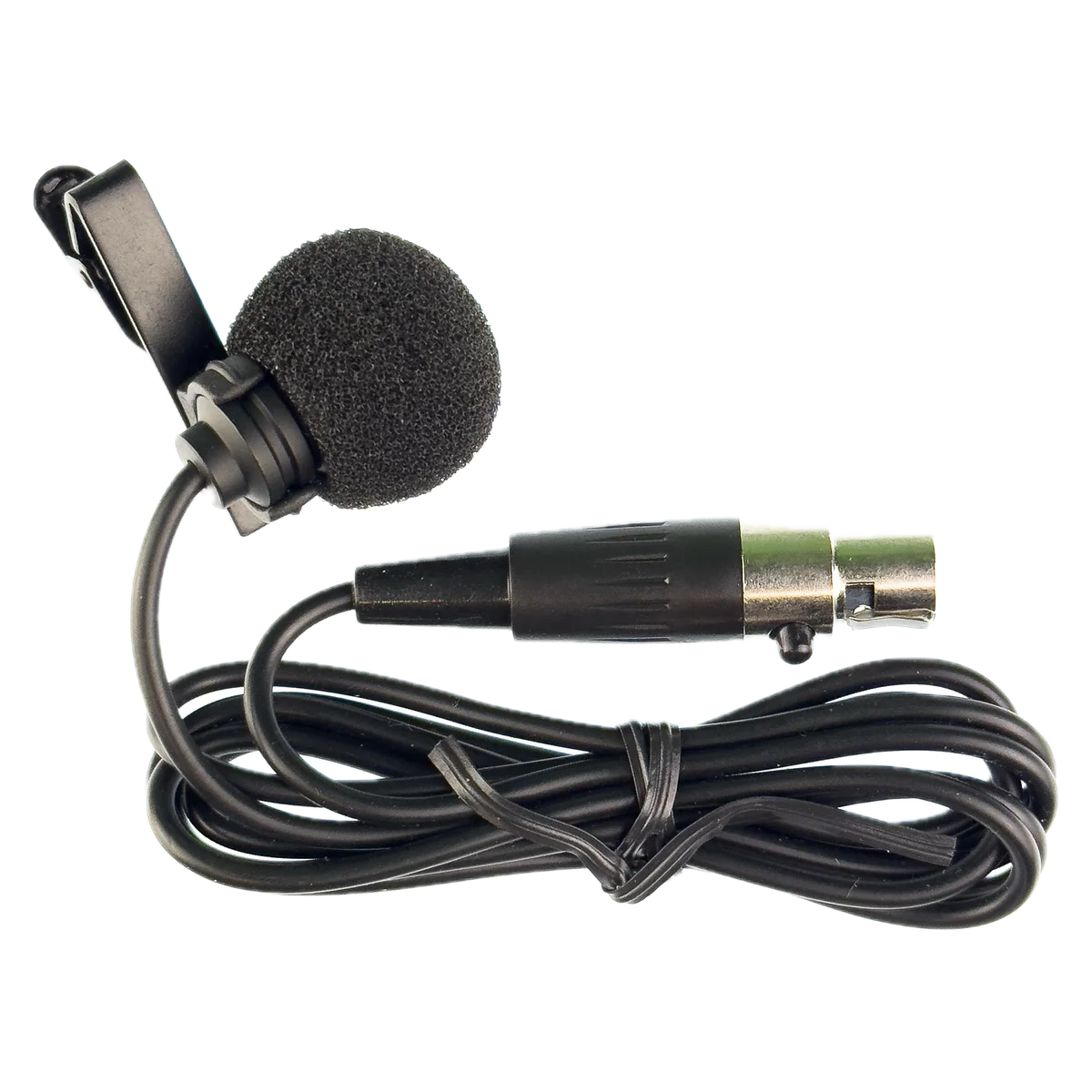

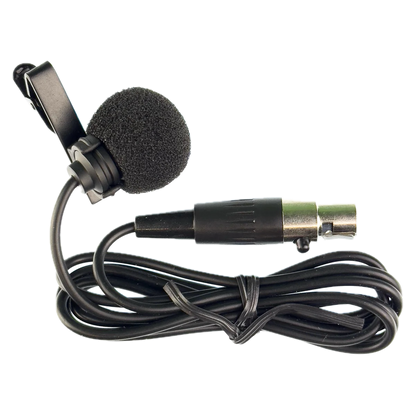

1 AT-LAV2 Lavalier Microphone

Furman M-8Lx Power Conditioner with Lights

ANT-001 Rack Mount Antenna Distro

RF Venue Diversity Omni™ Antenna

2 Band-Pass Filters

2 25ft Antenna Cables

7 Wireless Microphone Clips

10 Space Flight Rack with Casters

2 Two Space Rack Drawers with Diced Foam

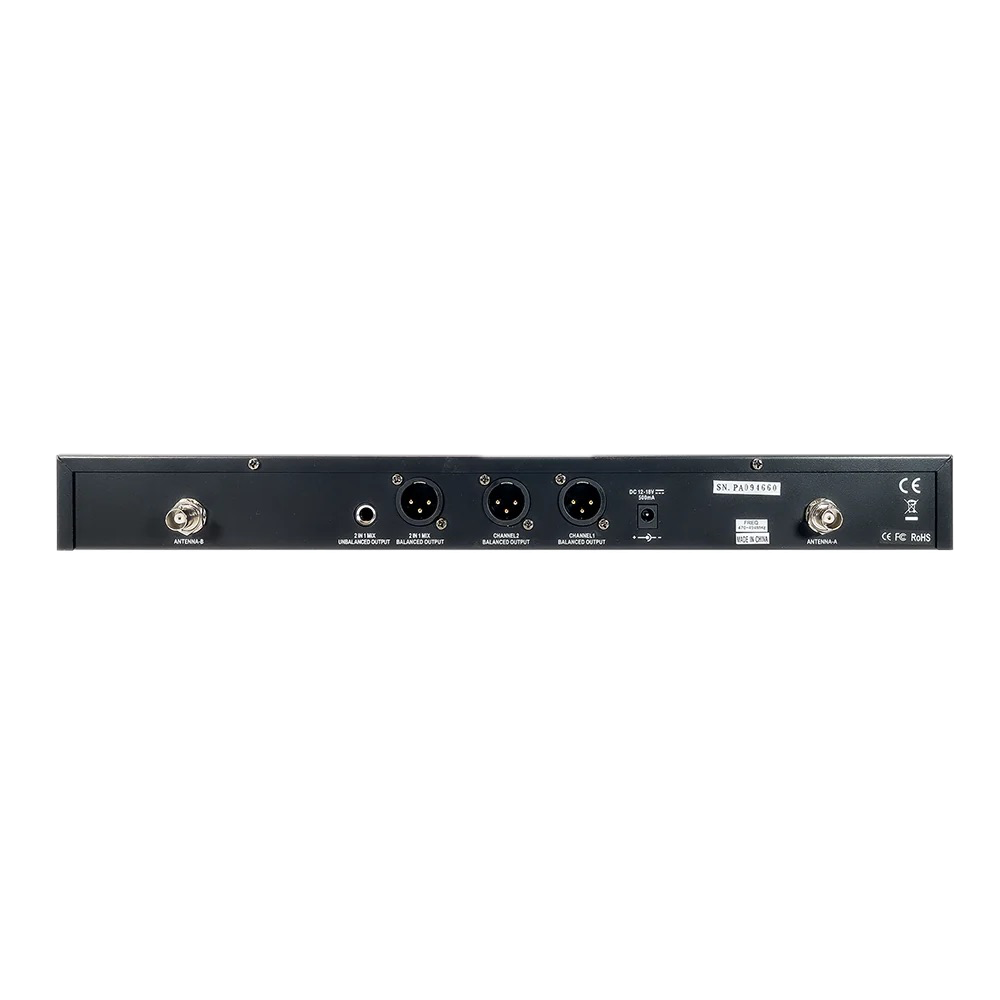

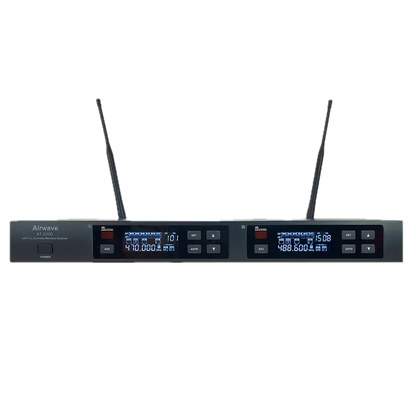

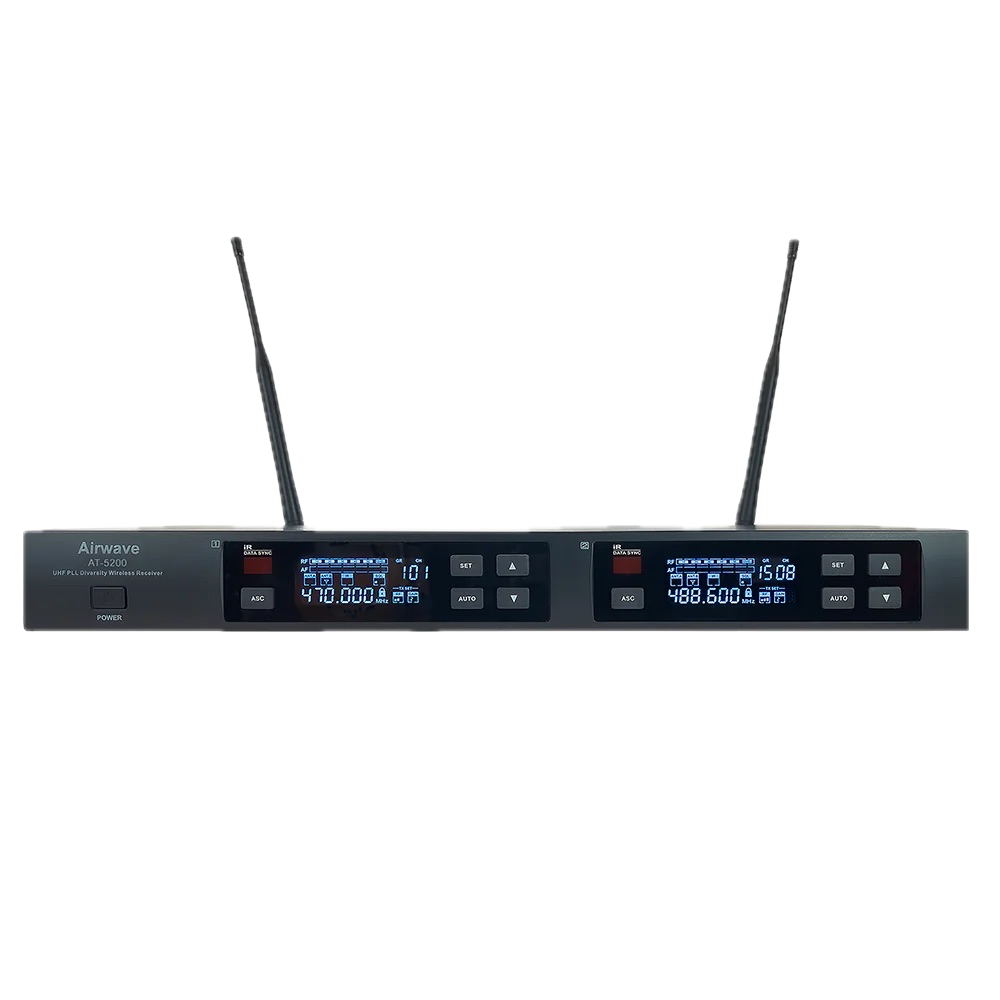

AT-5200 Wireless Microphone Receiver Features

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Band Width: 19MH / 28MHz

• Working Range: 328'

• Receiving Sensitivity: < -92dBm for 30dB S/N Ra

• Frequency Response: 50Hz-15KHz (±3dB)

• Maximum Frequency Offset: >+/-50KHz

• Signal to Noise Ratio: >1 00dB (A)

• THO: <1 % to 1 KHz

• Gain Control Range: 0 to 63dB per 1dB Step

• Dynamic Range: >102dB

• Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

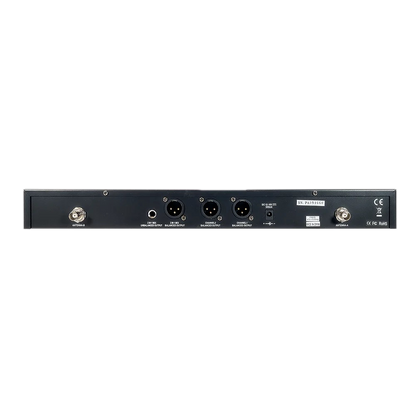

• Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector

• Impedance: XLR: 3KO / 1/4-inch connector: 3KO

• Antenna Connectors: 2 BNC 500

• Display: LCD

• Power Requirements: 12V/0.5A DC

• Operating Temperature Range: 28°F - 122°F

• Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)

• Weight: 3.86 lb.

• FCC ID: 2AINTU-51

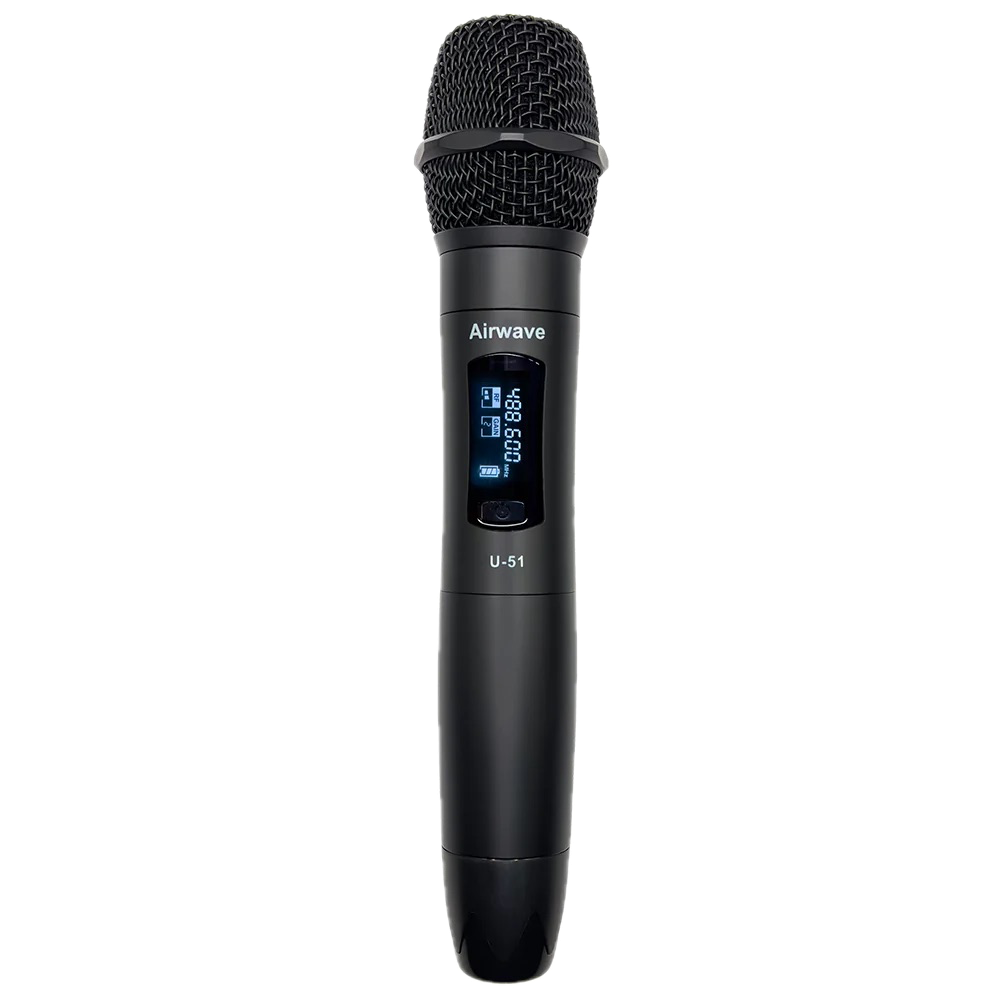

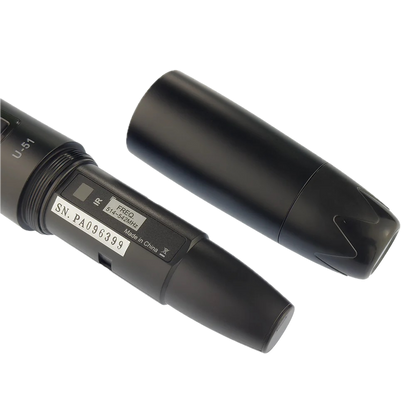

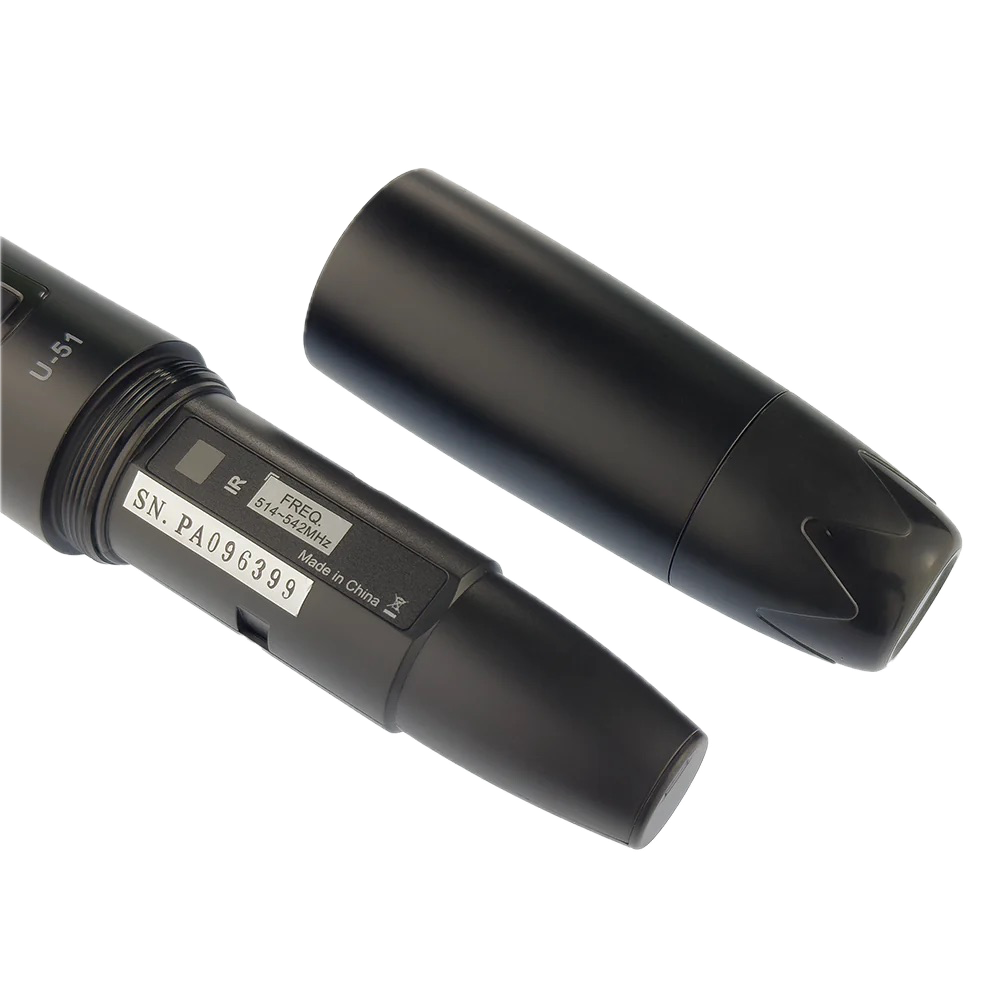

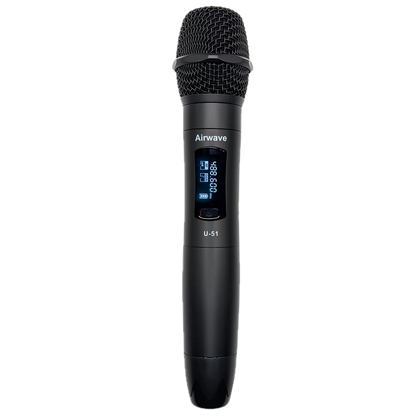

AT-U51 Handheld Microphone Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

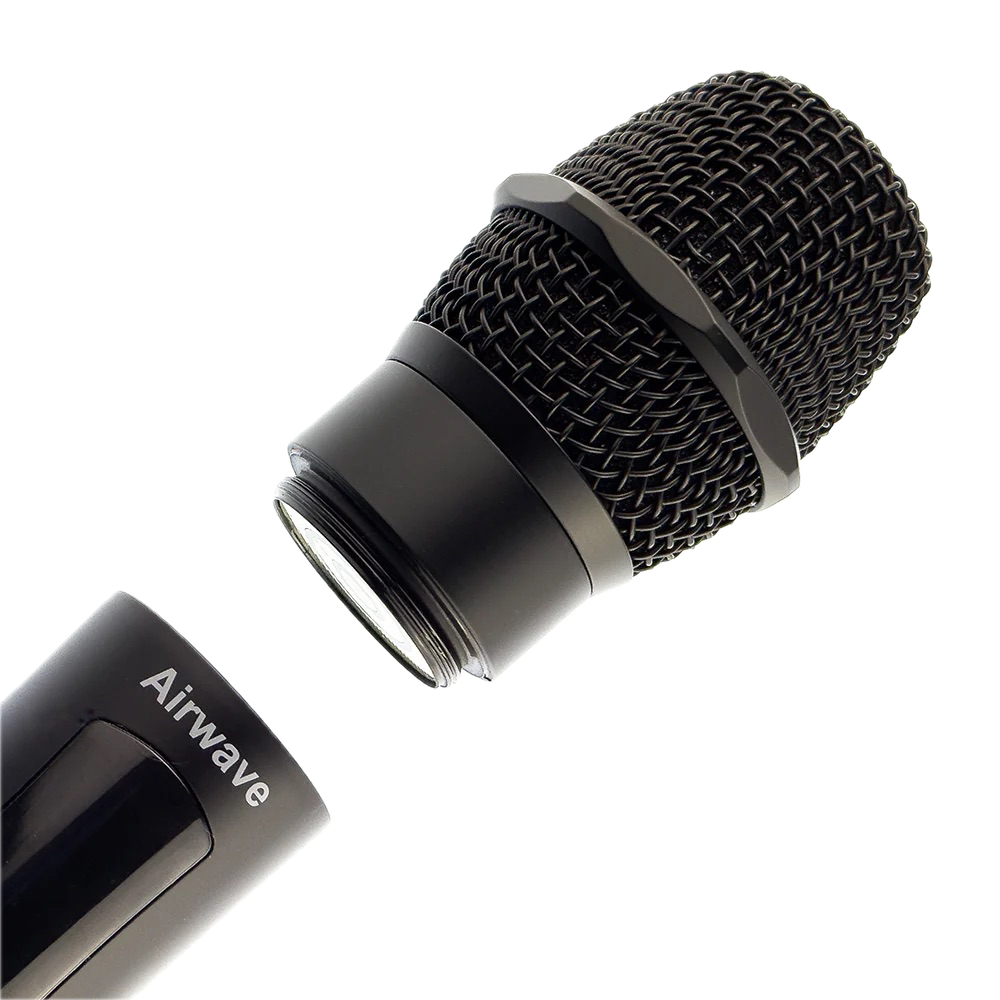

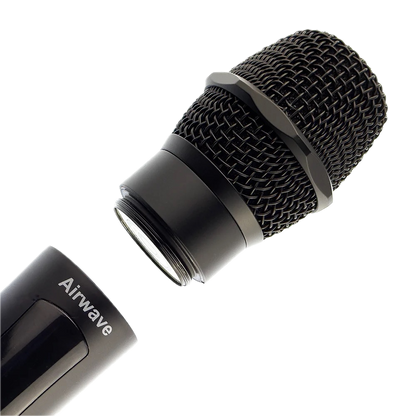

• Replaceable Capsule

• Infrared Data Synchronization

• Capsule Frequency Response: 50Hz-15KHz (±3db)

• Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz

• Capsule Directivity: Single Point

• Signal to Noise Ratio: >1 00dB (A)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO ± 30% @ 1 KHz

• Output Impedance: 4000 ± 30% @ 1 KHz

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Display: LCD

• Power Requirements: 2 x 1.5V (AA)

• Battery Life: >8H/1300mAH

• Dimensions: 9.84" x 1.97"

• Weight: 12.7oz

• FCC ID: 2AINTU-51

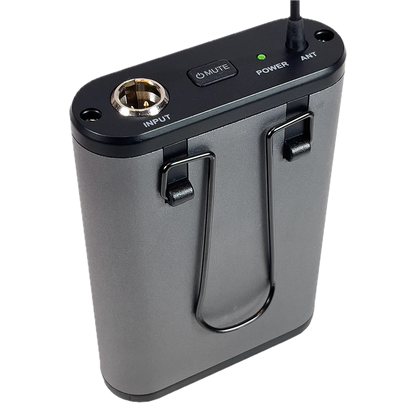

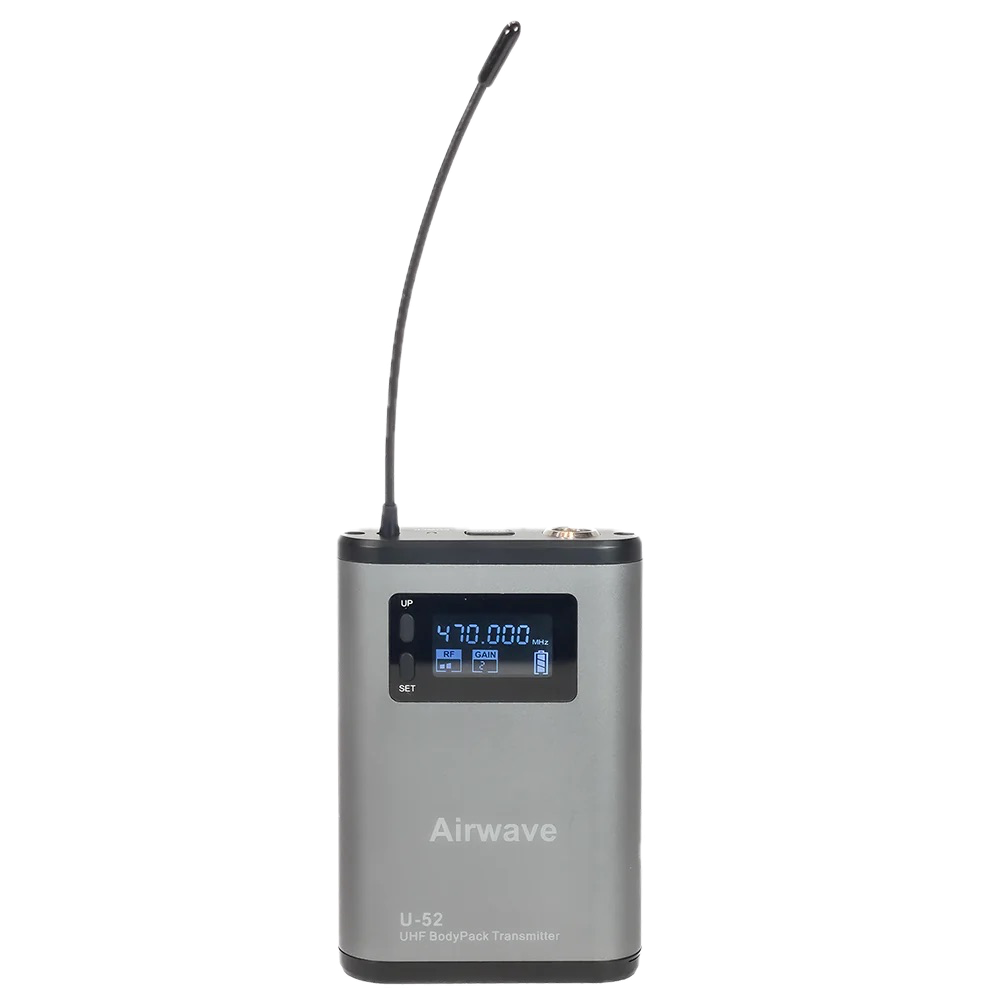

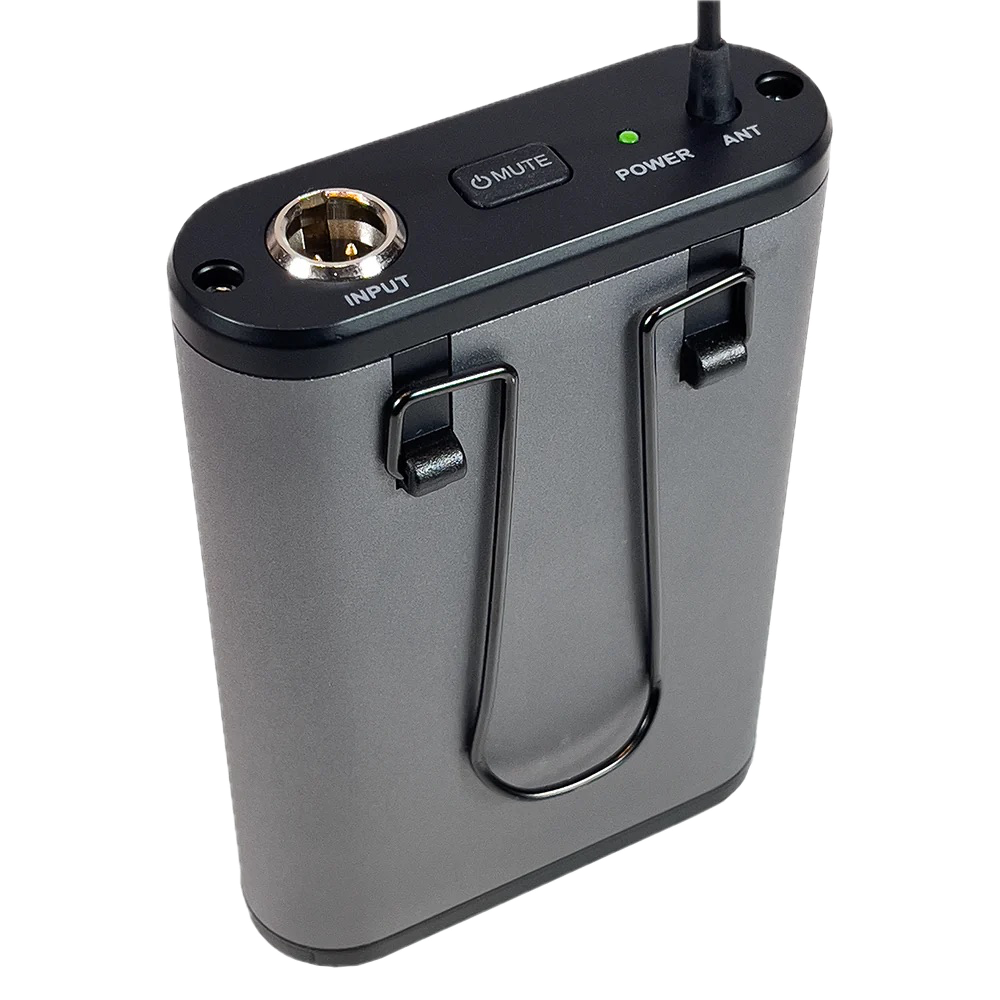

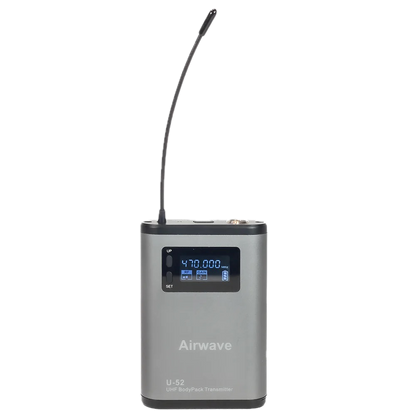

AT-U52 Body Pack Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Frequency Response: 50Hz-15KHz (±3db)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >1 0H/1300mAH

• Dimensions: 6.5" x 2.56" x .91"

• Weight: 4.59oz

• FCC ID: 2AINTU-52
