ATL328

The Avante Audio AKRO ATL328 dual 8” 3-way active line array handles even the largest events with ease, pairing well with ATS218 subwoofers for a powerful sound solution.

From the Manufacturer:

The Avante Audio AKRO ATL328 is a professional dual 8-inch 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante AKRO ATS218 subwoofer.

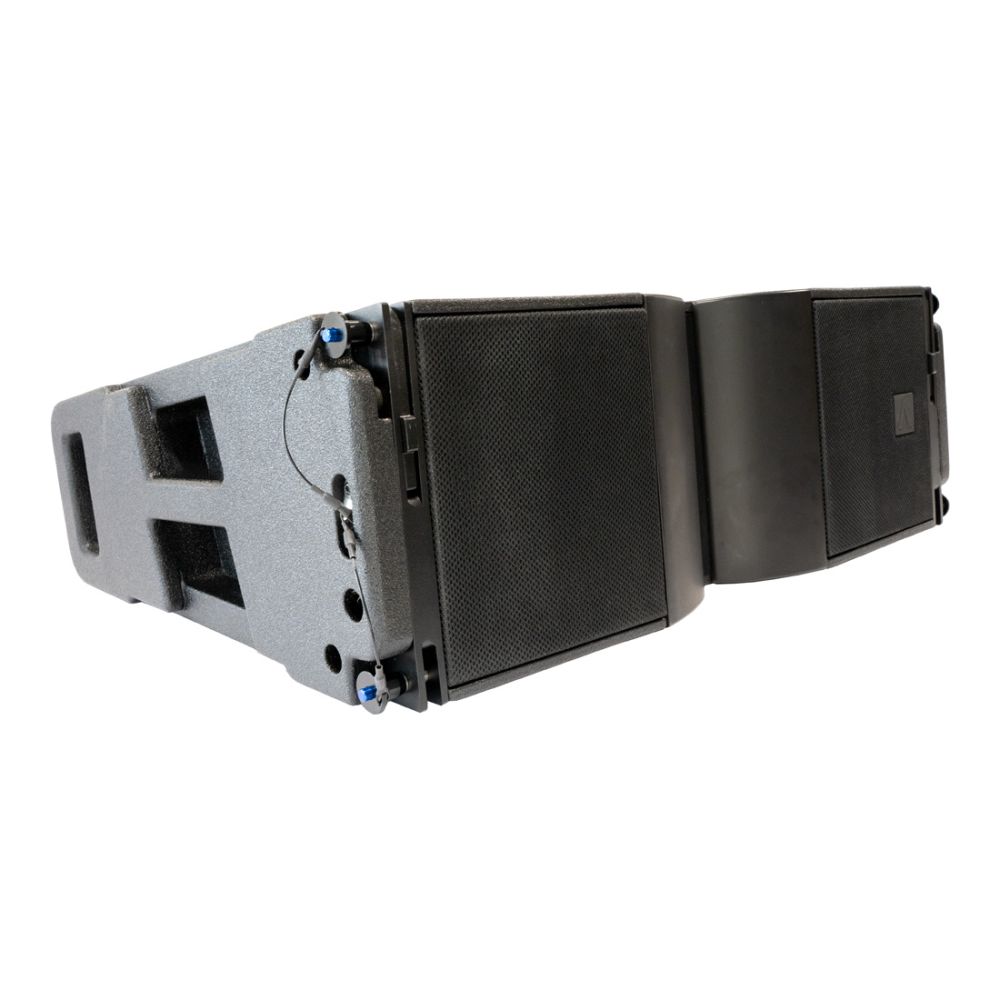

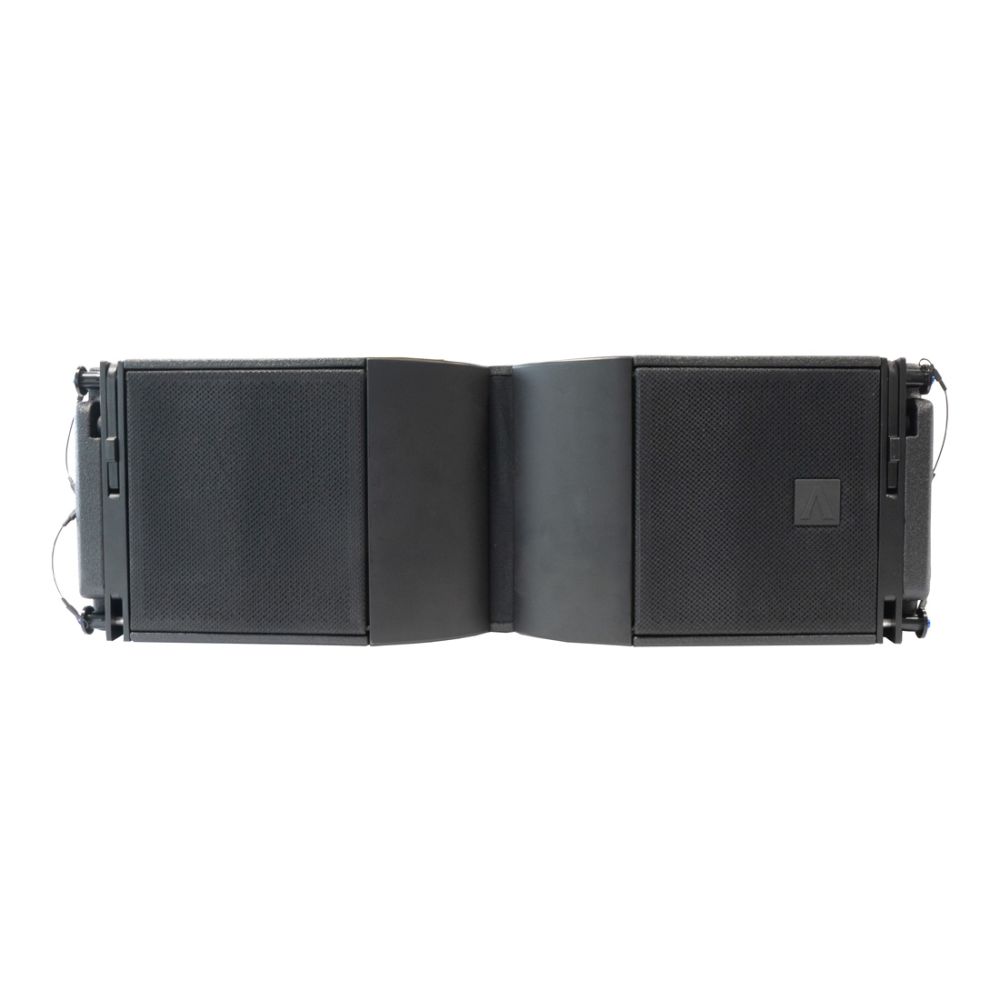

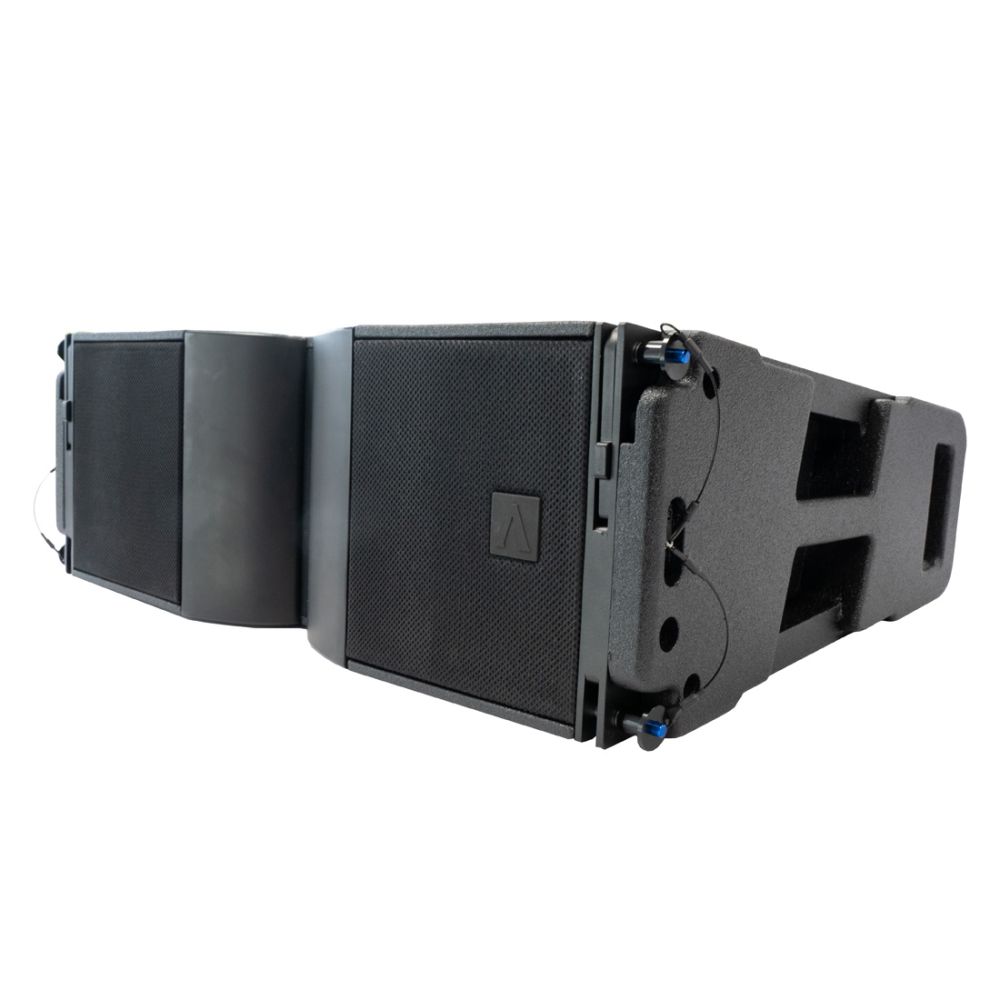

Designed in the USA, the Avante Audio Akro ATL328 is a professional 3-way active small-format line array engineered for medium to large events and pairs nicely with the Avante Audio Akro ATS218 subwoofer. This is a single module to form small to large arrays depending on venue or application. This line array module is composed of twin high-output neodymium 8-inch low-mid frequency drivers and one coaxial MF/HF neodymium compression driver coupled with a precision medium-format waveguide. The 3-way discrete Class-D +switching power amplifier boasts 1800-watts of total peak power and a universal PFC power supply. This ensures that you have great headroom and very minimal distortion with high reliability. This line array as a system, delivers an exceptional full range frequency response of 70 Hz to 20 kHz (-6dB) and a wide 110-degree horizontal coverage pattern.

The Akro ATL328 is equipped with a comprehensive German engineered DSP featuring the advanced certified MILAN platform. This new platform allows full system networking, remote monitoring/control including input level, equalization, delay, LF and HF compensation presets. Additionally, AES audio input signal can be combined when using MILAN. AKRO-Command system control software is Windows PC, IOS and MAC compatible. The Akro ATL328 is designed to provide unparalleled large full-range sound reinforcement in a small light-weight package.

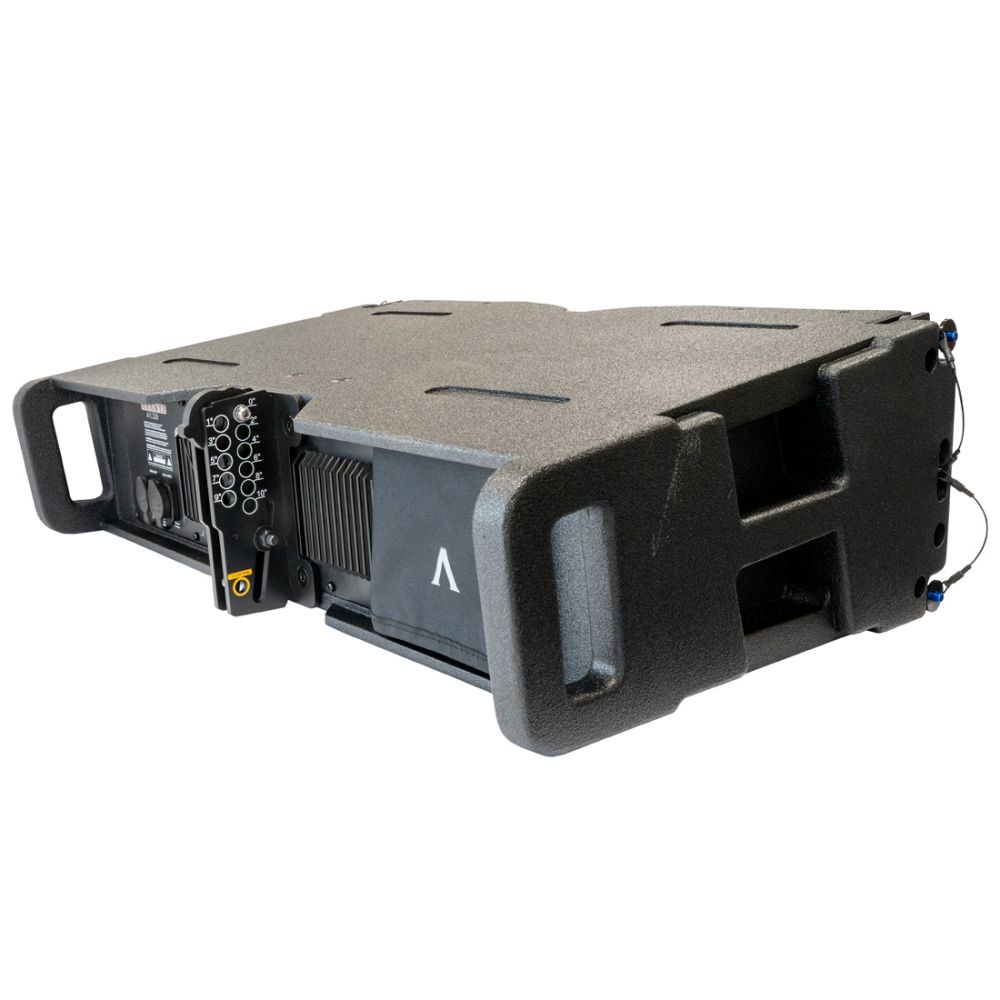

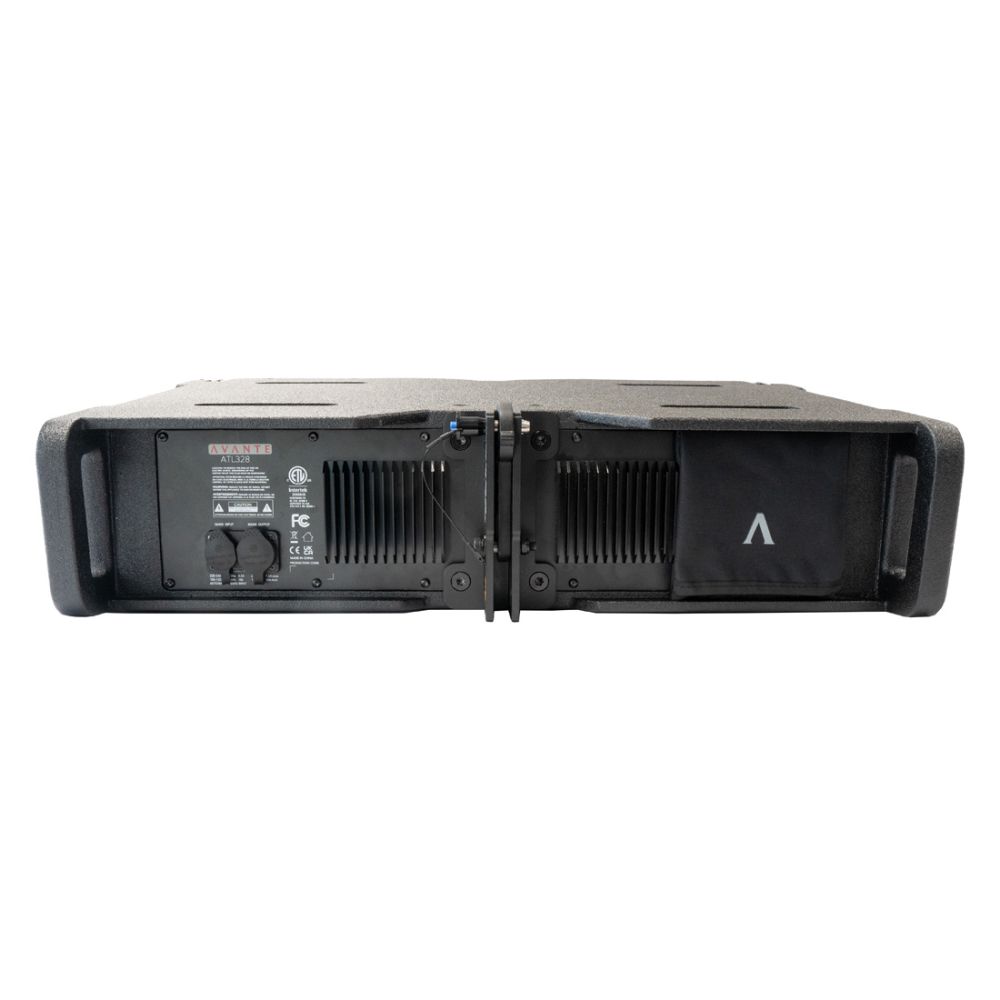

With a precision CNC machined Baltic birch plywood enclosure, made to withstand the rigors of touring in very demanding environments, making it the perfect choice for professional sound applications including live-sound production, touring and permanent installation. The robust EZ-Deploy multi-angle rigging system makes it easy to accomplish the proper vertical coverage angles and throw. The hardware also makes it easy to ground stack and transport. Protective rain cover for the amplifier connections and IP-rated locking power connectors comes standard.

Finished in a durable black polyurea coating and featuring a black powder-coated galvanized grille, this line array system is sure to look great with any performance. Individually, it outputs an impressive maximum SPL of 132 dB peak.

The new Akro ATL328 small format line array is the perfect choice for audio professionals looking to create a big impact and bringing your event to the next level!

Specifications:

• Speaker Type: 1-Way Active Dual 18-inch Subwoofer
• ACOUSTICAL DATA:
  • Frequency Response: 35 -200 Hz
  • Peak SPL: 142 dB
  • LF: 2 x 18” (4” voice coil)
• AMPLIFIER:
  • Amplifier: Class-D 2400-Watts RMS / 4800-Watts Peak
  • Cooling: Internal fan
  • Power Supply: Auto switching (PFC)100V-240V, 50-60Hz
  • Protection:Thermal, DC Offset, Output Short
• PROCESSOR:
  • German Engineered Proprietary DSP. Milan Certified
  • Sample Rate: 96 kHz
  • Limiter: Multiband compressor, Peak Limiter
  • Processing (filters): Linear Minimum-Phase FIR
• INPUT:
  • Signal In/Out (analog):3-pin XLR, (digital) AES RJ-45 Milan
  • Power Socket: IP65 Locking Power In/Out
  • Network: Locking RJ45 In/Out for controll and Milan network
  • Controls: Input Attenuation (-15dB - +6dB); System presets (8 selectable),  System Test/Mode Button
  • Special Features: Front LED wink-ID
• Remote Control:
  • Full system control and monitoring with AKRO-Command system software. MAC, IOS and Windows PC compatible.
• CONSTRUCTION:
  • Cabinet: Baltic birch premium plywood
  • Finish: Durable black Polyurea coating, powder coated galvanized grille, Nylon-skid interlocking feet.
  • Handles: 4 integral handles (2 on each side)
  • Amplifier Protection- Rain resistant cover included
  • Rigging: (20) M10 points, (4) EZ-Link cabinet interlock hardware
  • Dimensions (LxWxH): 48"x22.6"x22.6" / 1219x575x575mm
  • Weight: 174 lbs. / 79 kg.
• ACCESSORIES:
  • CVR218 Protective cover for one ATS218
  • ADB218 Transport 2-way Dolly Board for up to two ATS218
  • ASB218 Stabilizer Bars for ATS218 (2-piece set)
