Sku: MDGATME

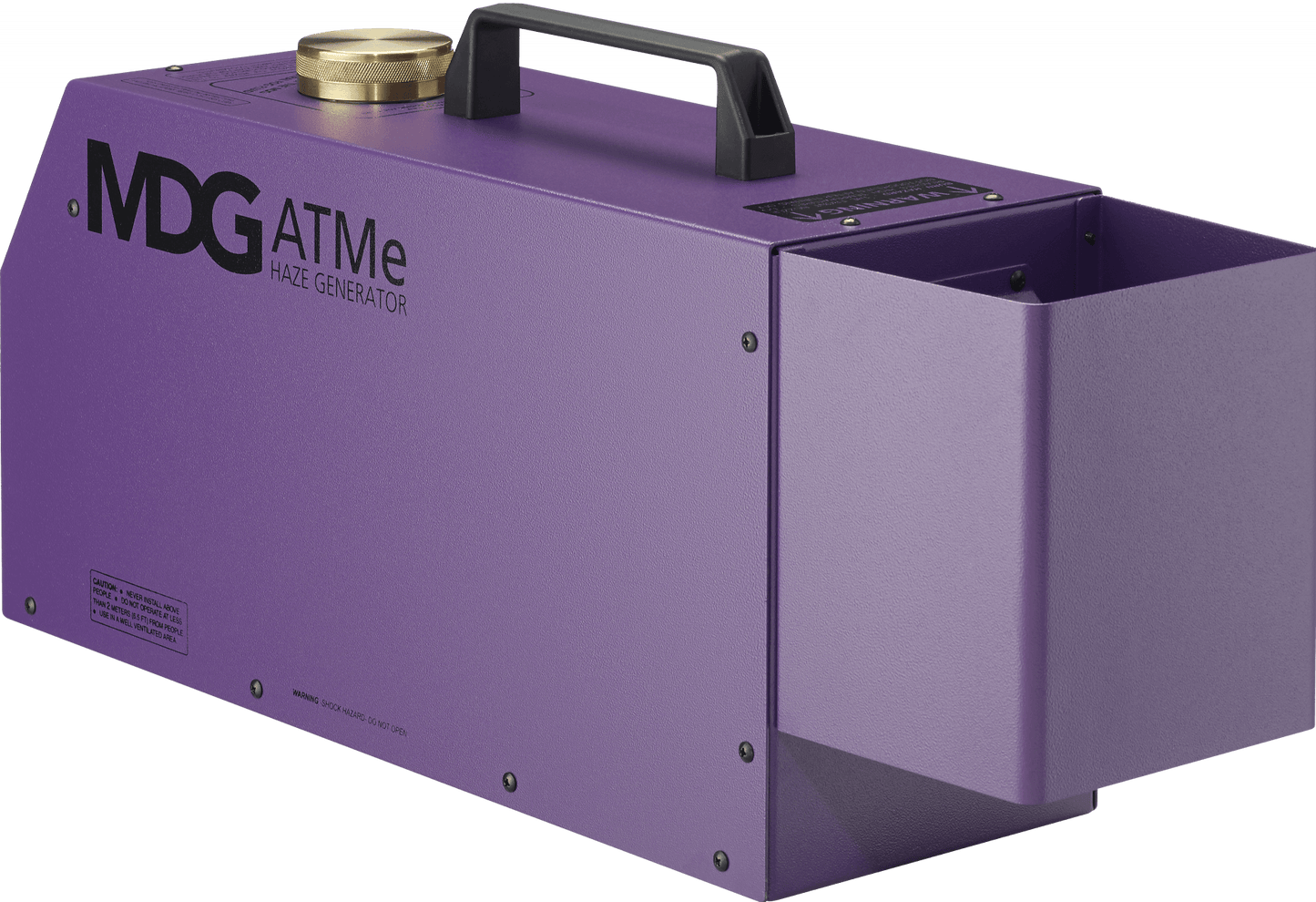

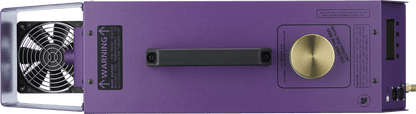

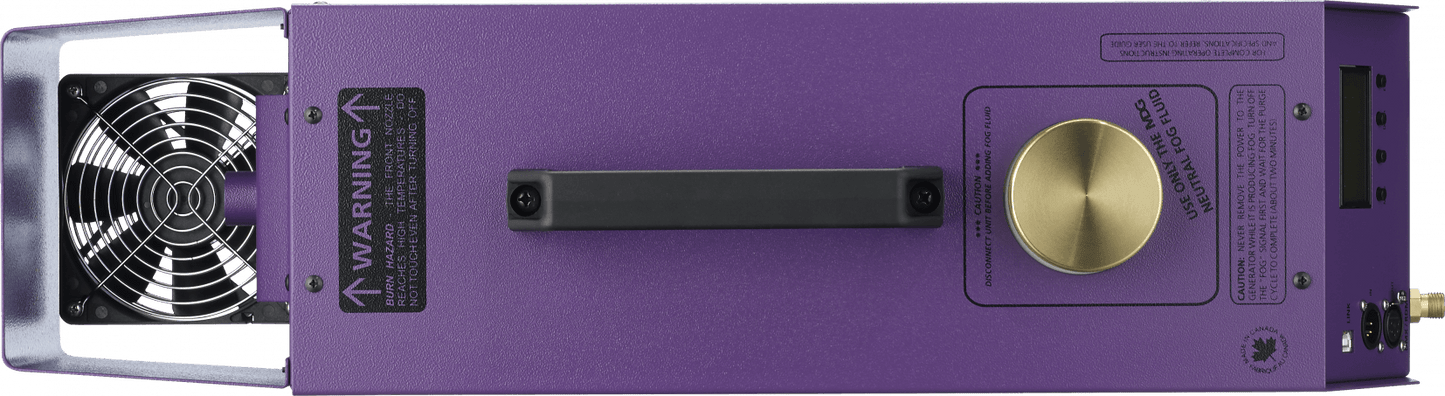

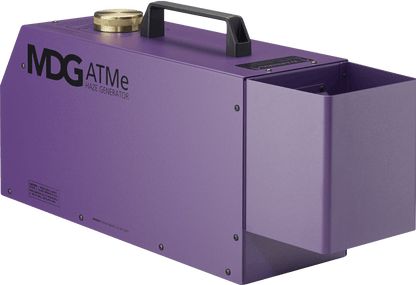

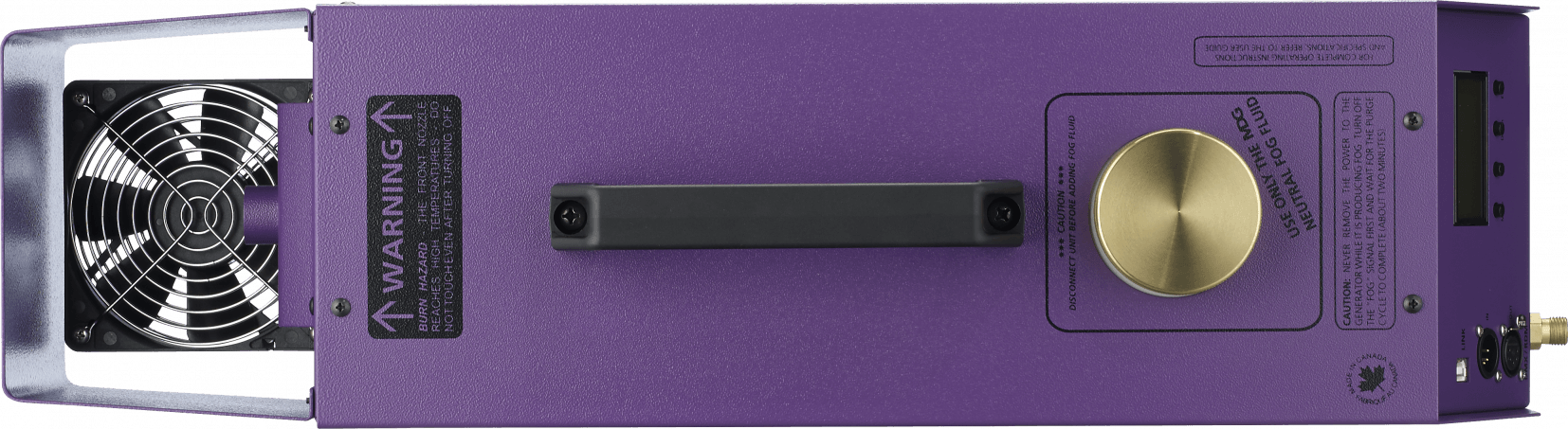

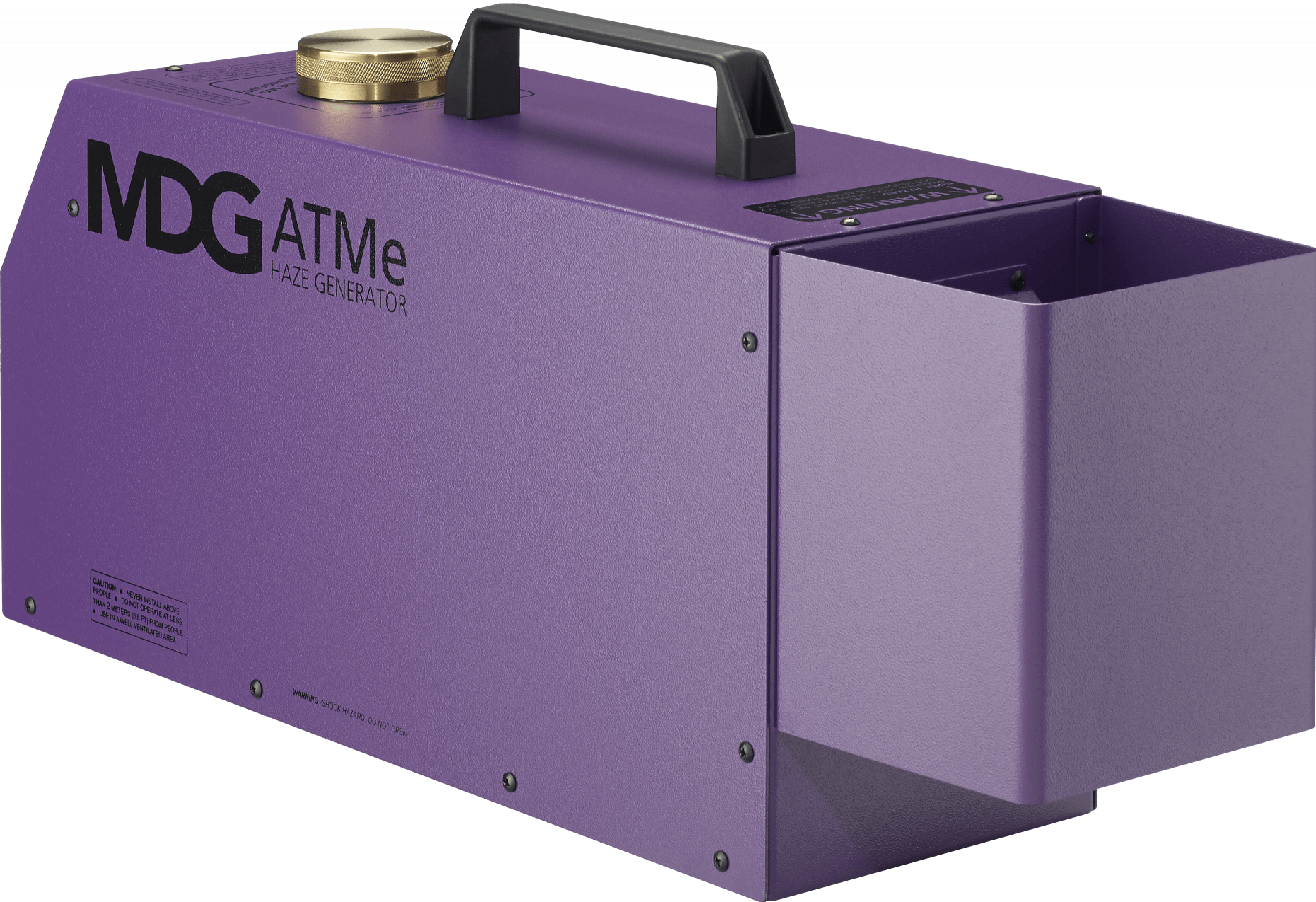

ATMe Single High Output haze generator w/ onboard DMX

Vendor: MDG
For pricing, please email gear@aboveavl.com.

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

Description

Caret Down

The MDG ATMe is a high-output haze generator, with onboard DMX for easy control.

From the Manufacturer:

The finest haze on the market… just got better.

The ATMe high output haze generator is the evolution of the world-famous ATMOSPHEREAPS, the industry's standard for more than two decades.

Features:

  • Longest hanging time: Our MDG Neutral fluid is specially created for the longest hanging time.
  • Variable haze output: 0-100% haze output control from your DMX / RDM device. 100% duty cycle.
  • APS™ (Automatic Purging System): This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

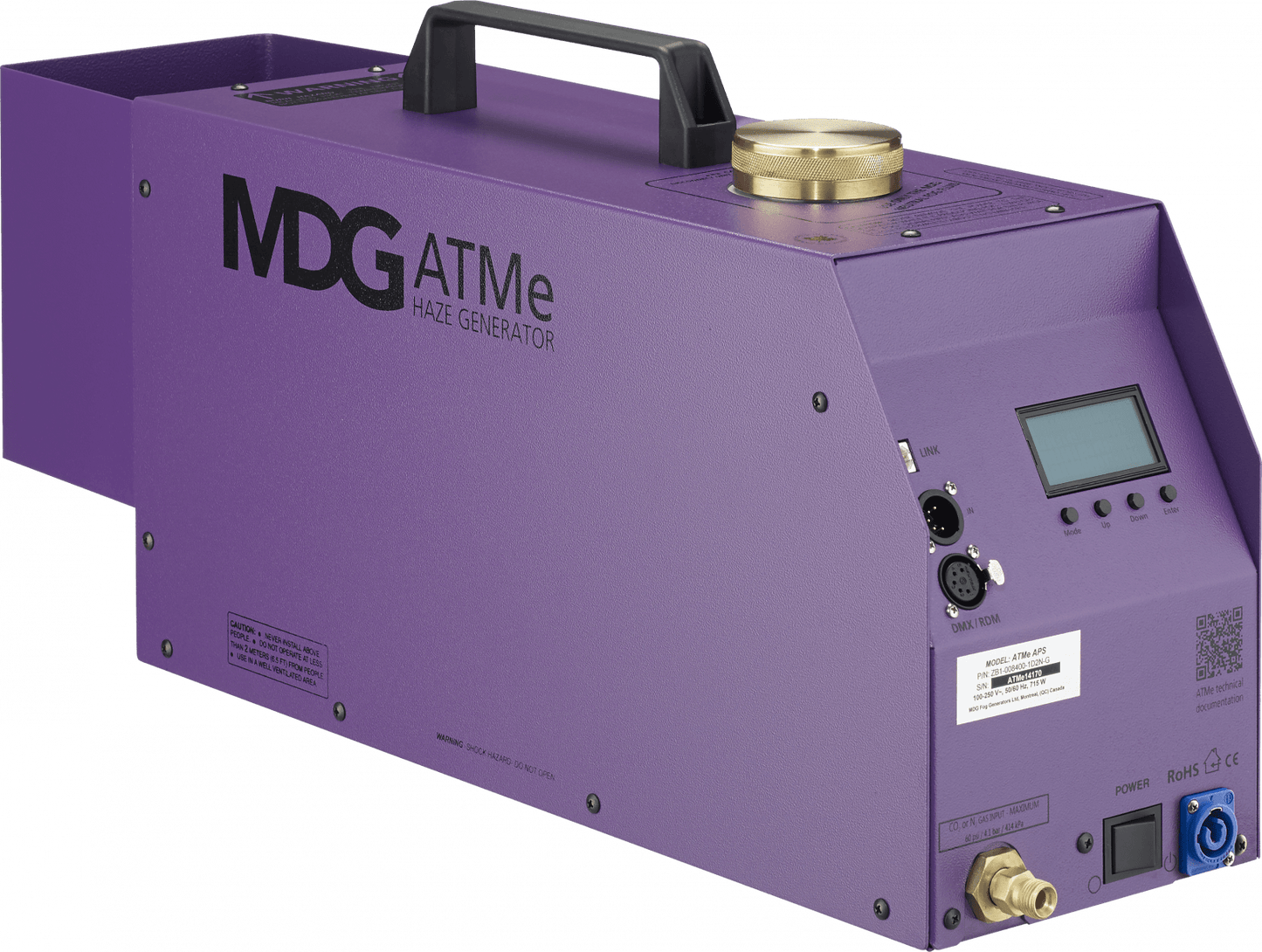

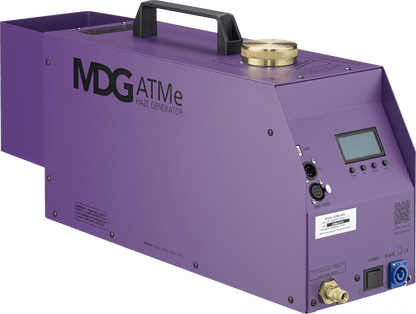

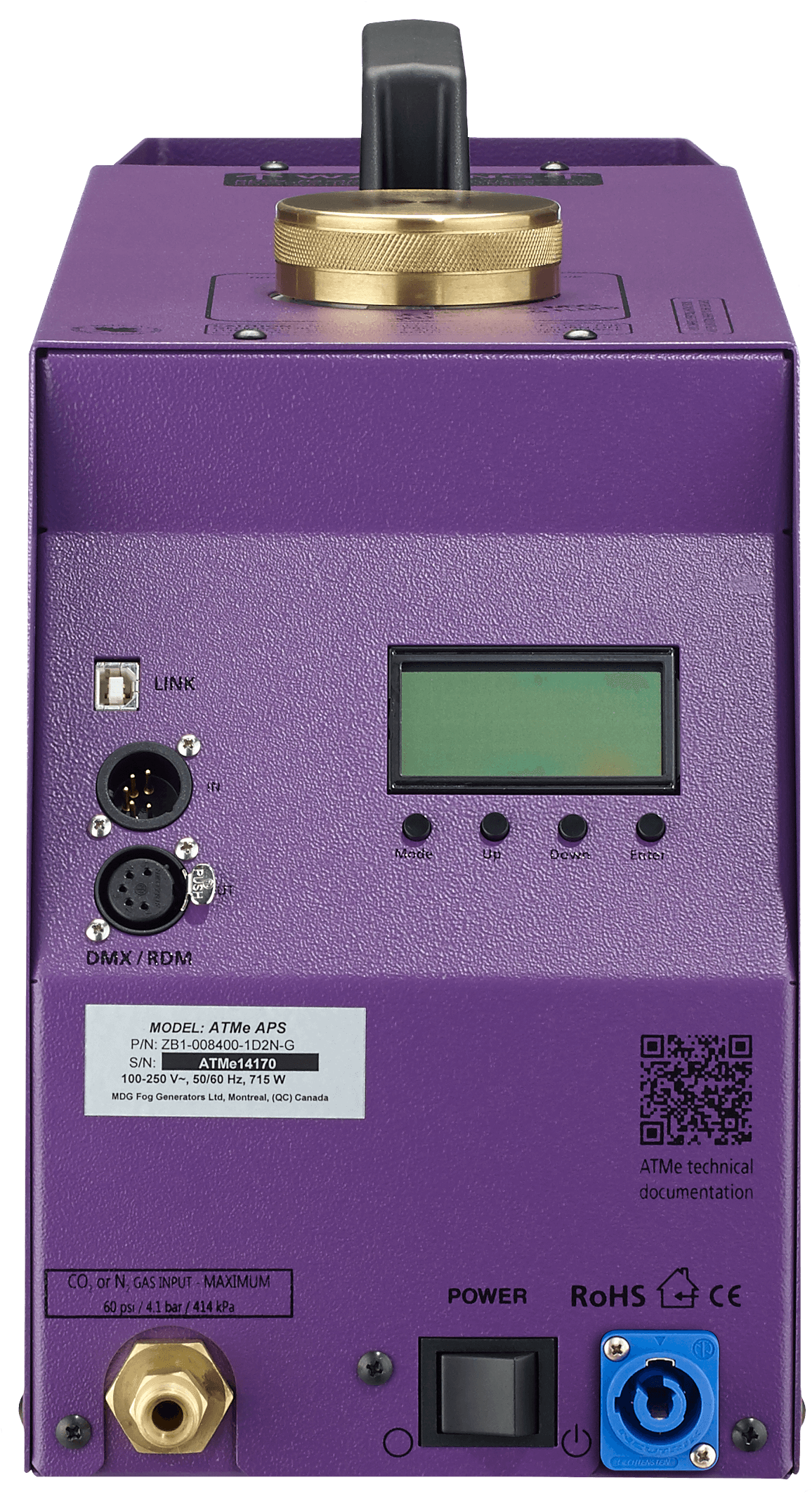

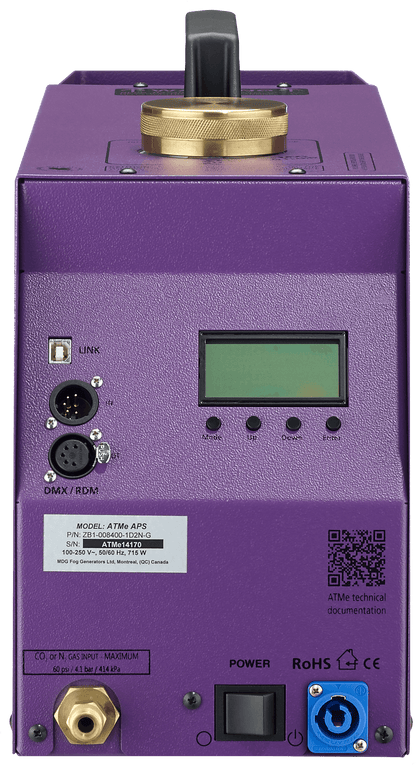

  • Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
  • Extremely quiet operation: Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.
  • Lowest fluid consumption on the market: At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.

Specifications:

  • Fluid consumption: 110 ml (3.72 oz) per hour at 2.76 bar (40 psi)
  • CO2 consumption: 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
  • Reservoir capacity: 2.5 L (0.66 US gallon)
  • APS™ (Automatic Purging System): Standard
  • Haze colour: Pure white
  • Particle size: 0.5 - 0.7 micron
  • Total running time: 23 hours at 2.76 bar (40 psi) with a full tank
  • Warm-up time: 8 minutes (maximum)
  • Fluid type: MDG Neutral
  • Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
  • Power consumption: 715 W
  • Noise emission: 45.4 dB (A) at 1 m (3.3 ft)

Dimensions

  • Length: 68.5 cm (27”)
  • Width: 18 cm (7”)
  • Height: 30 cm (12”)
  • Weight: 16.8 kg (37 lb)
  • Shipping weight: 30.5 kg (67 lb) with flight case
  • Approval: CB, CSA and UL Certified. CE Declaration
