ATS218

The Avante Audio ATS218 high-output dual 18” active subwoofer handles the largest events with 4800-watts of peak power, minimal distortion, and an exceptional low frequency response.

From the Manufacturer:

The Avante Audio AKRO Series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante Audio AKRO ATL328 line array.

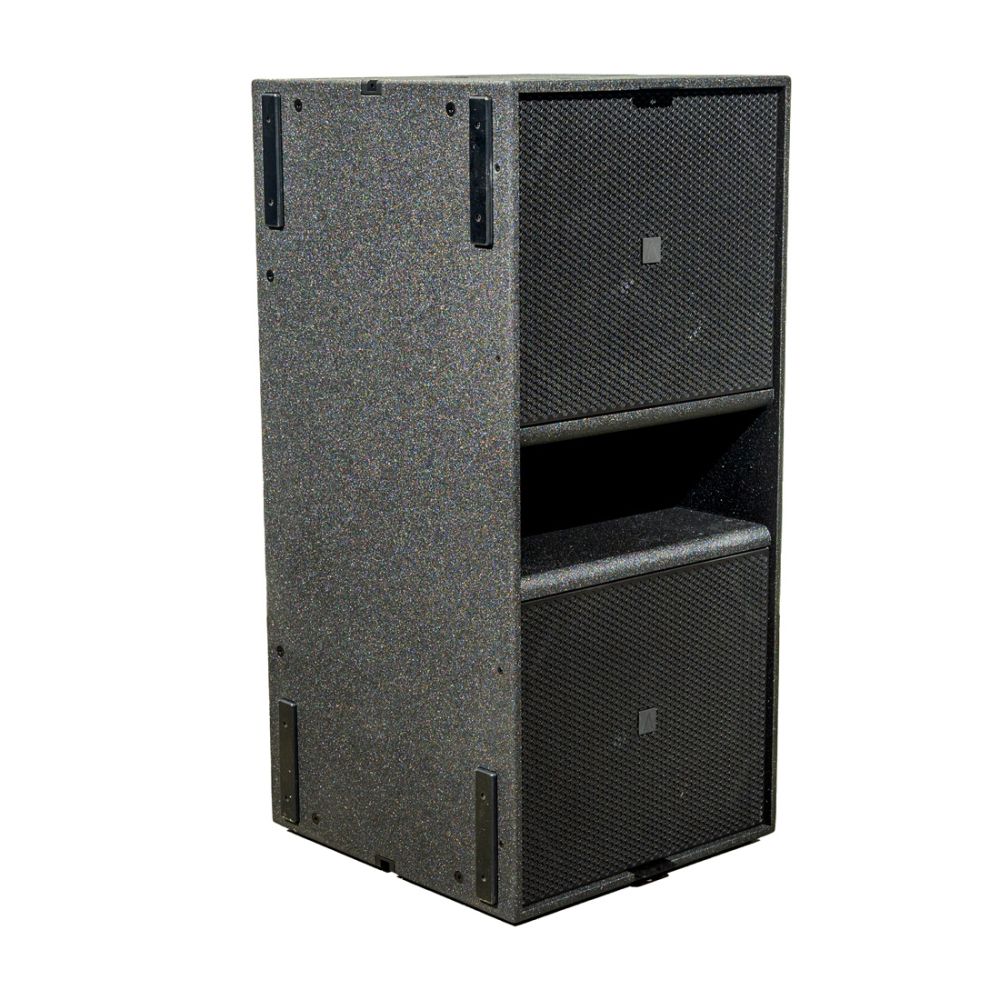

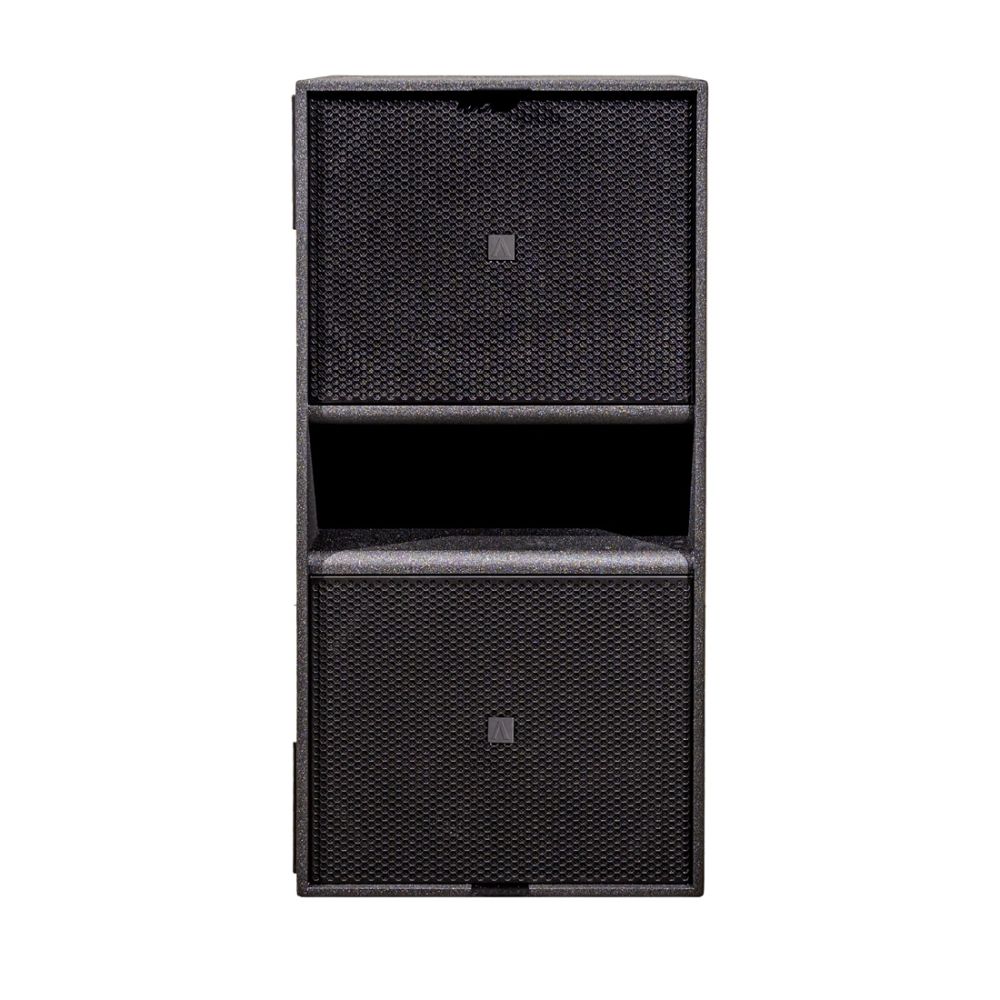

Designed in the USA, the Avante Audio AKRO ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante Audio AKRO ATL328 line array. This subwoofer can be setup to form small to large sub arrays depending on venue or application. This subwoofer is composed of dual high-output 18-inch low-frequency woofers tuned with a very large port. The high-efficiency Class-D +switching power amplifier boasts 4800-watts of total peak power and has a PFC power supply. This ensures that you have great headroom with very minimal distortion. Delivers an exceptional low frequency response of 32 Hz to 120Hz (-6dB)

The AKRO ATS218 comes equipped with a comprehensive German-designed DSP featuring the advanced certified MILAN platform. This new platform allows full system networking, remote monitoring/control including input level, equalization, polarity, cardioid and end-fire presets. Additionally, AES audio input signal can be combined when using MILAN. AKRO-Command system control software is Windows PC, IOS and MAC compatible.

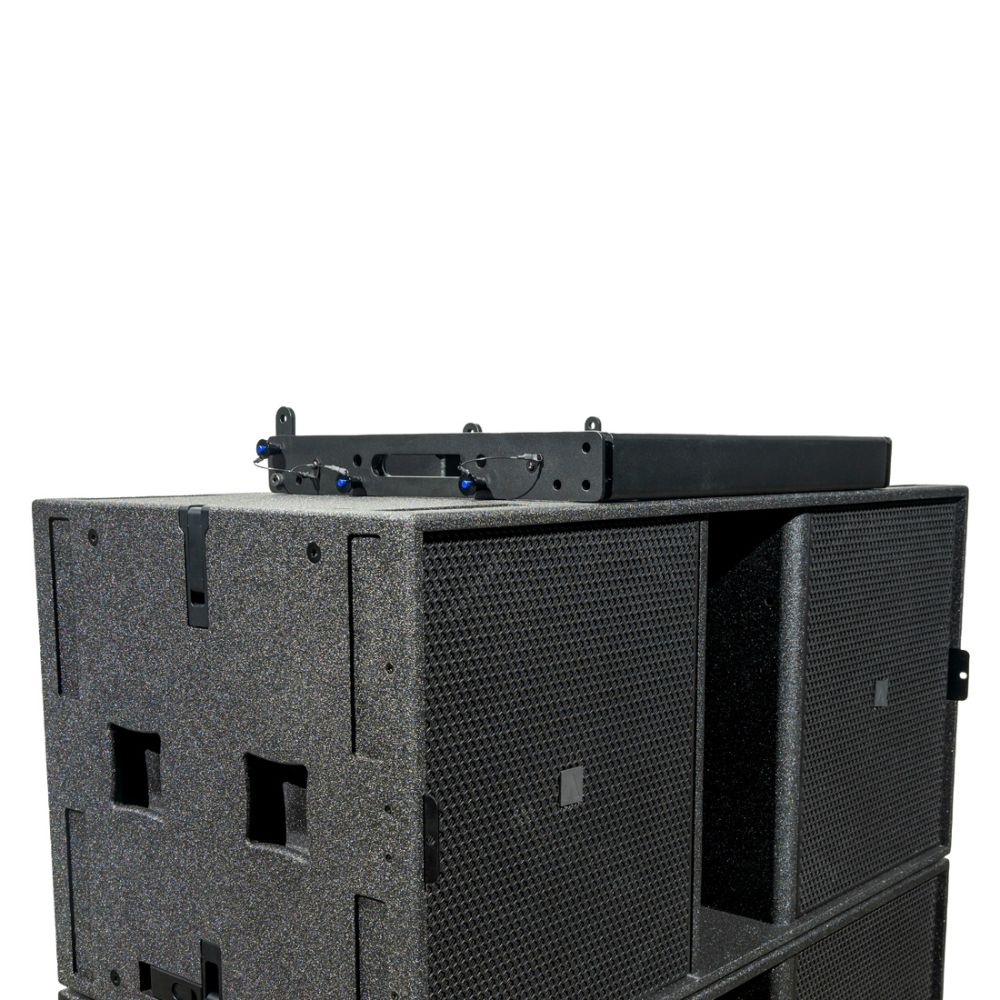

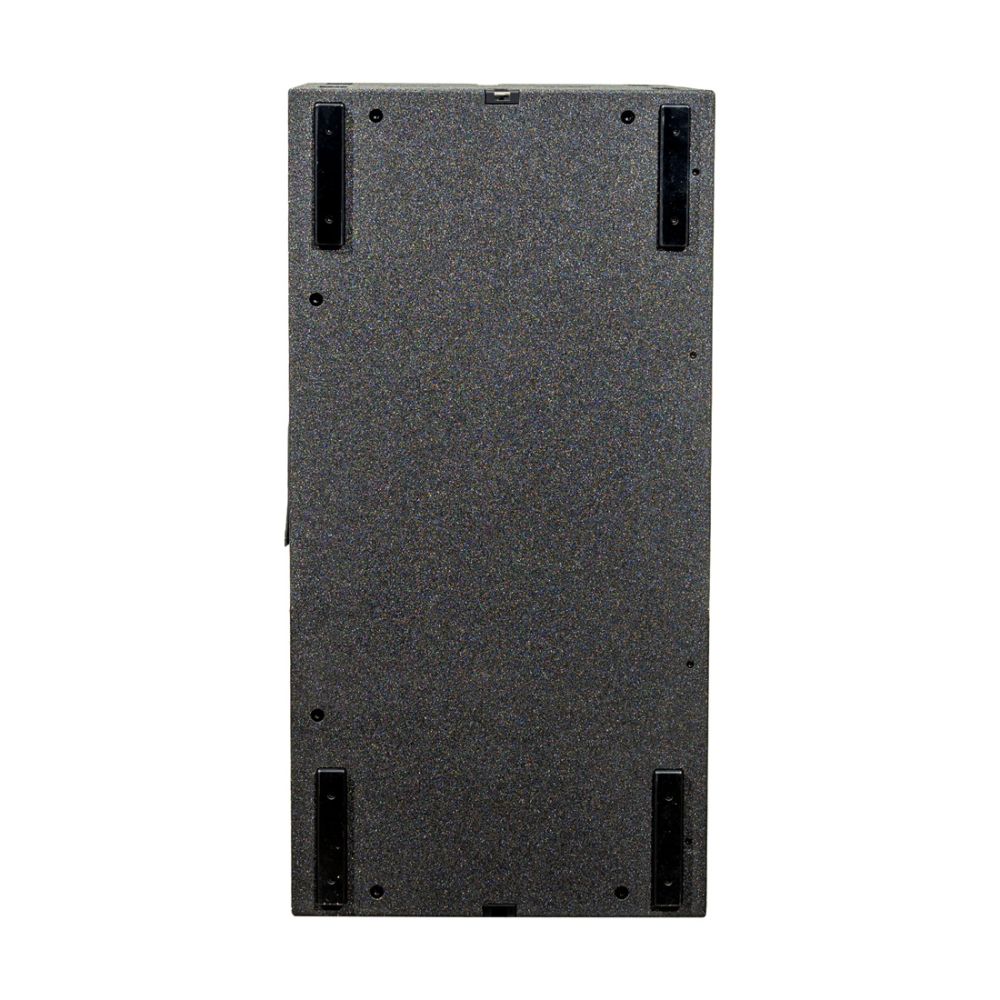

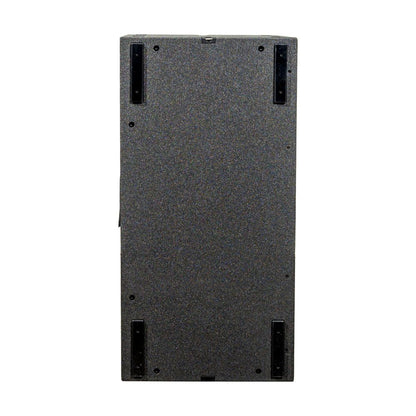

With a precision CNC machined Baltic birch plywood enclosure,  made to withstand the rigors of touring in very demanding environments, making it the perfect choice for professional sound applications including live-sound production, touring and permanent installation including night club applications. The EZ-Link cabinet interlock hardware makes it easy to connect cabinets together to form solid arrays. Protective rain cover for the amplifier connections and IP-rated locking power connectors comes standard. Heavy duty interlocking nylon-skid feet make it easy for cardioid configurations.

Finished in a durable black polyurea coating and featuring a black powder-coated steel grill, this line array system is sure to look great with any performance. Individually, it outputs an impressive maximum SPL of 142 dB.

The new AKRO ATS218 dual 18-inch subwoofer is the perfect choice for any audio professional looking to create a big impact and bringing your event to the next level!

Specifications:

• Speaker Type: 1-Way Active Dual 18-inch Subwoofer
• ACOUSTICAL DATA:
  • Frequency Response: 35 -200 Hz
  • Peak SPL: 142 dB
  • LF: 2 x 18” (4” voice coil)
• AMPLIFIER:
  • Amplifier: Class-D 2400-Watts RMS / 4800-Watts Peak
  • Cooling: Internal fan
  • Power Supply: Auto switching (PFC)100V-240V, 50-60Hz
  • Protection: Thermal, DC Offset, Output Short
• PROCESSOR:
  • German Engineered Proprietary DSP. Milan Certified
  • Sample Rate: 96 kHz
  • Limiter: Multiband compressor, Peak Limiter
  • Processing (filters): Linear Minimum-Phase FIR

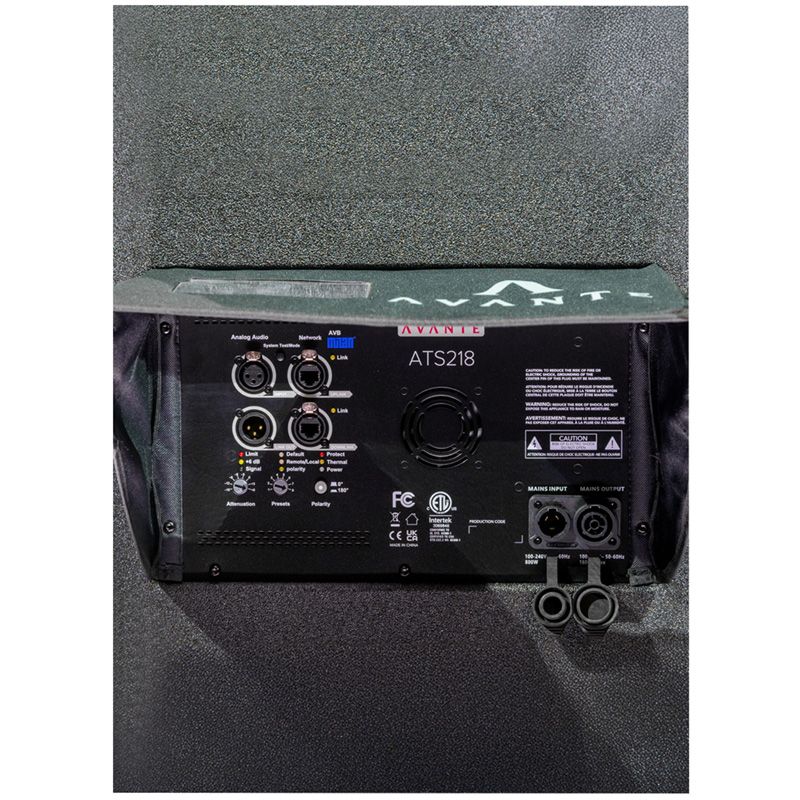

• INPUT:
  • Signal In/Out (analog):3-pin XLR, (digital) AES RJ-45 Milan
  • Power Socket: IP65 Locking Power In/Out
  • Network: Locking RJ45 In/Out for control and Milan network
  • Controls: Input Attenuation (-15dB - +6dB); System presets (8 selectable),  System Test/Mode Button
  • Special Features: Front LED wink-ID
• Remote Control:
  • Full system control and monitoring with AKRO-Command system software. MAC, IOS and Windows PC compatible.
• CONSTRUCTION:
  • Cabinet: Baltic birch premium plywood
  • Finish: Durable black Polyurea coating, powder coated galvanized grille, Nylon-skid interlocking feet.

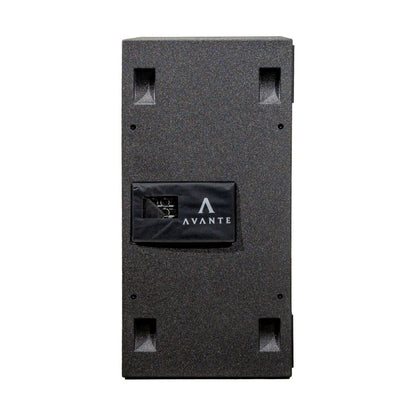

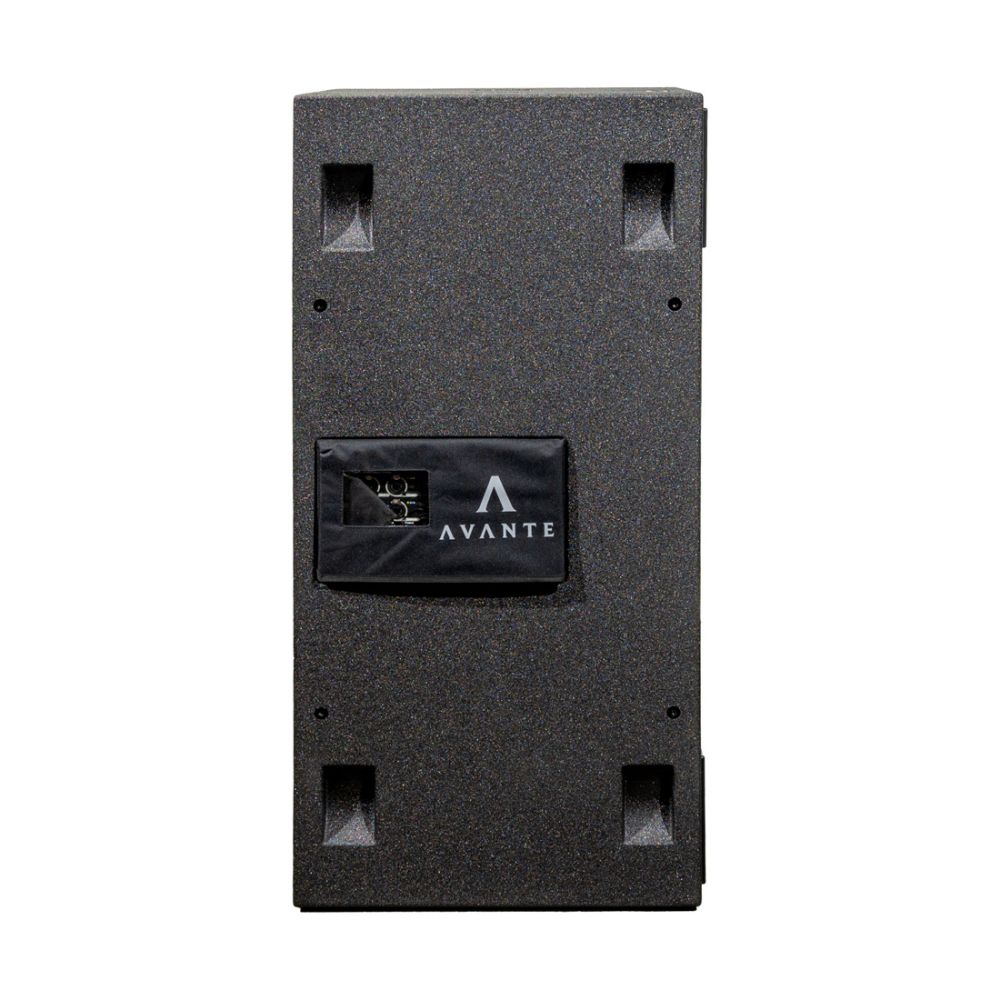

  • Handles: 4 integral handles (2 on each side)

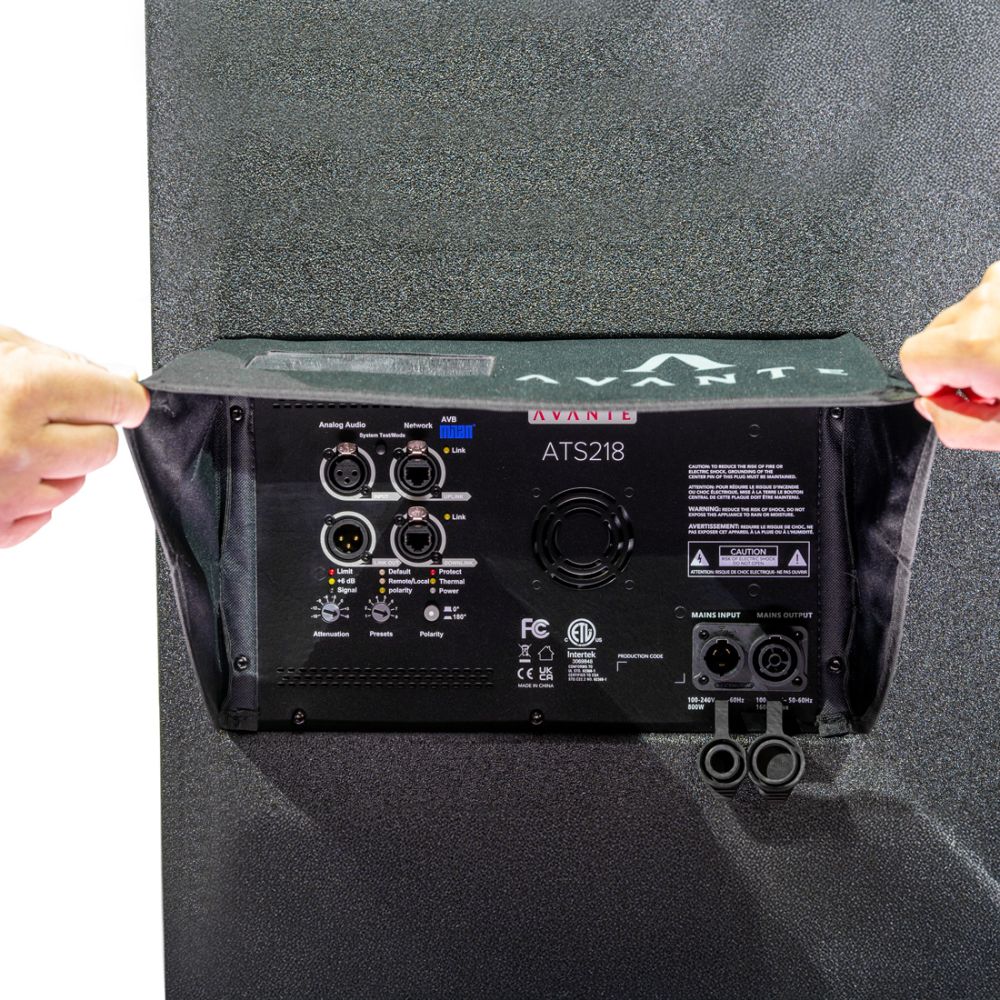

  • Amplifier Protection- Rain resistant cover included

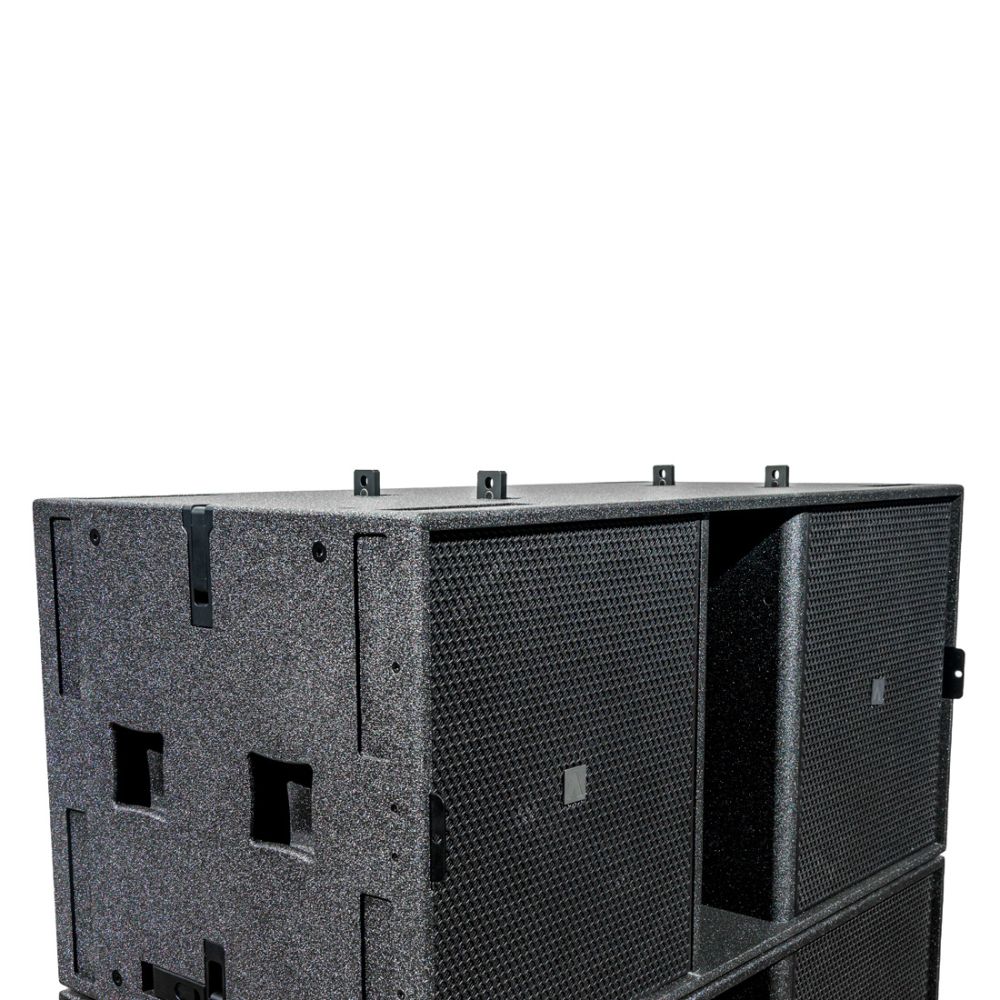

  • Rigging: (20) M10 points, (4) EZ-Link cabinet interlock hardware
  • Dimensions (LxWxH): 48"x22.6"x22.6" / 1219x575x575mm
  • Weight: 174 lbs. / 79 kg.
• ACCESSORIES:
  • CVR218 Protective cover for one ATS218
  • ADB218 Transport 2-way Dolly Board for up to two ATS218
  • ASB218 Stabilizer Bars for ATS218 (2-piece set)
