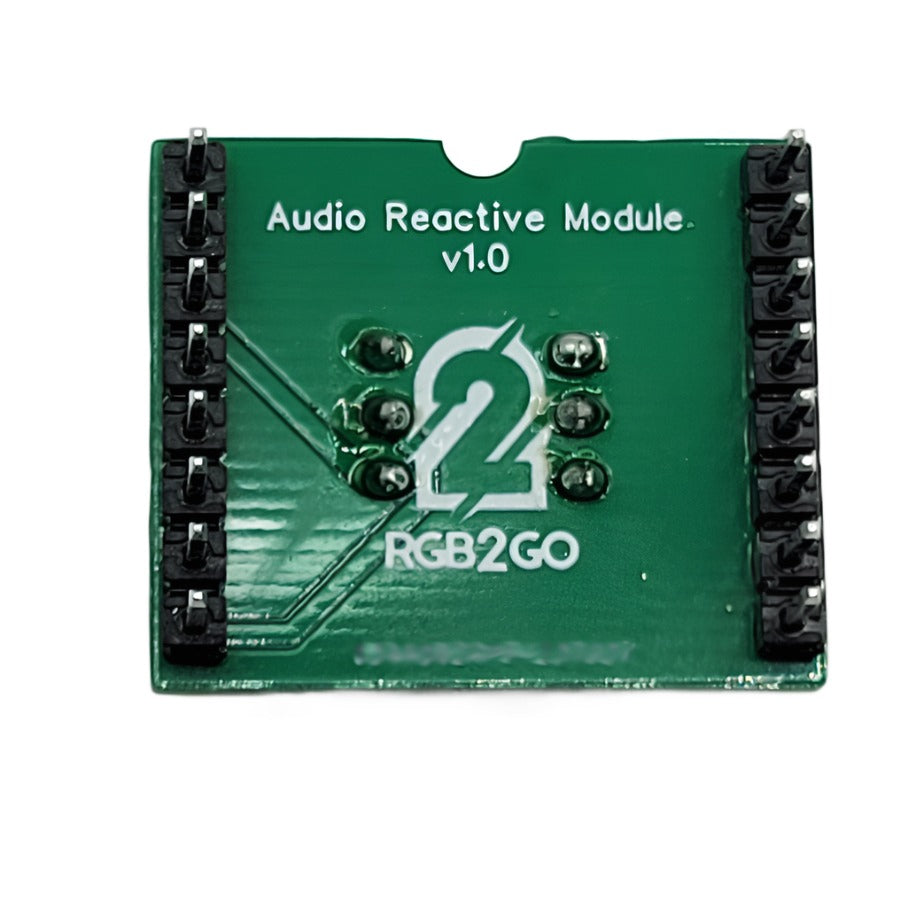

Audio-Reactive Module for Tetra2Go

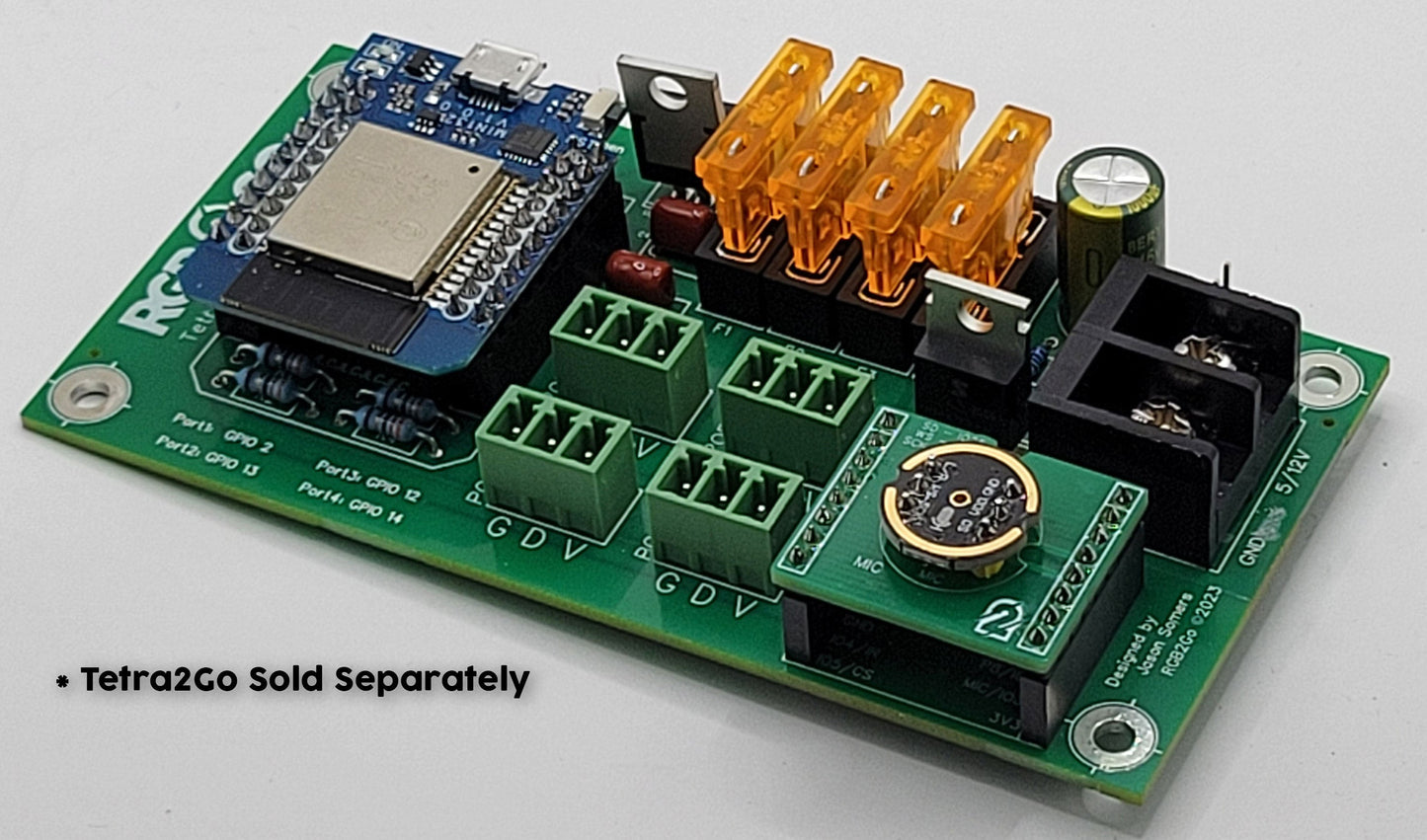

REQUIRES a Tetra2Go - Sold Separately
(NOT compatible with the Duo2Go controller)

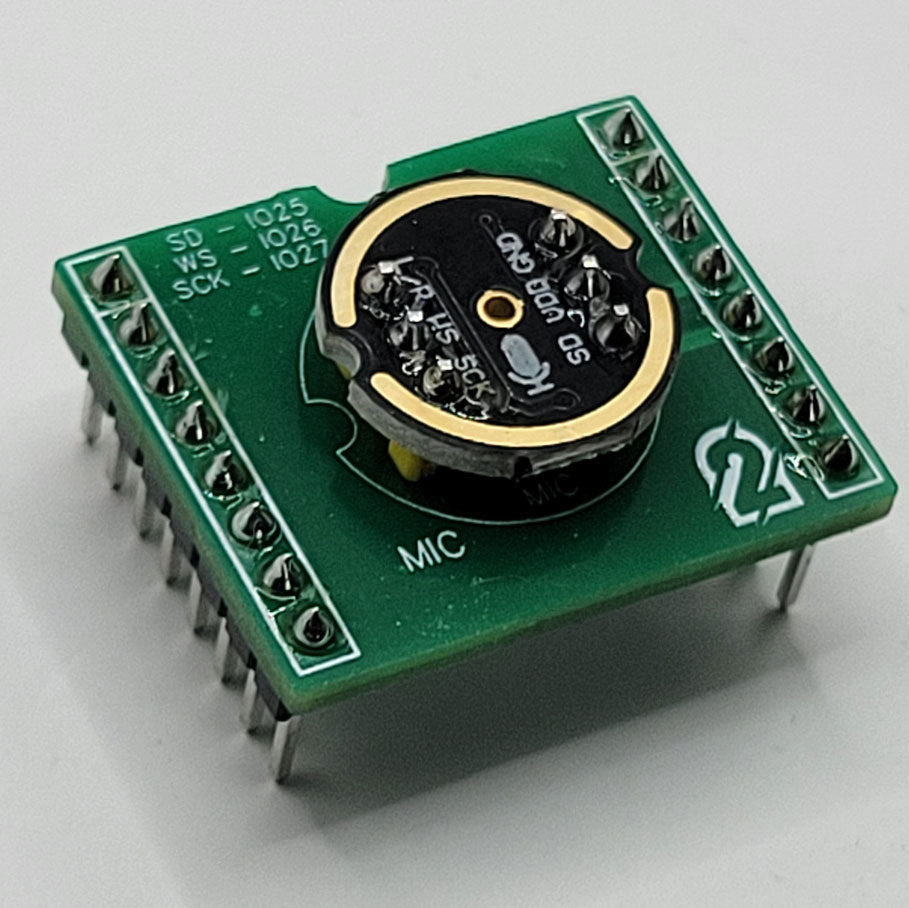

INMP441 Digital Output Sensor Module MEMS High Precision Omnidirectional Microphone Sensor Module for the Tetra2Go

Requires Audio-Reactive image of WLED (included when purchased with Tetra2Go)
Use the following settings to enable:

Config -> Usermods -> Audioreactive

• Enable the module

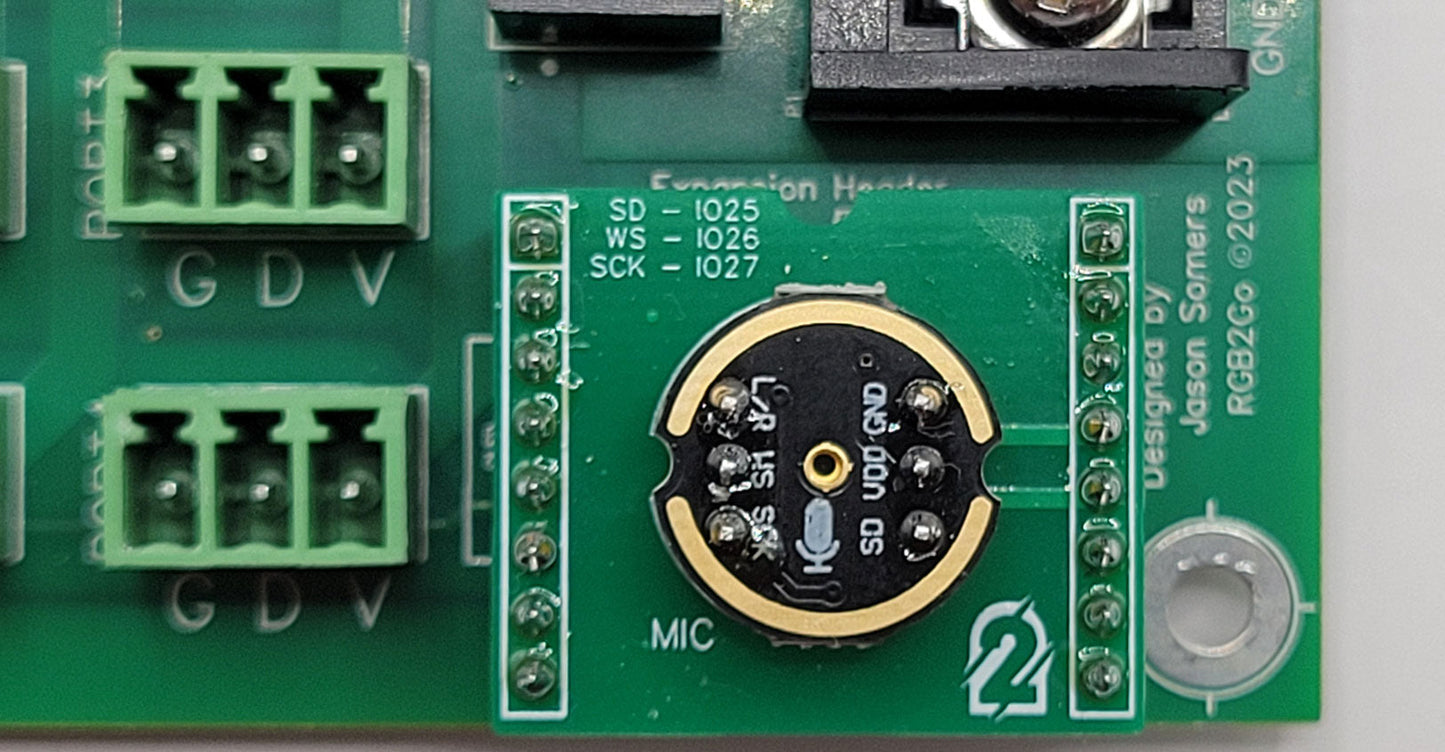

• Pin I2S SD: 25
• Pin I2S WS: 26
• Pin I2S SCK: 27

Preconfigured WLED image available for download here:
WLED_0.14.0_Tetra_AudioReactive.bin

Note: Not all of WLED's effect are Audio Reactive. To choose an Audio reactive effect, choose an effect with a single eighth note by it


Once you find an effect you like, spend some time adjusting the color palette and the effect timings to find something you love!
