AW266-LS
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

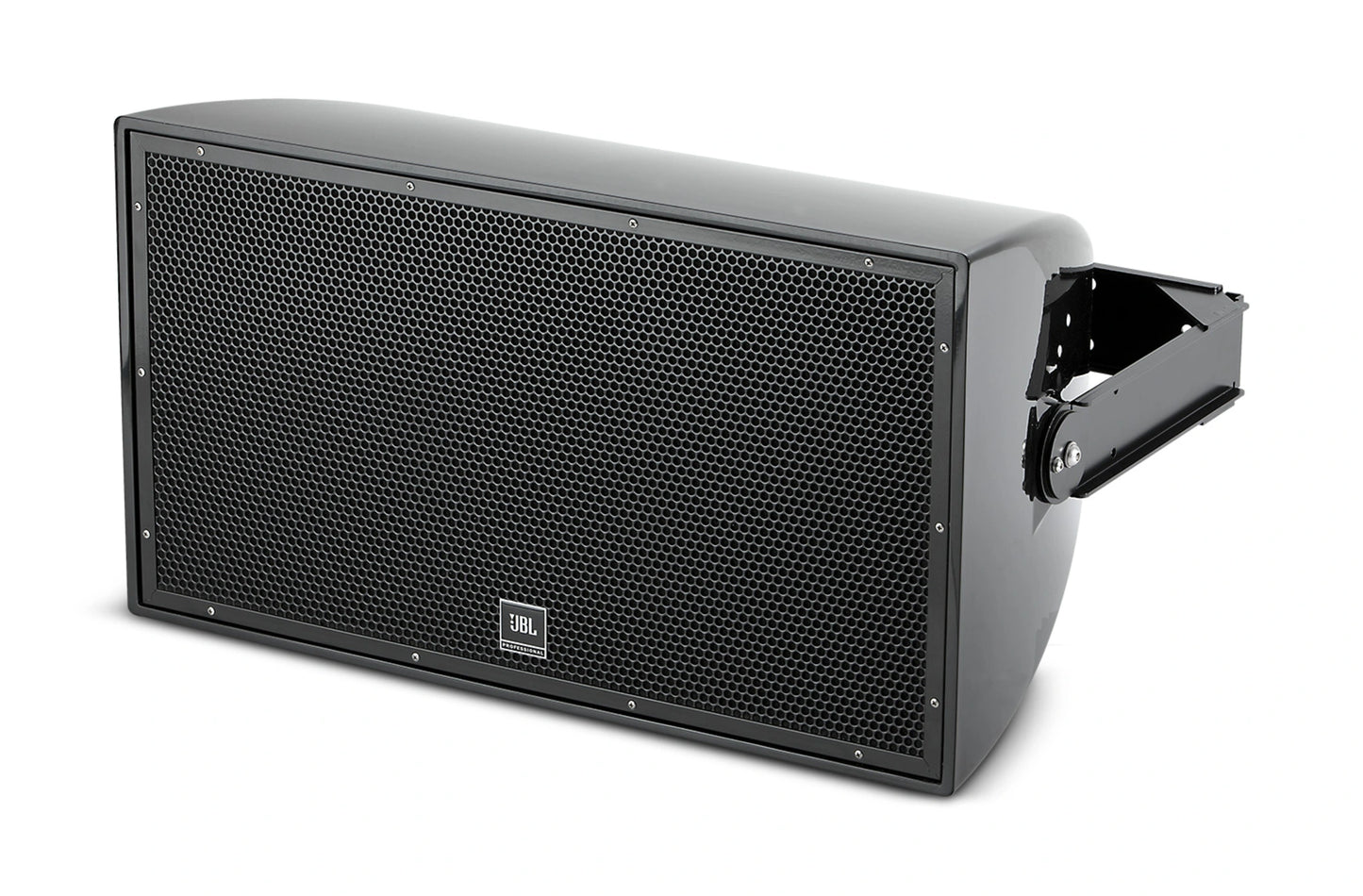

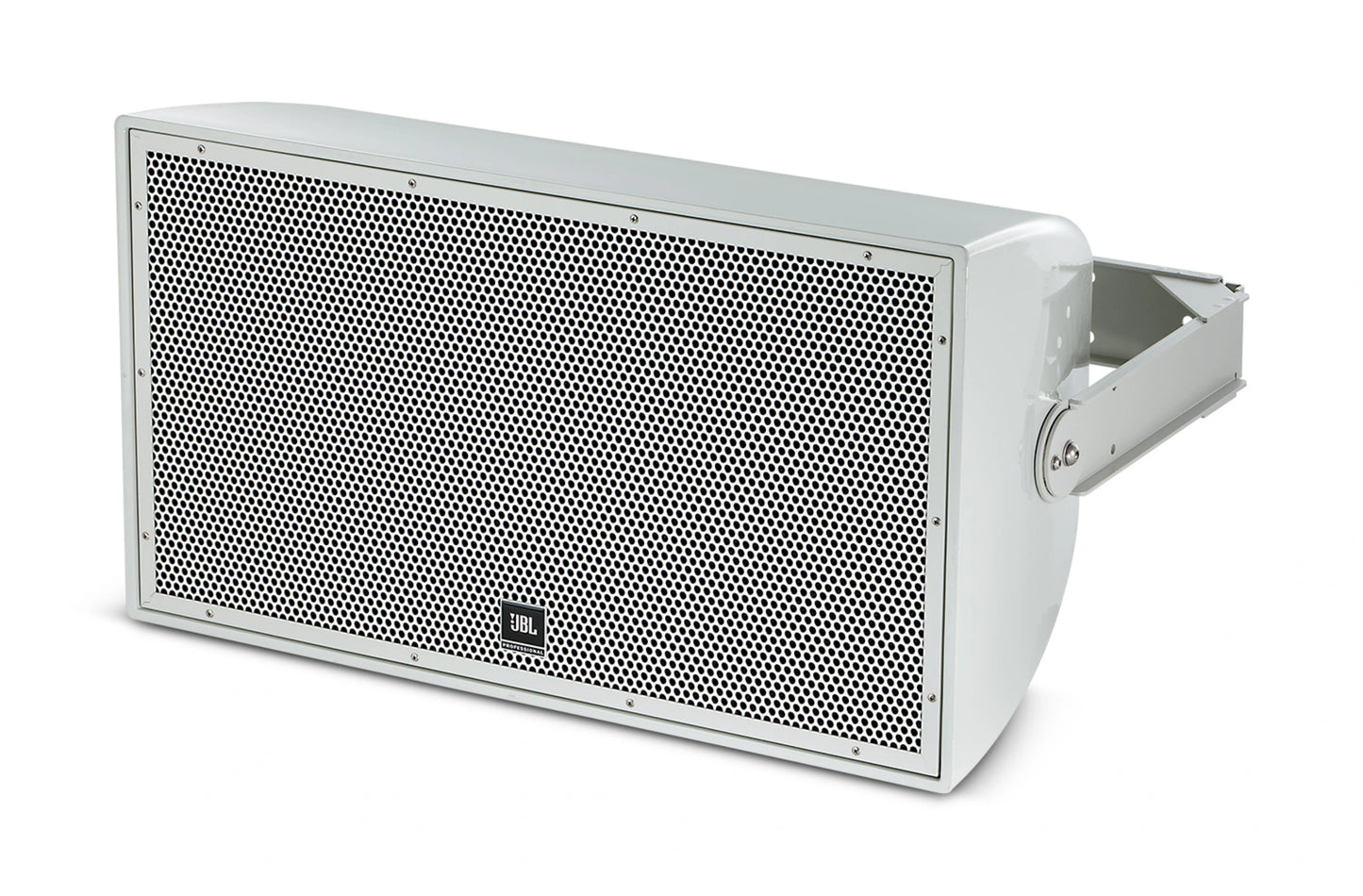

The JBL AW266-LS is a 2-way, full-range, all-weather loudspeaker, EN 54-24 compliant for life safety applications, ideal for cruise ships, sports facilities, and similar demanding environments.
From the Manufacturer
The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
Features
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 60° x 60° Coverage
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Specifications
- Frequency Range (-10dB): 54 Hz – 20 kHz
- Frequency Response (±3 dB): 102 Hz – 18 kHz
- Coverage Pattern: 60° x 60° waveguide
- Directivity Factor (Q): 15.8
- Directivity Index (DI): 12 dB
- Crossover Frequency: 1.1 kHz
- System Power Rating: 400 W (1600 W peak) 100 hrs
- Maximum SPL (1m): 125 dB SPL (131 dB peak)
- System Sensitivity (1w @ 1m): 98 dB
- Sensitivity (1W @ 4m): 87.16 dB SPL
- Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
- LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
- Nominal LF Driver Impedance: 8 ohms
- LFD Sensitivity (1W @ 1m, within operational band): 96 dB SPL
- HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
- HFD Sensitivity (1W @ 1m): 113 dB SPL
- Waveguide: PT-H66HF-1
- Enclosure: Hand-Laminated Fiberglass, (similar to Pantone 420C), available in black (-BK)
- Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
- Grille: Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
- Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
- Environmental: IP55C per IEC 529
- Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
- Net Weight (each): 25.2 kg (55.5 lb)

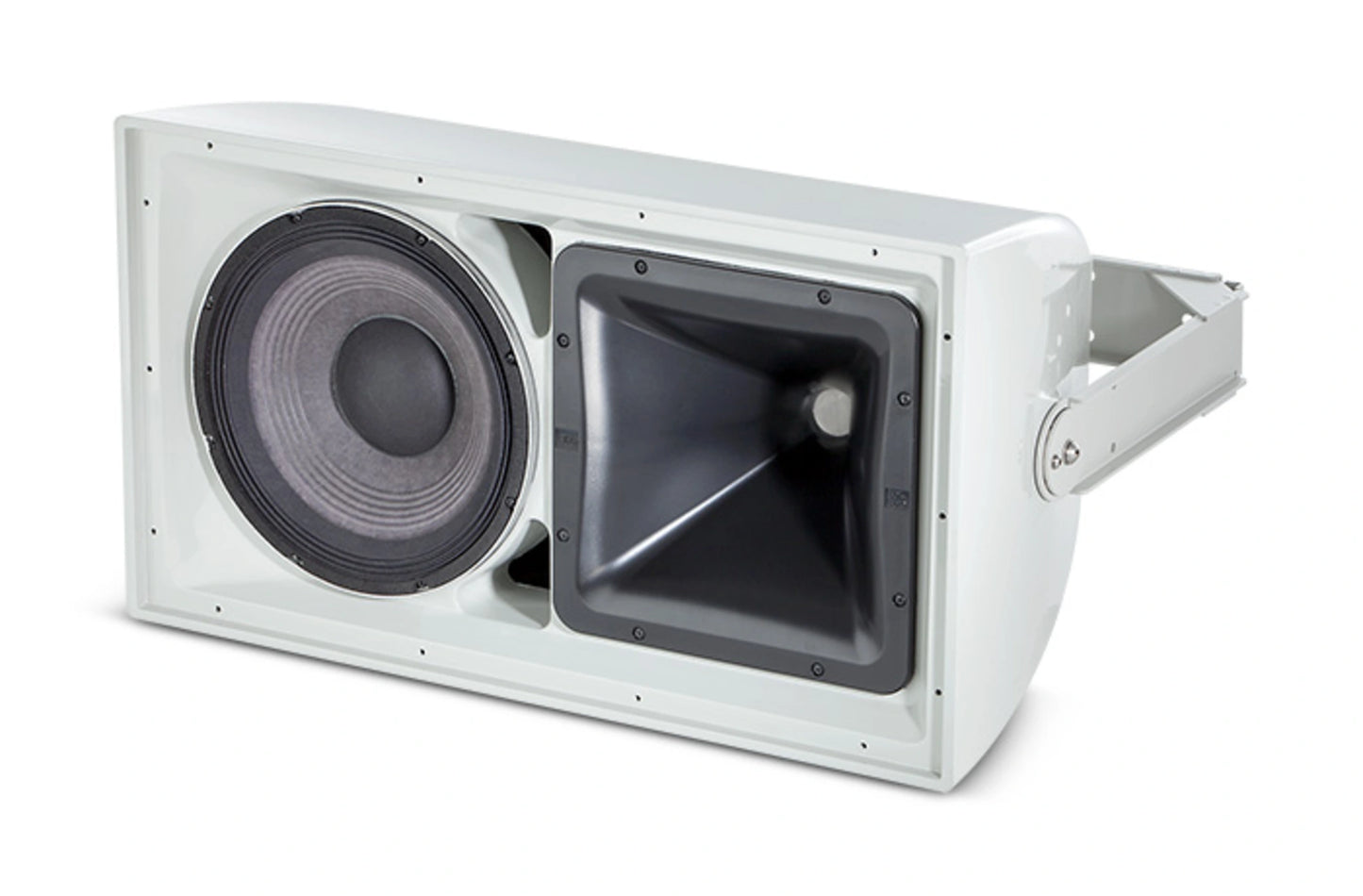

Parts are sealed on LS models (non-LS photos shown).
