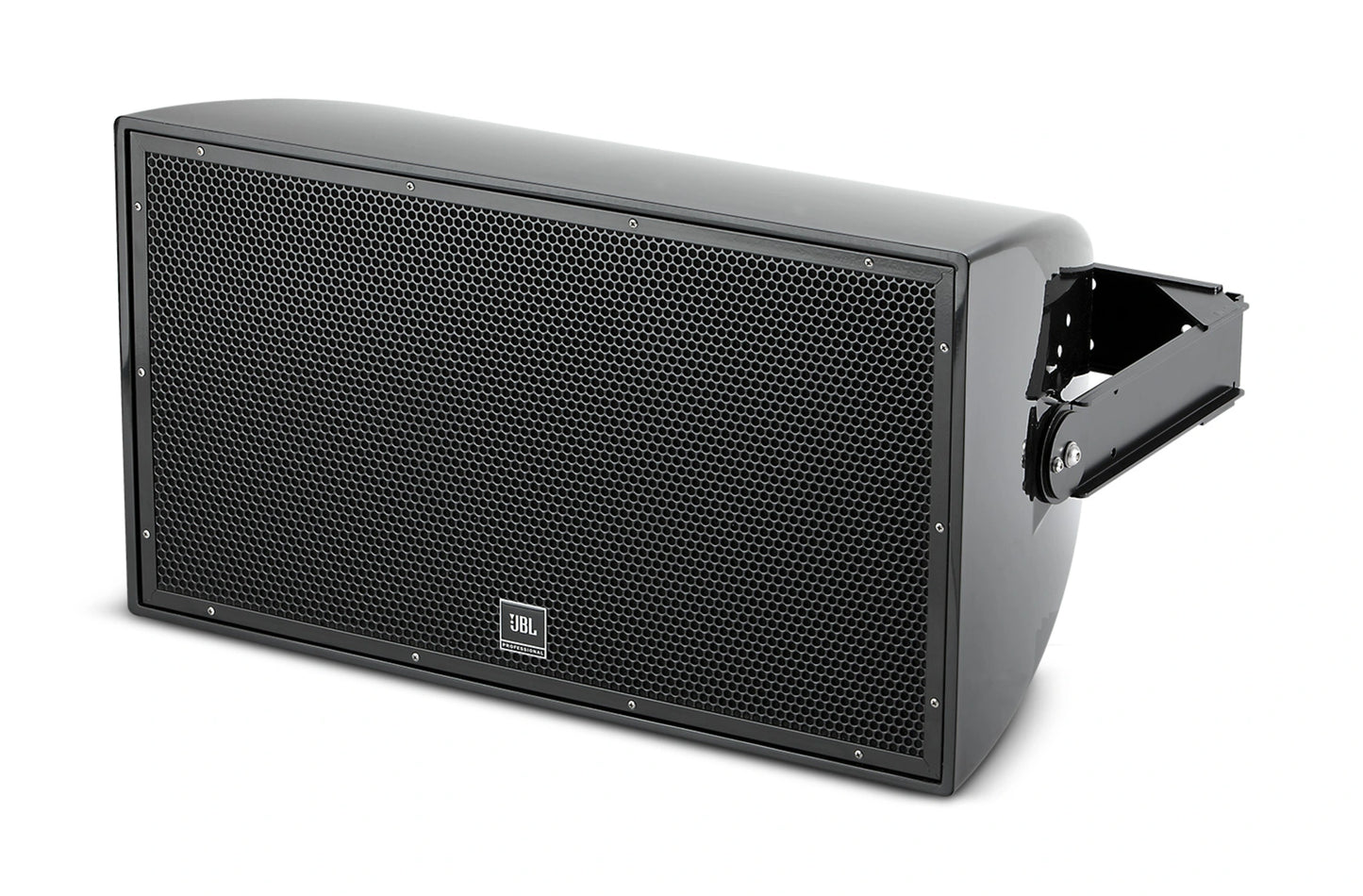

AW295

The JBL AW295 high power, full-range all-weather loudspeaker is a versatile choice for cruise ships, sports facilities, and a variety of other applications.

From the Manufacturer

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn

The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

• Weather-Resistant, All Fiberglass Enclosure
• 90° x 50° Coverage
• 2262H Differential Driver® Low- Frequency Driver
• 2432H High Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable wave guide for vertical or horizontal orientation
• Available in Gray and Black finish
• 400 W, 70/100V Transformer Included
• U-type Mounting Bracket Included

Specifications

• Frequency Range (-10dB): 43 Hz – 20 kHz
• Frequency Response (±3 dB): 53 Hz – 18 kHz
• Coverage Pattern: 90° x 50°, rotatable waveguide
• Directivity Factor (Q): 12.6
• Directivity Index (DI): 11 dB
• Crossover Frequency: 1.3 kHz
• System Power Rating: 500 W (2000 W peak) 100 hrs
• Maximum SPL (1m): 126 dB SPL (132 dB peak)
• System Sensitivity (1w @ 1m): 98 dB
• Sensitivity (1W @ 4m): 87.16 dB SPL
• Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
• LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
• Nominal LF Driver Impedance: 8 ohms
• LFD Sensitivity (1W @ 1m, within operational band): 96 dB SPL
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• Nominal HF Driver Impedance: 8 ohms
• HFD Sensitivity (1W @ 1m): 113 dB SPL
• Waveguide: PT-H95HF-1
• Enclosure: Hand-Laminated Fiberglass, gray gelcoat (black available)
• Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
• Grille: Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
• Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
• Environmental: IP55C per IEC 529
• Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
• Net Weight (each): 25.2 kg (55.5 lb)
