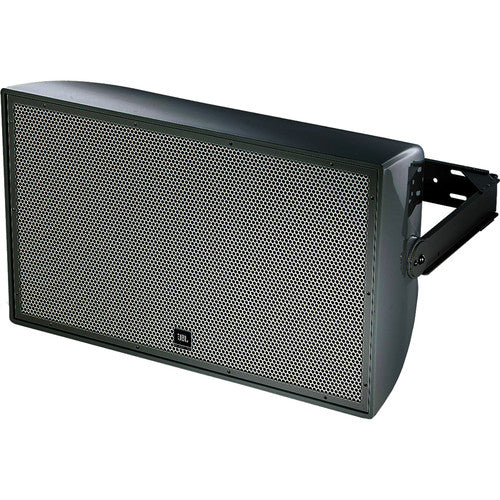

The JBL AW566 high power, full-range all-weather loudspeaker is a versatile choice for cruise ships, sports facilities, and a variety of other venues.

From the Manufacturer

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn

The AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • 60° x 60° Coverage
  • 2265H-1 Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Specifications

  • Frequency Range (-10dB): 35 Hz – 20 kHz
  • Frequency Response (±3 dB): 54 Hz – 18 kHz
  • Coverage Pattern: 60° x 60°
  • Directivity Factor (Q): 15.8
  • Directivity Index (DI): 12 dB
  • Crossover Frequency: 1.1 kHz
  • System Power Rating: 600 W (2400 W peak), 100 hrs
  • Maximum SPL (1m): 128 dB-SPL cont avg (134 dB peak)
  • System Sensitivity (1w @ 1m): 100 dB SPL
  • Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W
  • LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
  • Nominal LF Driver Impedance: 8 ohms
  • LFD Sensitivity (1W @ 1m, within operational band): 98 dB SPL
  • HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
  • Nominal HF Driver Impedance: 8 ohms
  • Sensitivity: 113 dB SPL
  • Waveguide: PT-H66HF-1
  • Enclosure: Hand-Laminated Fiberglass, gray gelcoat (black available)
  • Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
  • Grille: Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
  • Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
  • Environmental: IP55C per IEC529
  • Dimensions (H x W x D in horizontal cabinet orientation): 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
  • Net Weight (each): 28.3 kg (62.5 lb)
  • Crossover Modes: Passive
