AWC62

A compact all-weather 2-way coaxial loudspeaker designed for outdoor and indoor installations, delivering clear, consistent sound with wide coverage in a rugged, weather-resistant enclosure.

From The Manufacturer:

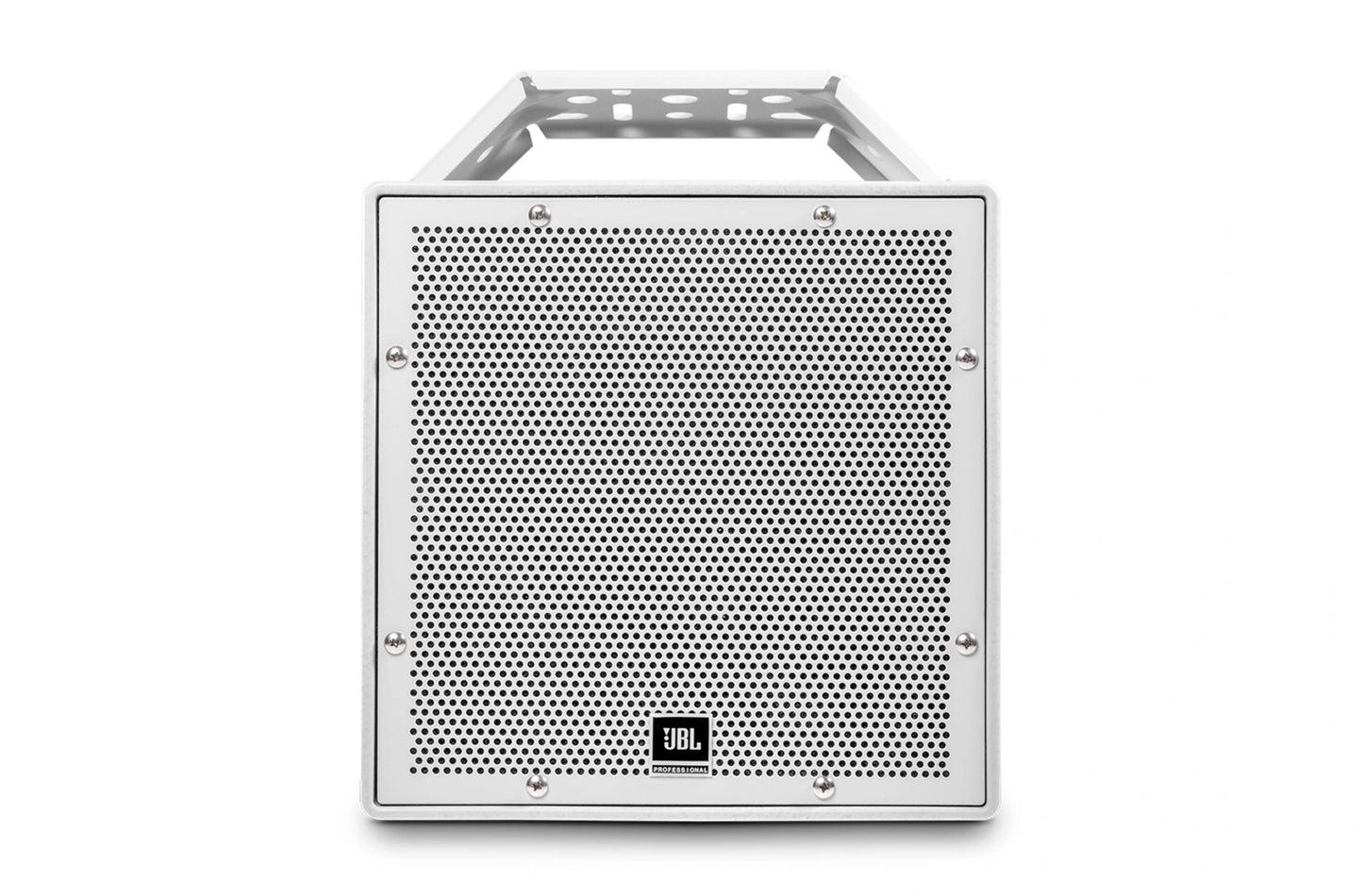

The JBL AWC62 is a compact, high-performance, coaxial loudspeaker system designed for all-weather operation. It features a 6.5-inch low-frequency driver with a coaxially mounted high-frequency compression driver, providing full-range sound with consistent coverage for a variety of installation environments.

Features:

• All-weather design for indoor and outdoor use

• 6.5” coaxial driver for consistent phase and coverage

• Wide 110° conical coverage pattern

• Compact, lightweight enclosure for flexible installation

• High power handling for its size

• UV-resistant, weather-protected enclosure

• Includes multi-tap transformer for 70V/100V systems

• Corrosion-resistant grille and hardware

• Designed for theme parks, stadiums, resorts, and public spaces

Specification:

• System Type: 2-way coaxial loudspeaker

• LF Driver: 6.5" woofer

• HF Driver: Coaxially mounted compression driver

• Frequency Range (-10 dB): 70 Hz – 20 kHz

• Frequency Response (±3 dB): 80 Hz – 16 kHz

• Coverage Pattern: 110° conical

• Power Rating: 150 W continuous / 600 W peak

• Sensitivity: 90 dB (1W/1m)

• Maximum SPL: 112 dB continuous / 118 dB peak

• Nominal Impedance: 8 ohms

• Transformer Taps:

• 70V: 60 W / 30 W / 15 W / 7.5 W

• 100V: 60 W / 30 W / 15 W

• Enclosure: High-impact polystyrene / weather-resistant

• Environmental Rating: IP56

• Dimensions: approx. 265 × 265 × 310 mm

• Weight: approx. 5.4 kg

Included:

• 1 × JBL AWC62 loudspeaker

• Mounting bracket / installation hardware
