AX2

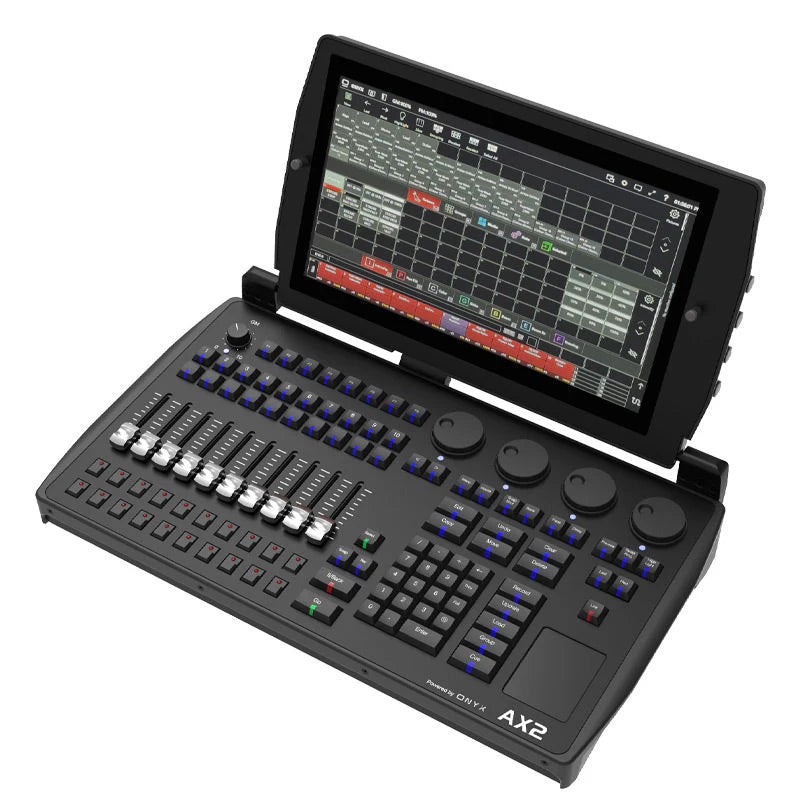

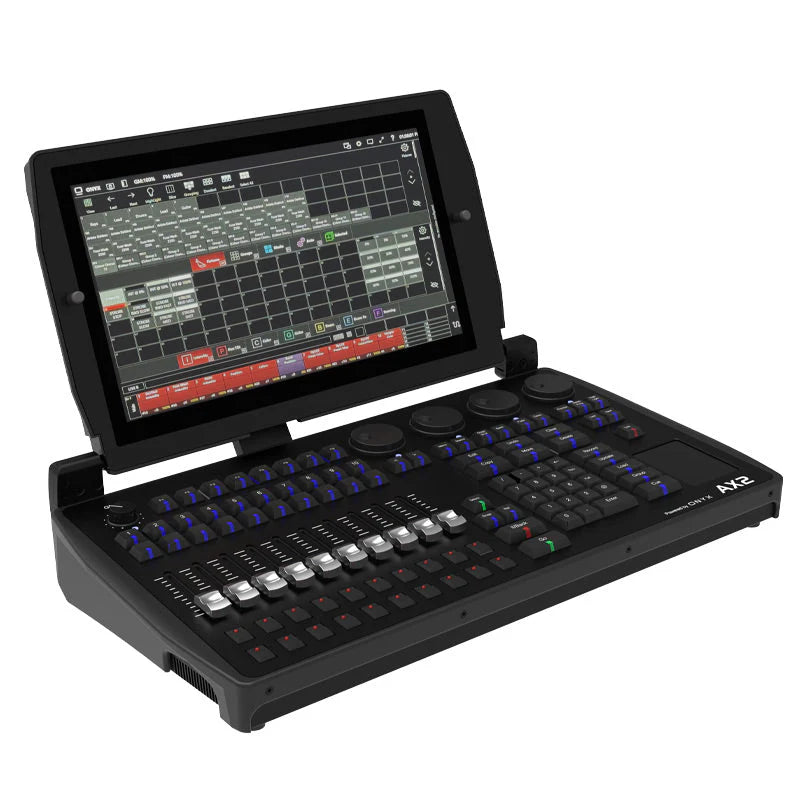

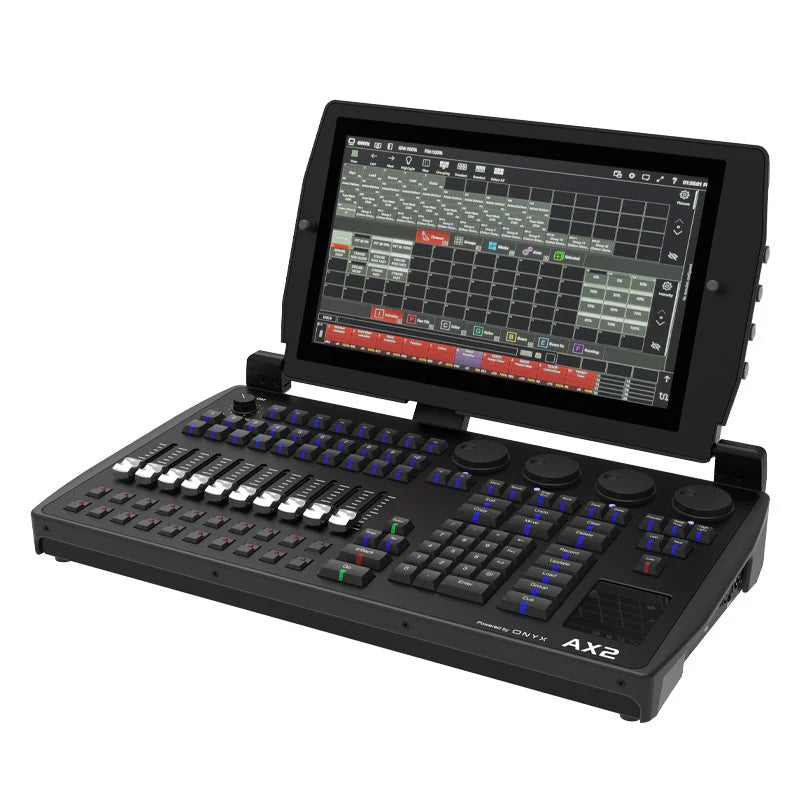

The ADJ AX2 is a compact yet powerful fully integrated lighting controller powered by Obsidian Control Systems' ONYX platform, featuring a 15.6" multi-touch screen, 32-universe integrated processing, and the DYLOS Media Engine with 5 zones of pixel control.

From the Manufacturer

The AX2 is the first console in the ADJ portfolio built on the innovative ONYX platform from Obsidian Control Systems. At its core is a powerful Intel Hexa-Core processor, 16GB of DDR4 RAM, and a high-speed NVMe SSD drive — delivering fast boot times, instant operation, and the ability to process 32 universes directly inside the console without the need for costly external processing networks. The result is unprecedented power in a compact, ergonomic footprint ready to run the largest shows at a moment's notice.

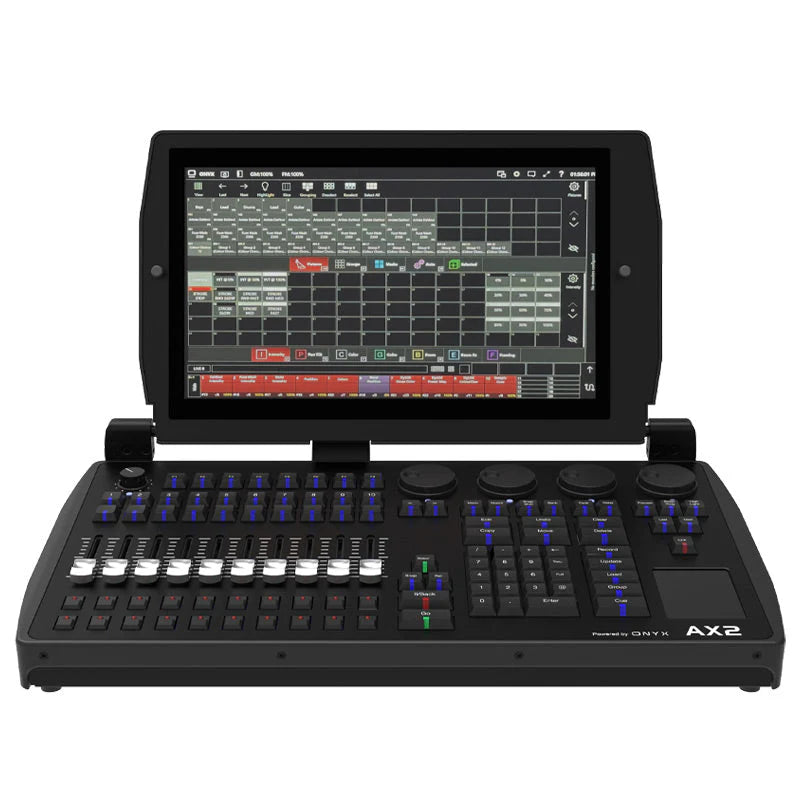

The control surface features a high-brightness 15.6" Full HD multi-touch screen, 8 assignable parameter encoders, a 3.5" assistive RGB touchscreen, a full numerical keypad and command section, 10 playbacks with four freely assignable buttons per fader, and a dedicated grand master. Two additional 4K touch monitors are supported via DisplayPort for even more direct access. With four DMX/RDM ports, dual Gigabit network ports for Art-Net, sACN, and ONYX X-Net, SMPTE timecode, and MIDI in/out/thru, the AX2 has all the connectivity required for today's most demanding productions. The DYLOS Media Engine with 5 zones of pixel control is included.

Features

• Powered by ONYX from Obsidian Control Systems
• DYLOS Media Engine with 5 zones of pixel control included
• 32-universe integrated DMX processing — no external processing network required
• 15.6" Full HD (1920x1080) adjustable multi-touch screen
• Supports 2x external 4K touch displays via DisplayPort
• Intel i5 Hexa-Core processor with 16GB DDR4 RAM and 500GB NVMe M.2 SSD
• Windows 11 IoT Embedded operating system
• 10 x 60mm playback faders, each with 4 freely assignable function buttons
• 8 x customizable multi-function keys
• 4 x digital rotary encoders with push function and status LED for fixture parameter control
• 4 x screen-mounted digital rotary encoders with push
• 3.5" RGB touchscreen for parameter groups, effect parameters, fanning, and global timings
• Grand master rotary fader and full numerical keypad and command section
• Master Go section with Go, Pause, Snap, and Release
• Blind / HighLight / Last / Next buttons
• 4 x DMX/RDM in/out ports (5-pin locking XLR)
• SMPTE Timecode in/out (3-pin XLR)

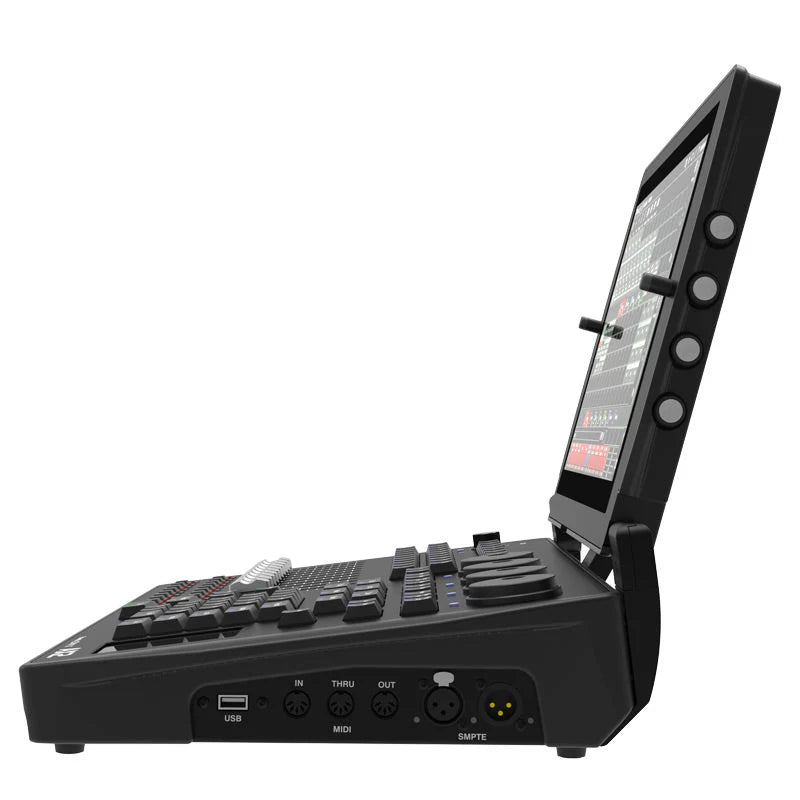

• MIDI in/out/thru supporting MIDI Show Control, MIDI notes, and MIDI timecode (5-pin DIN)
• Dual Gigabit network ports for Art-Net, sACN, and ONYX X-Net
• 4x USB 3.0 + 1x USB 2.0 for storage and peripherals
• Quiet thermal design using advanced copper heat pipe coolers
• CE certified
• Recommended use: Concert and touring lighting, theater, live events, large-scale productions, festivals

Specifications

Control Surface

• Playback Faders: 10 x 60mm, each with 4 freely assignable function buttons
• Encoders: 4 x digital rotary with push and status LED + 4 x screen-mounted digital rotary with push
• Multi-Function Keys: 8 x customizable
• Touchscreen (Assistive): 3.5" RGB touchscreen
• Grand Master: Rotary fader with button
• Keypad: Full numerical keypad and command section

Hardware

• Main Display: 15.6" TFT 16:9 multi-touch (1920x1080)
• Processor: Intel i5 Hexa-Core
• RAM: 16GB DDR4

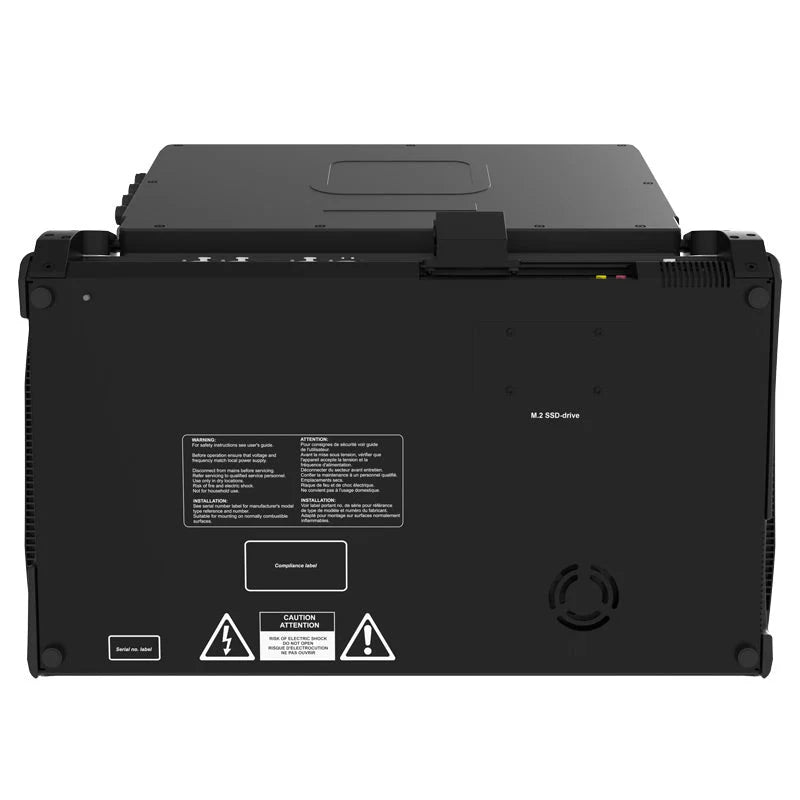

• Storage: 500GB NVMe M.2 SSD
• Operating System: Windows 11 IoT Embedded
• External Display Support: 2x DisplayPort (up to 4K)

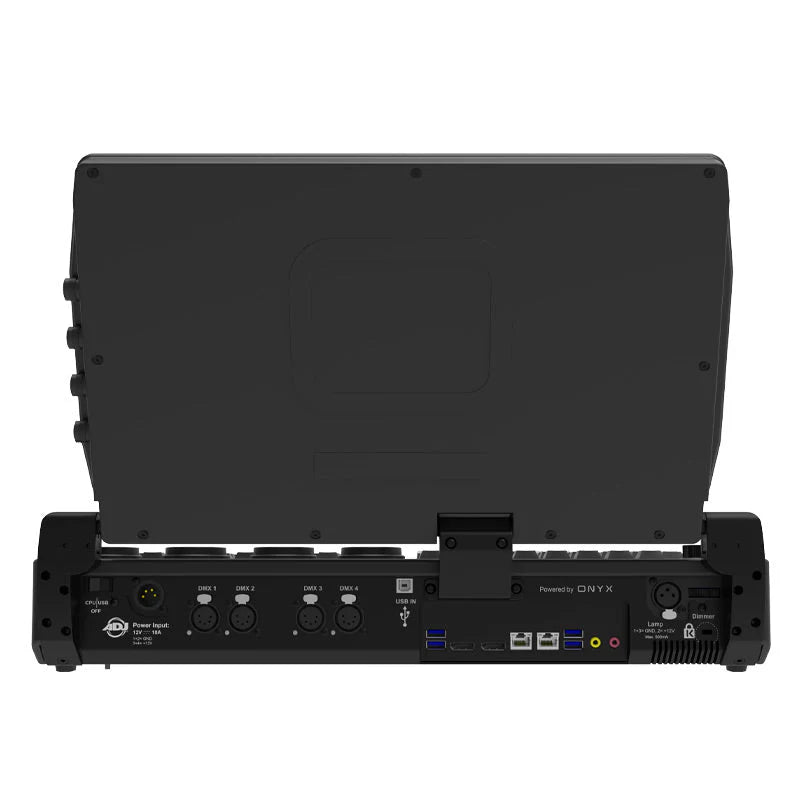

Connections

• DMX/RDM: 4 x universe in/out, 5-pin locking XLR
• Network: 2 x Gigabit (Art-Net, sACN, ONYX X-Net)
• MIDI: In/out/thru, 5-pin DIN
• Timecode: SMPTE in/out, 3-pin XLR
• USB: 4 x USB 3.0, 1 x USB 2.0
• Audio: 2 x 3.5mm jack (audio out, mic in)
• External Display: 2 x DisplayPort (up to 4K)
• Power Input: 12 VDC, 4-pin XLR
• Desk Lamp: XLR 12V

Electrical

• AC Input: 100–240V nominal, 50/60 Hz
• Maximum Input Current: 3A
• DC Output: 12V, 11A, 132W max

Physical

• Length: 300 mm (11.9 in)
• Width: 540 mm (21.3 in)
• Height: 121 mm (4.8 in)
• Weight: 9 kg (19.8 lbs)

What's in the Box

• ADJ AX2 Lighting Controller
• RGB LED desk lamp with angular XLR connector, 13"

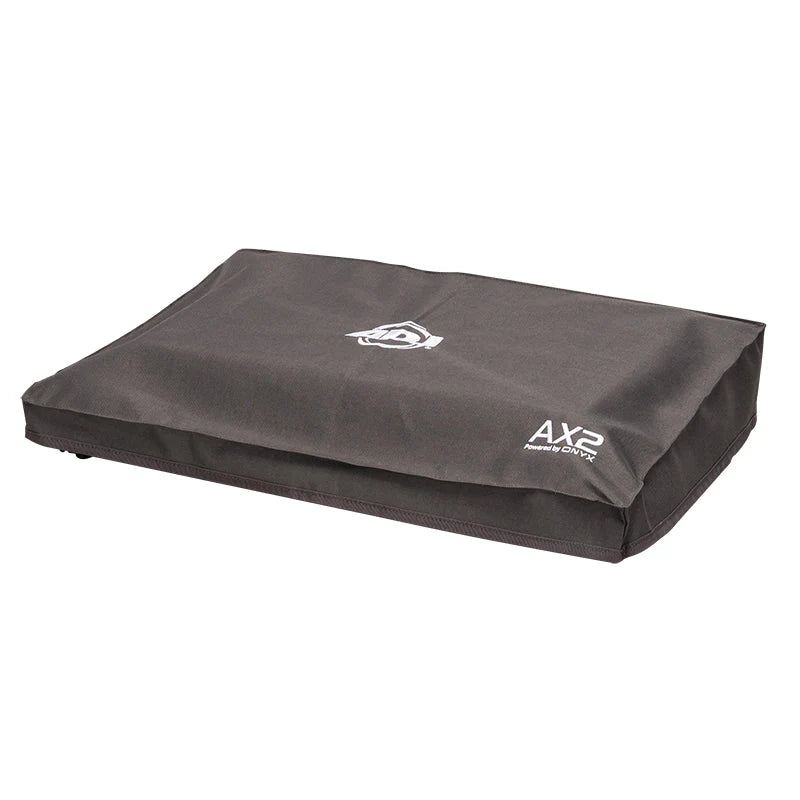

• Dust cover
• USB cable
• External PSU (12V, 11A)
• 1.5m power cable, 3-pin IEC (EU or US version)
• USB recovery flash drive
• Installation manual
