Sku: AX2178

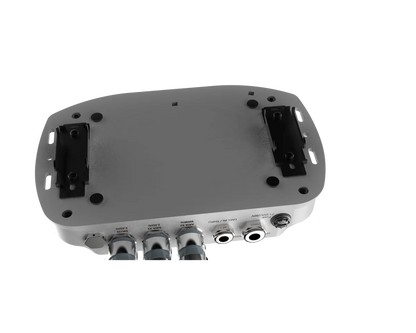

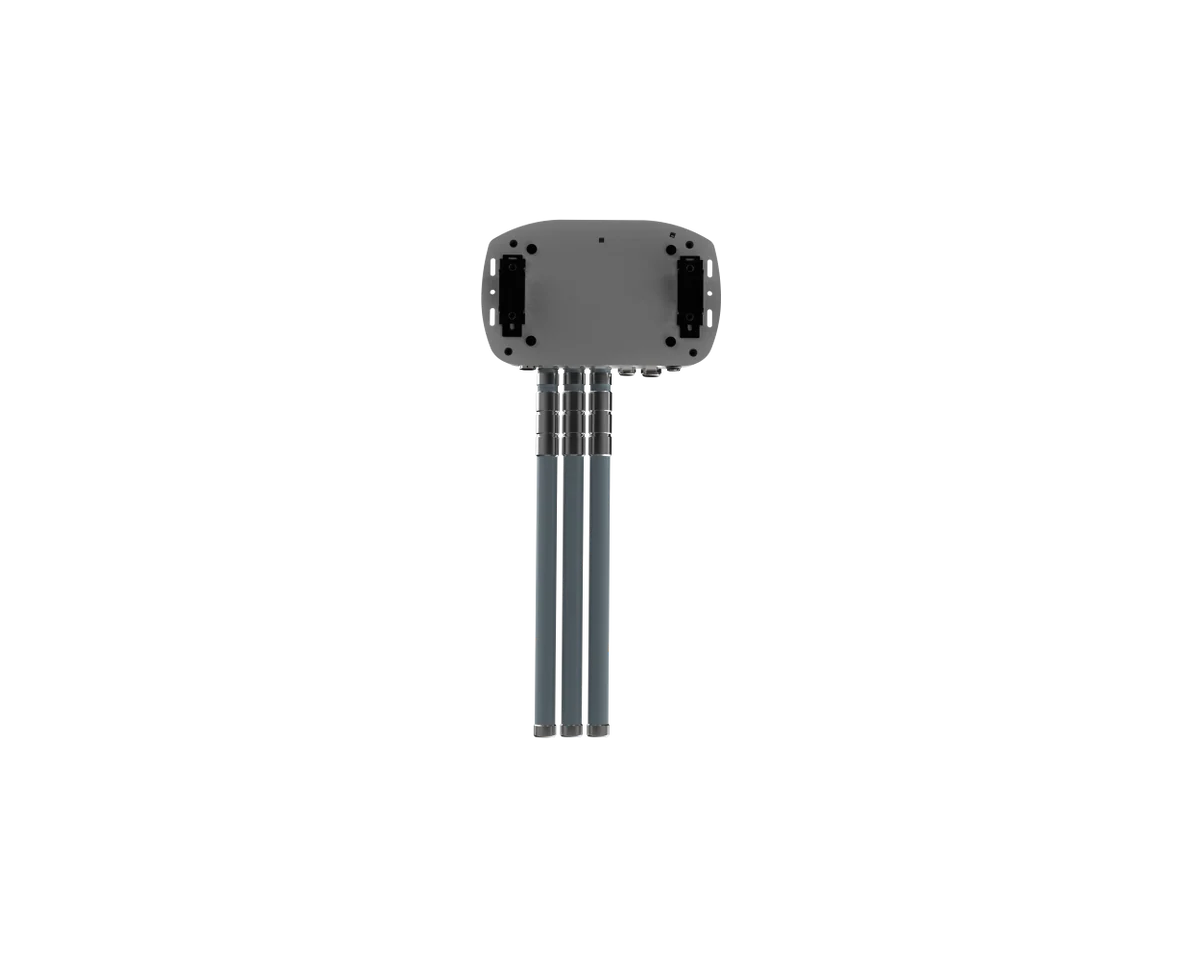

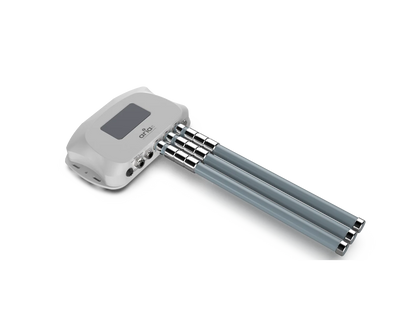

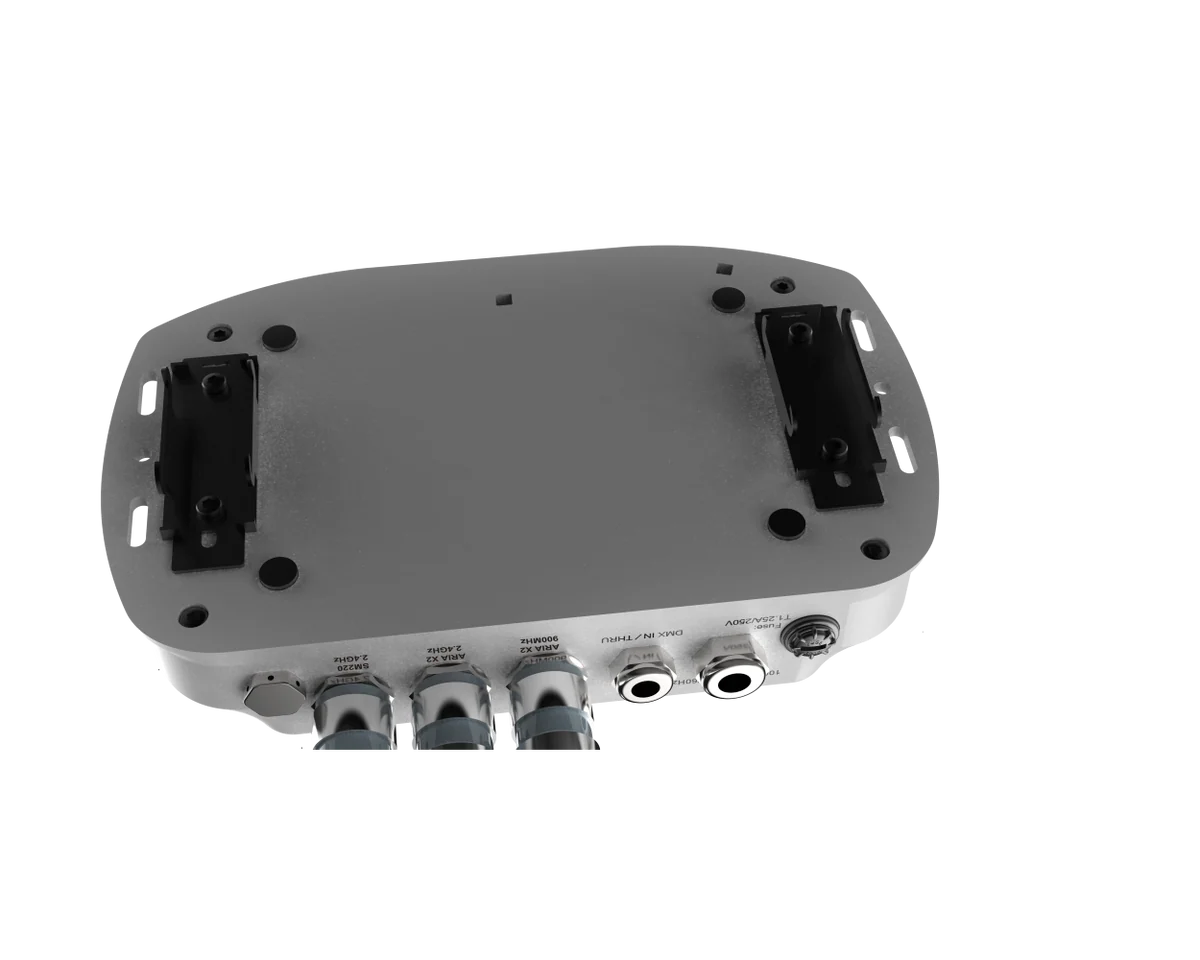

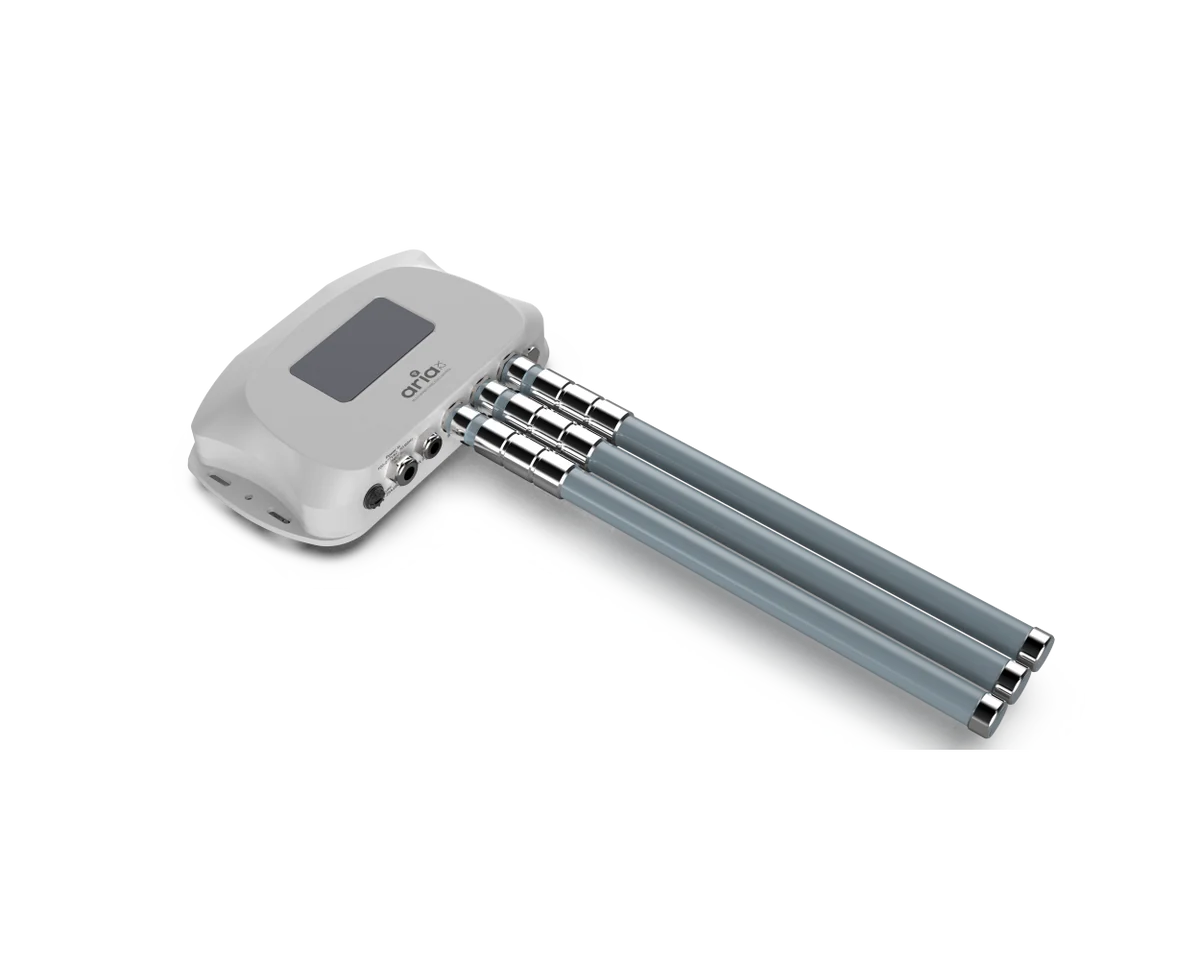

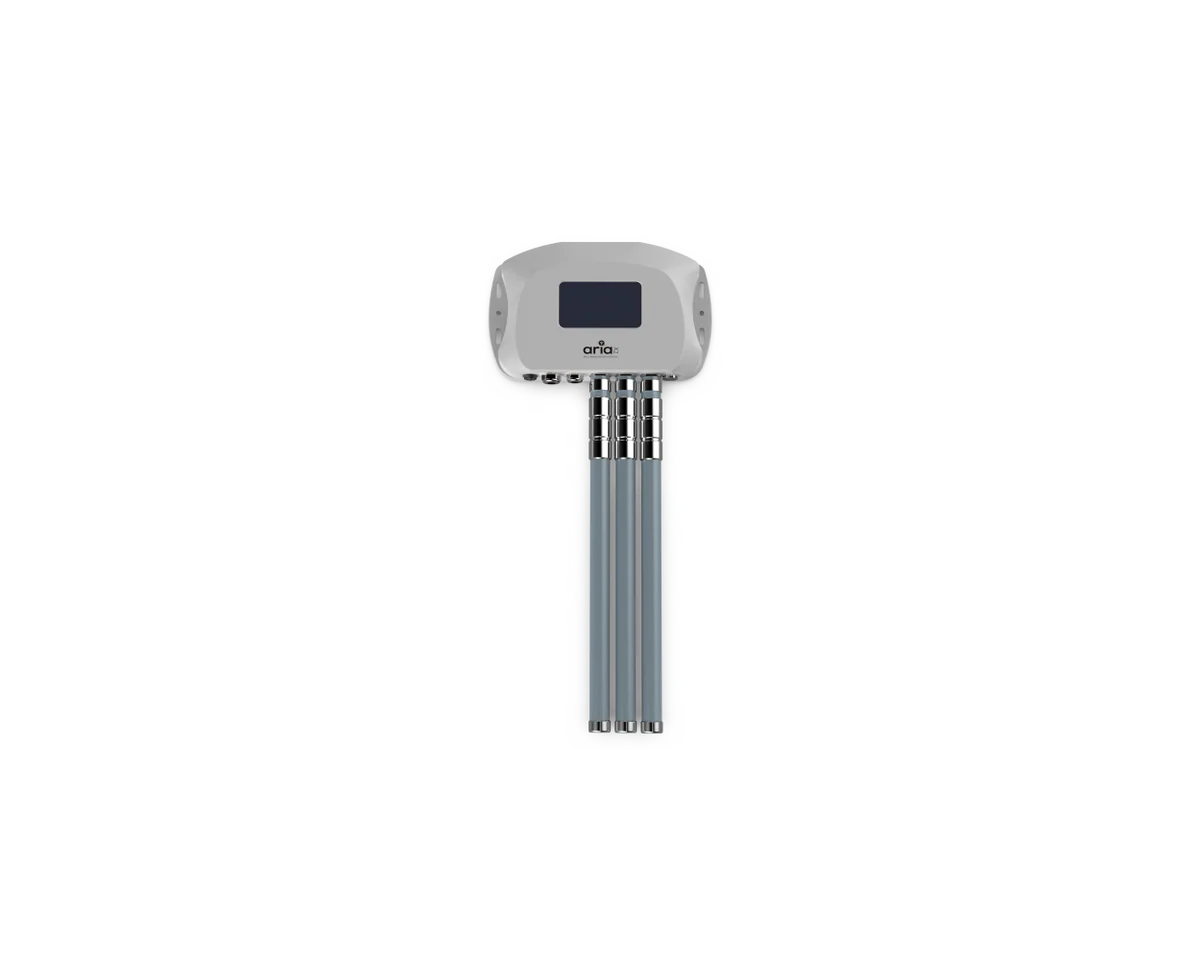

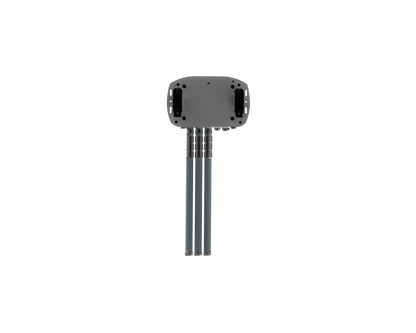

Aria X2 IPH Bridge

$983.00
$983.00
Sold out
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The Elation Professional AX2178 Aria X2 IPH Bridge is a cutting-edge wireless DMX gateway perfect for demanding lighting environments.

From the Manufacturer:

The Aria X2 IPH Bridge is a rugged, IP67-rated wireless DMX transceiver designed for reliable performance in demanding environments. Supporting a single DMX universe, it operates on the 2.4 GHz band with built-in WiFi and Bluetooth 5.2 for flexible connectivity. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.

Aria, the next evolution in wireless lighting management, poised to revolutionize your experience with unmatched control, efficiency, and simplicity. This advanced system leverages state-of-the-art technology to present a solution that flexes with your requirements, delivering a seamless lighting encounter, whether on-site or behind the scenes.

Features:

  • Single DMX Universe
  • Sub-GHz 2.4 GHz Bands and Bluetooth
  • Bluetooth 4.2
  • Configuration via App or Front panel
  • Wireless to DMX or DMX to Wireless
  • IP67 Housing

Specifications:

  • Supported Protocols:
    • DMX512
    • Proprietary 802.15.4
    • Aria X2 Mesh Protocol
    • Bluetooth 4.2 (BLE)
    • Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures.)
  • RF Characteristics:
    • Frequency range
      • Bluetooth: 2402-2480 MHz
      • Zigbee: 2405-2480 MHz
      • SM220: 2405-2475 MHz
    • Radio module: Aria X2
    • Interference mitigation
    • CSMA
    • Adaptive frequency hopping (on the roadmap)
    • OTA updates
  • Power:
    • Power Input: AC100-240V 50/60Hz
    • Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
    • Power Fuse: T1.25A/250V. (5 x 20mm)
  • Physical:
    • IP67 Enclosure
    • Front panel digital screen
    • M12 Threads
    • Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
    • Max operating humidity: <75%
    • Storage temperature: 77°F (25°C)
  • Dimensions and Weight:
    • Length: 9.53" (242mm)
    • Width: 6.32" (160.60mm)
    • Height: 3.25" (82.30mm)
    • 3.7lbs (1.66kgs.)

Tech Specs

View full details
