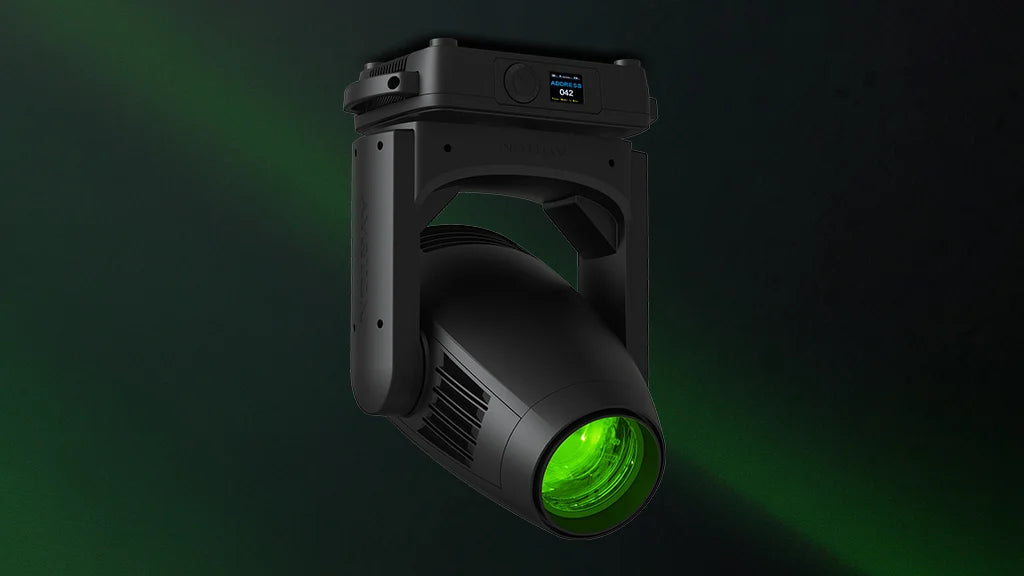

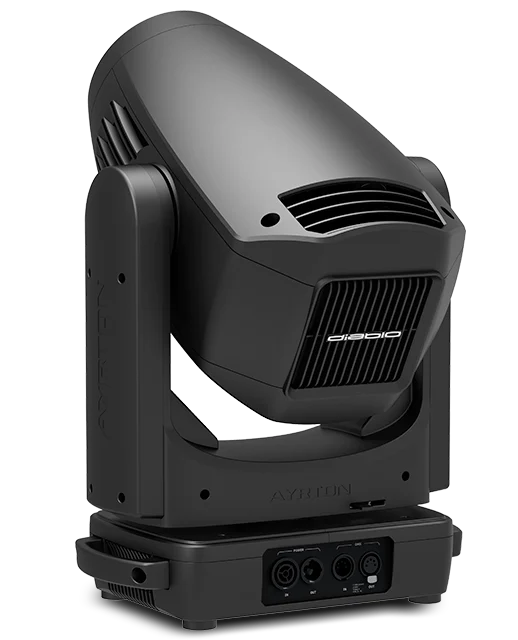

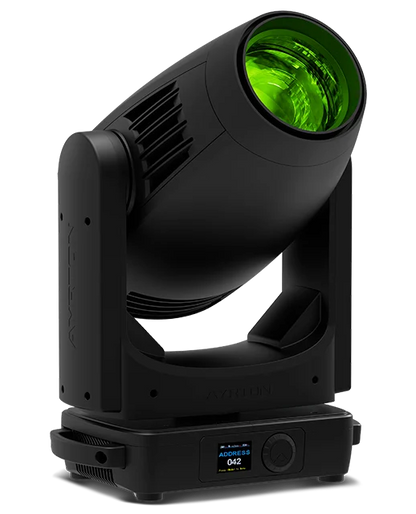

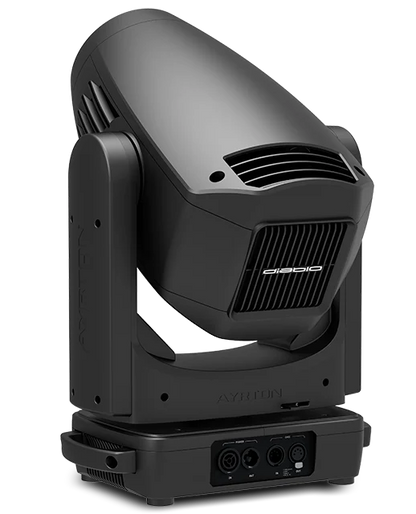

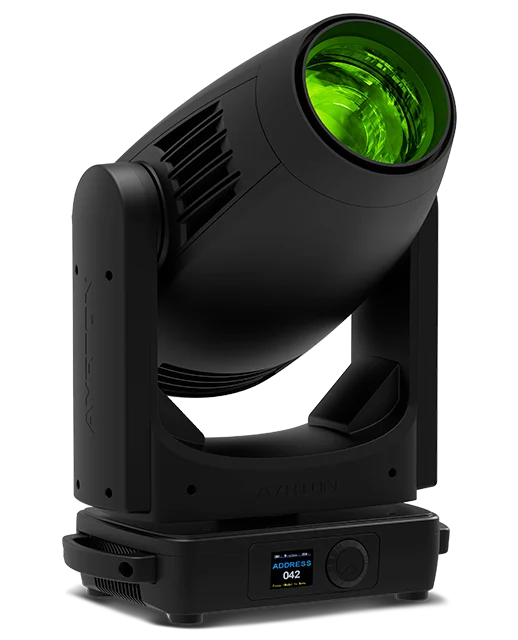

Ayrton Diablo-TC 300W LED Profile, 7 to 53 degree

The Ayrton Diablo-TC is a compact, 300W LED moving head profile luminaire delivering up to 14,000 lumens across a 7° to 53° zoom range, with CMY color mixing, CRI >90, a 4-blade framing system, motorized iris, and phase-change liquid cooling — precision-tuned for applications demanding exceptional colour rendition.

From the Manufacturer

Diablo Profile is a versatile, feature-rich 300W profile luminaire built on the ultra-compact Mistral format. Ayrton engineered Diablo to be the smallest, lightest, and most efficient luminaire in its category at just 22 kg. The Diablo-TC variant is geared for applications requiring perfect colour rendition, using a monochromatic LED source with a native CRI greater than 90 and high TM30 readings at a colour temperature of 6500 K. Its 13-element proprietary optical system with 119 mm frontal lens produces an extremely uniform flat beam for image-perfect rendering at any angle.

Features

• 300W LED source (Diablo-TC): 14,000 lm output; 6500 K colour temperature; CRI >90; rated life (L70) up to 40,000 hours
• Native CRI >90 with high TM30 readings for exceptional colour rendition
• Flicker-free source management for TV applications and video-recorded events
• 13-element, 7.5:1 zoom optics; 119 mm frontal lens; 7° to 53° zoom range
• CMY colour mixing with variable CTO and 7-colour fixed colour wheel
• 7 indexable, rotating HD glass gobos (25.5 mm) with adjustable-speed rotation in both directions
• 4-blade framing system: individually positionable on 100% surface area; ±45° module rotation
• 15-blade iris diaphragm: 15% to 100% range
• Light and heavy frost filters
• Graphic animation wheel (continuous rotation) and 5-facet circular indexable rotating prism
• Pan 540° / Tilt 263° with automatic repositioning; 8- or 16-bit resolution
• 3 DMX modes: 34, 45, or 56 channels; RDM compatible
• Integrated wireless CRMX TiMo RDM receiver (LumenRadio)
• Advanced phase-change liquid cooling with selectable Silent Mode; 550 W maximum power
• Recommended use: Stage, theatre, broadcast, film, studio, colour-critical applications

Specifications

Optics

• Optical System: 13-element, 7.5:1 zoom; tempered anti-reflective coated lenses; 119 mm frontal lens
• Zoom Aperture: 7° to 53°
• Total Luminaire Output: Up to 14,000 lm
• White Light Engine: 20,500 lm @ 7000 K
• Colour Temperature: 6500 K
• CRI: >90 (high TM30 readings)
• Rated Life (L70): Up to 40,000 hours

Colours

• Colour Mixing: CMY system
• CTO: Variable
• Fixed Colour Wheel: 7 complementary colours

Gobos & Effects

• Rotating Gobo Wheel: 7 high-precision glass gobos + open; indexable, variable-speed rotation in both directions
• Gobo Diameter: 25.5 mm | Image Diameter: 20 mm | Thickness: 1.1 mm
• Animation Wheel: Continuous rotation in both directions
• Prism: 5-facet circular, indexable, rotating
• Frost: Light frost and heavy frost

Framing System

• Shutter Blades: 4 individually positionable blades, 100% surface coverage
• Blade Module Rotation: ±45°
• Iris: 15-blade diaphragm, 15% to 100%

Movement

• Pan: 540° with automatic repositioning
• Tilt: 263° with automatic repositioning
• Resolution: 8-bit or 16-bit

Control

• Protocol: DMX-512; RDM compatible
• DMX Modes: 3 (34, 45, or 56 channels)
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 550 W

Construction

• Dimensions: 365 x 591 x 208 mm (L x H x D)
• Weight: 22 kg
• IP Rating: IP20
• Exterior Finish: Black (Carbon)
• Cooling: Advanced phase-change liquid cooling; variable-speed fans with Super Silent Mode
• Max Ambient Temperature: 45°C (113°F) / Min: −10°C (14°F)
• Minimum Safe Distance: 1.5 m (4.92 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC Part 15 Subpart B 2018, UL 1573, RoHS, REACH, CA Prop 65
