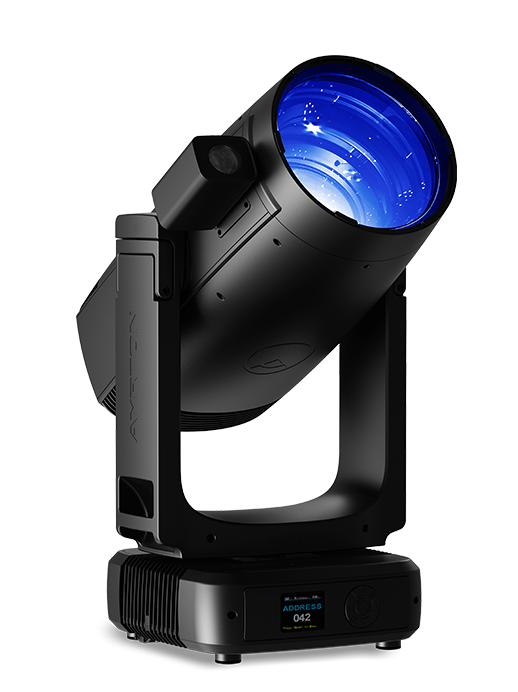

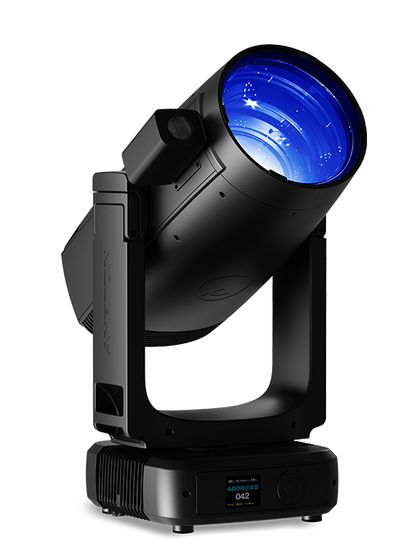

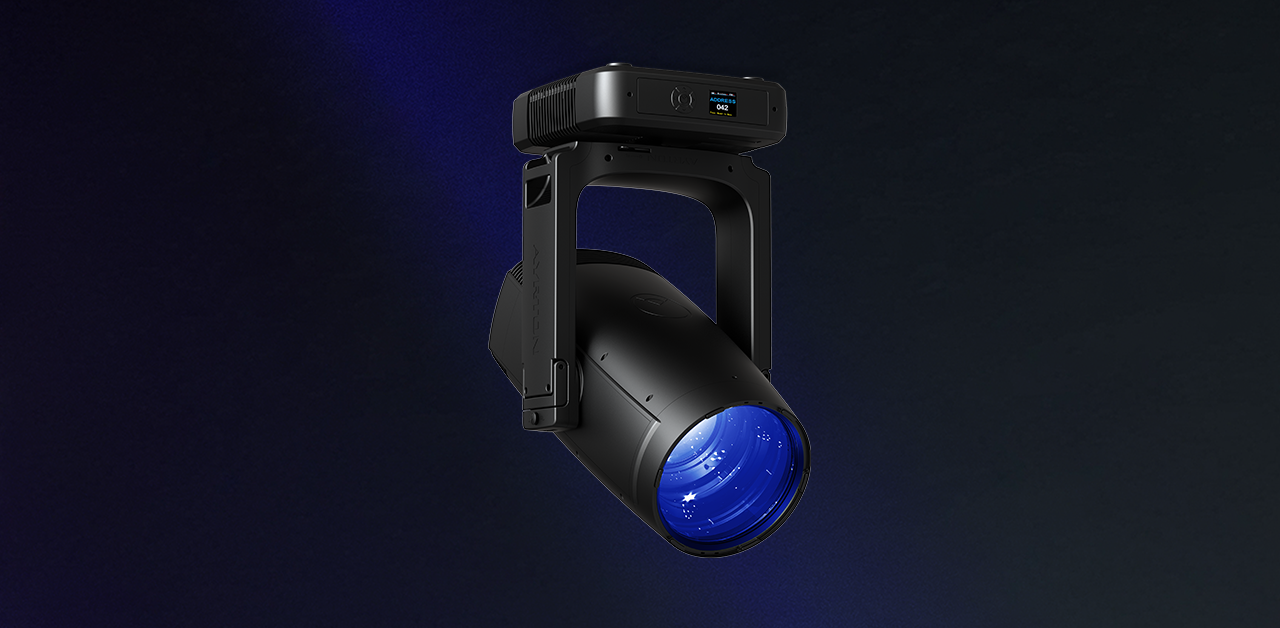

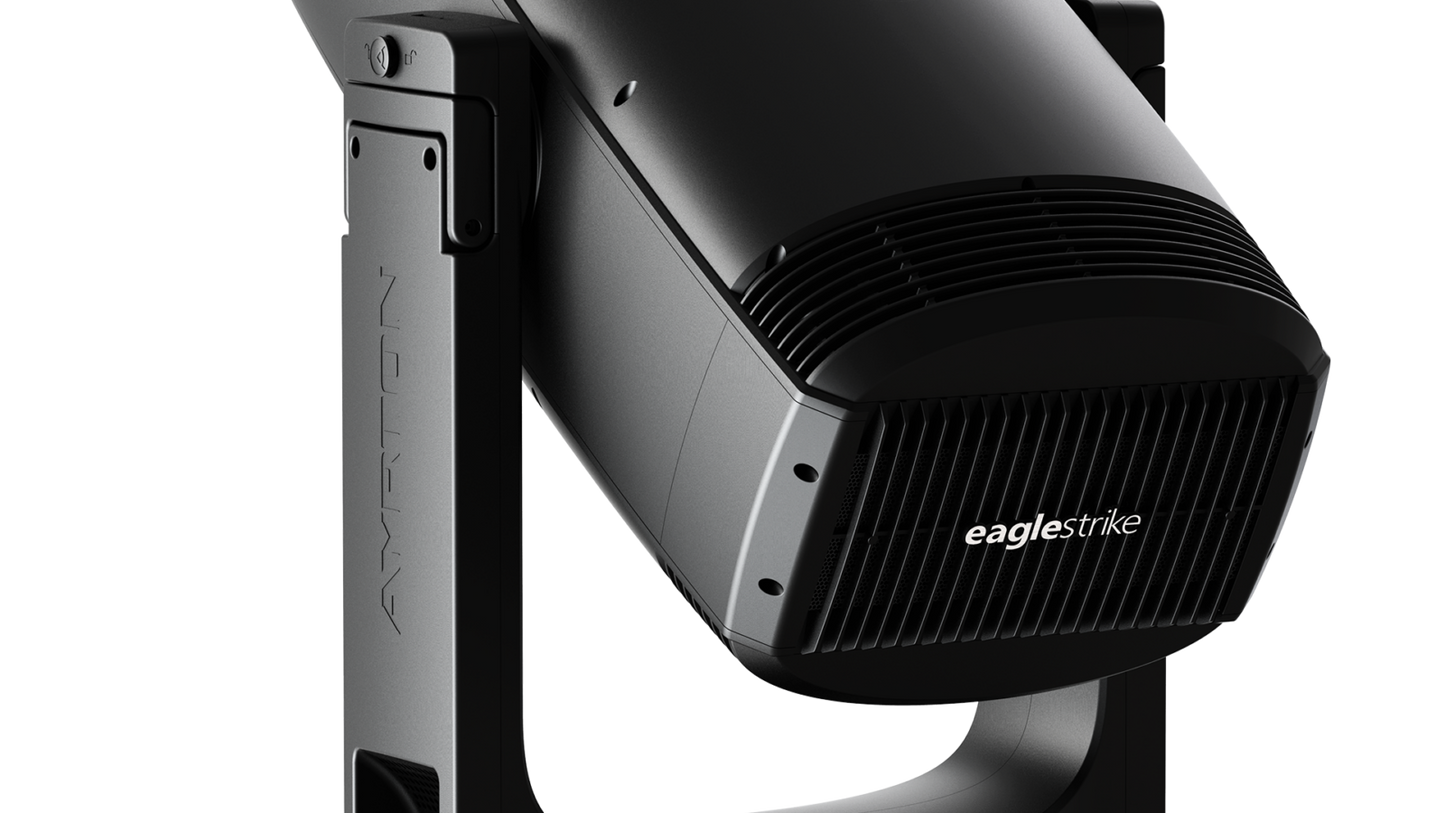

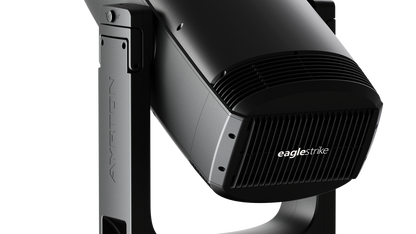

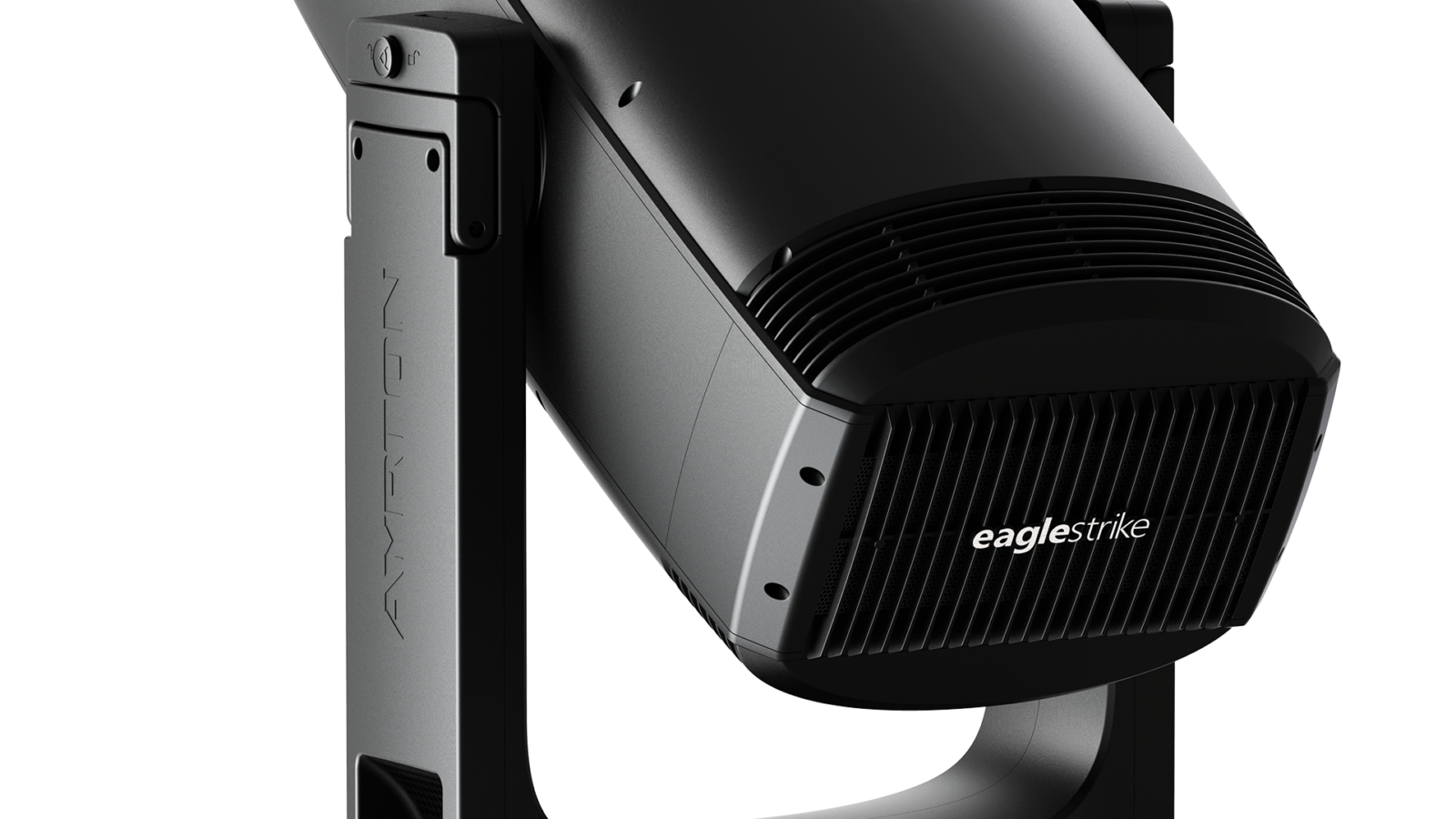

Ayrton EagleStrike 1,200W LED Profile followspot, 2.9 to 43 degree

The Ayrton EagleStrike is a 1,200W LED IP65-rated followspot and profile moving head delivering over 100,000 lux at 10 metres through an oversized 270 mm lens and 15:1 zoom system (2.9° to 43°), with CMY color mixing, dual gobo wheels, a 4-blade framing system, and optional NDI camera integration for remote tracking.

From the Manufacturer

EagleStrike is Ayrton’s first LED-source followspot, engineered for intensive outdoor use across long distances where precision is paramount. To create this uncompromising luminaire, Ayrton developed an oversized 270 mm frontal lens weighing 7.7 kg, delivering an ultra-intense 2.9° beam. Its 13-lens proprietary optical system offers a 15:1 zoom ratio spanning 2.9° to 43°, with the ability to narrow the beam to 0.9° or 2.5° using dedicated gobo reducers. Equipped with a 1,200W LED module, EagleStrike delivers 55,000 lm output at 6500 K and achieves over 100,000 lux at 10 metres. An entirely new ultra-fast CMY flag-based colour mixing system matches the speed of Ayrton’s Ultimate series luminaires. An optional NDI camera enables remote automatic tracking followspot operation.

Features

• 1,200W LED source: 55,000 lm output; >100,000 lux @ 10 m; 6500 K; CRI >70; rated life (L70) up to 40,000 hours
• Flicker-free source management for TV and video-recorded applications
• 13-element 15:1 zoom; 270 mm frontal lens; 2.9° to 43° (narrows to 0.9° or 2.5° with beam reducers)
• Ultra-fast flag-based CMY colour mixing; progressive CTO (2900–6500 K)
• Two fixed colour wheels: 6 complementary colour filters + 2 CRI enhancement + 1 minus green + gobo correction + multicolour filters
• Two overlaying rotating gobo wheels (30 mm diameter): 5 HD glass gobos + 2 beam reducers; and 5 metal gobos + 2 multicolour filters
• 4-blade framing system: 100% surface coverage; ±90° rotation; frame any object regardless of fixture orientation
• 15-blade iris diaphragm: 15% to 100% range
• Focusable animation wheel and 2 combinable rotating prisms (5-facet circular + 4-facet linear)
• 2 frost filters: light (1°) for edge softening; heavy (5°) for wash applications
• Pan: infinite; Tilt: 270°; with automatic repositioning; 8- or 16-bit resolution
• 2 DMX modes (44 or 66 channels); ArtNet & sACN; CRMX TiMo RDM receiver (LumenRadio)
• IP65 housing; IP68 cooling fans; IP65 XLR, RJ45, PowerCON TRUE1 TOP connectors
• Optional NDI camera with IP65 enclosure for remote tracking followspot mode
• Advanced cooling: 3 external submersible fans; Super Silent mode; 1,450W max / 1,295W typical @ 230V
• Recommended use: Large-venue touring, concert followspot, outdoor events, long-throw applications, stadium and arena productions

Specifications

Optics

• Optical System: 13-element, 15:1 zoom; tempered anti-reflective coated lenses; 270 mm frontal lens
• Zoom Aperture: 2.9° to 43°
• Beam Reducers: 0.9° and 2.5°
• Total Luminaire Output: Up to 55,000 lm
• White Light Engine: 82,000 lm
• Illuminance: >100,000 lux @ 10 m (narrow angle)
• Colour Temperature: 6500 K
• CRI: >70
• Rated Life (L70): Up to 40,000 hours

Colours

• Colour Mixing: Flag-based CMY system
• CTO Range: Variable, 2900 to 6500 K
• Colour Wheel 1: 6 complementary colour filters
• Colour Wheel 2: 2 CRI optimisation filters + 1 minus green + 1 gobo correction + 1 multicolour filter

Gobos & Effects

• Rotating Gobo Wheel 1: 5 HD glass gobos + 2 beam reducers + open; indexable, variable-speed rotation
• Rotating Gobo Wheel 2: 5 metal gobos + 2 multicolour filters + open; indexable, variable-speed rotation
• Gobo Diameter: 30 mm | Image Diameter: 19 mm
• Animation Wheel: Focusable, continuous rotation in both directions
• Prisms: 2 combinable: 5-facet circular + 4-facet linear, rotating and indexable
• Frost: Light (1°) and heavy (5°)

Framing System

• Shutter Blades: 4 individually positionable, 100% surface coverage
• Blade Module Rotation: ±90°
• Iris: 15-blade diaphragm, 15% to 100%

Movement

• Pan: Infinite rotation with automatic repositioning
• Tilt: 270° with automatic repositioning
• Resolution: 8-bit or 16-bit

Control

• Protocol: DMX-512, ArtNet, sACN; RDM compatible
• DMX Modes: 2 (44 or 66 channels)
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)
• Optional Camera: IP65 NDI camera for remote automatic tracking followspot

Electrical

• Input Voltage: 120 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 1,450 W
• Power (typical @ 230 V): 1,295 W

Construction

• Dimensions: 450 x 898 x 413 mm (L x H x D)
• Weight: 54.7 kg
• IP Rating: IP65 (all connectors IP65 or IP68)
• Exterior Finish: Black (Carbon)
• Cooling: Advanced cooling with 3 external IP68 submersible fans; Super Silent mode
• Max Ambient Temperature: 45°C (113°F) / Min: −20°C (−4°F)
• Minimum Safe Distance: 6 m (19.68 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC Part 15 Subpart B 2023, UL 1573, RoHS, REACH, CA Prop 65
