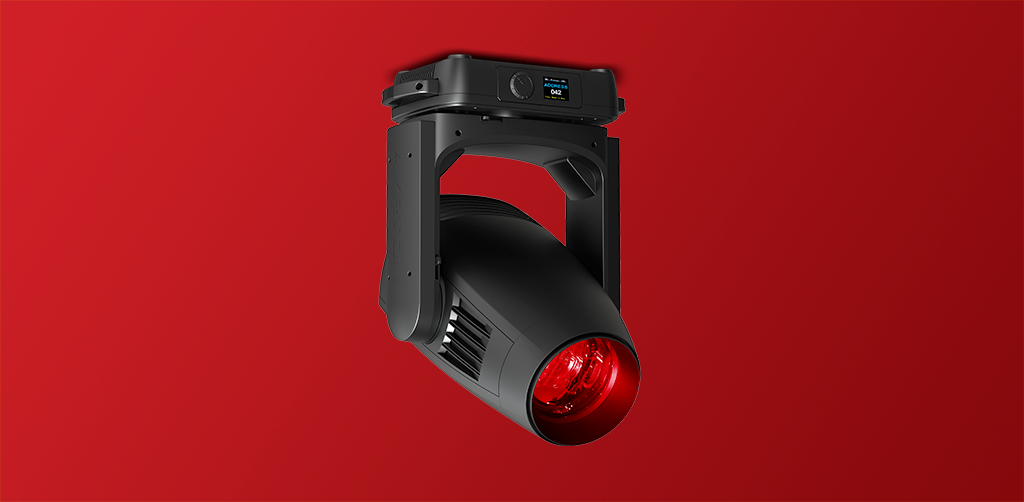

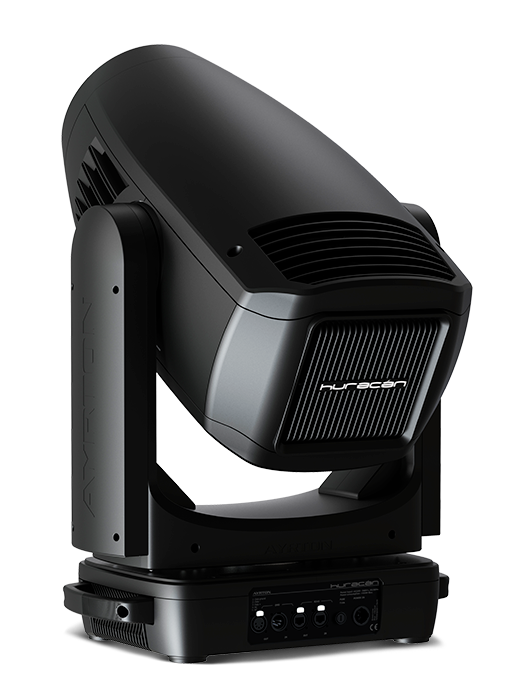

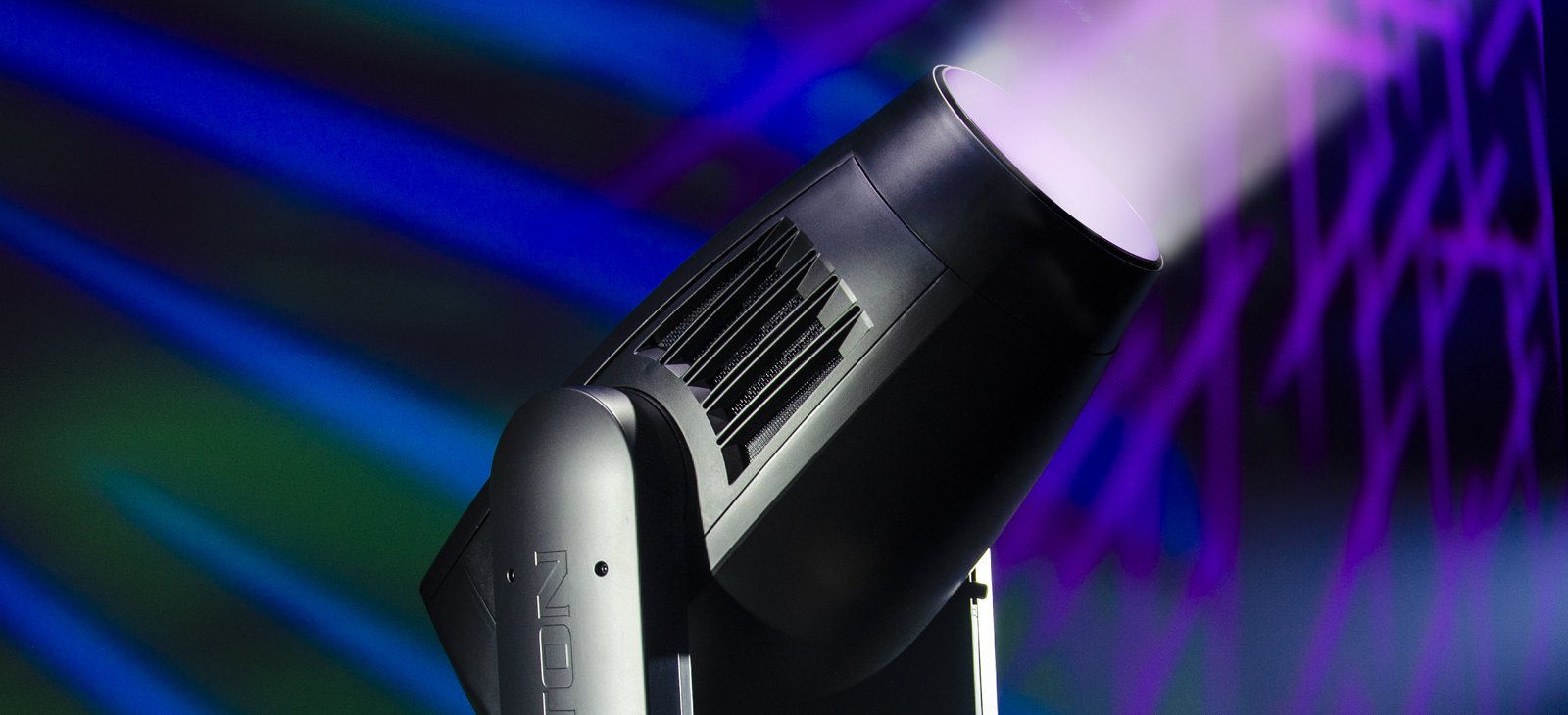

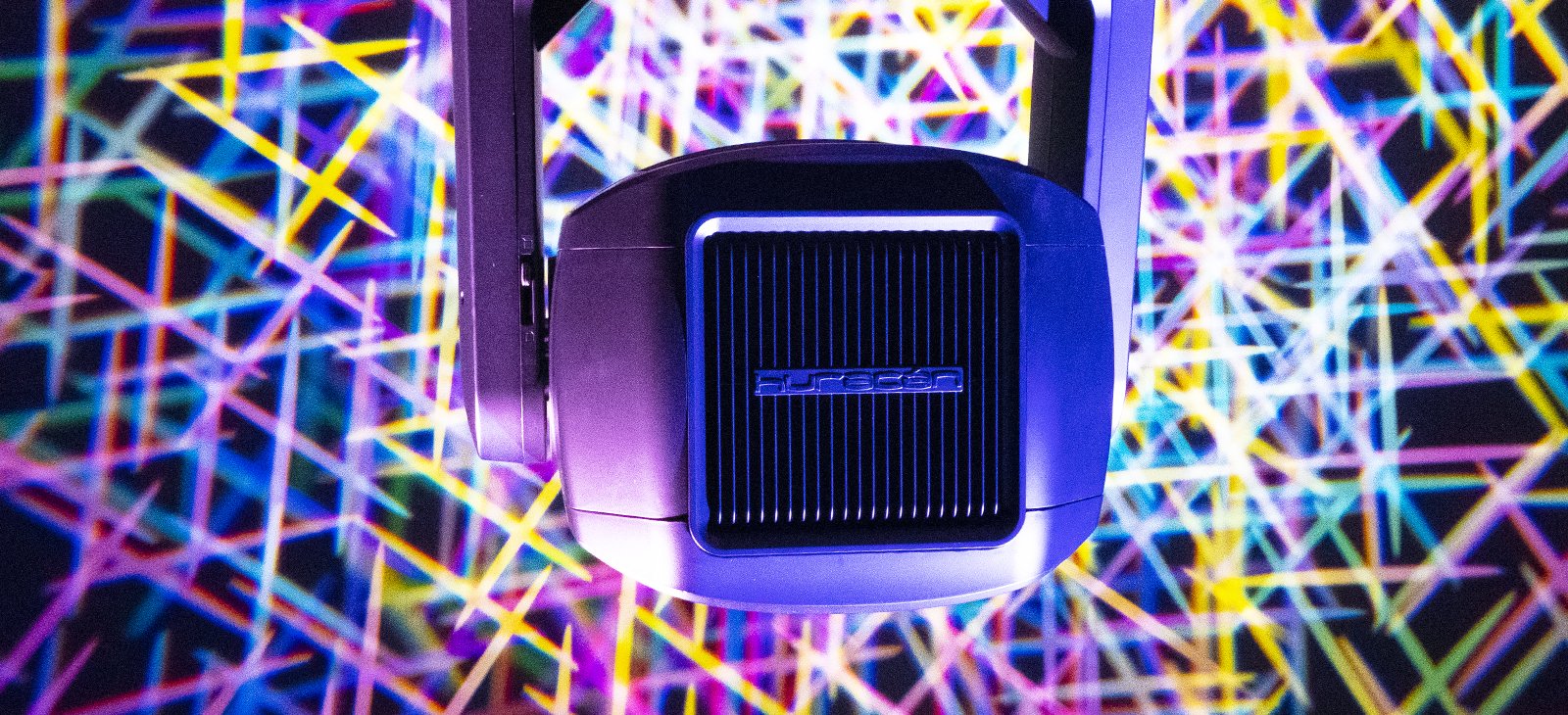

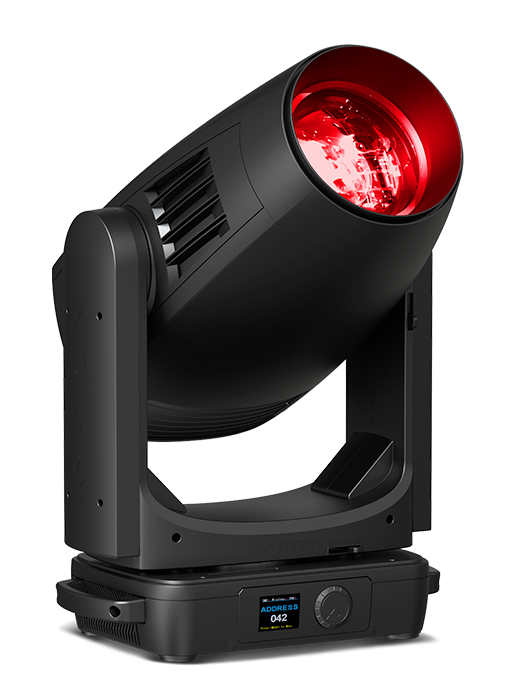

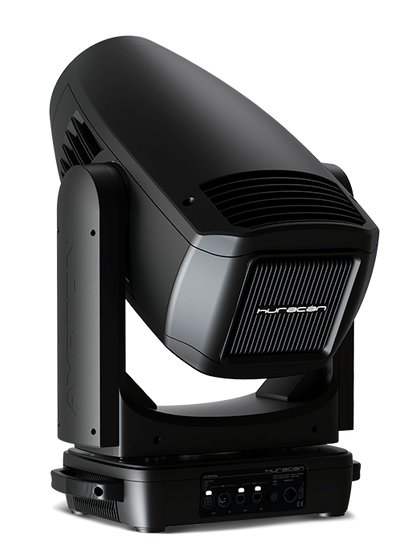

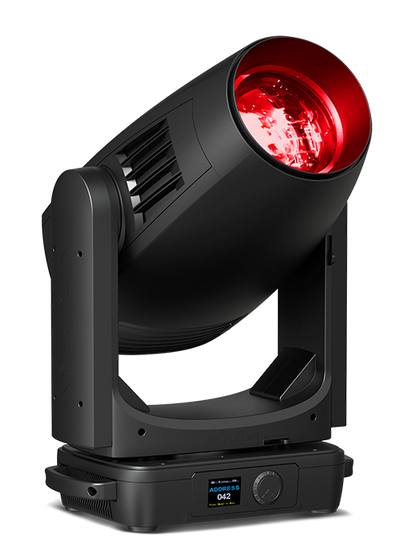

Huracán Profile S

The Ayrton Huracán Profile S light brings "graphicadelic power" to any venue or event for the ultimate creativity and high-technology light control.

From the Manufacturer:

Huracán Profile is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity.

Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, Ayrton has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, Huracán Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6 ° to 60 °.

Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.

Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.

Specifications:

• OPTICS
  • 13-elements 10:1 zoom high-resolution optic system
  • Beam aperture: 6 ° to 60 °
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 178 mm frontal lens for greater performance
• LIGHT SOURCE
  • Huracán Profile S
    • 75,000 lumens 8000 K white light engine
    • Total luminaire output: up to 51,000 lumens
    • Colour temperature output: 7000 K
    • CRI: greater than 70
  • Huracán Profile TC
    • 53,000 lumens 6800 K white light engine
    • Total luminaire output: up to 33,900 lumens
    • Colour temperature output: 6400 K
    • CRI: greater than 95
  • Huracán Profile S & Huracán Profile TC
    • Rated life (L70): up to 40,000 hours
    • Flicker-free source management suitable for TV applications and all video-recorded events
• MOVEMENT
  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: 540° (pan), 262° (tilt)
• COLOURS
  • Complex CMY colour mixing system capable of generating  billions colours (patent pending)
  • Variable CTB colour temperature correction
  • Variable CTO colour temperature correction
  • Variable CTP colour temperature correction
  • Fixed colour wheel with six complementary colours
• GOBOS
  • Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open position
  • Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
  • Adjustable-speed rotating cassette and gobo in both directions
  • Gobo diameter: 30 mm
  • Image diameter: 25 mm
  • Gobo thickness: 1.1 mm
• FRAMING SYSTEM
  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the framing system module: +/- 45 °
• IRIS DIAPHRAGM
  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open
• FROSTS
  • 2 frost filters: one light, one heavy
• EFFECTS
  • Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directions
  • CMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions
  • 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
• DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
• SOFTWARE FEATURES
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
• HARDWARE FEATURES
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • etherCON RJ45 IN / OUT connectors for ArtNet™
  • powerCON TRUE1 male connector for power connection
• CONTROL
  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Main/Follow modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 44 to 70 DMX channels)
• POWER SUPPLY
  • Electronic supply with active PFC
  • 120 to 240 Volts – 50/60 Hz
  • Power: 1,470 W maximum
• COOLING SYSTEM
  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user’s modes with a new Silent Mode
  • Safety protection against temperatures excesses
• HOUSING
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
• INSTALLATION
  • Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
• OPERATING PARAMETERS
  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
  • Minimum usage distance: 2 m (6.56 ft)
• COMPLIANCE
  • EU (EMC & LVD):
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • US (Safety & EMC):
  • UL 1573
  • FCC Part 15, Subpart B: 2018
• SIZE
  • Product: 486 x 811 x 294 mm (l x h x d)
  • Flight-case foam: 715 x 555 x 630 mm (l x h x d)
• WEIGHT
  • Product: 46 kg
