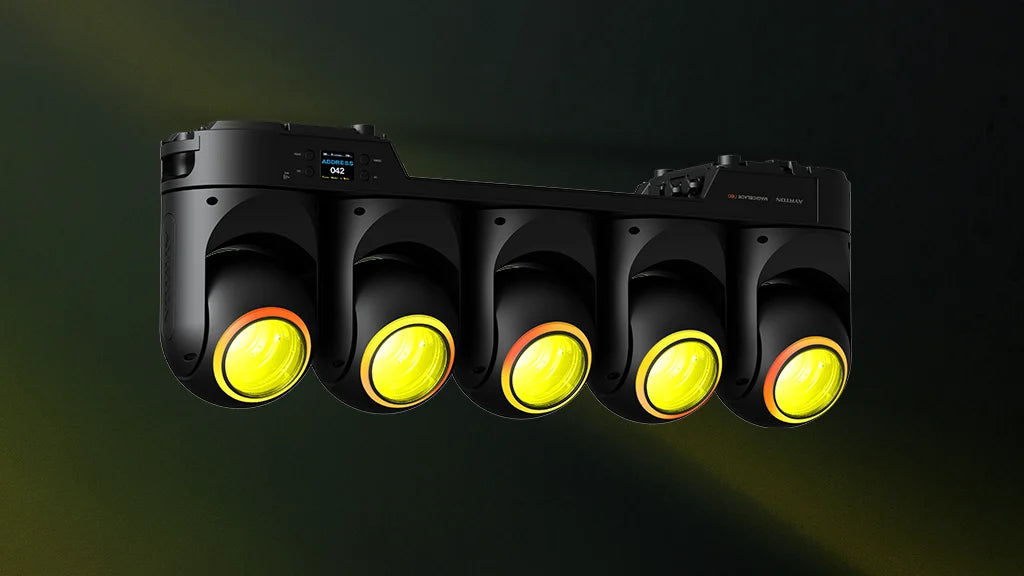

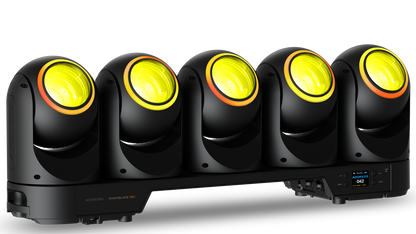

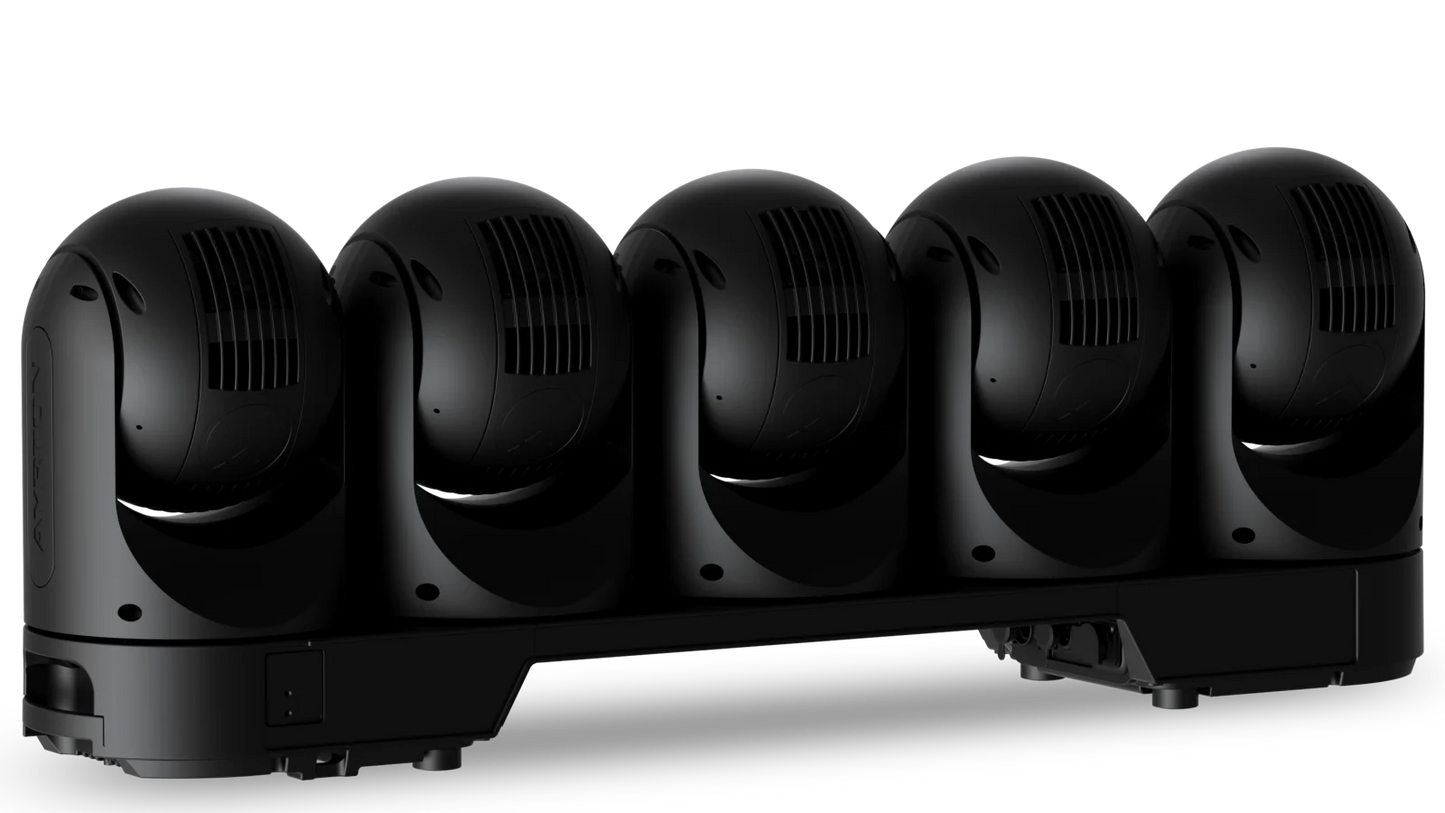

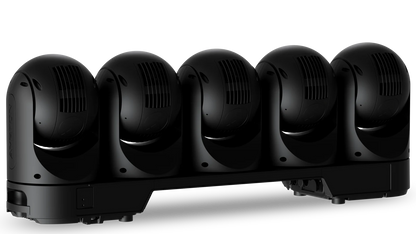

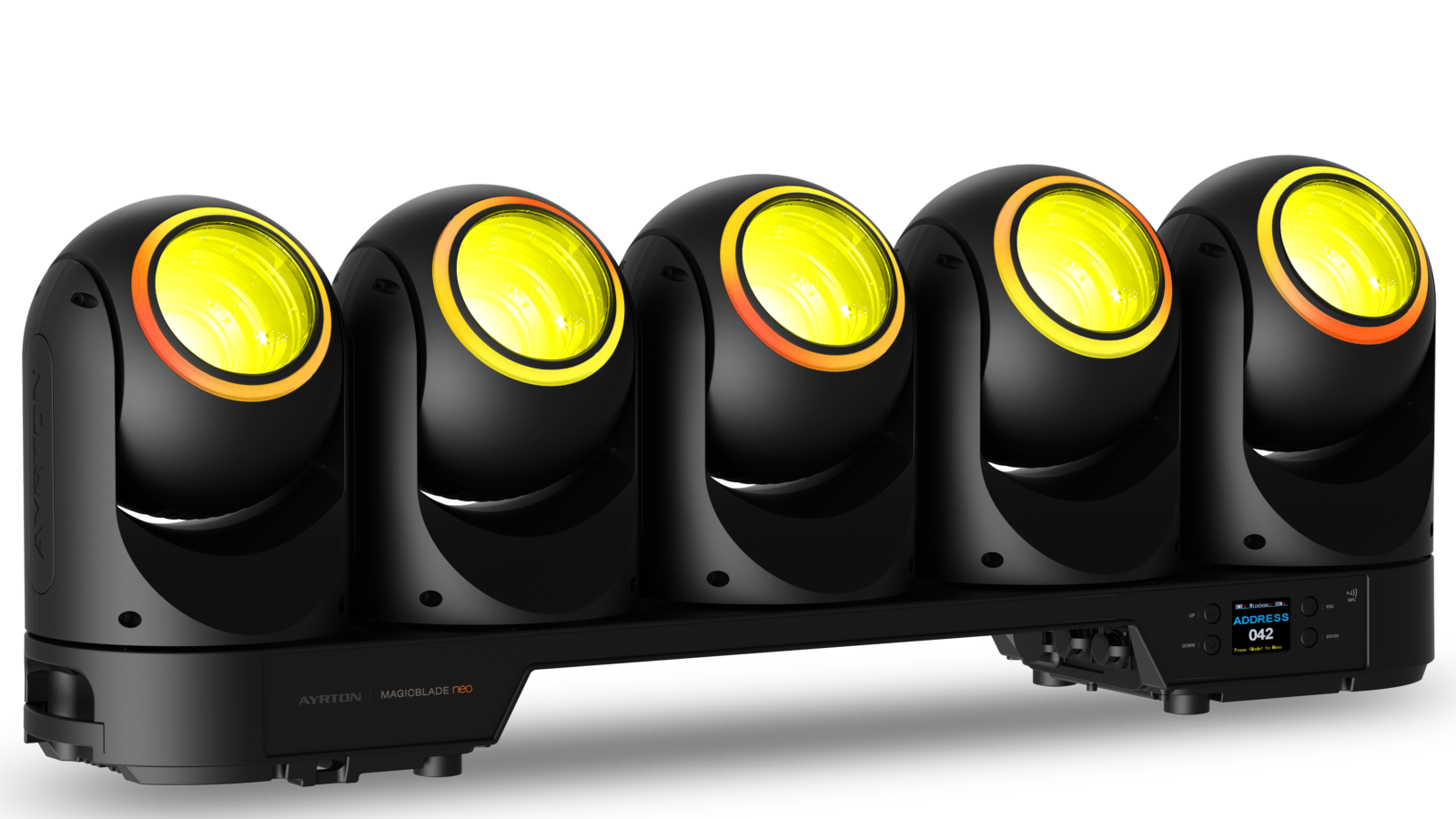

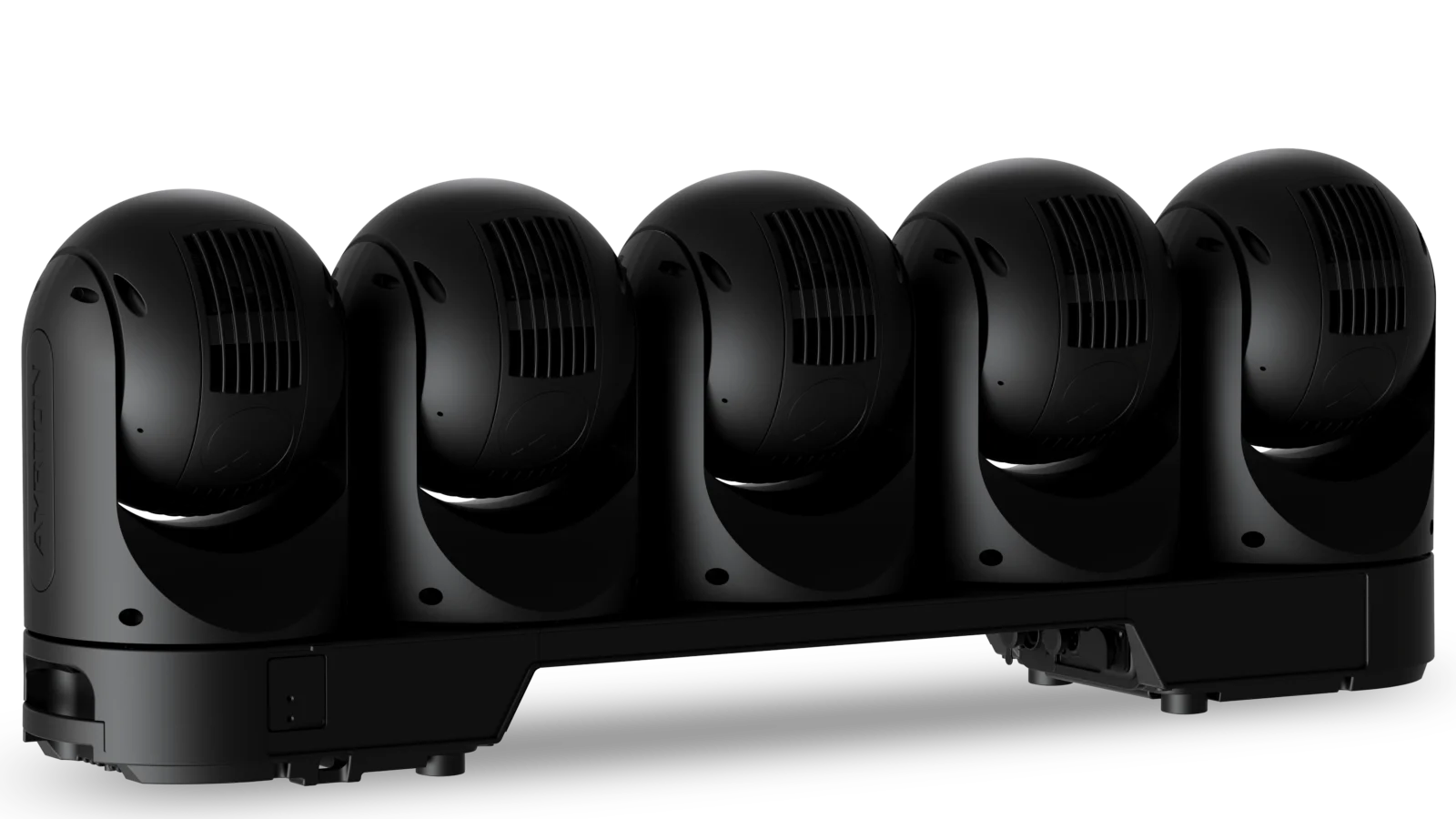

Ayrton MagicBlade Neo 5x 120W RGBL LED, 3 to 30 degree

The Ayrton MagicBlade Neo 5x is an IP65-rated creative multi-source fixture featuring five independent, continuously rotating RGBL moving heads on a single blade chassis, each with a 3° to 30° zoom, LiquidEffect™ LED rings, and a total output of 15,000 lumens — designed for multi-form curtains of light, vortices, and volumetric effects.

From the Manufacturer

MagicBlade Neo is a brand-new concept: an innovative organic fixture designed to create multi-form curtains of light, reconfigurable ad infinitum — unreal vortices and striking volumetric effects. Built on the all-new MagicDot Neo platform, it features five independent moving heads spaced 5 mm apart, each with continuous infinite rotation on both pan and tilt axes. Its innovative “Shortcut” function expands the scope for building complex effects. Fitted with five individual 120W RGB-L multi-chip LED sources, each paired with a high-efficiency 100 mm optic integrated into a perfect sphere, MagicBlade Neo delivers a total luminous flux of 15,000 lm with CRI above 86. Each beam can switch instantly from Beam to Wash within a 10:1 zoom range. Each head is paired with a LiquidEffect™ ring featuring 60 individual RGB pixels. Designed for mixed indoor and outdoor use, including saline environments.

Features

• 5 independent moving heads: each with 120W RGB-L source, 100 mm optic, and infinite pan & tilt rotation
• Total output: 15,000 lm; illuminance: 16,000 lux @ 5 m (one head)
• CRI up to 86; virtual CTC channel (2500–8000 K); virtual Tint channel; 4.29 billion colours
• 2-element 10:1 zoom: 3° to 30° beam/wash switchable per head
• LiquidEffect™ ring: 60 individual RGB LED pixels per head for hypnotic multi-colour ring effects
• Individual head control + built-in pattern effects for main LEDs and LiquidEffect with speed/fade controls
• Innovative “Shortcut” function for complex multi-head programming
• IP65-rated housing including IP65 XLR, RJ45, and power connectors; IP68 fans; suitable for saline environments
• 175 or 184 DMX channel footprint; ArtNet & sACN via Ethernet
• Integrated wireless CRMX TiMo RDM receiver (LumenRadio)
• Phase-change liquid cooling; 800 W maximum power; 100–240 V auto-ranging
• Rated life (L70) up to 40,000 hours; flicker-free for TV and video-recorded events
• Recommended use: Concert & touring, large-scale productions, broadcast, outdoor events, creative stage effects

Specifications

Optics

• Optical System: 2-element, 10:1 zoom; tempered anti-reflective coated lenses
• Front Lens: 5 × 100 mm
• Zoom Aperture: 3° to 30°
• Light Source: 5 × 120 W RGB-L multi-chip LED
• Total Luminaire Output: Up to 15,000 lm
• Illuminance: 16,000 lux @ 5 m (one head)
• CRI: Up to 86
• Rated Life (L70): Up to 40,000 hours

Movement (each head)

• Pan & Tilt: Infinite rotation; automatic repositioning
• Resolution: 16-bit
• Heads: 5 independent, spaced 5 mm apart

Colours & Effects

• Colour Mixing: 4-colour RGB-L; rich saturated and pastel hues
• Colour Range: 4.29 billion colours; Virtual CTC 2500–8000 K; Virtual Tint channel
• LiquidEffect Ring: 60 individual RGB LED pixels per head
• Built-in Programs: Pattern effects for main LEDs and LiquidEffect with speed and fade controls
• Dimmer: Electronic, 0–100%
• Strobe: 1–25 Hz

Control

• Protocol: DMX-512, ArtNet, sACN; RDM compatible
• DMX Channels: 175 or 184
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)
• Display: IP65 LCD with flip function; 4-button menu

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 800 W

Construction

• Dimensions: 1008 x 200 x 352.5 mm (L x H x D)
• Weight: 32.4 kg
• IP Rating: IP65 (all connectors IP65 or IP68)
• Exterior Finish: Black (Carbon)
• Cooling: Advanced liquid cooling; IP68 variable-speed fans
• Max Ambient Temperature: 45°C (113°F) / Min: −20°C (−4°F)
• Minimum Safe Distance: 0.5 m (1.64 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC CFR 47 Part 15 Subpart B 2023, RoHS, REACH, CA Prop 65
