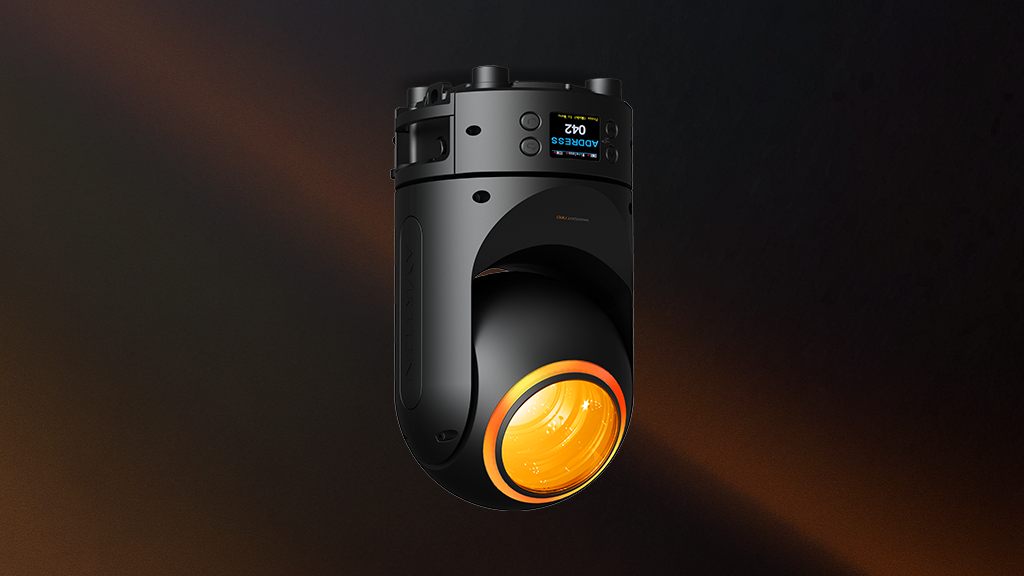

Ayrton MagicDot Neo 120W RGBL LED, 3 to 30 degree without polyfoam

The Ayrton MagicDot Neo is a compact, IP65-rated 120W RGBL LED moving head with infinite pan and tilt rotation, a 3° to 30° zoom range, LiquidEffect™ RGB ring, and just 6.6 kg — designed for clustered configurations delivering organic volumetric and multi-colour stage effects. Sold without polyfoam packaging.

From the Manufacturer

MagicDot Neo represents the ultimate evolution of the innovative MagicDot family. Designed for stage lighting and engineered for mixed indoor and outdoor use, including saline environments, it features a brand-new 120W multi-chip RGB-L LED source paired with a high-efficiency 100 mm optic delivering 3,000 lm of total output from just 160W of power. MagicDot Neo switches from Beam to Wash instantly across a 10:1 zoom ratio (3° to 30°). Its continuous infinite pan and tilt rotation allows fixtures to be clustered so each light source can be individually controlled in every direction, with minimal unit spacing enabling previously impossible configurations. The intense beam, combined with the High-Definition LiquidEffect™ ring featuring 60 individual RGB LEDs, creates mesmerising multi-colour effects and astonishingly complex volumetric looks.

Features

• 120W RGB-L multi-chip LED; 3,000 lm total output; 16,000 lux @ 5 m; CRI up to 86; rated life (L70) up to 40,000 hours
• Flicker-free source management for TV and video-recorded events
• 2-element 10:1 zoom; 100 mm front lens; 3° to 30° beam/wash switchable
• Infinite pan & tilt rotation; automatic repositioning; 8- or 16-bit resolution

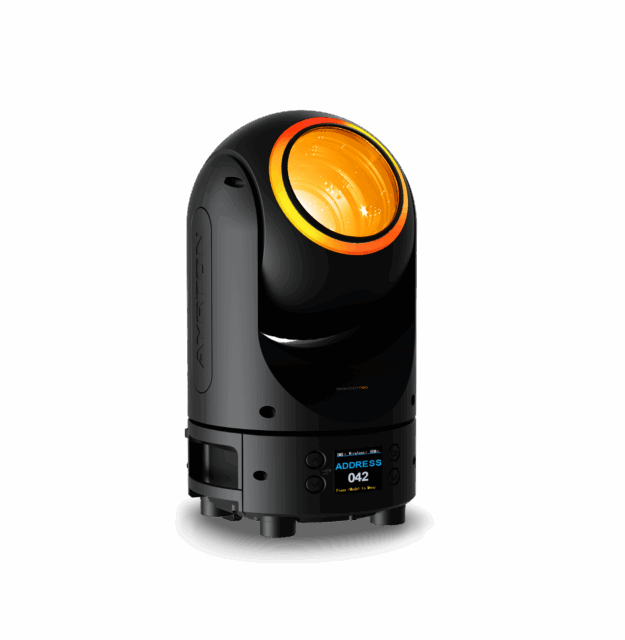

• LiquidEffect™ ring: 60 individual RGB LED pixels for hypnotic multi-colour ring effects
• 4-colour RGB-L mixing: 4.29 billion colours; Virtual CTC 2500–8000 K; Virtual Tint channel
• Built-in pattern effects for main LED and LiquidEffect ring with speed and fade controls

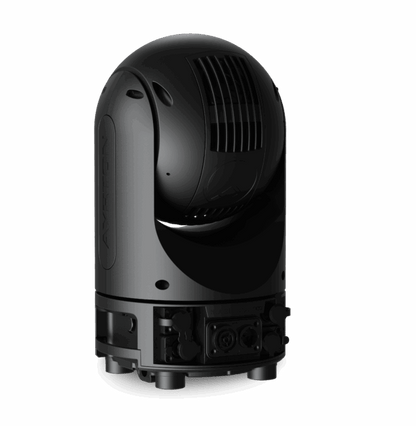

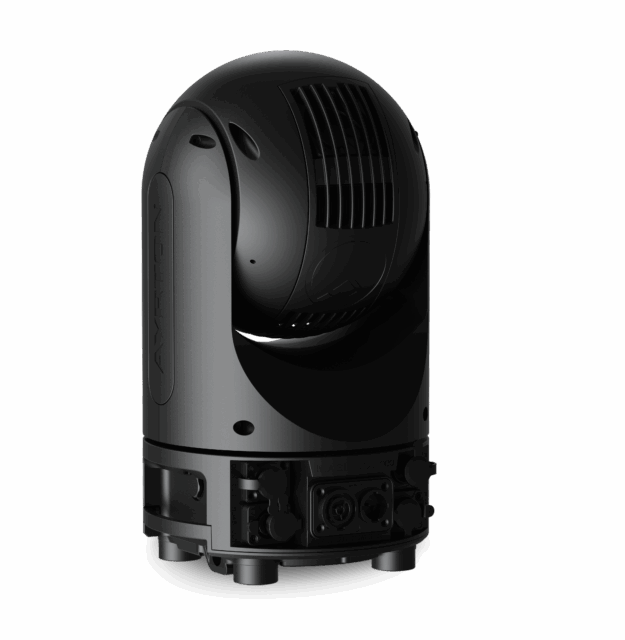

• IP65-rated housing: IP65 XLR, RJ45, and PowerCON TRUE1 TOP connectors; IP68 fans; suitable for saline environments
• 35 DMX channels; ArtNet & sACN via IP65 Ethernet; integrated CRMX TiMo RDM receiver
• Phase-change liquid cooling; 160W maximum power; 100–240V auto-ranging
• Ultra-compact at 6.6 kg; clusters with minimal unit spacing for large-scale creative arrays
• Sold without polyfoam packaging (bare unit)
• Recommended use: Concert & touring, creative stage effects, large-scale arrays, broadcast, outdoor events

Specifications

Optics

• Optical System: 2-element, 10:1 zoom; 100 mm front lens
• Zoom Aperture: 3° to 30°
• Light Source: 120W RGB-L multi-chip LED; 5,000 lm engine
• Total Luminaire Output: Up to 3,000 lm
• Illuminance: 16,000 lux @ 5 m
• CRI: Up to 86
• Rated Life (L70): Up to 40,000 hours

Movement

• Pan & Tilt: Infinite rotation; automatic repositioning
• Resolution: 8-bit or 16-bit

Colours & Effects

• Colour Mixing: 4-colour RGB-L; rich saturated and pastel hues
• Colour Range: 4.29 billion colours; Virtual CTC 2500–8000 K; Virtual Tint channel
• LiquidEffect Ring: 60 individual RGB LED pixels
• Built-in Programs: Pattern effects with speed and fade controls
• Dimmer: Electronic, 0–100%
• Strobe: 1–25 Hz

Control

• Protocol: DMX-512, ArtNet, sACN; RDM compatible
• DMX Channels: 35
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)
• Display: IP65 LCD with flip function; 4-button menu

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 160 W

Construction

• Dimensions: 197 x 353 x 197 mm (L x H x D)
• Weight: 6.6 kg
• IP Rating: IP65 (all connectors IP65 or IP68)
• Exterior Finish: Black (Carbon)
• Cooling: Advanced liquid cooling; IP68 variable-speed fans
• Max Ambient Temperature: 45°C (113°F) / Min: −20°C (−4°F)
• Minimum Safe Distance: 0.5 m (1.64 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC CFR 47 Part 15 Subpart B 2023, RoHS, REACH, CA Prop 65
