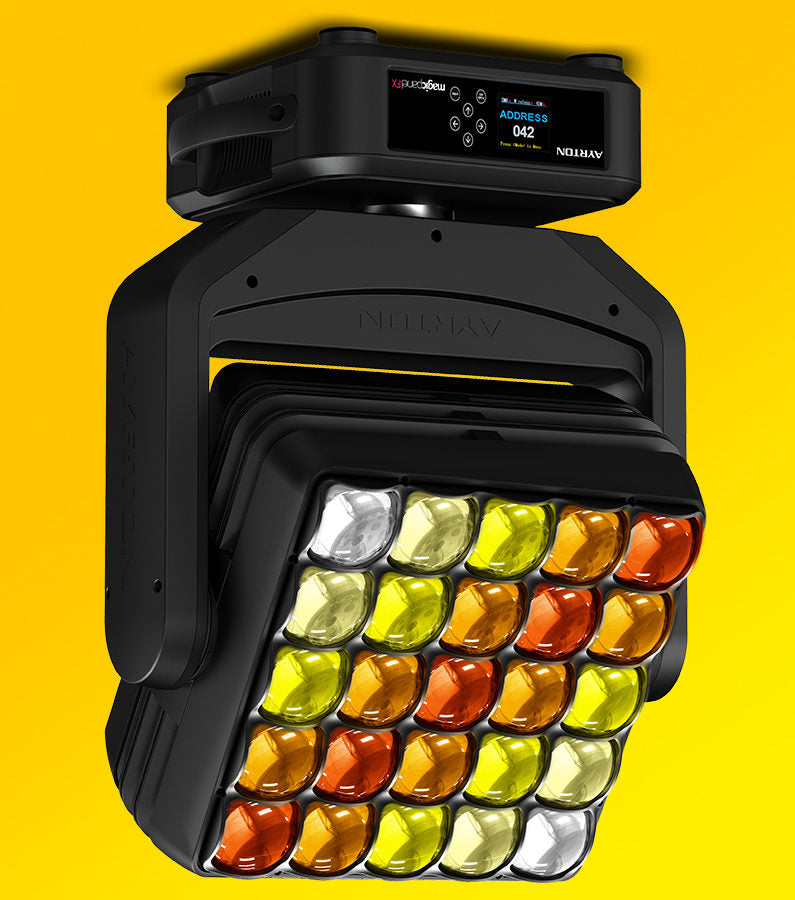

Ayrton MagicPanel FX
- Regular price
- $7,957.50
- Regular price
-
- Sale price
- $7,957.50
- Unit price
- per
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
MAGICPANEL FX is the exciting new multi-function, multi-use luminaire descended from the renowned MAGICPANEL R. With a revolutionary new optical zoom system that has no visible moving parts and a stationary transmitting lens, this proprietary system has a 15:1 zoom ratio with a range of 3.6° to 53°.
The front face of MAGICPANEL FX is comprised of a 5 x 5 array of squared lenses with perfectly isolated emitters – which offer exciting new possibilities for creating 2D graphical effects. Each of the 25 squared 65 mm output lenses have an optical surface equivalent to that of an 80 mm round lens, combined with an ultra-powerful, low-etendue, LED emitter. MAGICPANEL FX produces an extremely powerful beam capable of creating extraordinarily new 3D volumetric effects.
Features:
- Light Source: 25 x 1,000 lumens RGBW High-Power LED source
- CRI: reaching high CRI
- Beam Angle: 3.6° to 53°
- Dimming: Electronic dimmer, 0-100%
- Refresh Rate:
- Strobe: 1-25 fps
- Color: 4 colors RGBW mixed
- Effects: 2D & 3D graphical effects capabilities; Effects can be coupled with beam, wash or matrix applications; Built-in pattern effects with speed and fade controls for scenic applications
- Control Protocol: DMX 512 protocol; DMX-RDM compatible
- Operating Modes: Choice of 3 DMX modes (from 19 to 118 DMX channels)
- IP Grade: IP-20
Tech Specs
Optics:
Minimum Beam Angle: 3.6°
Maximum Beam Angle: 53.0°
Control
DMX Channel Modes: Choice of 3 DMX modes (from 19 to 118 DMX channels)
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 486 mm
Width: 307 mm
Height: 641 mm
Weight: 28.7 kg
Electrical
Voltage Range: 100-240V
Maximum Wattage: 1000Ww
