Ayrton MiniPanel FX
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

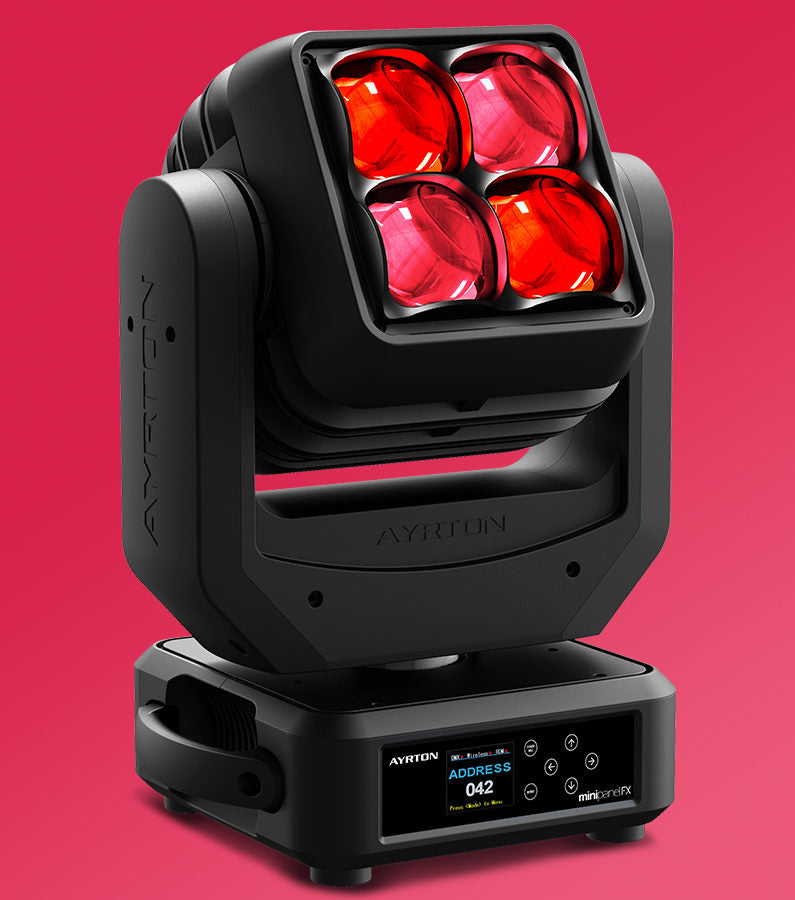

MINIPANEL FX is a versatile new multi-function and multi-use luminaire that combines the same main features and essential components as the MAGICPANEL FX, in an ultra compact format.
- Light Source: 4 x 35W - RGBW LED
- Beam Angle: 3.6° to 53°
- Dimming: Electronic dimmer, 0-100%
- Refresh Rate:
- Strobe: 1-25 fps
- Color:
- Gobo:
- Effects: 2D & 3D graphical effects capabilities; Effects can be coupled with beam, wash or matrix applications; Built-in pattern effects with speed and fade controls for scenic applications
- Control Protocol: DMX 512 protocol; DMX-RDM compatible
- Operating Modes: Choice of 3 DMX modes (from 19 to 34 DMX channels)
- IP Grade: IP-20
Tech Specs
Optics:
Light Source Type: LED
Light Source Wattage: 35Ww
Minimum Beam Angle: 3.6°
Maximum Beam Angle: 53.0°
Control
DMX Channel Modes: Choice of 3 DMX modes (from 19 to 34 DMX channels)
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 285 mm
Width: 220 mm
Height: 397 mm
Weight: 8.9 kg
Electrical
Voltage Range: 100-240V
Maximum Wattage: 220Ww
View full details
