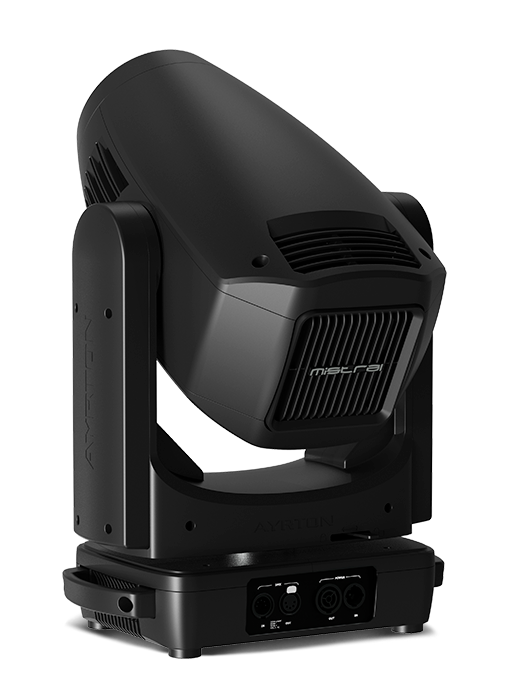

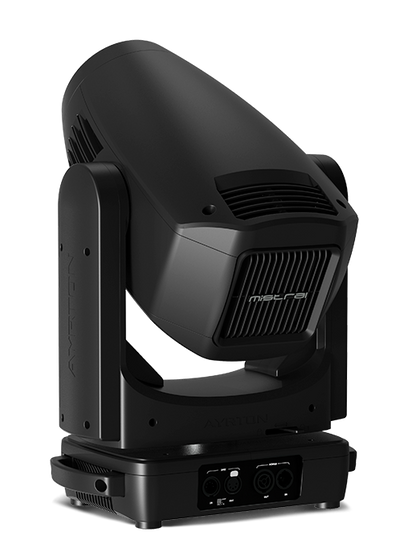

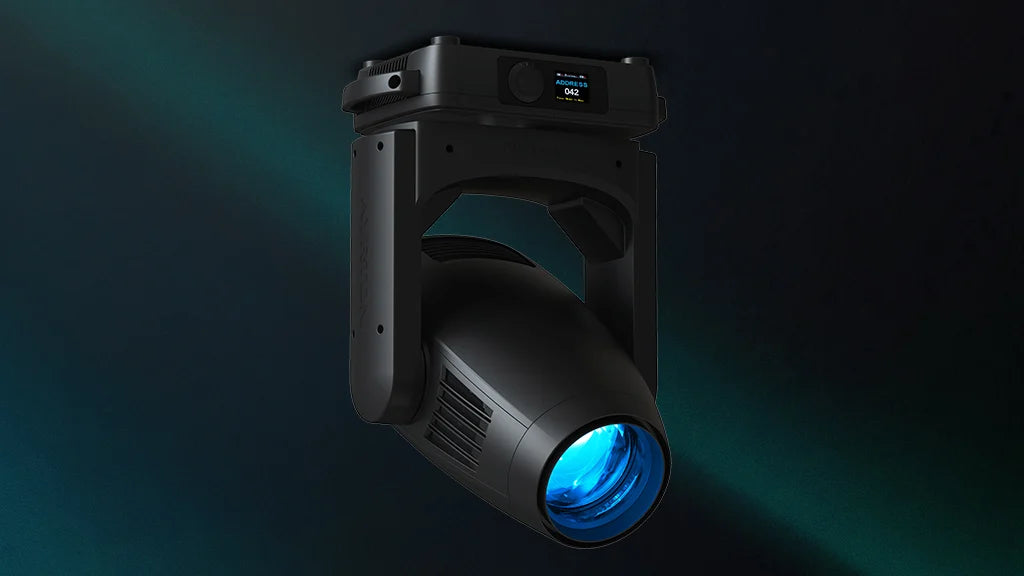

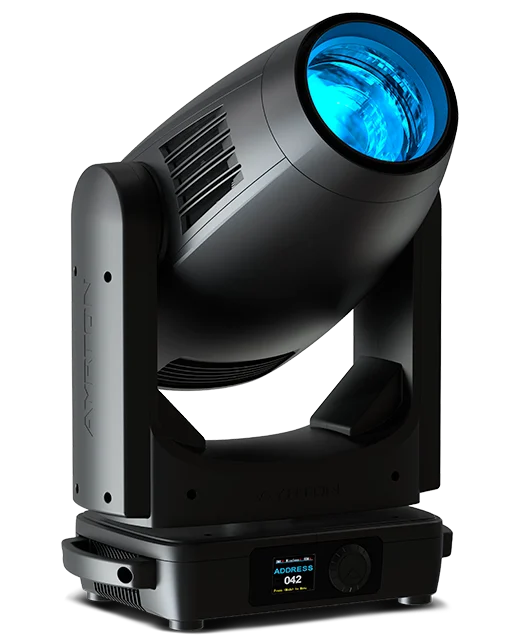

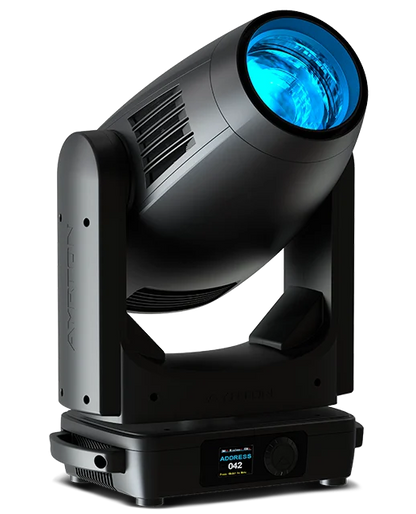

Ayrton Mistral-S 300W LED Spot, 7 to 53 degree

The Ayrton Mistral-S is a compact, 300W LED moving head spot delivering up to 18,000 lumens across a 6.7° to 53° zoom range, with CMY color mixing, dual gobo wheels (16 HD glass gobos total), motorized iris, and phase-change liquid cooling — optimized for maximum output and metallic white light in stage applications.

From the Manufacturer

Mistral is a versatile, fully equipped 300W spot luminaire in an ultra-compact format, featuring a 13-lens proprietary optical system with a 119 mm frontal lens that delivers an extremely uniform flat beam capable of rendering images perfectly at any angle. The Mistral-S is designed for scenic applications, equipped with a new LED module delivering powerful metallic white light with a record-breaking output of 18,000 lumens and a colour temperature of 7000 K. Feature-rich from the factory, Mistral includes CMY colour mixing, 16 interchangeable HD glass gobos on two wheels, a dynamic animation wheel, iris diaphragm, rotating prism, and a phase-change liquid cooling system with Silent Mode.

Features

• 300W LED source (Mistral-S): 18,000 lm output; 7000 K colour temperature; CRI >70; rated life (L70) up to 40,000 hours
• Flicker-free source management for TV applications and video-recorded events
• 13-element, 8:1 zoom optics; 119 mm frontal lens; 6.7° to 53° zoom range
• CMY colour mixing with variable CTO and 7-position colour wheel (saturated filters)
• 16 HD glass gobos across two wheels: 7-position rotating wheel + 9-position fixed wheel (25.5 mm diameter)
• Focusable animation wheel with continuous rotation in both directions
• 5-facet circular indexable rotating prism
• 15-blade iris diaphragm: 15% to 100% range
• Light frost filter standard (heavy frost optional)
• Pan 540° / Tilt 263° with automatic repositioning; 8- or 16-bit resolution
• 3 DMX modes: 26, 33, or 39 channels; RDM compatible
• Integrated wireless CRMX TiMo RDM receiver (LumenRadio)
• Advanced phase-change liquid cooling with selectable Silent Mode; 550 W maximum power
• Recommended use: Stage, theatre, broadcast, film, studio, indoor events

Specifications

Optics

• Optical System: 13-element, 8:1 zoom; tempered anti-reflective coated lenses; 119 mm frontal lens
• Zoom Aperture: 6.7° to 53°
• Total Luminaire Output: Up to 18,000 lm
• White Light Engine: 26,000 lm @ 8000 K
• Colour Temperature: 7000 K
• CRI: >70
• Rated Life (L70): Up to 40,000 hours

Colours

• Colour Mixing: CMY system
• CTO: Variable
• Fixed Colour Wheel: 7 saturated colour filters

Gobos & Effects

• Rotating Gobo Wheel: 7 HD glass gobos + open; indexable, variable-speed rotation in both directions
• Fixed Gobo Wheel: 9 HD glass gobos + open
• Gobo Diameter: 25.5 mm | Image Diameter: 20 mm | Thickness: 1.1 mm
• Animation Wheel: Focusable, continuous rotation in both directions
• Prism: 5-facet circular, indexable, rotating
• Frost: Light frost standard; heavy frost optional

Iris Diaphragm

• Iris: 15-blade, 15% to 100%

Movement

• Pan: 540° with automatic repositioning
• Tilt: 263° with automatic repositioning
• Resolution: 8-bit or 16-bit

Control

• Protocol: DMX-512; RDM compatible
• DMX Modes: 3 (26, 33, or 39 channels)
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 550 W

Construction

• Dimensions: 365 x 591 x 212 mm (L x H x D)
• Weight: 18.9 kg
• IP Rating: IP20
• Exterior Finish: Black (Carbon)
• Cooling: Advanced phase-change liquid cooling; variable-speed fans with Silent Mode
• Max Ambient Temperature: 45°C (113°F) / Min: −10°C (14°F)
• Minimum Safe Distance: 1.5 m (4.92 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC Part 15 Subpart B 2018, UL 1573, RoHS, REACH, CA Prop 65
