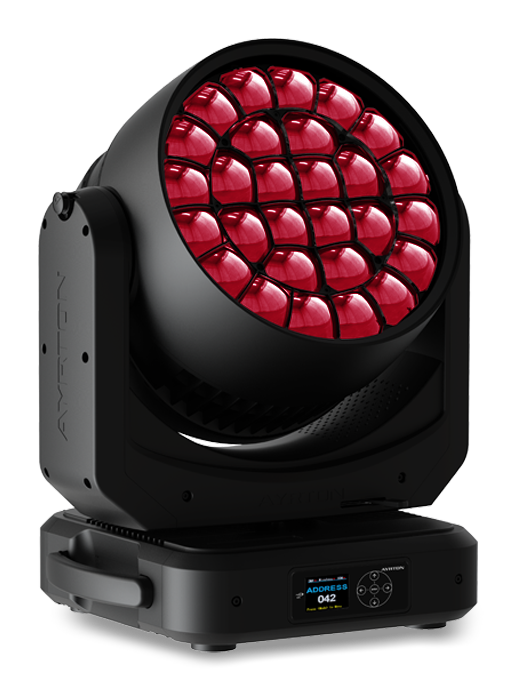

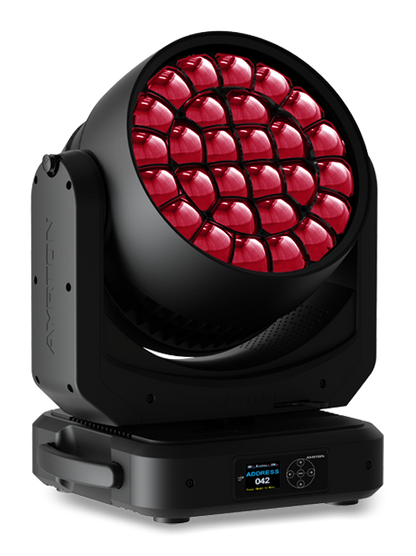

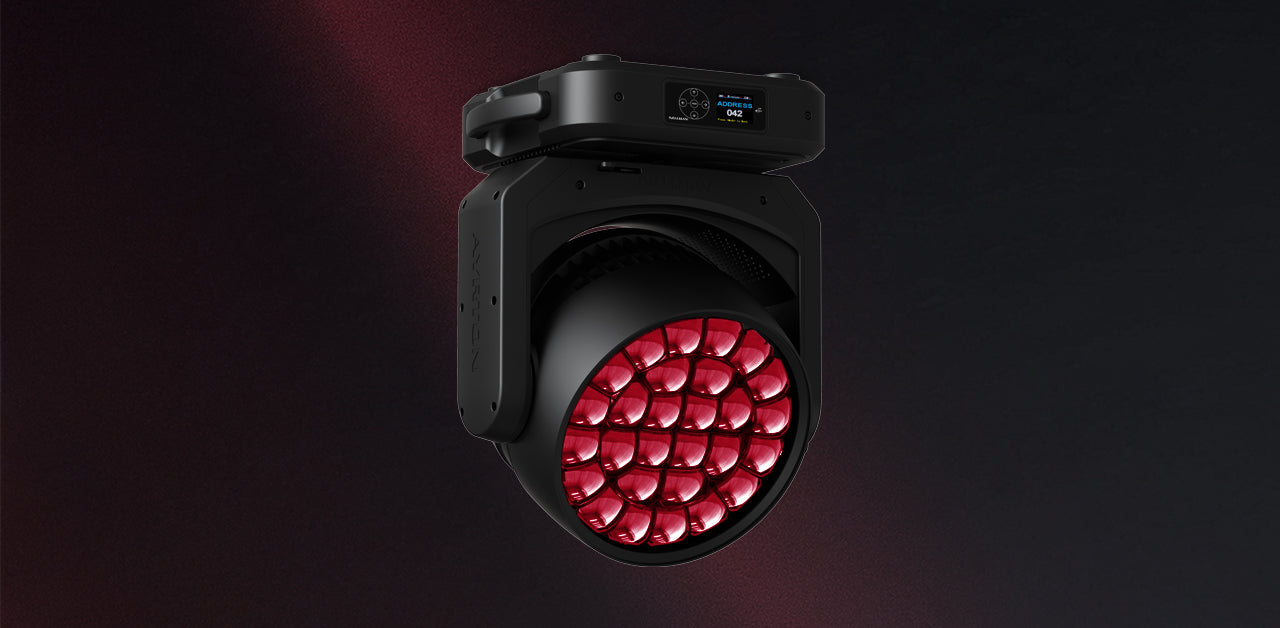

Ayrton Nando 1202 LED Wash

The Ayrton Nando 1202 is an IP65-rated multi-source LED wash moving head featuring 28 individually controllable 50W RGB-L LED sources, 25,000 lumens of output, a 3.5° to 53° zoom range, and a 303 mm lens cluster designed for perfectly homogeneous colour mixing, pixel-mapped 3D effects, and nuanced wash applications indoors and out.

From the Manufacturer

Built on the success of the Nando 502, Nando 1202 represents the next generation of this innovative multi-source wash family. Featuring 28 high-performance 50W RGB-L LED sources, its proprietary optical system is built around a 303 mm PMMA cluster paired with 28 precision-machined glass light guides, each with a micro-structured optical exit surface. This configuration delivers 25,000 lm of perfectly homogeneous colour mixing with CRI above 86, and provides individual control of each LED source for breathtaking volumetric 3D effects. Nando 1202 shifts from Beam to Wash instantly across a 15:1 zoom ratio (3.5° to 53°). A black honeycomb louvre and complete isolation of light sources significantly enhance contrast, while a new non-sealed ventilation system achieves a 20% weight reduction without compromising cooling performance.

Features

• 28 individually controllable RGB-L LED sources: 25,000 lm total output; CRI >86; rated life (L70) up to 40,000 hours
• Flicker-free management for TV and video-recorded applications
• 2-element 15:1 zoom; 303 mm lens cluster (28 x 70 mm lenses); 3.5° to 53° beam/wash switchable
• 4.29 billion colours; Virtual CTC 2500–8000 K; direct RGBL control; calibrated RGB mode with auto Lime insertion; Tint channel (±green)
• Individual pixel control of each LED source for 2D and 3D graphic effects
• Black honeycomb louvre for enhanced contrast; anti-reflective treated glass window
• Built-in pattern effects with speed and fade controls; comprehensive pre-programmed colour library
• Pan 540° / Tilt 225° with automatic repositioning; 8- or 16-bit resolution
• 4 DMX modes (26, 56, 112, or 150 channels); ArtNet & sACN; CRMX TiMo RDM receiver (LumenRadio)
• IP65 housing; all-IP65 connectors; saline environment rated
• 1,450W maximum power; 120–240V auto-ranging; Super Silent cooling mode
• Recommended use: Concert & touring, broadcast, outdoor events, large venue wash, pixel-mapped scenic effects

Specifications

Optics

• Optical System: 2-element, 15:1 zoom; 303 mm front lens cluster (28 × 70 mm precision glass light guides)
• Zoom Aperture: 3.5° to 53°
• Light Sources: 28 × 50 W RGB-L High-Power LED
• Total Luminaire Output: Up to 25,000 lm
• CRI: >86
• Rated Life (L70): Up to 40,000 hours

Movement

• Pan: 540° with automatic repositioning
• Tilt: 225° with automatic repositioning
• Resolution: 8-bit or 16-bit

Colours & Effects

• Colour Mixing: 4-colour RGB-L; uniform beam with no colour shadows
• Colour Range: 4.29 billion colours; Virtual CTC 2500–8000 K; Tint (±green); direct RGBL and calibrated RGB modes
• Pixel Control: Individual control of each of the 28 LED sources
• Effects: 2D and 3D graphic effects; built-in patterns with speed and fade controls
• Dimmer: Electronic, 0–100%
• Strobe: White or colour, 1–25 Hz

Control

• Protocol: DMX-512, ArtNet, sACN; RDM compatible
• DMX Modes: 4 (26, 56, 112, or 150 channels)
• Wireless: Integrated CRMX TiMo RDM receiver (LumenRadio)
• Stand-alone: Yes (Main/Follow modes)
• Display: IP65 LCD with flip function; 5-button menu

Electrical

• Input Voltage: 120 to 240 VAC, 50/60 Hz (auto-ranging), active PFC
• Power (maximum): 1,450 W

Construction

• Dimensions: 446 x 562 x 356 mm (L x H x D)
• Weight: 27.6 kg
• IP Rating: IP65 (all connectors IP65 rated)
• Exterior Finish: Black (Carbon)

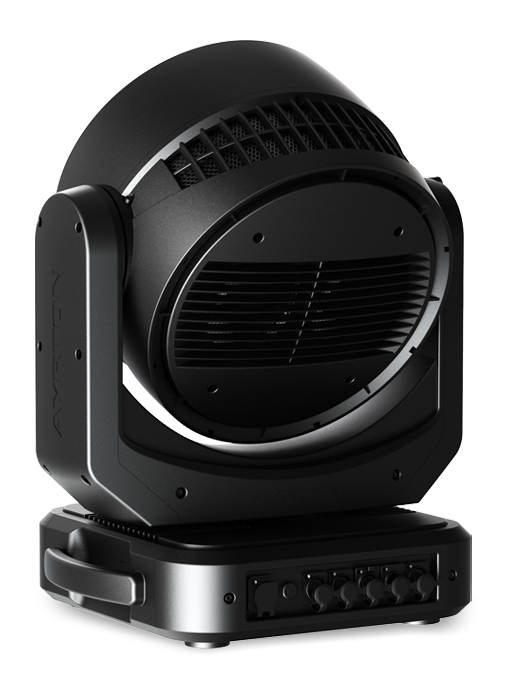

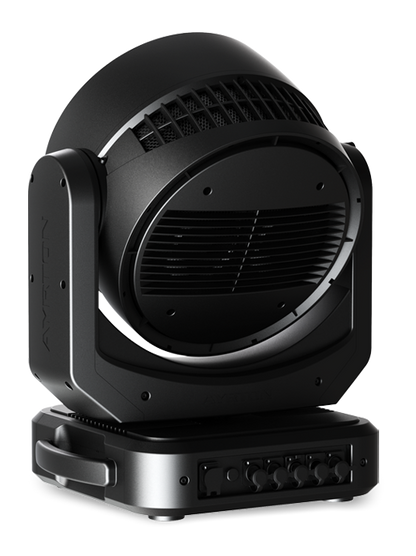

• Cooling: Variable-speed fans in non-sealed compartment; Super Silent mode
• Max Ambient Temperature: 45°C (113°F) / Min: −20°C (−4°F)
• Minimum Safe Distance: 0.5 m (1.64 ft)

Certifications

• Compliance: CE (EMC 2014/30/EU, LVD 2014/35/EU), FCC Part 15 Subpart B 2023, UL 1573, RoHS, REACH, CA Prop 65
