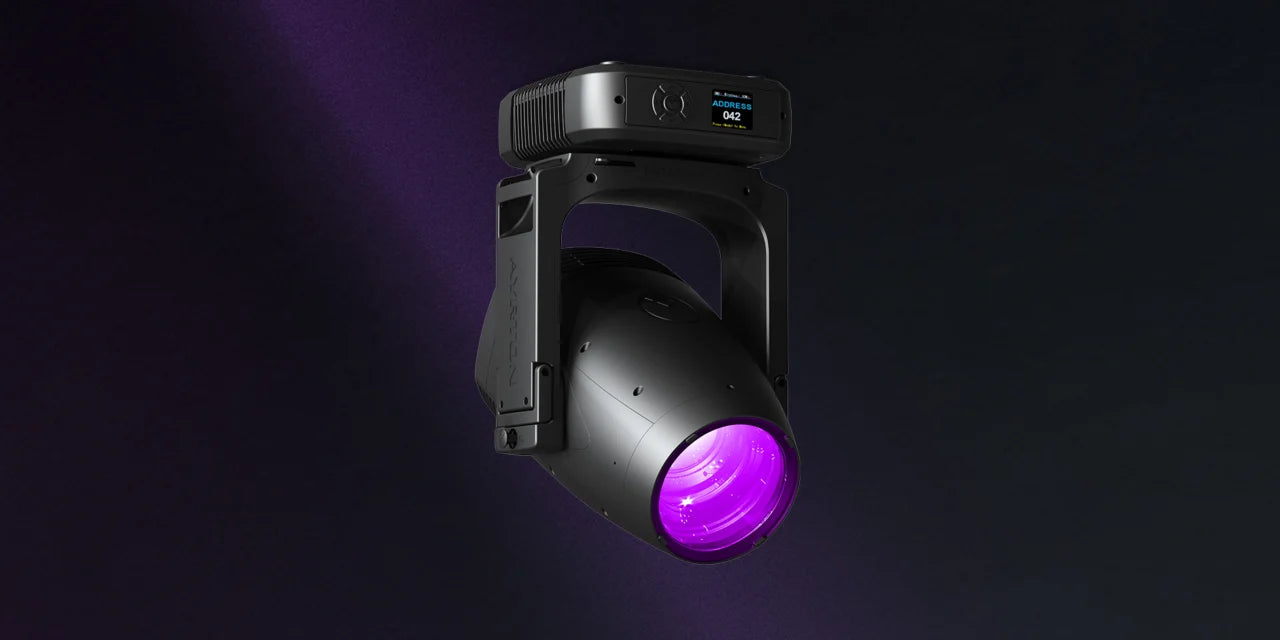

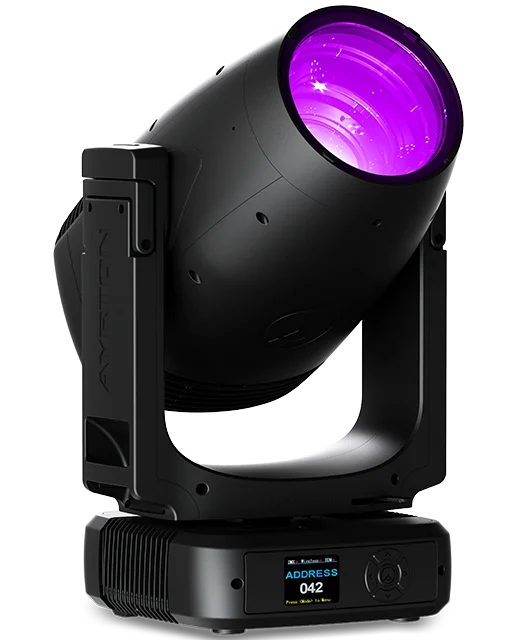

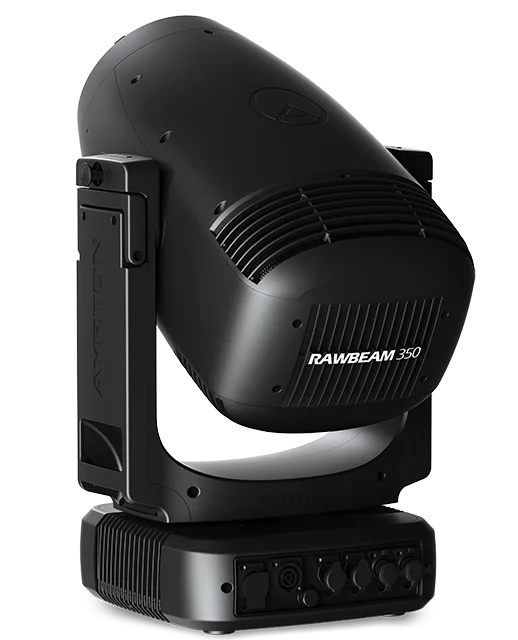

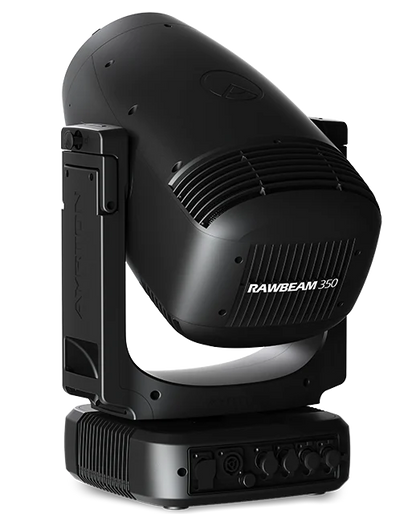

Ayrton Rawbeam 350 IP65 550W Beam, 1.1 to 45 degree

The Ayrton Rawbeam 350 is a powerful IP65-rated moving head fixture featuring a 350 W laser source and an exceptionally wide 1.1° to 45° optical range. Designed for high-impact beam and spot effects, it combines intense output with CMY colour mixing, variable CTO, gobos, prisms, frost and animation effects. Its compact, weather-resistant construction makes it ideal for concerts, touring productions, festivals, arenas and other demanding professional lighting applications.

From The Manufacturer:

RAWBEAM 350 is a brand-new digital luminaire designed for versatile applications, combining an ultra-compact format with an aluminium structure and an exceptionally low weight of just 25.4 kg.

Designed for both indoor and outdoor operation, including saline environments, RAWBEAM 350 delivers exceptional illuminance of more than 1,340,000 lux at 10 metres.

Its 160 mm front lens and proprietary 13-lens optical system provide a 40:1 zoom range with an operating span from 1.1° to 45°.

Key Features:

• 350 W laser phosphor source

• IP65-rated construction

• More than 1,340,000 lux at 10 m

• 160 mm front lens

• 40:1 zoom ratio

• 1.1°–18° beam range

• 2.2°–45° spot range

• CMY colour mixing

• Variable CTO from 3000 K to 6800 K

• 15 complementary colours

• 10 rotating gobos

• 25 fixed metal gobos

• Graphic animation wheel

• Dual rotating prism systems

• Light and heavy frost filters

• Infinite pan and tilt

• Electronic dimming

• Electronic strobe

• DMX512 and RDM control

• Art-Net and sACN support

• IP65 protection for indoor and outdoor applications

Specifications:

• Product Type: Laser Beam / Spot Moving Head

• Manufacturer: Ayrton

• Model: Rawbeam 350

• Product Code: 014350

• Light Source: 350 W Laser Phosphor

• Source Life: Up to 12,000 Hours (L70)

• Colour Temperature: 6800 K

• CRI: >68

• Illuminance: >1,340,000 lux @ 10 m

• Front Lens: 160 mm

• Zoom Ratio: 40:1

• Beam Range: 1.1°–18°

• Spot Range: 2.2°–45°

• Overall Optical Range: 1.1°–45°

• Colour Mixing: CMY

• Variable CTO: 3000–6800 K

• Fixed Colours: 15

• Rotating Gobos: 10

• Fixed Gobos: 25

• Frost: 1° Light / 5° Heavy

• Pan: Infinite

• Tilt: Infinite

• DMX Channels: 43

• Control Protocols: DMX512 / RDM / Art-Net / sACN

• Protection Rating: IP65

Applications:

• Concerts

• Touring productions

• Festivals

• Arenas

• Outdoor productions

• Stage productions

• Theatre

• Television

• Live events

• Large venues

• Beam and aerial effects

• Professional entertainment lighting

Included Accessories:

• 2 × Omega ¼-Turn Brackets

• Power Cable

Optional Accessories:

• Flight Case

• Clamps

• Safety Cable

• DMX / Network Cables

• Additional Rigging Hardware

Size:

• 339 × 592 × 297 mm

• 13.35 × 23.31 × 11.69 in

Weight:

• 25.4 kg

• Approximately 56 lb

Electrical / Thermal:

• Input Voltage: 100–240 V AC, 50/60 Hz

• Typical Power @ 120 V: 565 W

• Typical Power @ 208 V: 550 W

• Typical Power @ 230 V: 549 W

• Typical Power @ 240 V: 548 W

• Maximum Power Consumption: 660 W

• Electronic Power Supply with Active PFC

• Maximum Ambient Temperature: 45°C / 113°F

• Minimum Ambient Temperature: -20°C / -4°F

• IP65 Protection Rating
