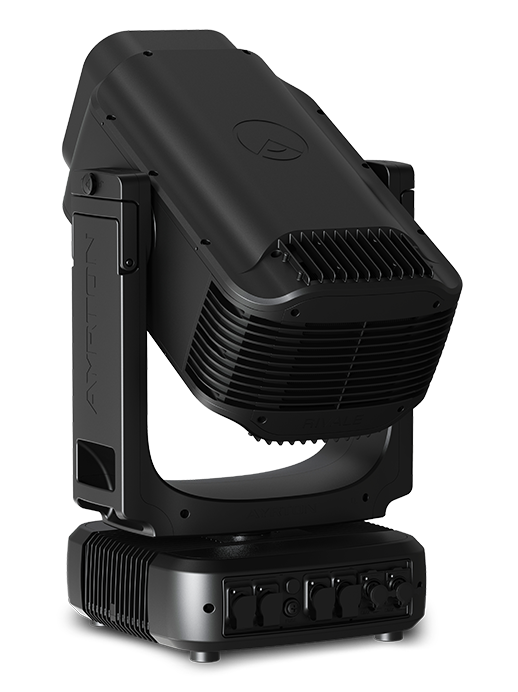

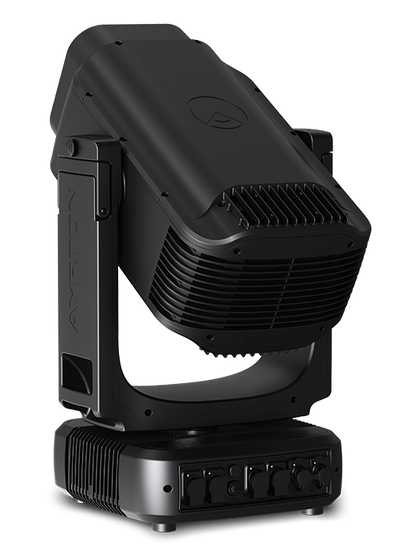

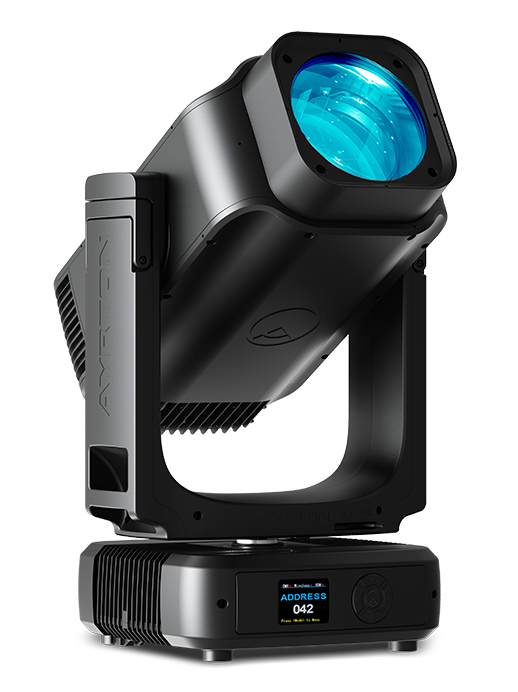

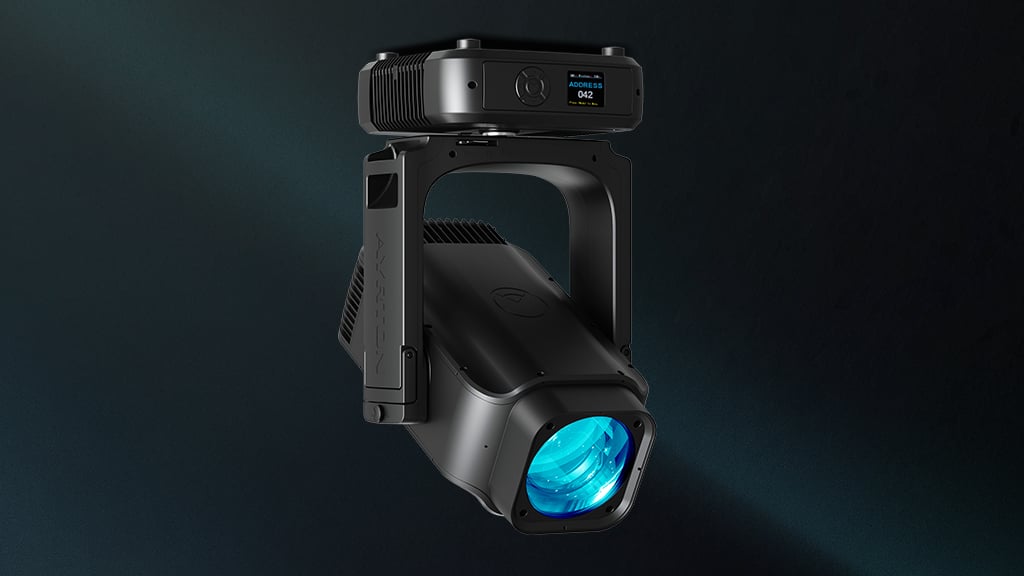

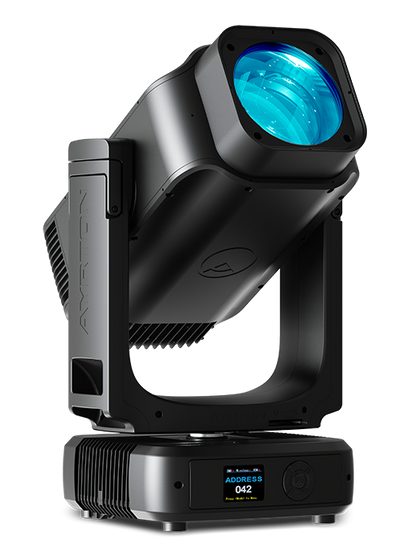

Rivale Profile

The Ayrton Rivale Profile, the first “ultra-equipped” fixture in the new Ultimate series, has been developed for outstanding, highly versatile performance in all conditions, indoor and outdoor.

From the Manufacturer:

Rivale Profile is the first ultra-equipped luminaire in Ayrton’s brand new “ULTIMATE“ series, all models being perfectly homothetic and sharing common features, delivering previously unimaginable weight to output ratios.

Developed for mixed use indoors and outdoors, and in all conditions, Rivale Profile, with its unique visual signature, is unparalleled on the market. Weight determines performance, and Rivale Profile weighs only 30.8 kg. It is capable of outstanding performance unprecedented for a product in this category. To allow you more creativity and freedom in your lighting design, Rivale Profile has been provided with continuous rotation of the pan and tilt movement. Rivale Profile is fitted with a brand new high-efficiency 430-watt sealed mono-block LED module calibrated at 6500 K that offers a luminous flux of 30,000 lumens with optimal positioning on a black body to obtain perfect light neutrality. The proprietary optical system has 13 lenses, delivering a 13-to-1 zoom ratio and zoom range of 4 ° to 52 °.  Equipped with a 160 mm frontal lens, Rivale Profile can produce an ultra-intensive beam of 4 °, close to that of Ayrton’s famous “LT“ versions.

Rivale Profile has adopted a brand-new high-definition progressive CMY color-mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the color combination selected.

An extended progressive CTO lets you fine tune the colour temperature from 2900 K to 6500 K, and a seven-position colour wheel completes the palette of tools dedicated to creating colour. For greater flexibility of use, Rivale Profile allows subtle adjustment of the colour rendering index from 70 to 86. The framing section permits accurate positioning of each shutter blade on a 100% surface area with a rotation of plus-or-minus 90 °. A fast 15-blade iris diaphragm enables beam optimisation in Beam mode. The image section of Rivale Profile includes 15 high-definition glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eight positions. The effect section is fitted with a monochromatic animation wheel, two combinable rotating prisms and two frost filters. Rivale Profile, a unique projector that boasts performance, creativity, subtlety and power, is the most versatile fixture created by Ayrton to date. A truly innovative luminaire with no equivalent on the market.

Specifications:

• OPTICS
  • 13-element 13:1 zoom high-resolution optic system
  • Zoom  aperture: 4 ° to 52 °
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 160 mm frontal lens
• LIGHT SOURCE
  • 35,000 lumens white light engine
  • Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode)
  • Colour temperature output: 6500 K
  • Variable CRI: 70 to 86
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events
• MOVEMENT
  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: infinite pan and tilt rotation
• COLOURS
  • Sophisticated colour mixing system providing CMY color mixing
  • Variable CTO colour temperature correction
  • Variable CTP
  • Fixed colour wheel with seven complimentary colours
• GOBOS
  • Indexable rotating gobo wheel with seven high precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Fixed gobo wheel with 9 high-precision glass gobos, plus open position
  • Gobo diameter: 25.5 mm
  • Image diameter: 18 mm
  • Gobo thickness: 1.1 mm
• FRAMING SYSTEM
  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the shutter blades module: +/- 90°
• IRIS DIAPHRAGM
  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open
• FROST
  • 2 frost filters one light, one heavy
• EFFECTS
  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
• DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
• SOFTWARE FEATURES
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
• HARDWARE FEATURES
  • Graphic LCD display for addressing and special functions settings, with flip function
  • 5 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • IP65 XLR 5 pin male and female connectors for DMX connection
  • IP65 RJ45 IN / OUT connectors for ArtNet connection
  • IP65 PowerCON TRUE1 TOP male and female connectors for power connection
• CONTROL
  • DMX 512 protocol, through IP65 DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Main/Follow modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with IP65 LCD display
  • Choice of 2 DMX modes (from 42 to 65 DMX channels)
• POWER SUPPLY
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 700 W maximum
• COOLING SYSTEM
  • Advanced liquid cooling system
  • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Super Silent Mode
  • Safety protection against temperatures excesses
• HOUSING
  • Moving-head skeleton made of aluminium and steel metal plates
  • Head in die-cast aluminium
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Arms in self-extinguishing fire retardant ABS PC (V0 class)
  • Four-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP65 protection rating
  • Exterior finish: black (Carbon)
• INSTALLATION
  • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
• OPERATING PARAMETERS
  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45 ° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -20 ° C (-4° F)
  • Minimum usage distance: 3 m (9.84 ft)
• COMPLIANCE
  • EU (EMC & LVD):
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • US (Safety & EMC)
  • UL 1573
  • FCC Part 15, Subpart B:2018
• SIZE
  • Product: 360 x 676 x 316 mm (l x h x d)
  • Flight-case foam: 560 x 565 x 485 mm (l x h x d)
• WEIGHT
  • Product: 30.8 kg
