Zonda 9 Wash

The Ayrton Zonda 9 Wash is a high-performance LED stage light with a proprietary LED/optical system, ideal for all stage lighting applications.

From the Manufacturer:

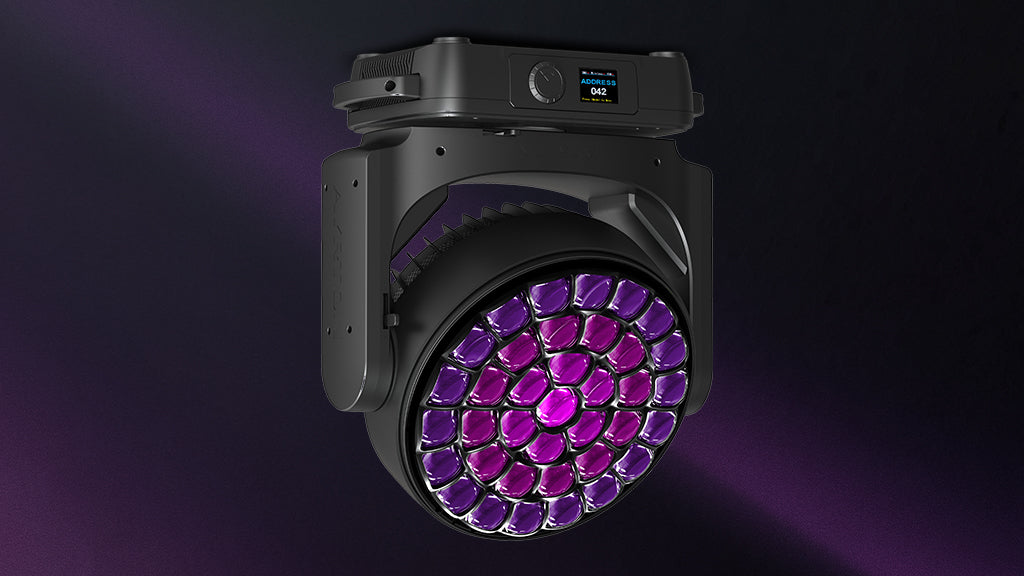

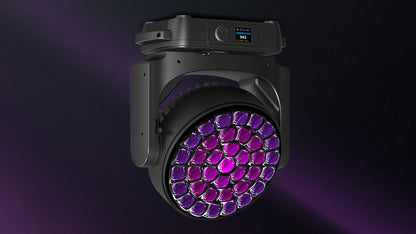

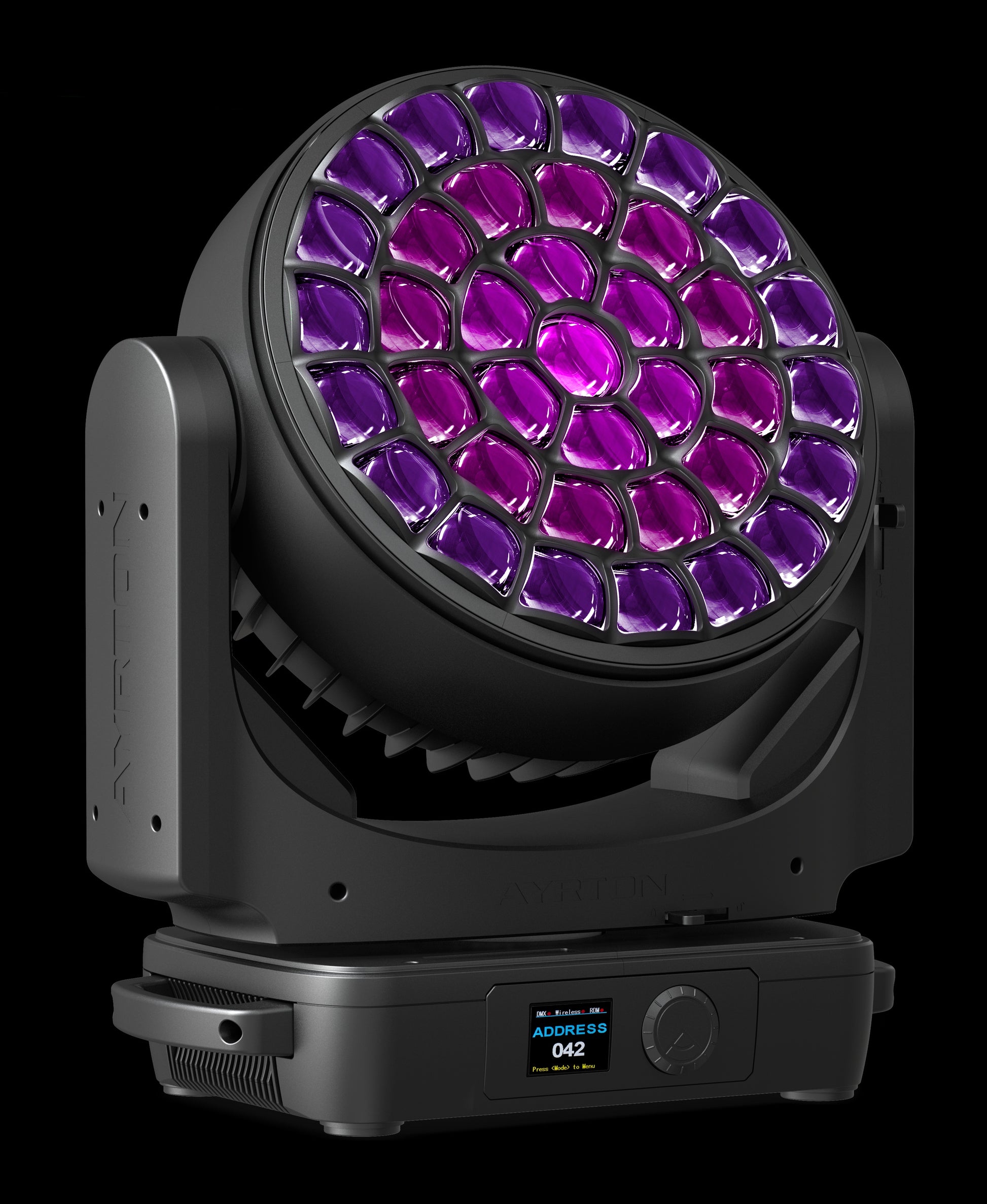

Zonda 9 Wash is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40-Watt LED source with RGB+W additive colour synthesis.

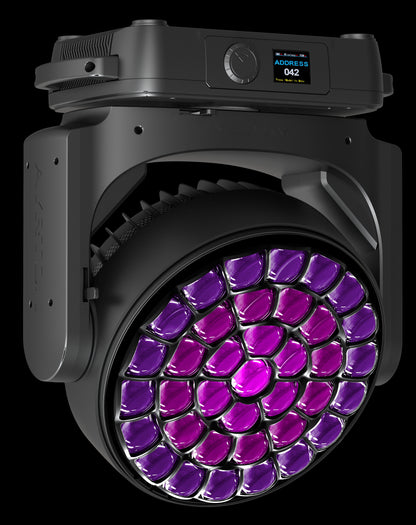

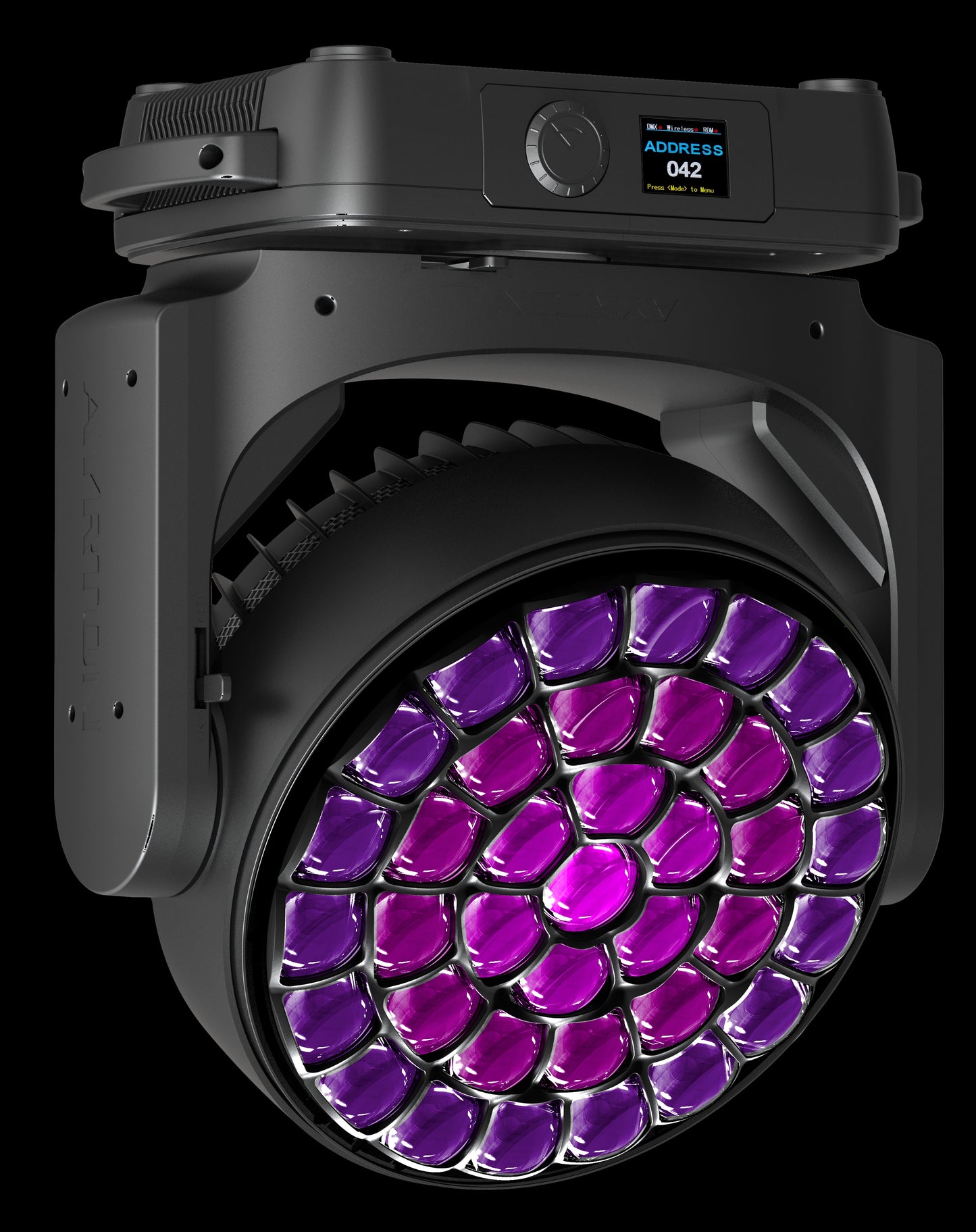

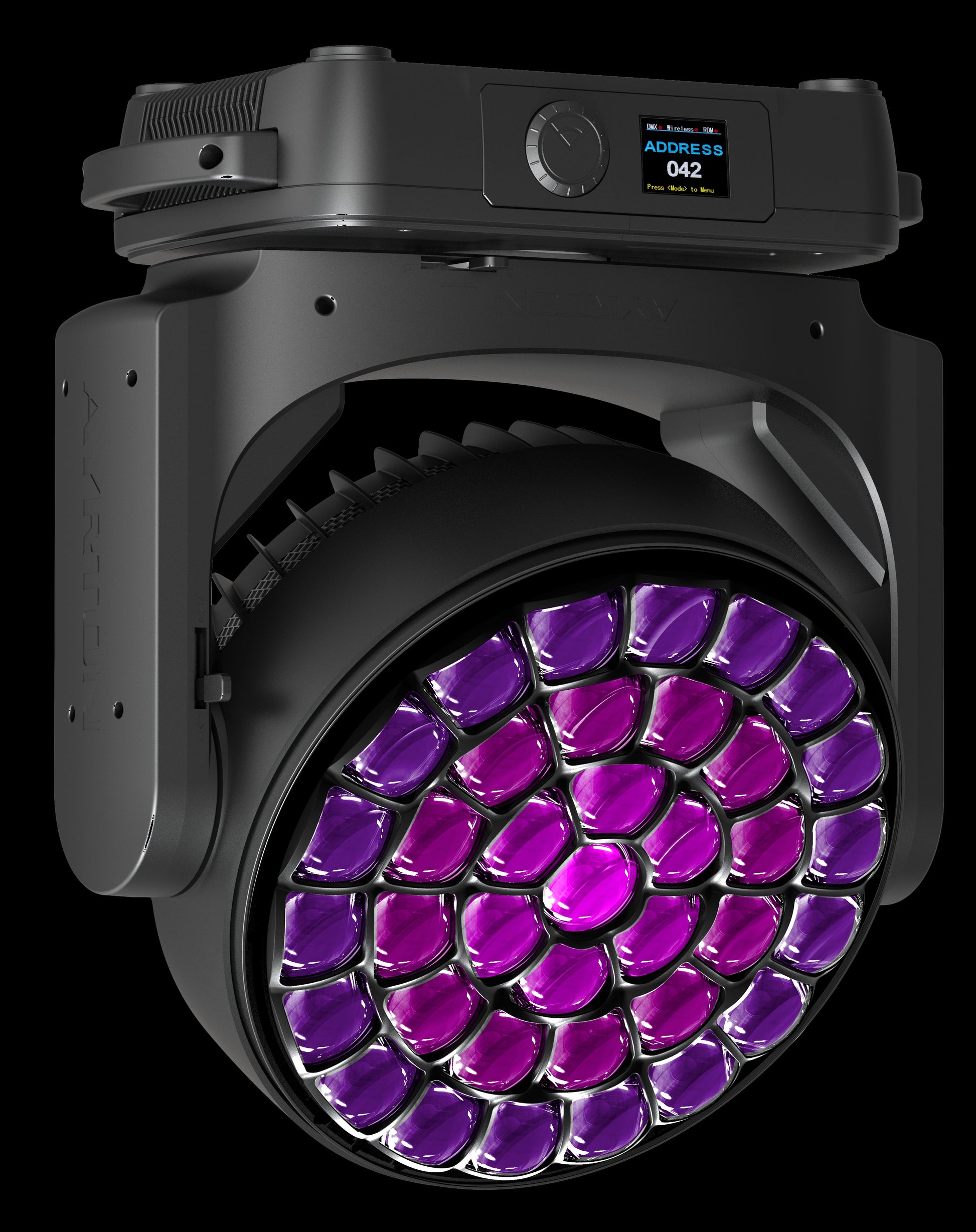

This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, Zonda 9 Wash can obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4 ° to 56 °.

A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.

Zonda 9 Wash is a radical luminaire intended for stage lighting in the true sense. The careful colour mixing of the sources allows for perfect colour reproduction. You can control each concentric circle to adjust the size of the emitting surface and the luminaire’s power. A complete library of pre-programmed colours created in collaboration with lighting designers is instantly accessible. A silent ventilation mode was specially developed for this fixture. Zonda 9 Wash is a marvel of technology geared for creativity.

Specifications:

• OPTICS
  • 2-element 14:1 zoom high-resolution optic system
  • Beam aperture: 4 ° to 56 °
  • Fast motorised linear zoom
  • 37 truncated edges 50 mm frontal lenses
  • 384 mm front lens cluster
• LIGHT SOURCE
  • 37 x 1,000 lumens RGBW High-Power LED sources
  • Total luminaire output: up to 25,000 lumens
  • CRI: up to 86
  • Rated life (L70): up to 40,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events
• MOVEMENT
  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
  • PAN and TILT automatic repositioning
  • Moving-head range: 540° (pan) & 270° (tilt)
• COLOURS
  • Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
  • Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8-bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets
• EFFECTS
  • 2D & 3D graphical effects capabilities
  • Effects can be coupled with beam, wash or matrix applications
  • Built-in pattern effects with speed and fade controls for scenic applications
• DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
• SOFTWARE FEATURES
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
• HARDWARE FEATURES
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • XLR 5 pin male and female connectors for DMX connection
  • ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • powerCON TRUE1 male connector for power connection
• CONTROL
  • DMX 512 protocol through DMX cable
  • DMX-RDM compatible
  • Stand-alone mode and Main/Follow modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 26 to 54 DMX channels)
• POWER SUPPLY
  • Electronic supply with active PFC
  • 120 to 240 Volts – 50/60Hz
  • Power 1,400 W maximum
• COOLING SYSTEM
  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses
• HOUSING
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
• INSTALLATION
  • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
• OPERATING PARAMETERS
  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
  • Minimum usage distance: 3 m (9.84 ft)
• COMPLIANCE
  • EU (EMC & LVD)
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
  • US (Safety & EMC)
  • UL 1573
  • FCC Part 15, Subpart B: 2018
• SIZE
  • Product: 530 x 625 x 280 mm (l x h x d)
• OPTIONAL EQUIPMENT
  • Flightcase foam: 580 x 611 x 345 mm (l x h x d)
• WEIGHT
  • Product: 29.2 kg
