Sku: Backline X115B

Backline X115B

Regular price $850.00
Regular price Sale price $850.00
Sold out
Shipping calculated at checkout.
Vendor: Martin Audio

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

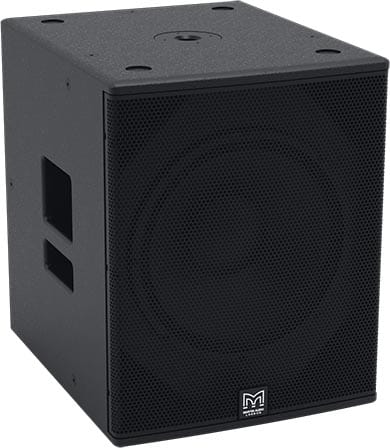

The Backline X115B is a compact subwoofer for install and portable purposes. it is a great option for small to medium sized events.

From the Manufacturer:

The X115 is a very compact subwoofer designed to augment the low frequency performance of BlacklineX Series full-range systems. It comprises a long excursion 15” (380mm)/3” (75mm) voice coil driver in a bass reflex enclosure and can be used singly, stacked or flown via integral M10 inserts. Four large ports contribute to a reduction in air noise at high output levels.

Features:

  • Compact, direct-radiator subwoofer

  • 1 x 15” (380mm) driver with 3” (75mm) voice coil

  • Large ports for reduced air noise

  • Screw-free perforated steel grille

  • 35mm pole-mount socket

  • 8Ω nominal impedance

  • M10 flying inserts

Applications:

  • Portable sound reinforcement

  • Live music clubs

  • Bars and restaurants

  • Nightclubs

  • Corporate AV events and conferences

  • Weddings and parties

  • Secondary stages at festivals

  • HoW, leisure centers and retail outlets

Specifications:

  • Type

    • Compact, direct radiating subwoofer

  • Frequency Response

    • 45Hz-150Hz ± 3dB, -10dB @ 40Hz

  • Driver

    • 15” (380mm)/3” (75mm) voice coil, long excursion, ferrite magnet

  • Rated Power

    • 500W AES, 2000W peak

  • Sensitivity

    • 102dB

  • Maximum SPL

    • 129dB continuous, 135dB peak (half space)

  • Nominal Impedance

  • Dispersion (-6dB)

    • Omnidirectional

  • Crossover

    • 80-120Hz active

  • Enclosure

    • Birch/poplar ply

  • Finish

    • Black textured paint

  • Protective Grille

    • Black perforated steel

  • Connectors

    • 3 x NL4 type

  • Pin Connections (Input)

    • 1+/1-

  • Pin Connections (Link)

    • A: 1+/- to 1+/-, B: 2+/- to 1+/-

  • Fittings

    • 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors

  • Dimensions

    • (W) 465mm x (H) 590mm x (D) 565mm

    • (W) 18.3ins x (H) 23.2ins x (D) 22.2ins

  • Weight

    • 27kg

    • 59.5lbs

Tech Specs
