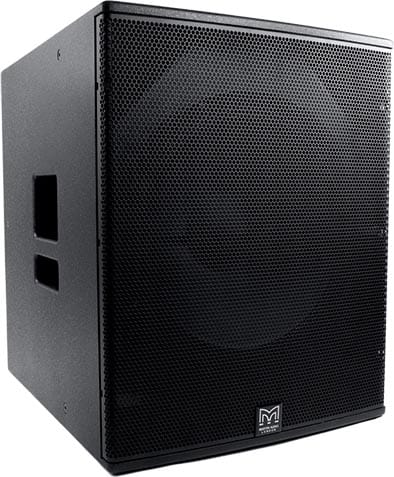

Blackline X118

The Blackline X118is a compact subwoofer and a great option for medium sized live event or install.

From the Manufacturer:

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

Features:

• Compact, direct-radiator subwoofer

• 1 x 18” (460mm) driver with 4” (100mm) voice coil

• Large ports for reduced air noise

• Perforated steel grille

• 35mm pole-mount socket

• 8Ω nominal impedance

• M10 flying inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Corporate AV events and conferences

• Weddings and parties

• Secondary stages at festivals

• HoW, leisure centres and retail outlets

Specifications:

• Type

• Compact, direct radiating subwoofer

• Frequency Response

• 42Hz-150Hz ± 3dB, -10dB @ 36Hz

• Driver

• 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet

• Rated Power

• 800W AES, 3200W peak

• Sensitivity

• 101dB

• Maximum SPL

• 130dB continuous, 136dB peak (half space)

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• Omnidirectional

• Crossover

• 80-120Hz active

• Enclosure

• Birch/poplar ply

• Finish Black textured paint

• Protective Grille

• Black perforated steel

• Connectors

• 3 x NL4 type

• Pin Connections (Input)

• 1+/1-

• Pin Connections (Link)

• A: 1+/- to 1+/-, B: 2+/- to 1+/-

• Fittings

• 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors

• Dimensions

• (W) 530mm x (H) 669mm x (D) 640mm

• (W) 20.9ins x (H) 26.3ins x (D) 25.2ins

• Weight

• 42kg

• 92.6lbs
