12GCSA: USB-C 12G-SDI Video Capture Card Box with Scaler/HDM/SDI Loop Out and Audio

USB-C 12G-SDI Video Capture Card Box with Scaler/HDMI 2.0/12G-SDI Loop Out and Audio

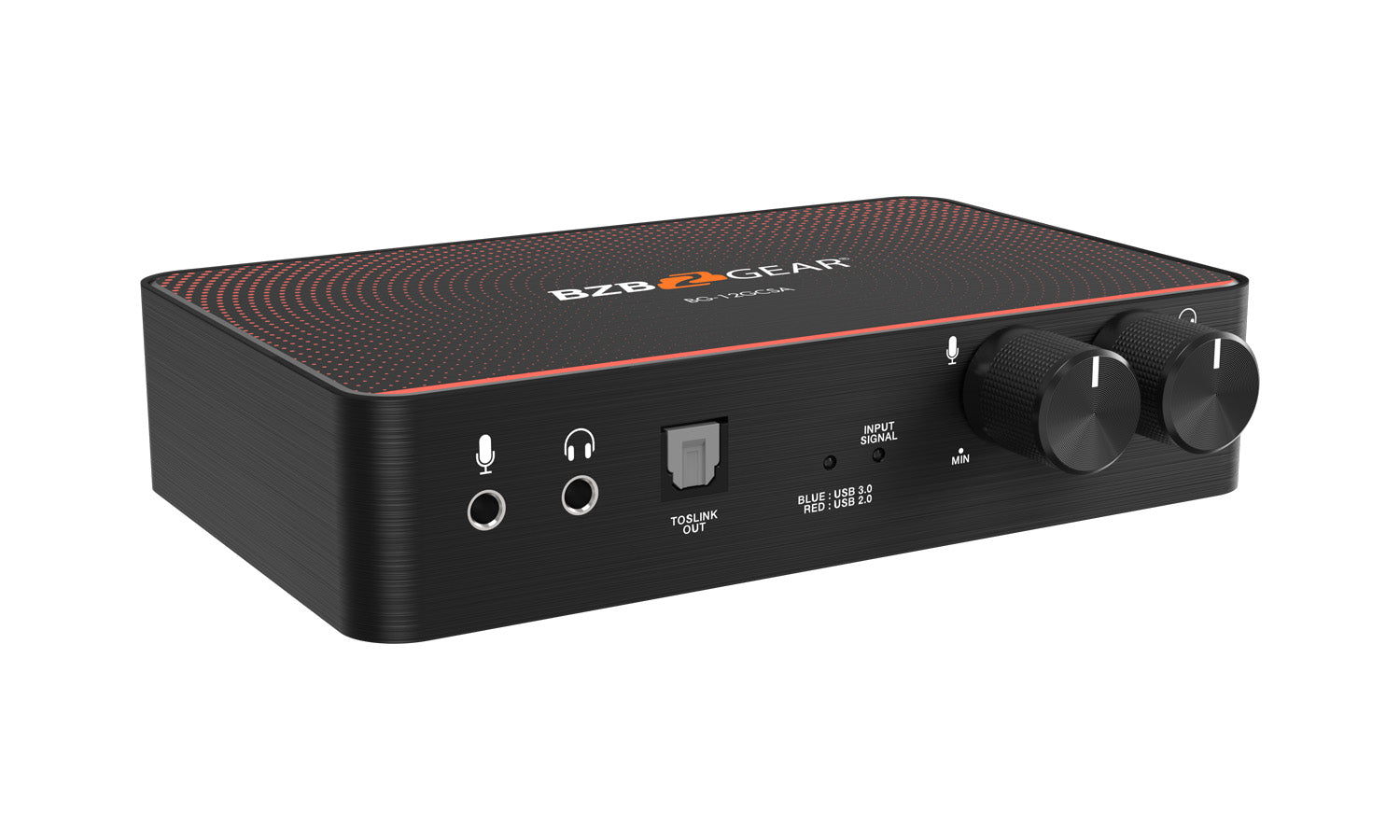

The BZBGEAR BG-12GCSA is a USB-C 12G-SDI video capture device with high sampling rate and accuracy for the best possible images.

From the Manufacturer:

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.

Features:

• Mic-in-mix: Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
• Low Latency: 3~4ms at 1080P
• Auto-Detection: Auto 12G/6G/3G/HD-SDI detection
• SDI video and audio streams over USB 3.1 Type-C Gen 1
• UVC1.0/1.1/1.5
• Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
• HDMI up to 4K2K@60
• SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60
• Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
• Deinterlacer & scaler (upscale to 1080p@120Hz)
• SDI audio extraction
• Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
• USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
• USB-C reversible

Specifications:

Technical

• Role of usage: Video Capture Device
• Input/loopout Video bandwidth: [SDI] 11.88 Gbps, 11.88/1.001 Gbps
• Output bandwidth: Up to 5 Gbps (USB-C)
• Video support (USB-C): Up to 4K2K@30/1080P@120
• Video support (Loopout): Up to 4K2K@60
• Input Video Support:
  • [12G-SDI] 4K2K @50/59.94/60Hz
  • [6G-SDI] 4K2K @23.98/24, 25, 29.97, 30Hz
  • [3G-SDI] 1080p50/59.94/60Hz
  • [HD-SDI] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz
• Audio Input: SDI Embedded Audio & Stereo audio Input
• Audio Support: HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch, Stereo audio up to 2ch
• Recording Video Format: RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0)
• ESD protection: Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
• PCB stack-up: 4-layer board [impedance control — differential 100Ω; single 50Ω]
• Cable equalization:
  • [12G-SDI] Input up to 30m; Loopout up to 70m
  • [6G-SDI] Input up to 70m; Loopout up to 120m
  • [3G-SDI] Input up to 200m; Loopout up to 200m
• Firmware update: USB-C Port

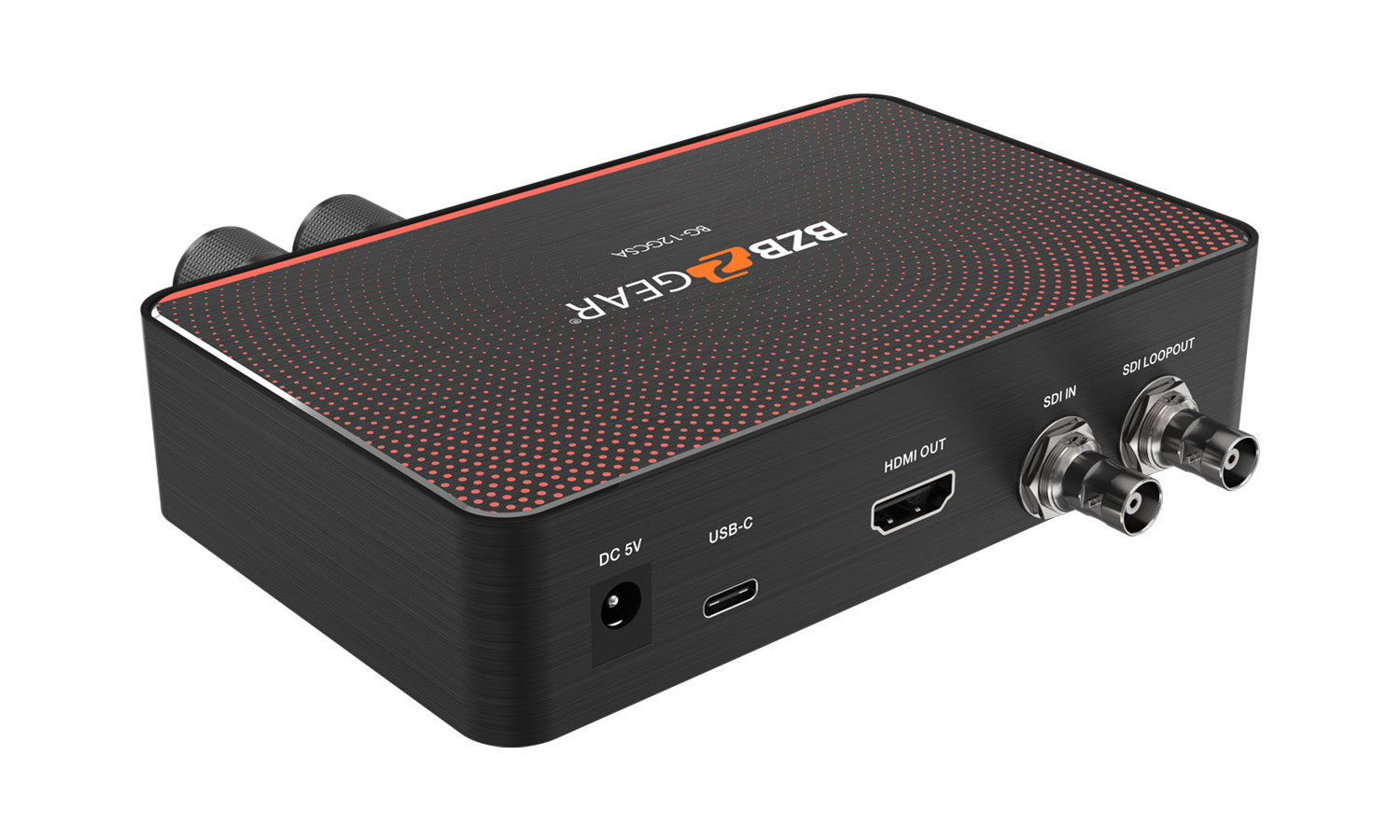

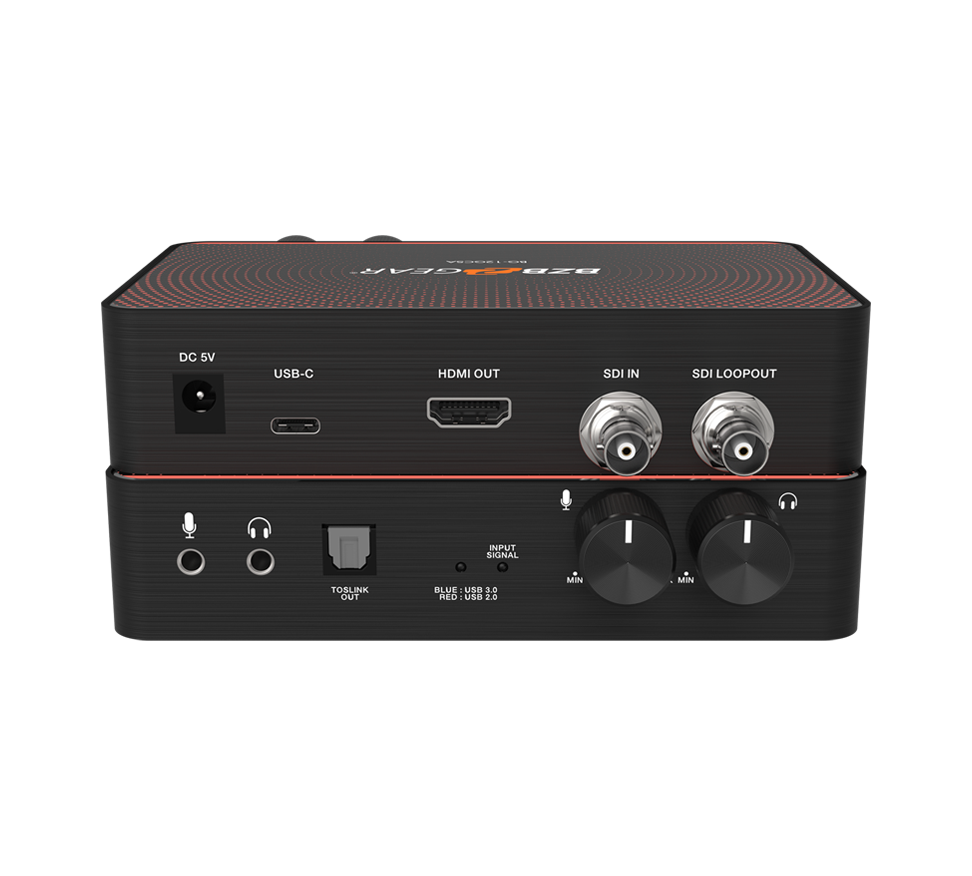

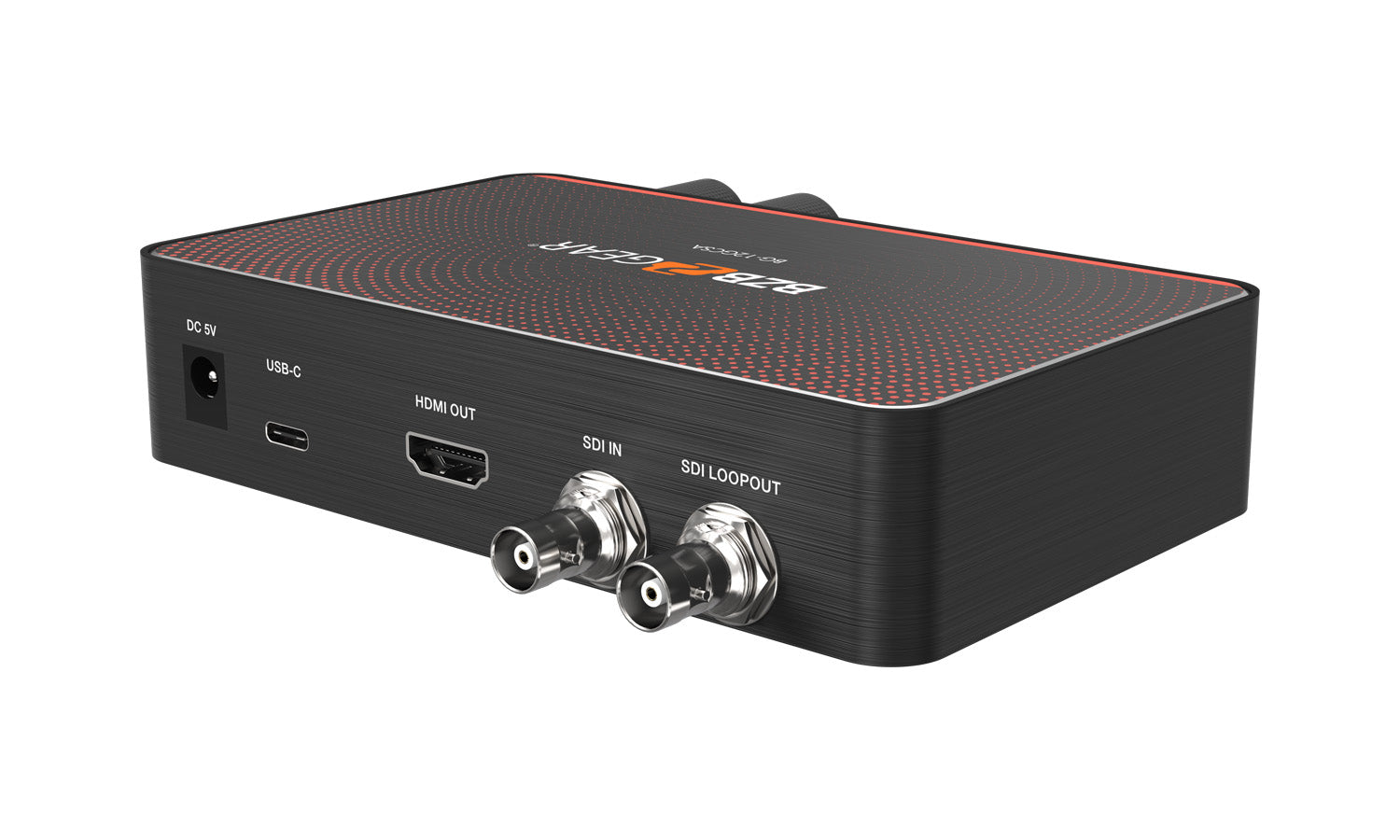

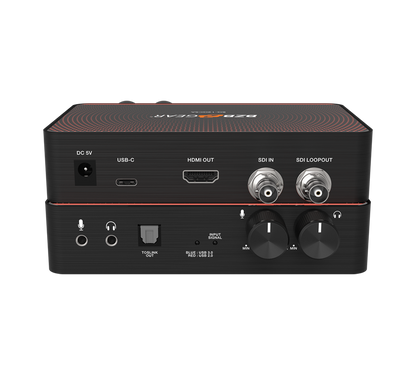

• Input: 1x BNC(SDI) + 1x 3.5mm

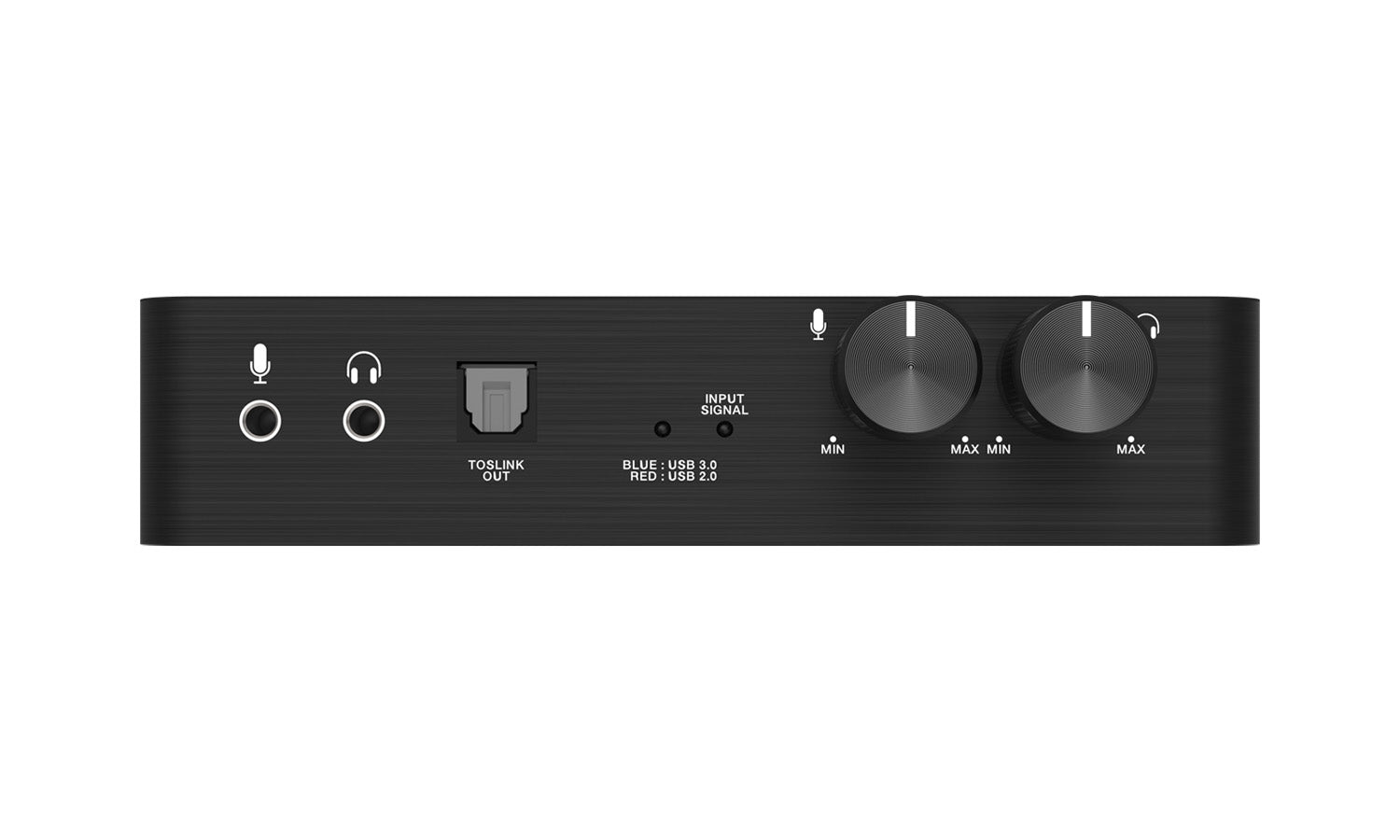

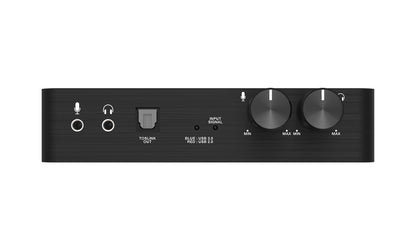

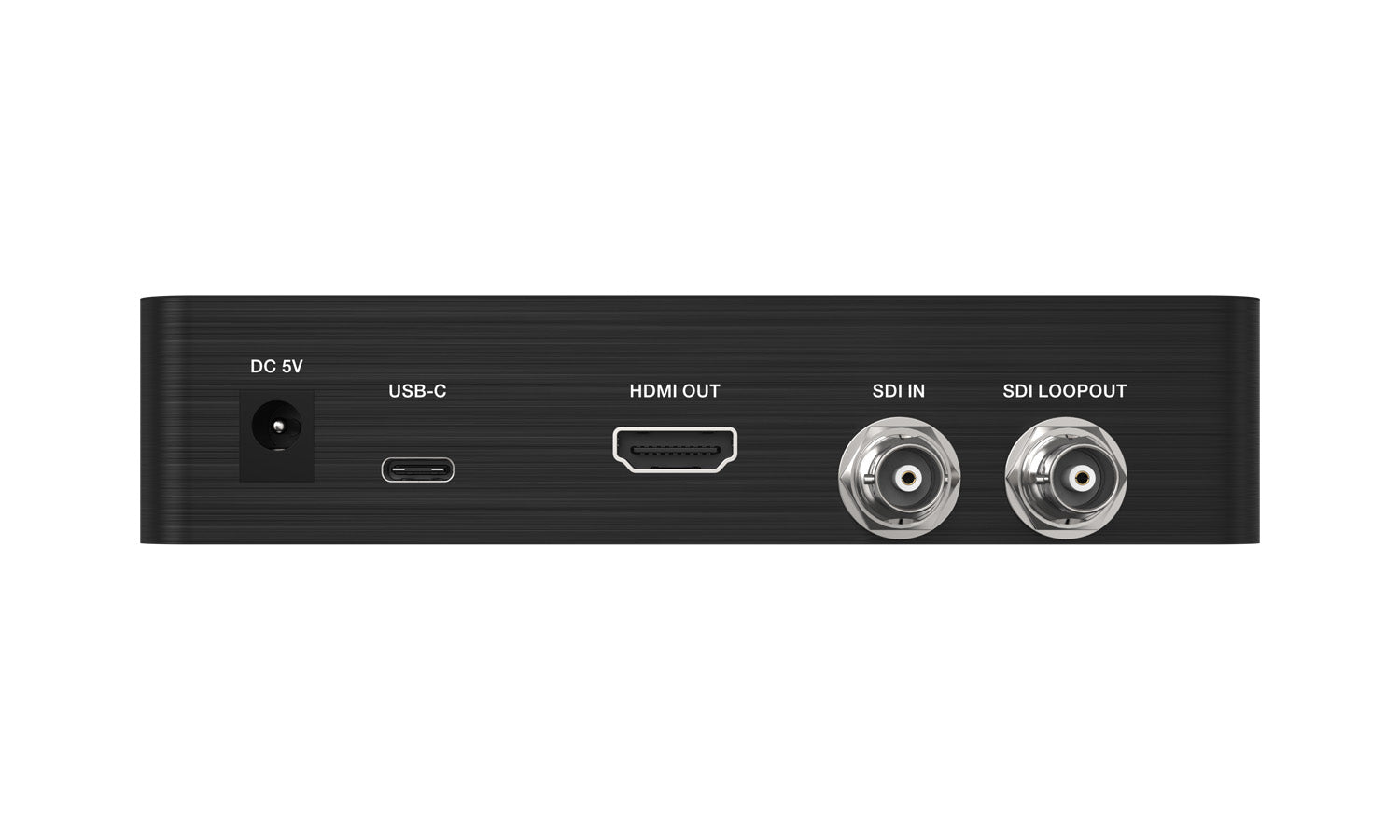

• Output: 1x USB-C + 1x HDMI + 1x BNC(SDI) + 1x 3.5mm + 1x Toslink
• HDMI connector: Type A [19-pin female]
• USB connector: USB 3.1 Type C (SuperSpeed USB)
• Software compatibility (not a complete list): OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
• OS Support: Windows 7 /8.1 /10/11, Mac and Linux OS

Mechanical

• Housing: Metal enclosure
• Dimensions
  • [L x W x H]:
    • Model: 5.4" x 3.2" x 1.2" [137 x 81 x 30mm]
    • Package: 7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
  • Weight:
    • Model: 7.3 oz [207g]
    • Package: 1 lbs [492g]
• Power supply: 5V DC
• Power consumption: 8 Watts [max]
• Operation temperature: 32~104°F / 0~40°C
• Storage temperature: -4~140°F / -20~60°C
• Relative humidity: 20~90% RH [no condensation]
