1080P SDI Splitter

The BZBGEAR 1080P SDI Splitter provides a solution for splitting SDI signals to multiple displays/destinations.

Overview

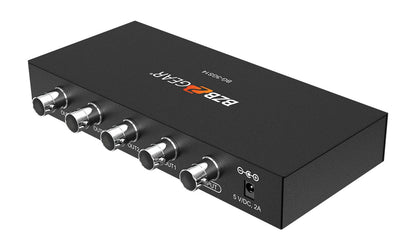

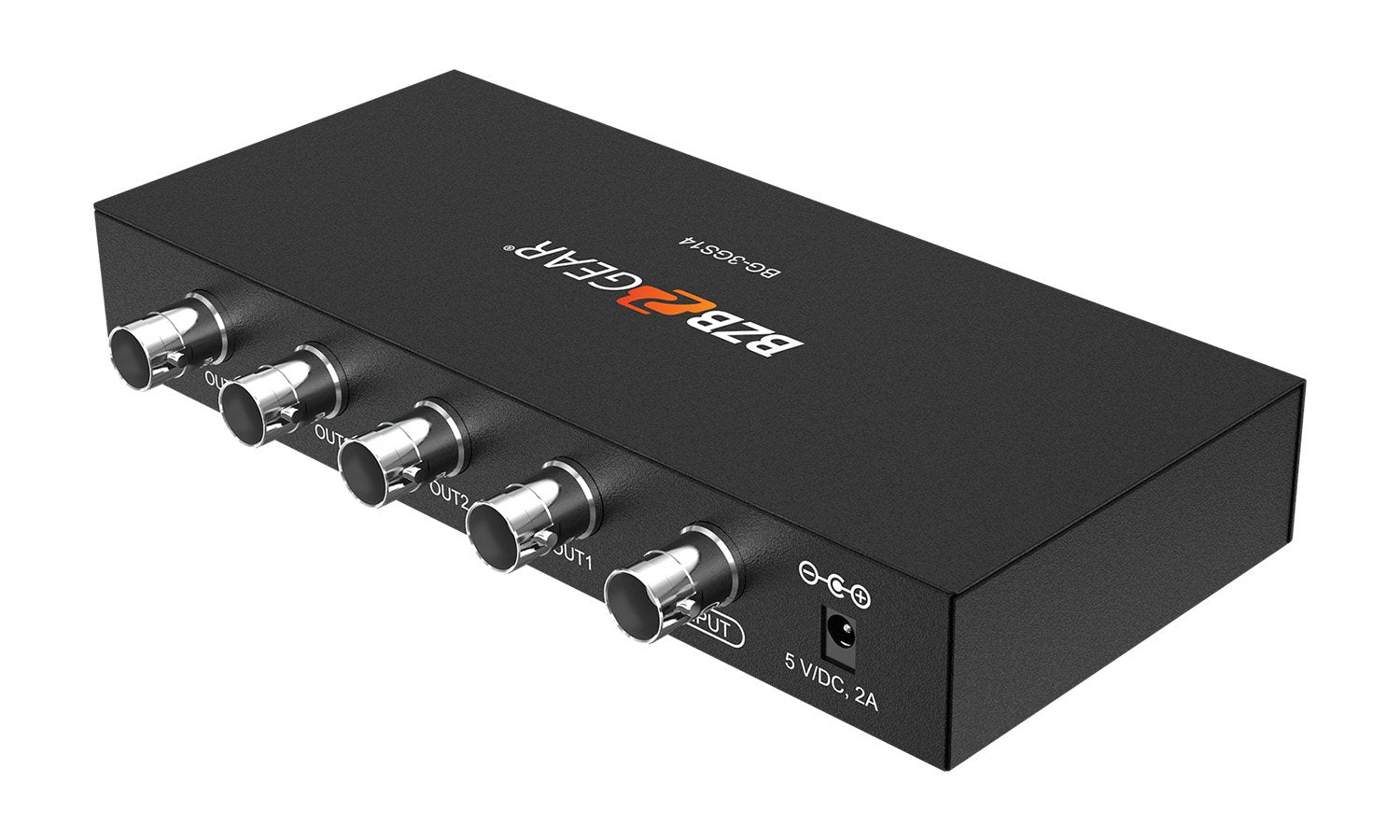

The BZB 1080P SDI Splitter is a 1x4 3G-SDI splitter that splits one SDI input to 2-4 SDI outputs simultaneously. With a signal relocking feature it can also extend a video signal for long distance transmission. This reliable and powerful tool provides consistent connections in a variety of different scenarios, like adding a multiple outputs for monitoring a video feed on different displays, splitting the signal and cascading to multiple displays, or extending an SDI signal.

Connectivity and Features

The BZB 1080P SDI Splitter  supports a maximum resolution of 1080p@60Hz with 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8 bit, 10 bit, and 12 bit.

This splitter can also maintain SD signals for up to 200m (656ft), HD signals 120m (393ft), and 3G up to 80m (262ft). Multiple video resolutions are also available with this unit, including SD 480i, 576i and 625i, HD 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60. It further supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled , YCbCr 4:2:2 or 4:2:0 sampled.

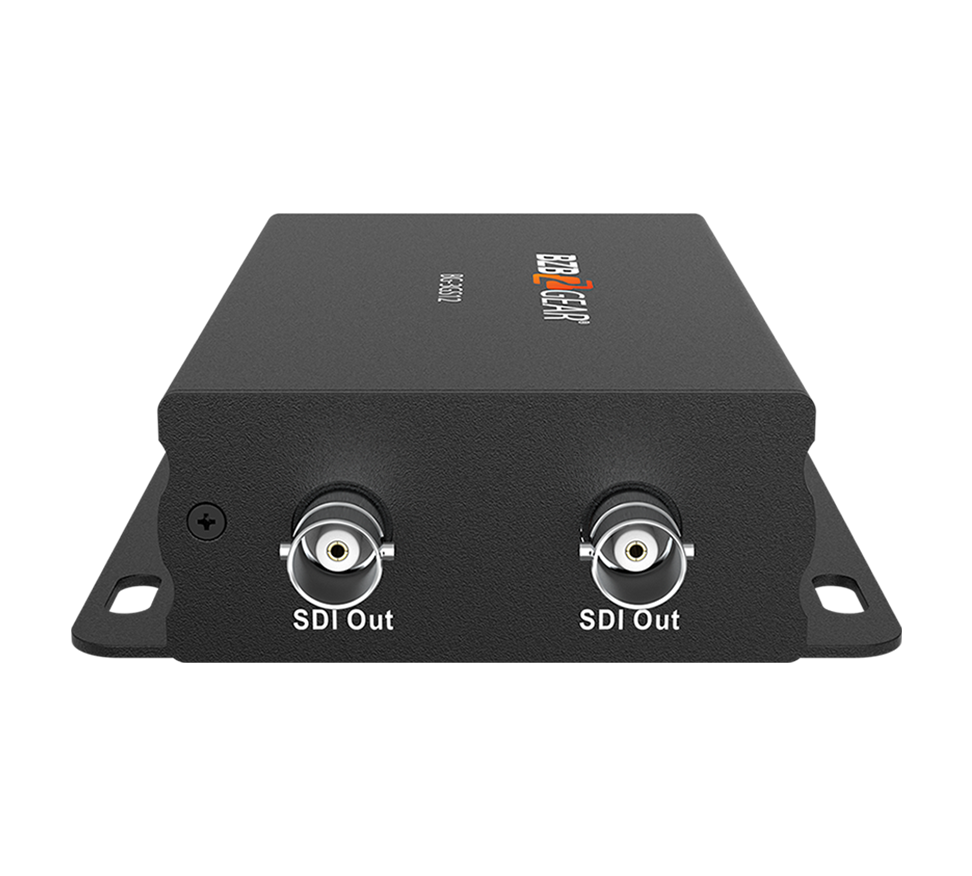

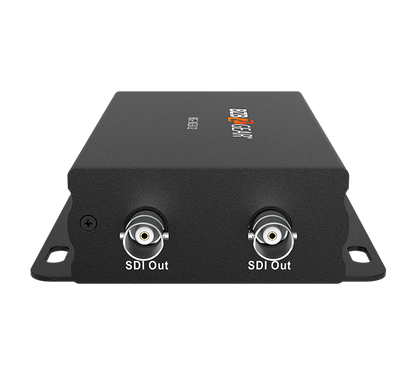

Quality SDI connectors provide reliability due to their interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.

The signal ranges provided by the BZB 1080P SDI Splitter  allow users to transmit video signals of varying resolutions (SD, HD, and 3G) over different maximum cable lengths. This flexibility is valuable in professional video production and broadcasting environments where maintaining signal quality and ensuring reliable transmission over long distances are critical requirements. Users can select the appropriate mode based on their specific needs and the distance between the source and destination devices.

Signal Range and Versatility

This splitter is a true performer, maintaining signal integrity across varying distances. It can effortlessly sustain SD signals for up to 200 meters (656 feet), HD signals for 120 meters (393 feet), and 3G signals for 80 meters (262 feet). The BZB 1080P SDI Splitter supports a multitude of video resolutions, including SD formats such as 480i, 576i, and 625i, and HD formats like 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60. It also accommodates multiple color spaces, including RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2, or 4:2:0 sampled.

Reliability and Durability

For added peace of mind, the BZB 1080P SDI Splitter is equipped with high-quality SDI connectors featuring an interlocking design. This design ensures that SDI cables stay firmly connected, preventing accidental dislodgment or loose connections. The device's sturdy metal structure not only enhances durability but also augments signal quality and overall versatility.

Professional Choice

In the dynamic world of audiovisual and broadcasting, the BZB 1080P SDI Splitter proves to be a dependable choice. Its rugged construction and superior performance ensure longevity, reliability, and exceptional value. This makes it a cost-effective and essential tool for professionals operating in demanding and fast-paced environments.
