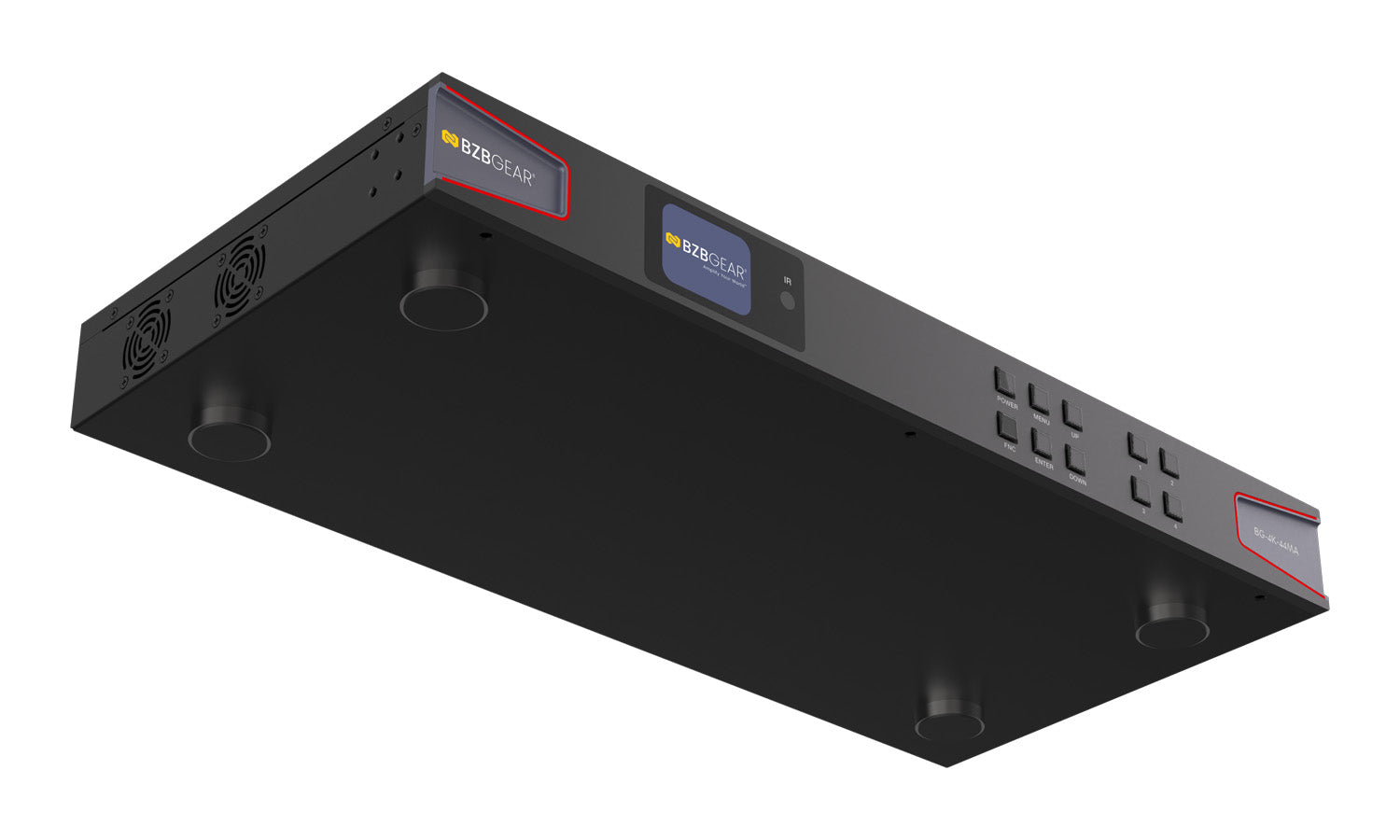

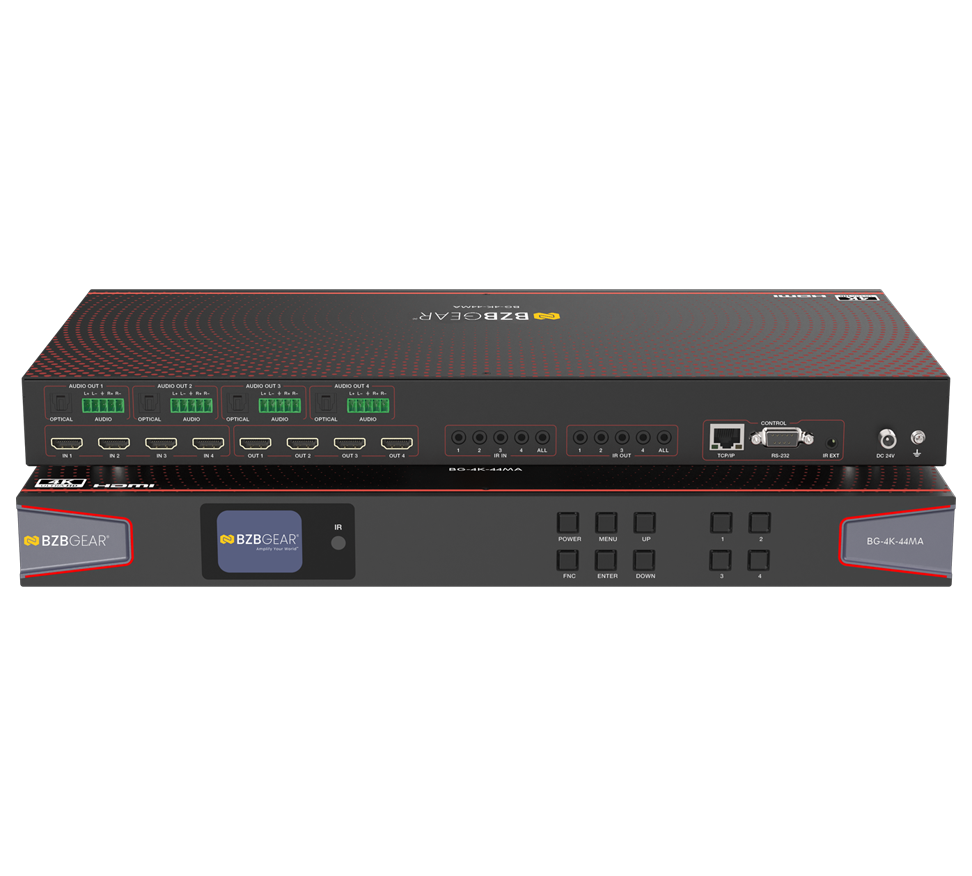

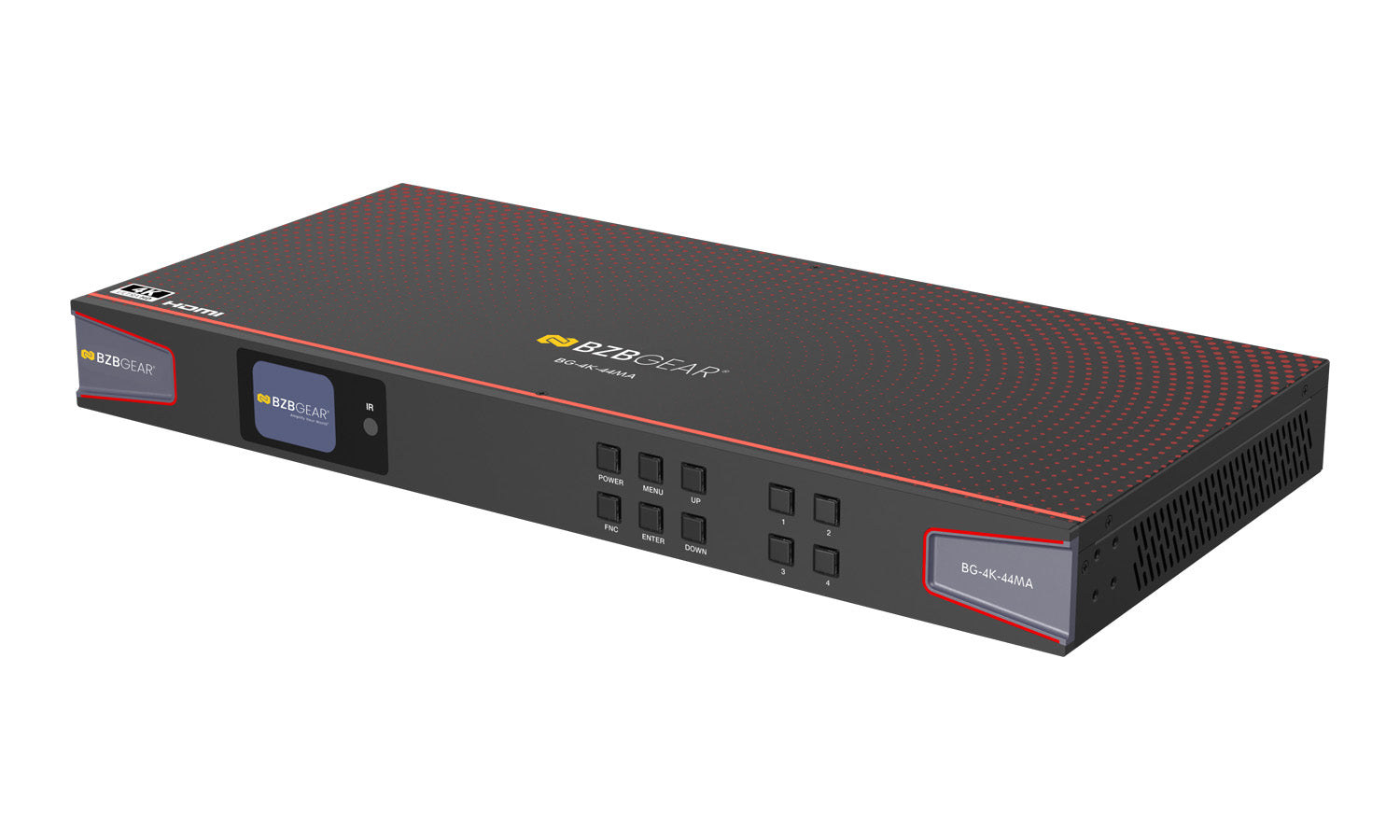

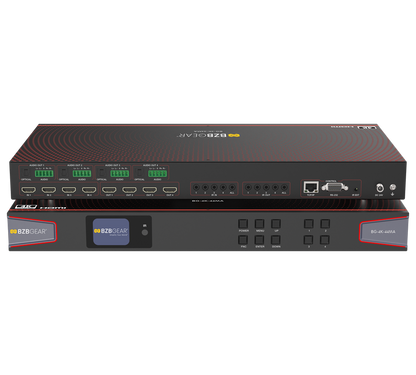

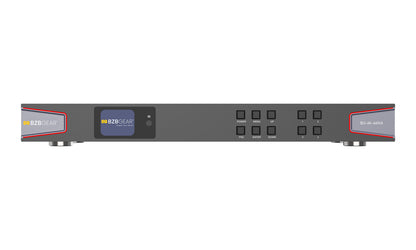

4K-44MA: 4K HDMI 4x4 Matrix Switcher

The BZBGEAR BG-4K-44MA 4K HDMI matrix switch shares up to 4 HDMI sources with up to 4 displays, for flexible audio management in a variety of installation scenarios.

From the Manufacturer:

With four HDMI 2.0 inputs and four HDMI 2.0 outputs, the BG-4K-44MA 4K HDMI matrix switch allows users to share up to four HDMI sources with up to four displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Audio can also be independently routed. Professional-grade picture and audio quality are achieved with support for 4K resolutions and various high-quality audio formats.

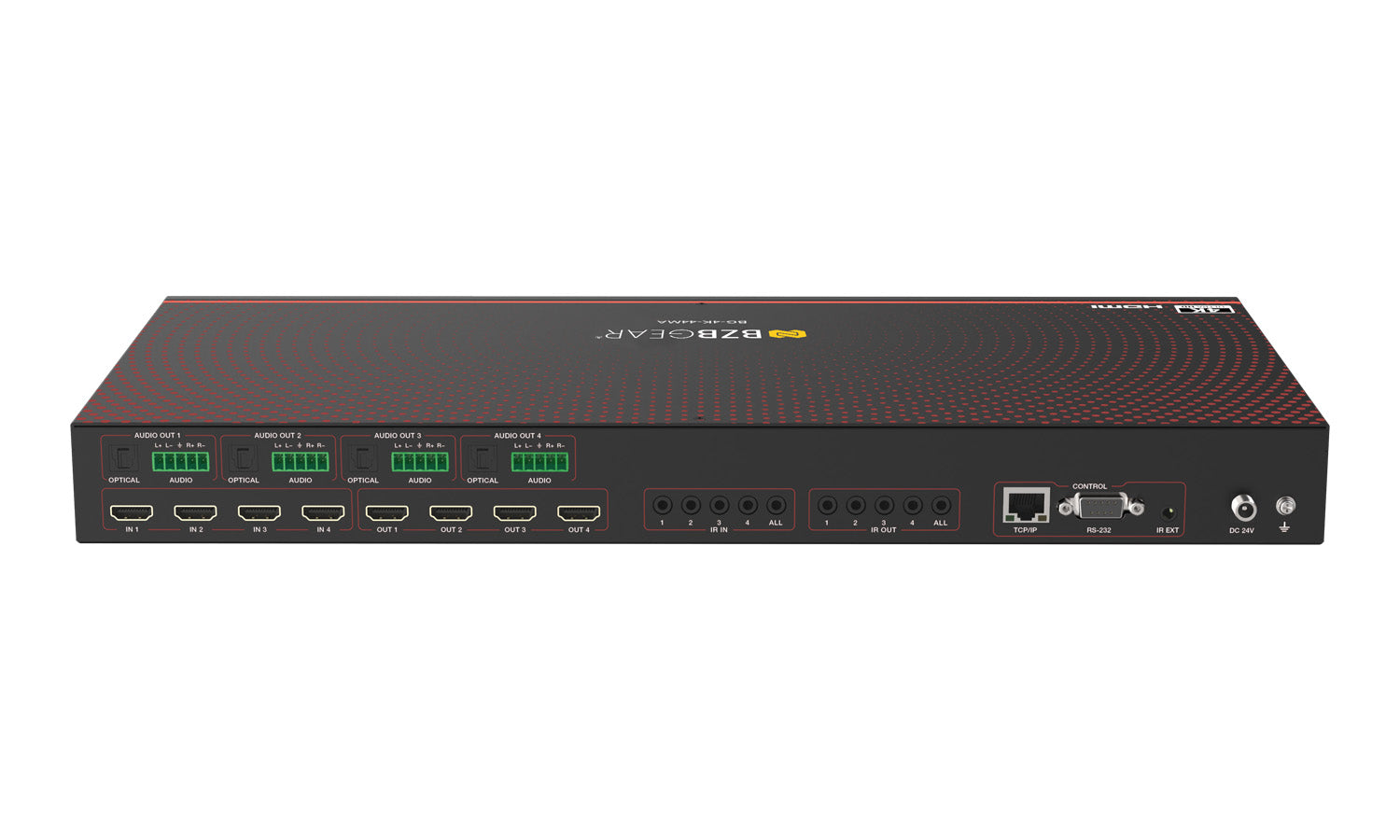

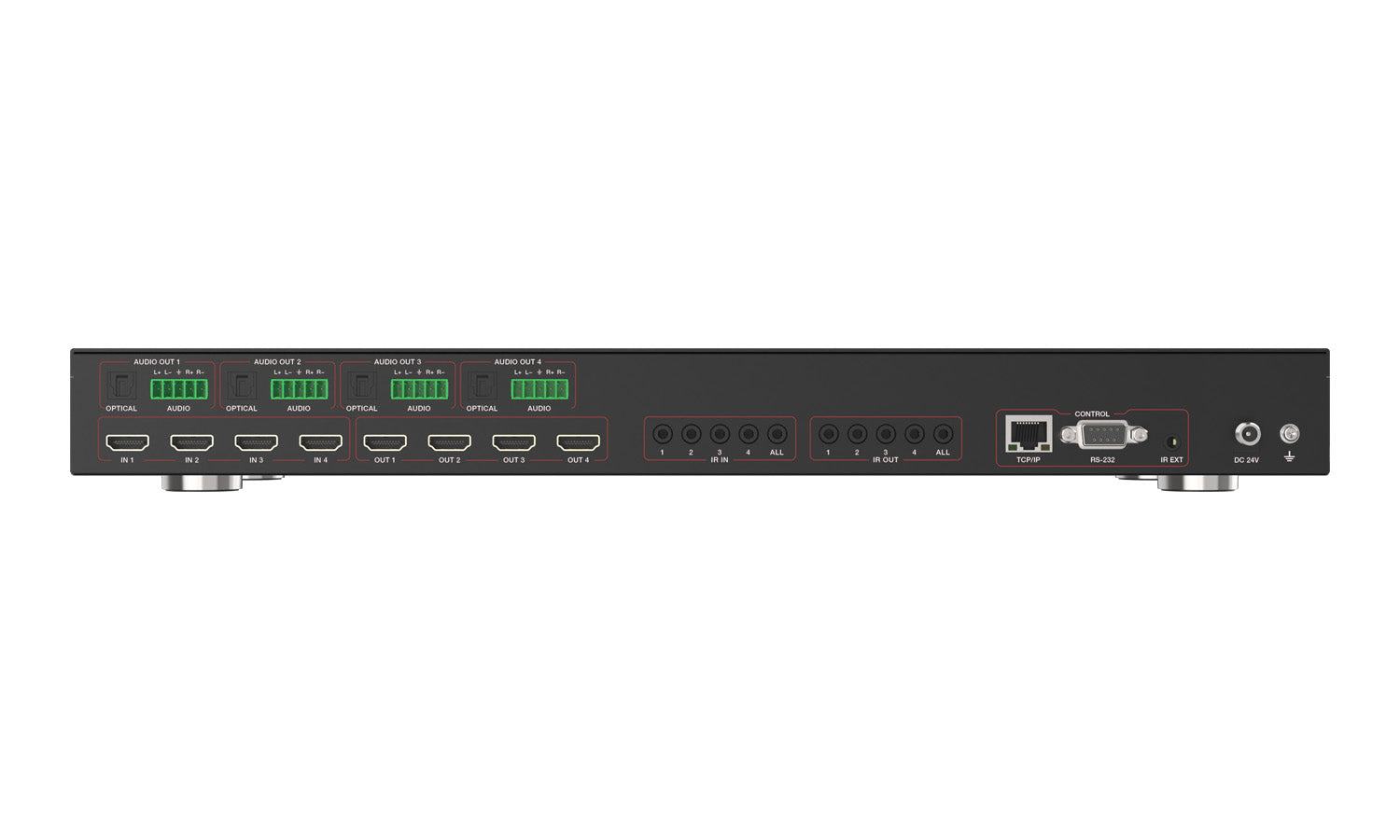

Connectivity and Quality: The BG-4K-44MA supports high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.2 compliant. This device is also equipped with auto-downscaling on all outputs, ensuring compatibility with legacy displays. The BG-4K-44MA also supports Digital S/PDIF and Balanced audio output formats.

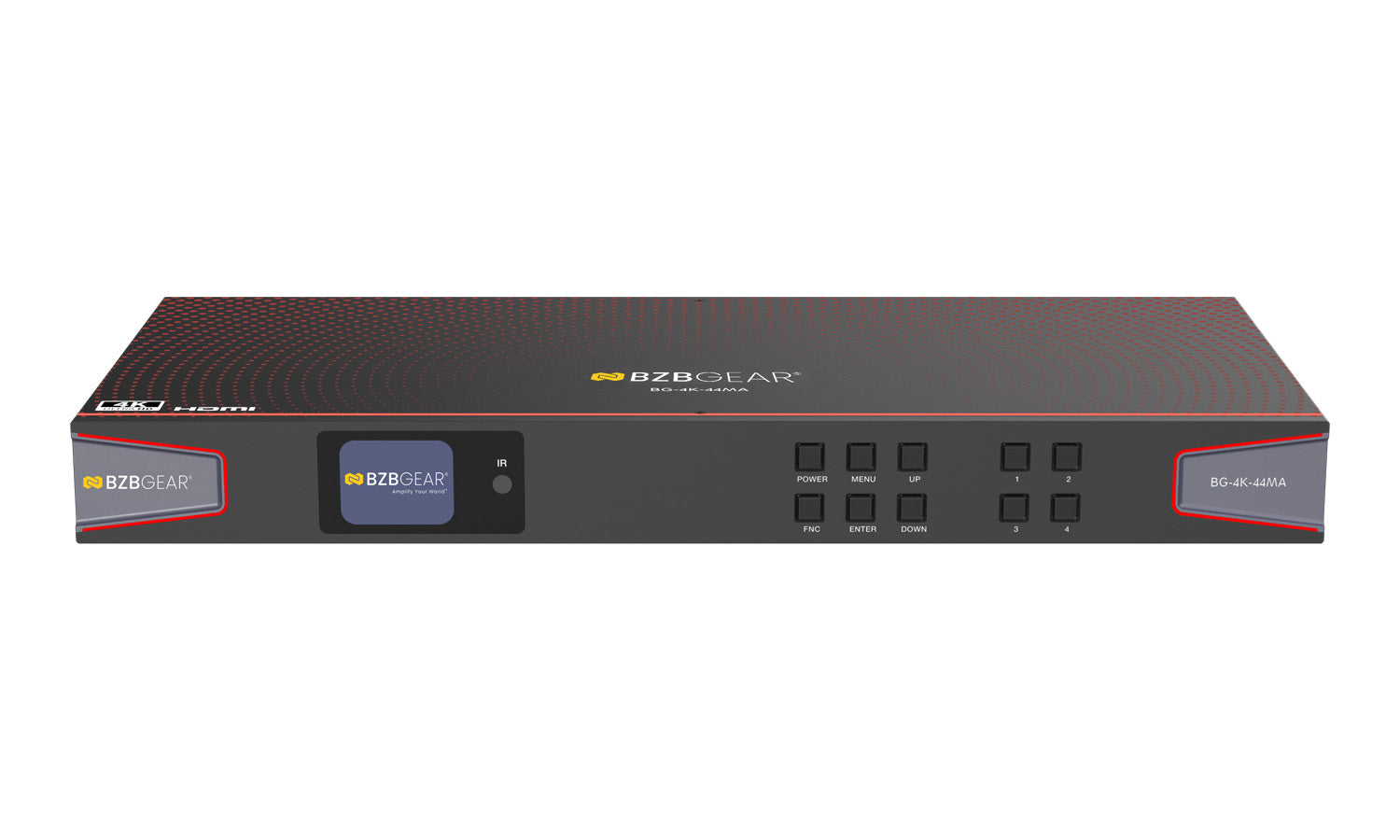

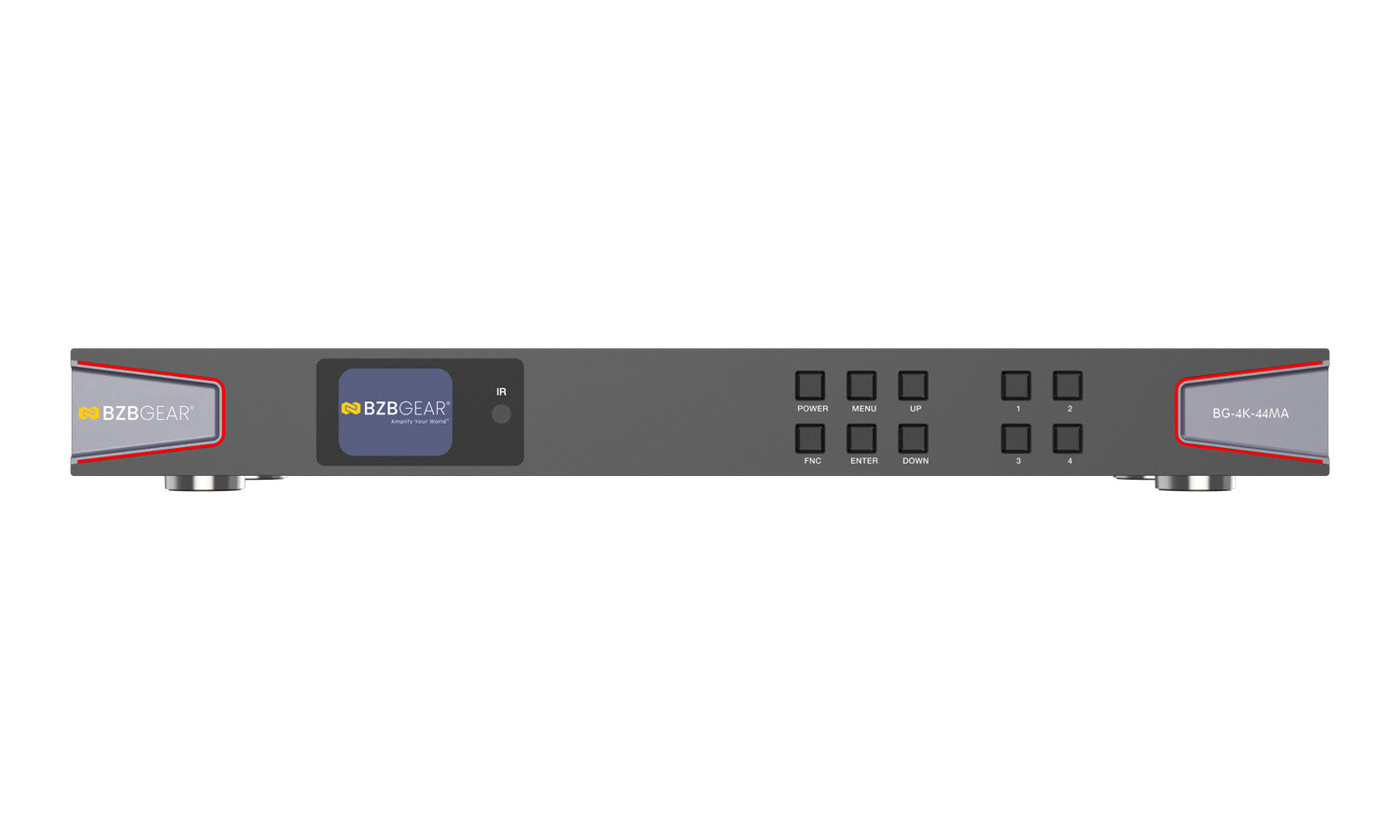

Control: The BG-4K-44MA offers multiple control methods including front panel controls, IR remote control, RS-232, or TCP/IP (Web GUI). The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation. In addition to a full-featured web interface, the BG-4K-44MA includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.

Audio Matrixing: This unit features advanced audio matrixing capabilities. Audio can be independently routed separately from the video signals. This feature provides flexible audio management options for a variety of installation scenarios.

Features:

• HDCP Compliant: HDMI 2.0 (18Gbps) HDCP 2.2 (and all earlier versions supported)
• 4K@60Hz: Up to 4K@60Hz 4:4:4 with HDR. Supports downscaling to 1080p
• Auto Scaling: Downscaling on all outputs
• Control Options: Control via front panel, IR, RS-232, and TCP/IP (Web GUI)
• HDR Pass-through: HDR10, HDR10+, Dolby Vision pass-through supported
• Audio Matrixing: The audio can be independently routed

Package Contents:

• 1x BG-4K-44MA
• 1x 24V/3.75A Locking Power Adapter
• 1x AC Power Cord (1.5m)
• 1x IR Remote
• 1x 12V IR Wideband Receiver Cable (1.5m)
• 1x RS-232 Serial Cable (1.5m, male to female head)
• 4x 5-pin 3.81mm Phoenix Connectors
• 4x Machine Screws (KM3*4)
• 2x Mounting Ears
• 1x User Manual
