Sku: BG-8K-22MA

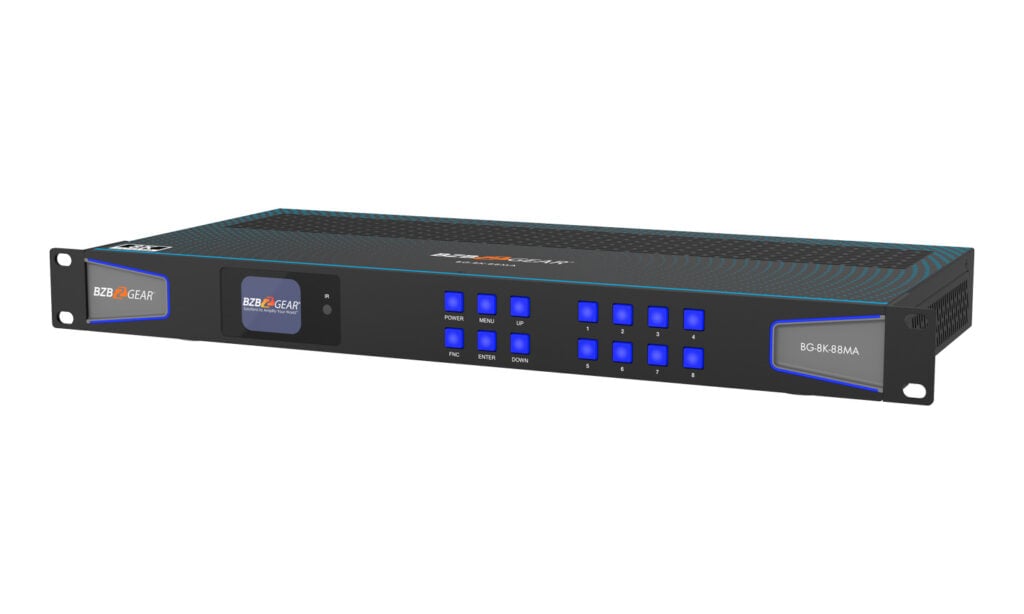

8K HDMI Matrix Switcher with Auto Downscaling/Audio De-embedder

Regular price $299.00
Regular price Sale price $299.00
Sold out
Shipping calculated at checkout.
Vendor: BZBGEAR

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

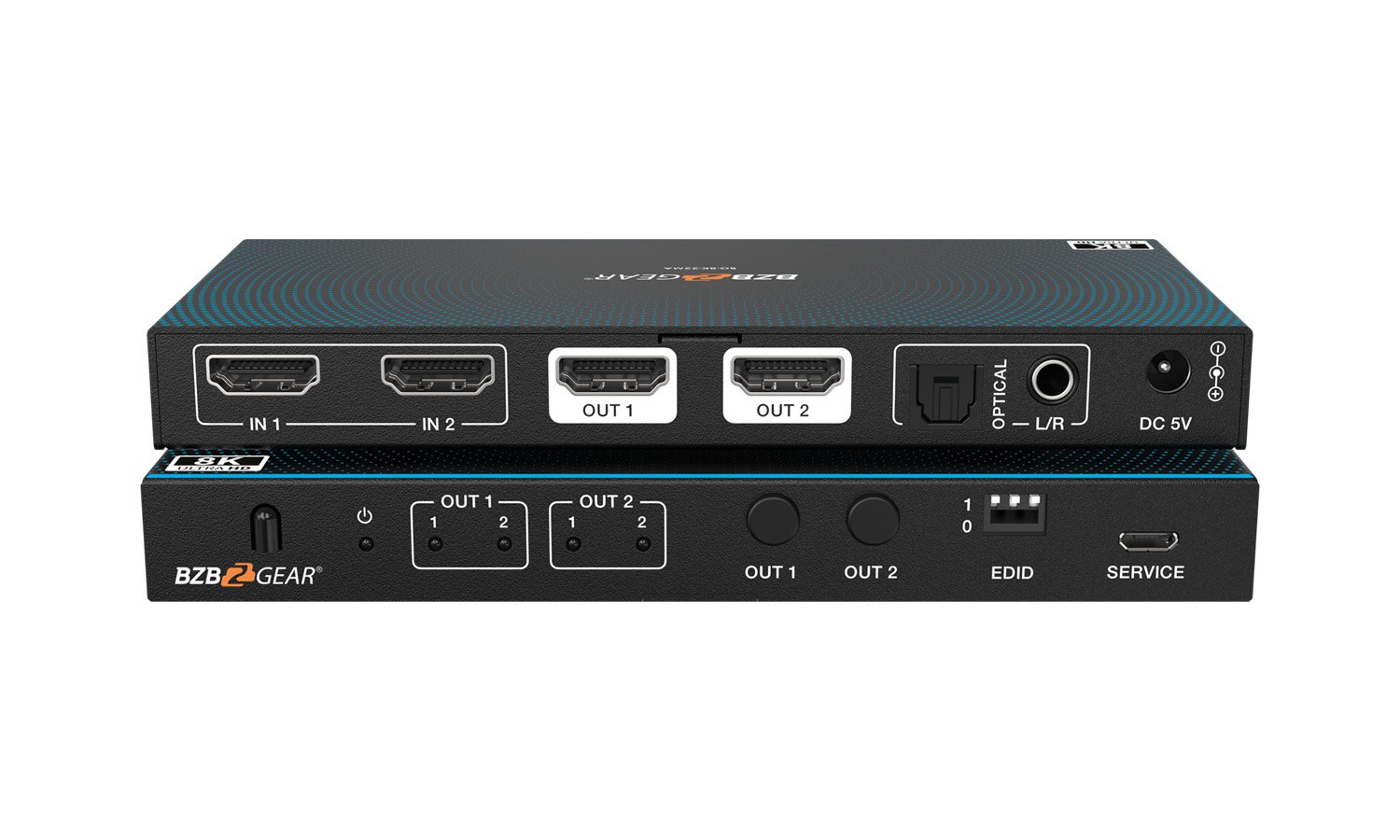

Style: 2x2 (2 inputs, 2 outputs)

Description

Caret Down

The BZBGEAR 8K HDMI matrix switch allows routing up to 8 HDMI sources with up to 8 displays.

From the Manufacturer:

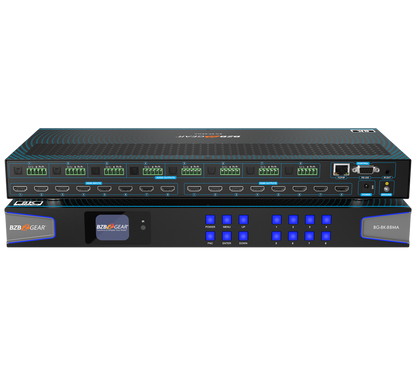

With 2-8 HDMI 2.1a inputs and 2-8 HDMI 2.1a outputs, the BG-8K-88MA 8K HDMI matrix switch allows users to share up to2-8 HDMI sources with up to2-8 displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Professional-grade picture and audio quality are achieved with support for 8K resolutions and various high-quality audio formats.

For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the matrix switch can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI matrix switcher's support for 4K at 120Hz can help you get the most out of your favorite games.

Features:

  • Routing: Features 2-8 x HDMI inputs which can be independently routed to 2-8 x HDMI outputs

  • HDCP Compliant: HDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported)

  • 8K and 4K@120Hz: Up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4 8K to 4K or 8K/4K to1080p

  • Auto Scaling: Down Scaling on all outputs

  • Control Options: Control via front panel, IR, RS-232, and TCP/IP (Web GUI)

  • EDID management: Seamless scaling for the best results

  • HDR, HDR10, HDR10+, Dolby Vision pass-through VRR, ALLM, QMS, QFT, SBTM are supported

  • Digital S/PDIF and Balanced audio output

Specifications:

Technical

  • HDMI Compliance: HDMI 2.1

  • HDCP Compliance: HDCP 2.3

  • Video Bandwidth: 1200MHz/48Gbps

  • Video Resolution: Up to 8K60Hz 4:2:0, 8K30 Hz 4:4:4 and 4K120 4:4:4

  • Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

  • Color Depth: 8/10/12-bit

  • HDR Formats: HDR, HDR10, HDR10+, Dolby Vision, HLG

  • Audio Formats:

    • HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS High Res, DTS-HD Master Audio, DSD

    • Optical Outputs: LPCM 2.0, Dolby, DTS 5.1

    • Balanced Analog Audio Outputs: LPCM 2.0

  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

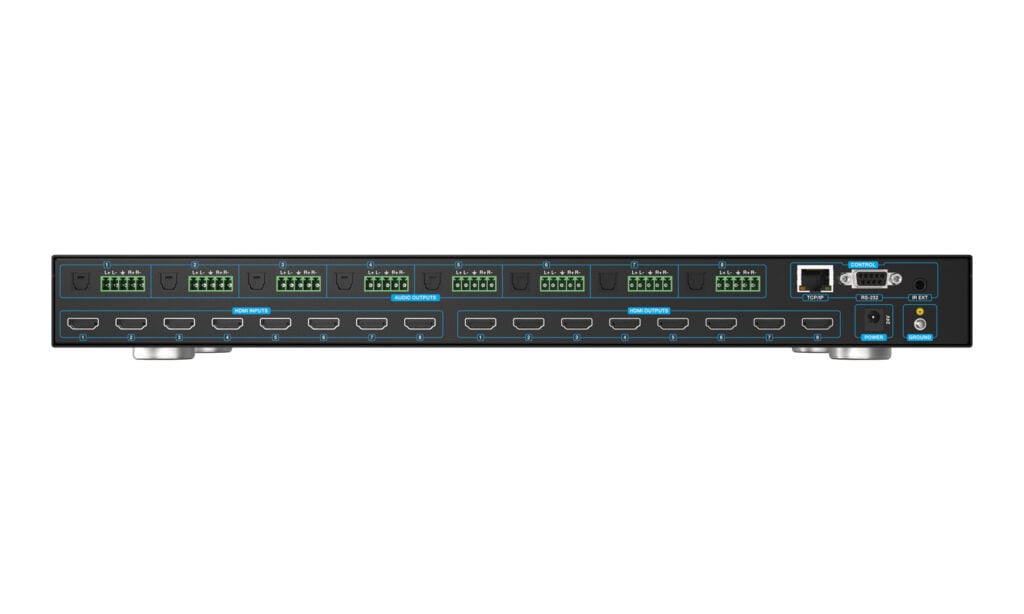

Connection

  • Input ports: 2-8 × HDMI [Type A, 19-pin female]

  • Output ports:

    • 2-8 × HDMI [Type A, 19-pin female]

    • 2-8 × S/PDIF Optical

    • 2-8 x Balanced Stereo Audio [3.81mm, 5-pin Phoenix Connector]

  • Control ports:

    • 1 × TCP/IP [RJ45]

    • 1 × RS-232 [D-Sub 9]

    • 1 × IR EXT [3.5mm, Stereo Mini-jack]

Mechanical

  • Housing: Metal Enclosure

  • Color: Black

  • Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)

  • Power Consumption: 45W (Max)

  • Operating Temperature: 32 - 104°F / 0 - 40°C

  • Storage Temperature: -4 - 140°F / -20 - 60°C

  • Relative Humidity: 20 - 90% RH
