BG-AVTPG-4K and BG-AVTPG-MINI Installer Kit

The BZBGEAR BG-AVTPG-4K and BG-AVTPG-MINI Installer Kit combines two best-selling HDMI tester/analyzers that should be in every professional installer's toolkit.

From the Manufacturer:

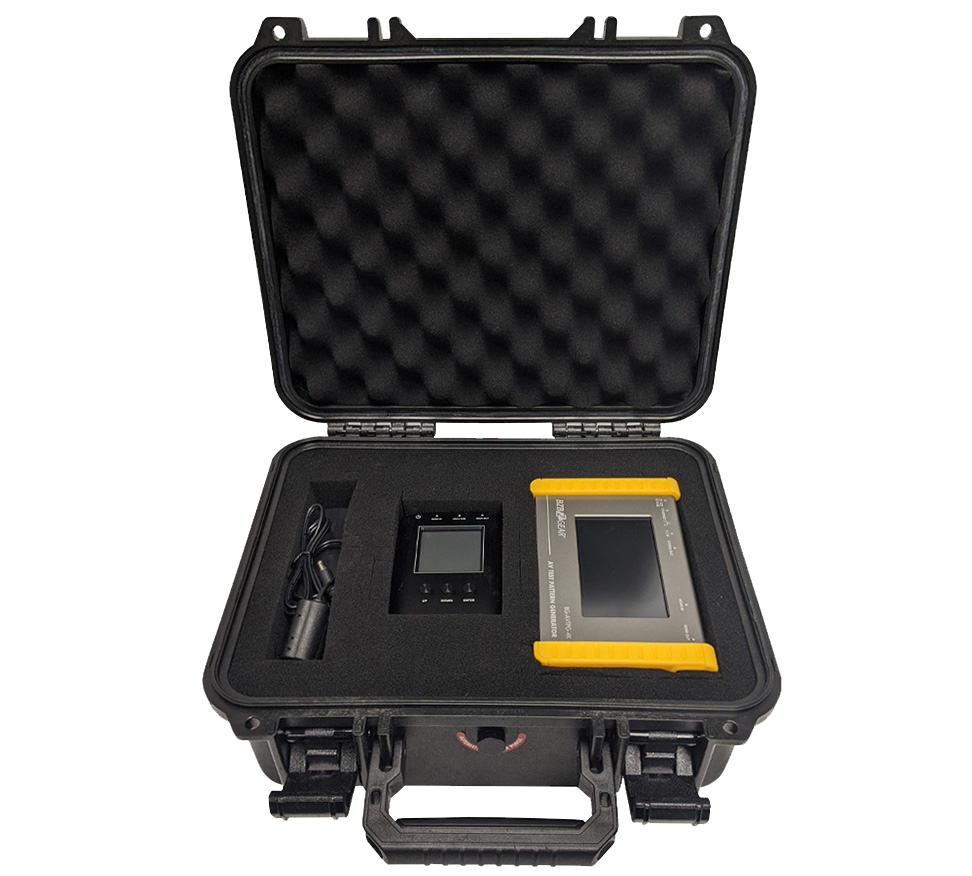

The BG-AVTPG-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.

Features:

BG-AVTPG-4K:

• 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator
• Supports user control device through Ethernet
• Embedded LINUX KERNAL system with limitless extension
• Supports HDMI loop through function
• Battery powered for portability, it can extend operation time with full load up to 4 hours
• 4.3 touch panel
• Firmware update through USB Flash Drive
• Scrambler supported for videos over 340MHz output wise
• HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
• Rechargeable battery design with short charging time about 2 hours
• Supports mouse control
• Supports user defined pattern up to 2GB
• Loop test capability to provide statistics analysis for connection stability
• Qualified physical layer performance to ensure the best compatibility

BG-AVTPG-MINI:

• Supports video resolution* outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits**, 12bits, 16bits
• Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input
• Provides statistics analysis for cable quality or connection stability
• Rechargeable battery design with short charging time about 3 hours
• Built-in 3 video patterns***
• HDCP 1.4 & 2.2 compliant
• Hand-held pocket size
• Both HDMI input and output support up to HDMI 2.0
• Tests cable quality
• Battery powered for portability, it can extend operation time with full load up to 3 hours

Specifications:

BG-AVTPG-4K HDMI 2.0 18Gbps Video Test Pattern Generator/Tester and Analyzer

Technical Specifications:

• Role of usage: Generator / Analyzer
• Video bandwidth: Single link 600MHz (18Gbps)
• HDMI compliance: HDMI 2.0 and below
• HDCP compliance: HDCP 2.2 and below
• Video Support: Up to 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)
• Video Format Support: HDMI
• Audio support: 8ch LPCM up to 192K
• Control: USB mouse / touch panel / Ethernet
• ESD protection: Human body model ±15kV [air-gap discharge] & ±8kV [contact discharge]
• Input: 1x HDMI + 1x USB + 1x RJ-45(Ethernet)
• Output: 1x HDMI + 1x 3.5mm (Stereo)
• USB Support: USB 2.0
• HDMI connector: Type A (19-pin female)
• USB Connector: Type A
• RJ-45 connector: WE/SS 8P8C with 2 LED indicators

Mechanical:

• Housing: Metal enclosure
• Dimensions (L x W x H): Model: 4.1" x 6.6" x 1.7" [105 x 166 x 42mm]
• Package: 1'5" x 6.7" x 3" [371 x 170 x 77mm]
• Carton: 1'3" x 1'4" x 1'5" [410 x 368 x 393mm]
• Weight: Model: 27 oz [765g]
• Package: 2.8 lbs [1294g]
• Power supply: 12V 5A DC / Battery
• Power Consumption: 15 Watts
• Operation temperature: 32~104°F / 0~40°C
• Storage temperature: -4~140°F / -20~60°C
• Relative humidity: 20-90% RH [no condensation]

BG-AVTPG-MINI HDMI 2.0a Installation Gear

• Role of usage: HDMI 2.0a Installation Gear
• Video bandwidth: Single link 600MHz [18Gbps]
• HDMI compliance: HDMI 2.0 and below
• HDCP compliance: HDCP 2.2 and below
• Video Support: up to 4K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR)
• ESD protection: Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
• Video Format Support: HDMI
• Input: 1x HDMI
• Output: 1x HDMI
• Control: Push Button
• HDMI connector: Type A [19-pin female]
• USB Support: Firmware update / Recharge
• USB connector: Micro-USB (Type B)

Mechanical

• Enclosure: Metal case
• Dimensions (L x W x H): Model: 5.1" x 3.5" x 0.6" [130 x 89 x 14mm]
• Package: 7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
• Carton: 1'4"x 1'3" x 11.8" [420 x 400 x 300mm]
• Weight: Model: 7.8oz [220g]
• Package: 11.3oz [320g]
• Power supply: Micro-USB / Battery
• Power Consumption: 5W [MAX]
• Operation temperature: 32~104°F / 0~40°C
• Storage temperature: -4~140°F / -20~60°C
• Relative humidity: 20~90% RH [no condensation]
