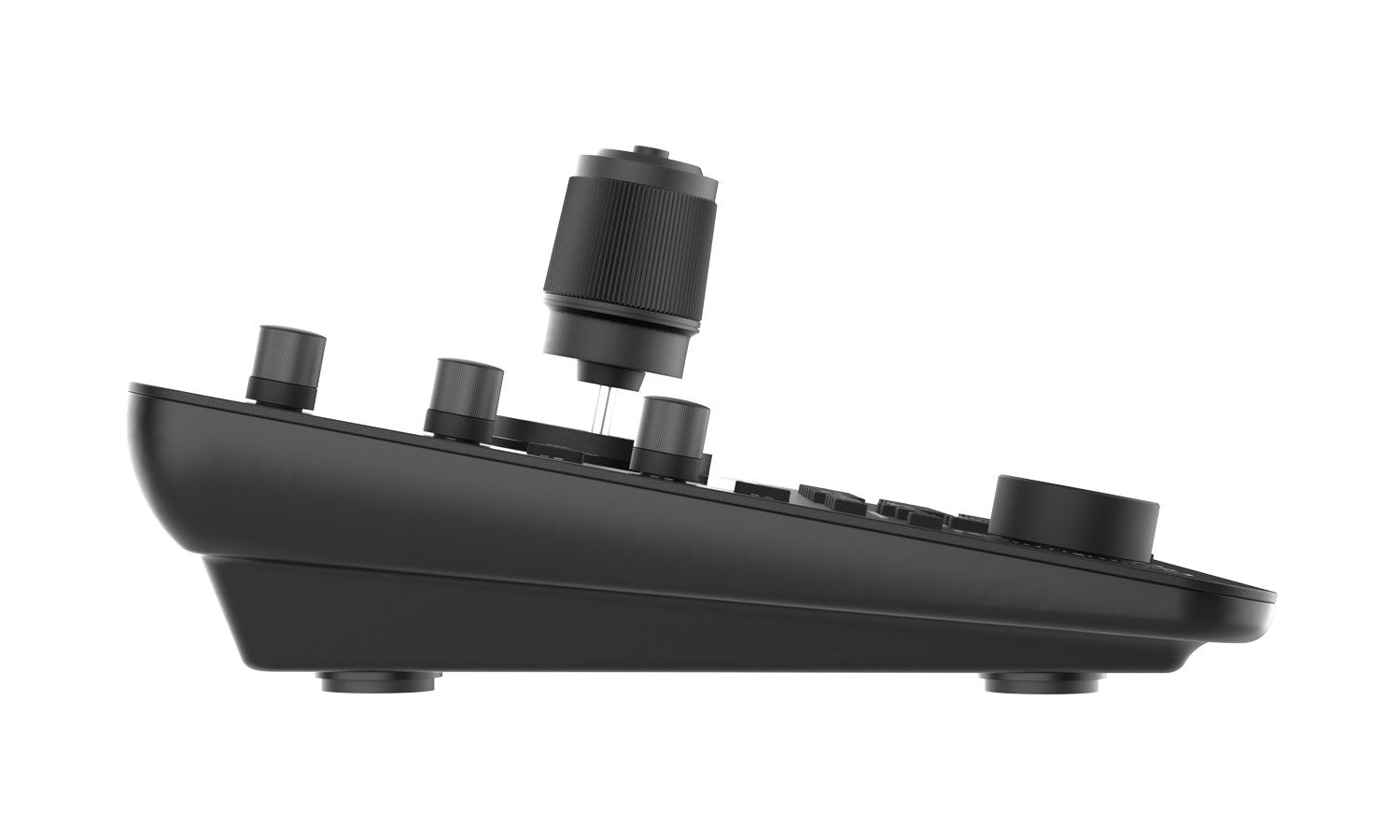

Commander-Pro: Professional Serial and IP PTZ Joystick Controller with Touchscreen and POE(IP/RS-232/422/485)

The BZBGEAR BG-Commander-Pro is a Professional Serial and IP PTZ Joystick Controller featuring a touchscreen and more user-friendly features for larger-scale events, schools, hospitals, or hotels,

From the Manufacturer:

Demand perfection. Command with precision.

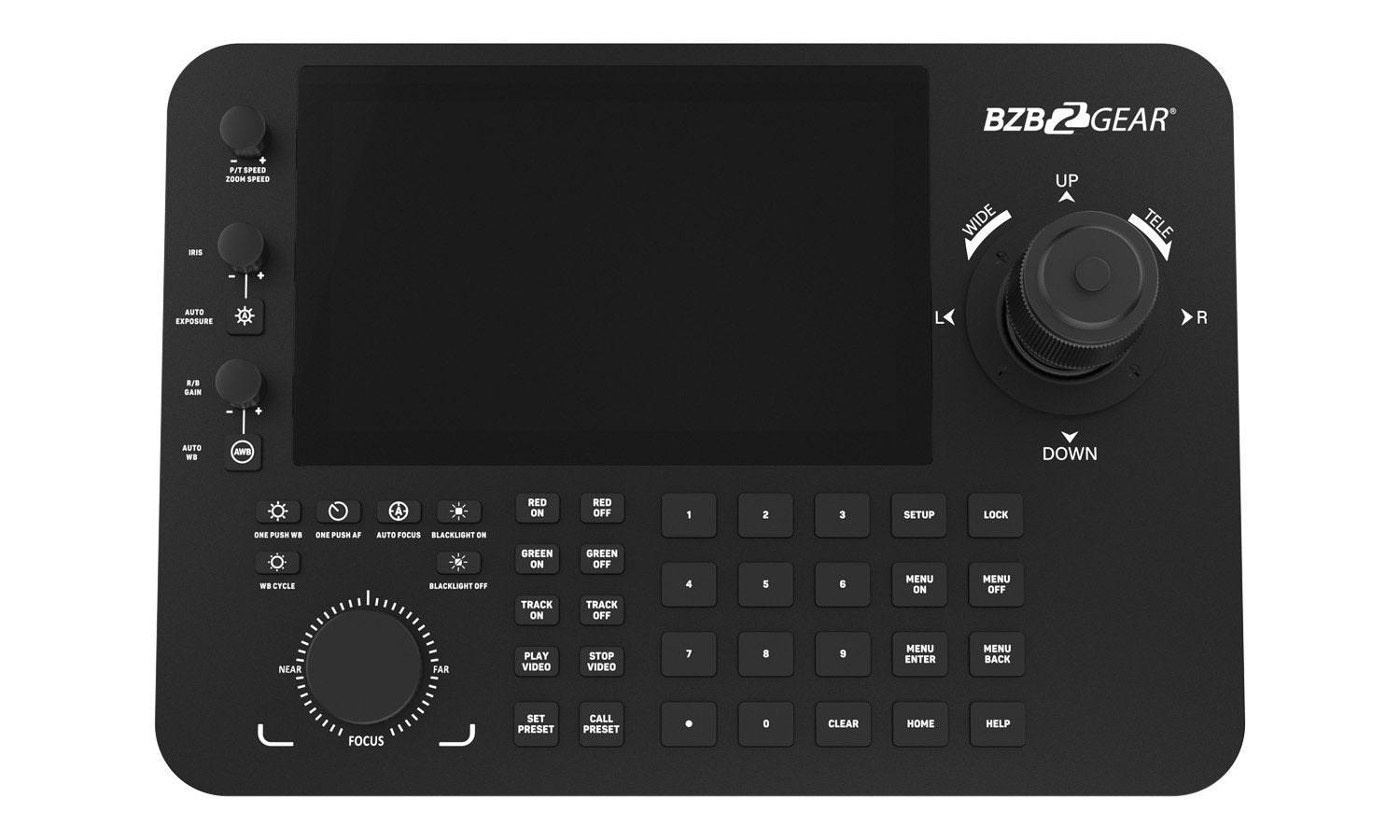

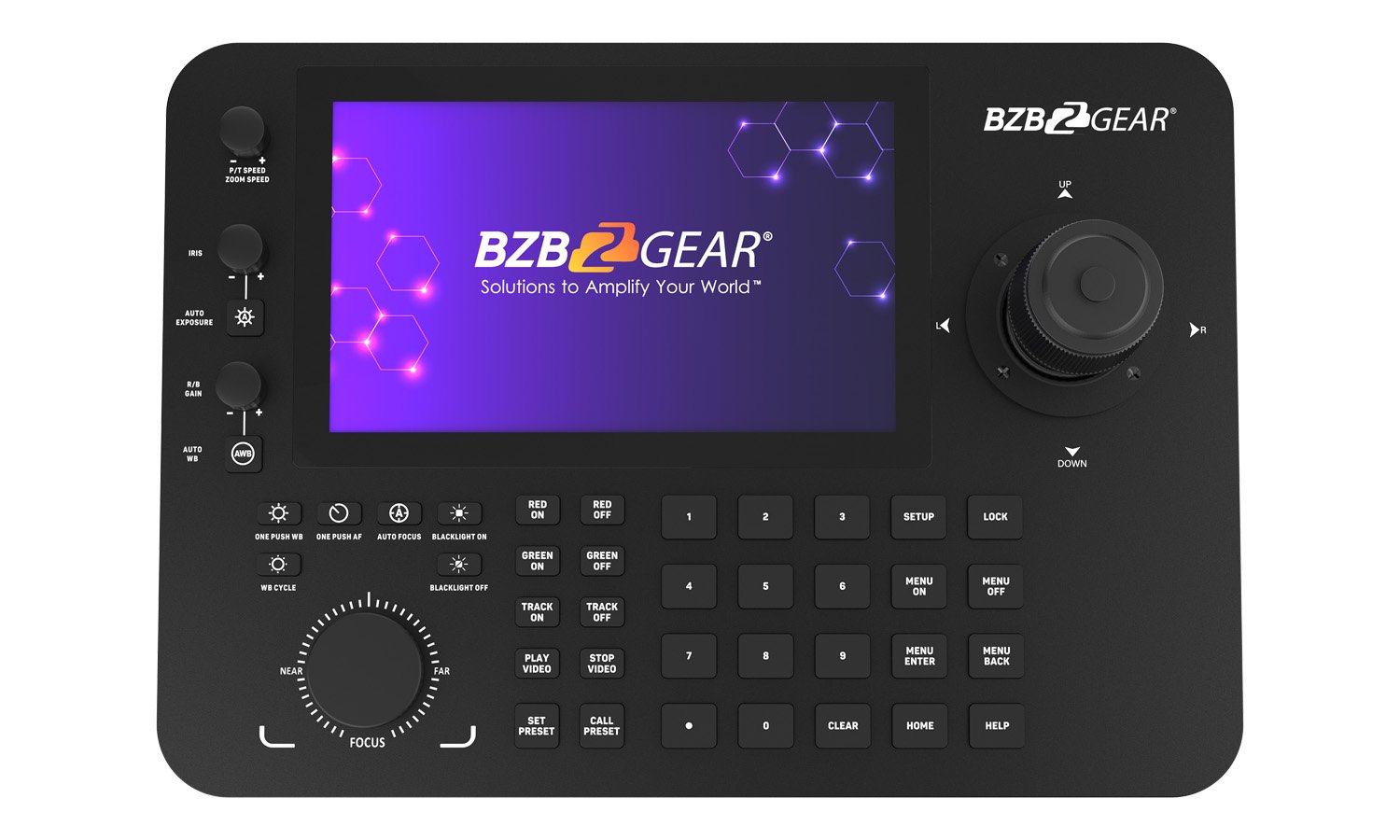

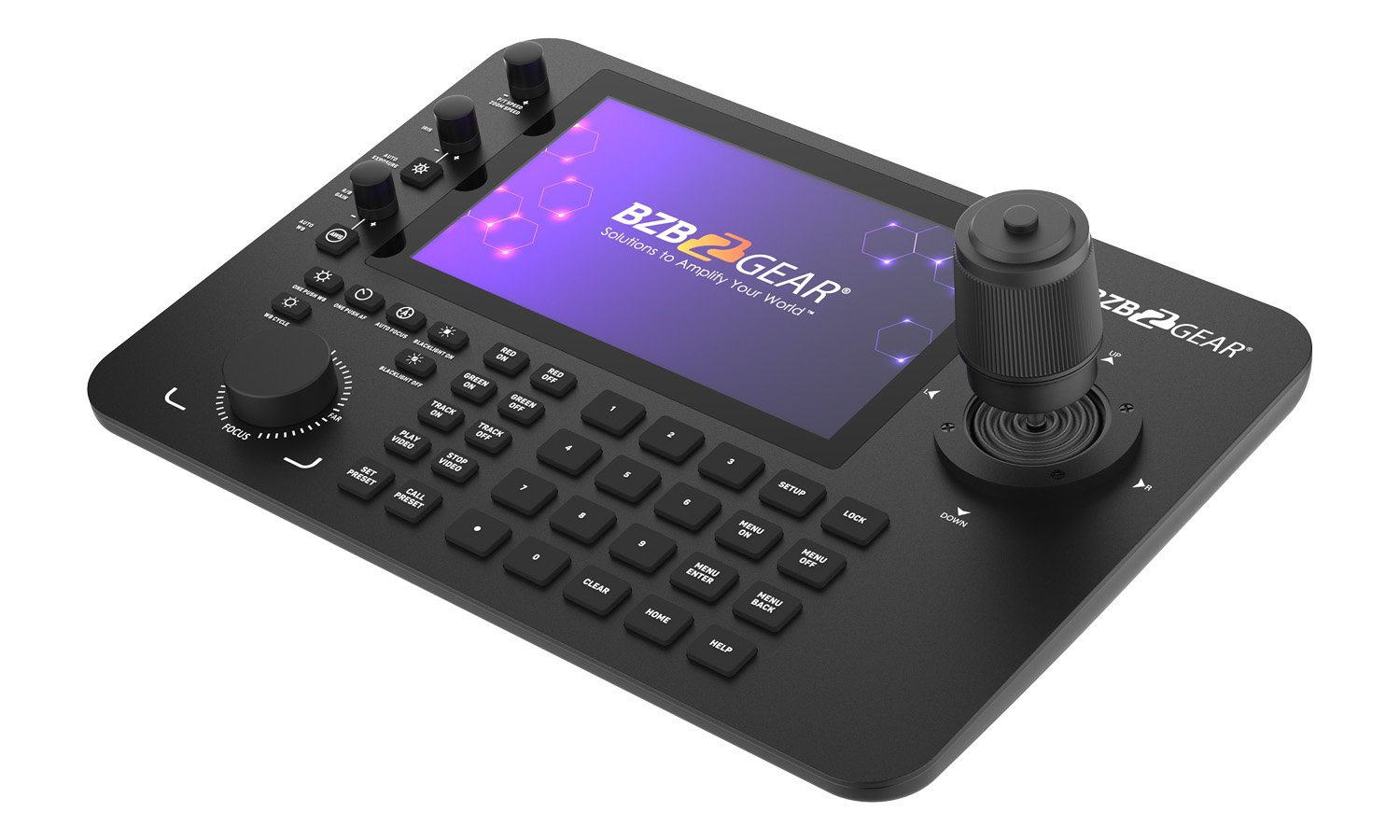

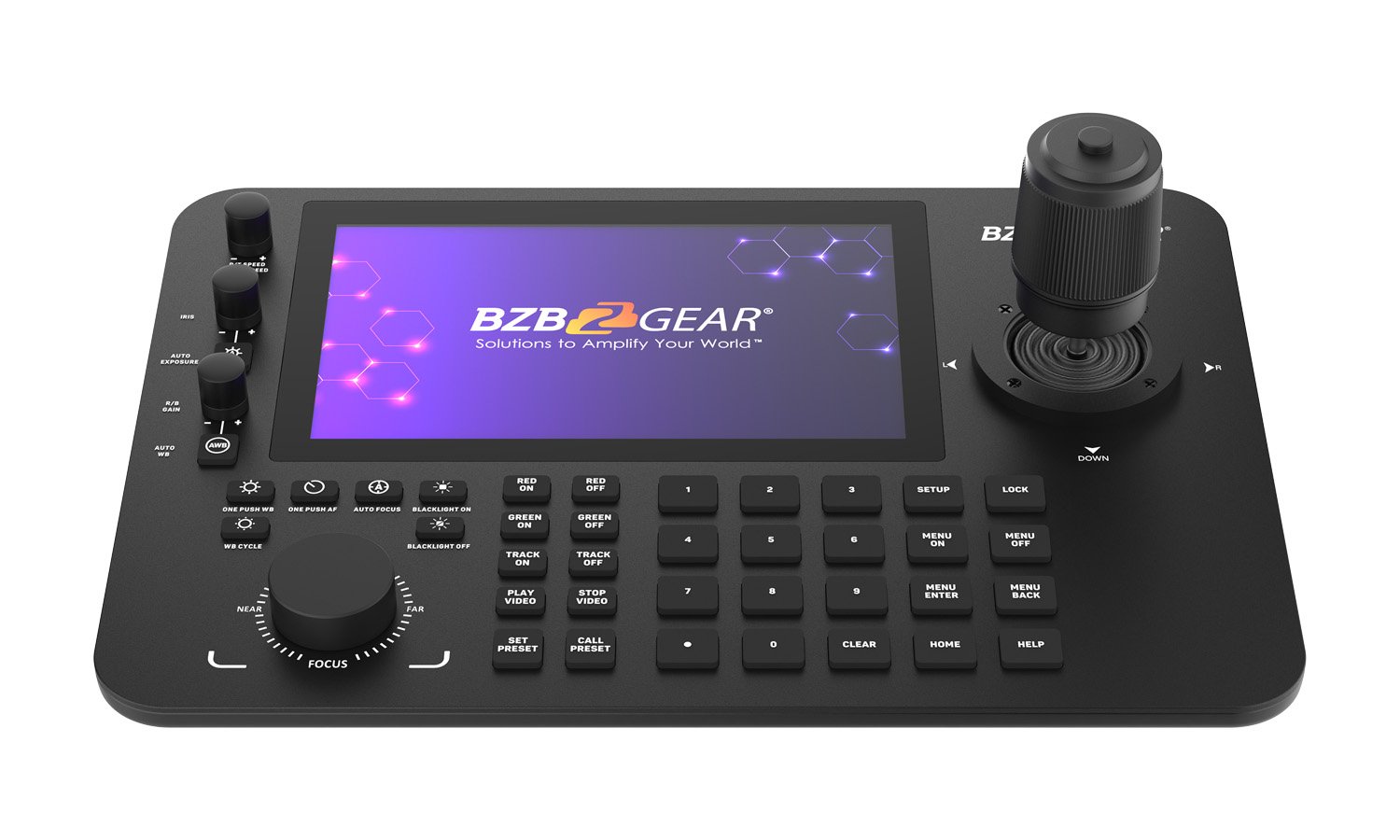

The BG-COMMANDER-PRO is a versatile PTZ camera joystick controller featuring a 7" touch screen, real-time video previews, and Android OS. It supports simultaneous viewing of 4 RTSP streams or a single full-screen image. With H.265/H.264 decoding, it offers efficient video processing.

The BG-COMMANDER-PRO also facilitates HDMI projection and can output 4 additional RTSP streams to an external display for simplified monitoring. It provides seamless PTZ control for preset positions, focus, zoom, and exposure settings, and can even access a camera's web interface. Designed for BG-ADAMO cameras, the unit offers quick access to red/green tally lights control and auto tracking activation.

Features:

Highly Customizable and Easy to Manage

With HDMI projection and total PTZ control including presets, focus, zoom, and exposure, easily control your PTZ cameras for better broadcasting production. The Commander Pro is also customizable with single IP multi-channel acquisition and ONVIF protocol support, meaning you can add up to 2048 devices.

User-Friendly and Future Proof

The Commander Pro was designed to be user-friendly. It can be upgraded through a standard USB flash drive, utilize an external mouse/keyboard for easier interface control, and even record RTSP streams or take screenshots in the moment using the available Micro-SD expansion storage slot. It also features four RS422/RS485 and one RS-232 control port, making it ideal for large-scale video projects.

The Commander Pro’s unique capabilities such as support for a 2x2 video wall with up to 4 camera inputs, can be controlled via mouse and keyboard, all with Power over Ethernet (PoE) make for a clean, easy setup.

This device is versatile and ideal for installing multi-network PTZ camera systems in various settings such as medium-to-large-scale events, schools, hospitals, hotels, residential areas, factories, and workshops. Its capabilities can quickly achieve unified LAN ONVIF control for seamless monitoring and management of the entire camera network. The Commander Pro provides a simple UI for users to access professional-grade controls, management, and editing tools.

Specifications:

• Operating System: Android
• Screen Size: 7” capacitive touchscreen / resolution 1024x600
• Video Output: HDMI 4K@30Hz
• Video Output Connectors: 1x HDMI Type A, 19-pin, female
• Decoding:
  • 1. Supports H264/H265
  • 2. Max supported H264 4x1080p@30fps
  • 3. Max supported H264 16x720p@30fps
  • 4. Max supported H265 1x4K@60fps
• Protocols: IP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D
• Power: Standard 5.5/2.1 power interface, DC 12V2A±10%

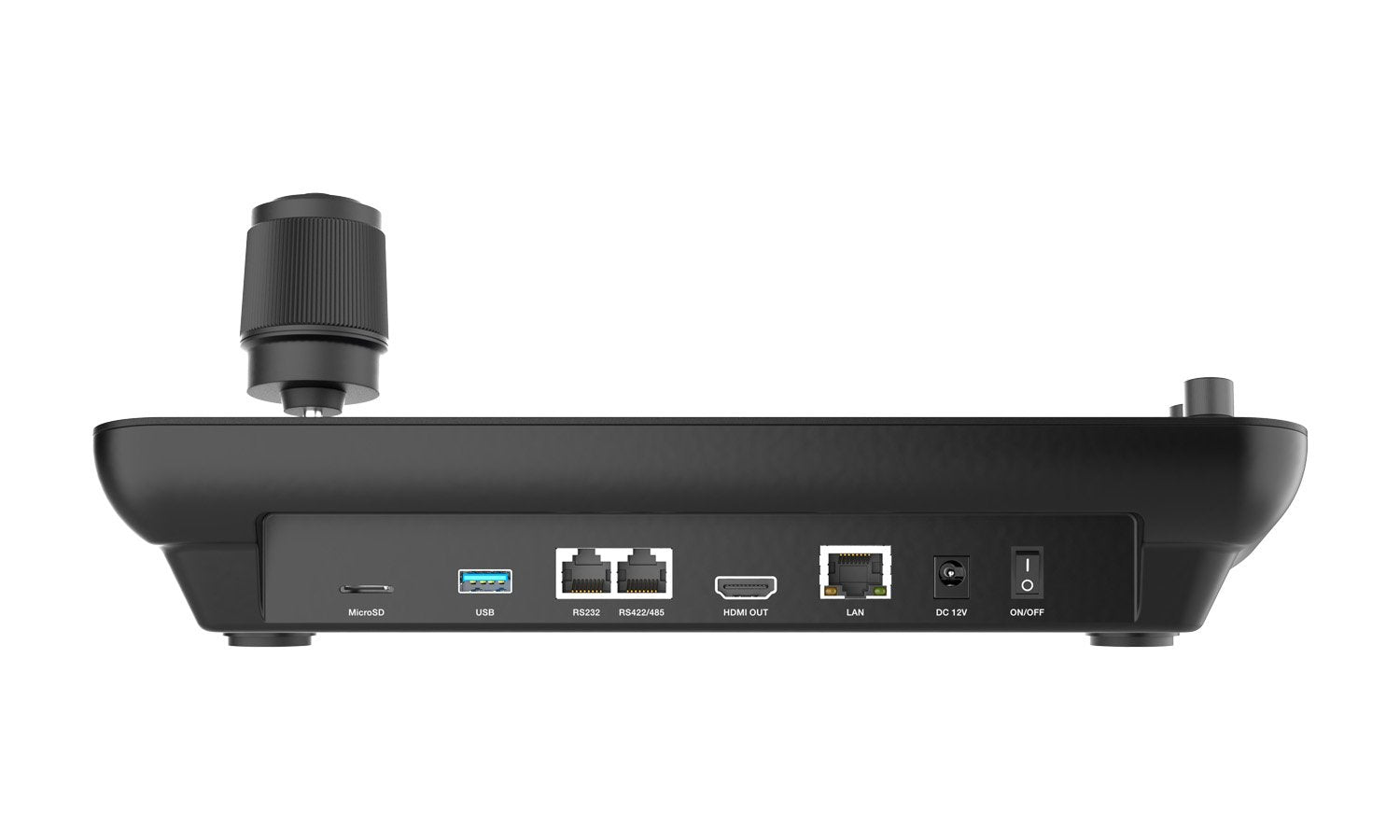

• Interface Ports:
  • 1x RJ45 (Network)
  • 1x RS232 (RJ45)
  • 1x RS422/485 (RJ45)
  • 1x HDMI output
  • 1x USB 3.0
  • 1x Micro-SD card slot
• Mechanical Specifications
  • Power consumption: <1.5W
  • Working Humidity: 10%-90%RH(no frost)
  • Working Temperature: 14°F ~ 122°F / -10°C ~ 50°C
  • Storage Temperature: -40°F ~ 140°F / -40°C ~ 60°C
• Package dimension: 14 x 9.6 x 6.1in [365 x 245 x 155mm]
• Weight: 3.75 Lbs [1.7kg]
