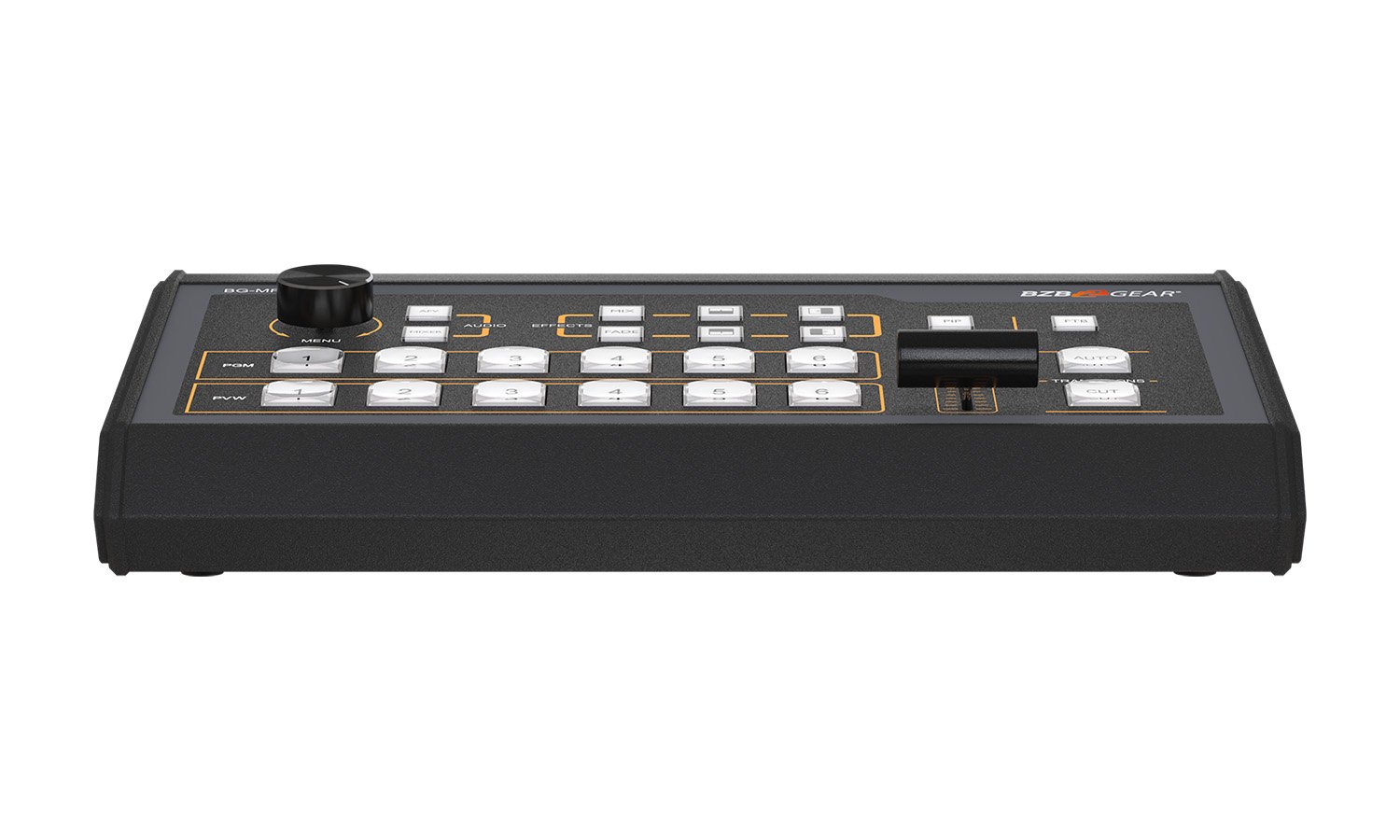

MFVS61-G2: 6-Channel 1080P FHD SDI/HDMI Live Streaming Multi-Format Video Switcher Mixer with PIP/USB 3.0 Capture Card

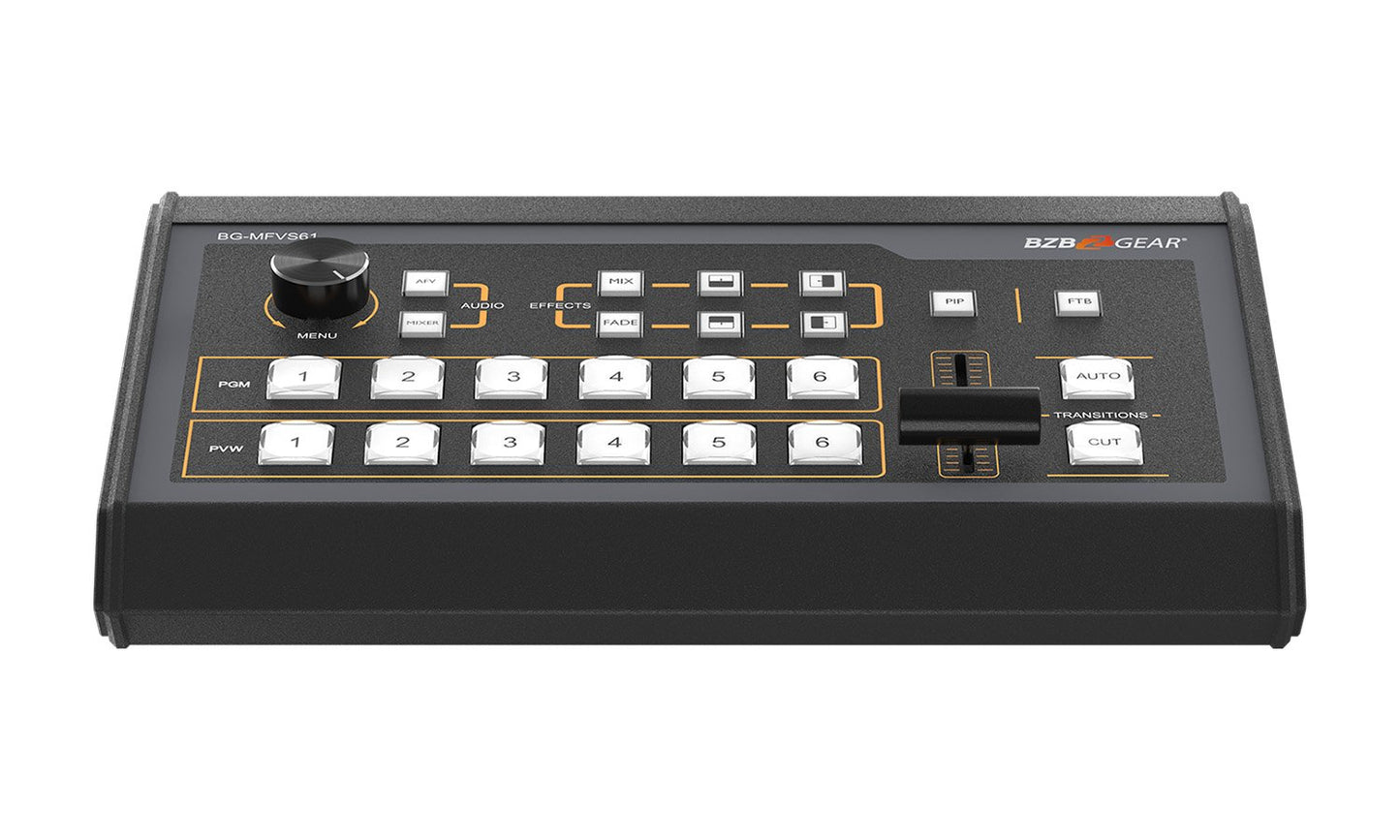

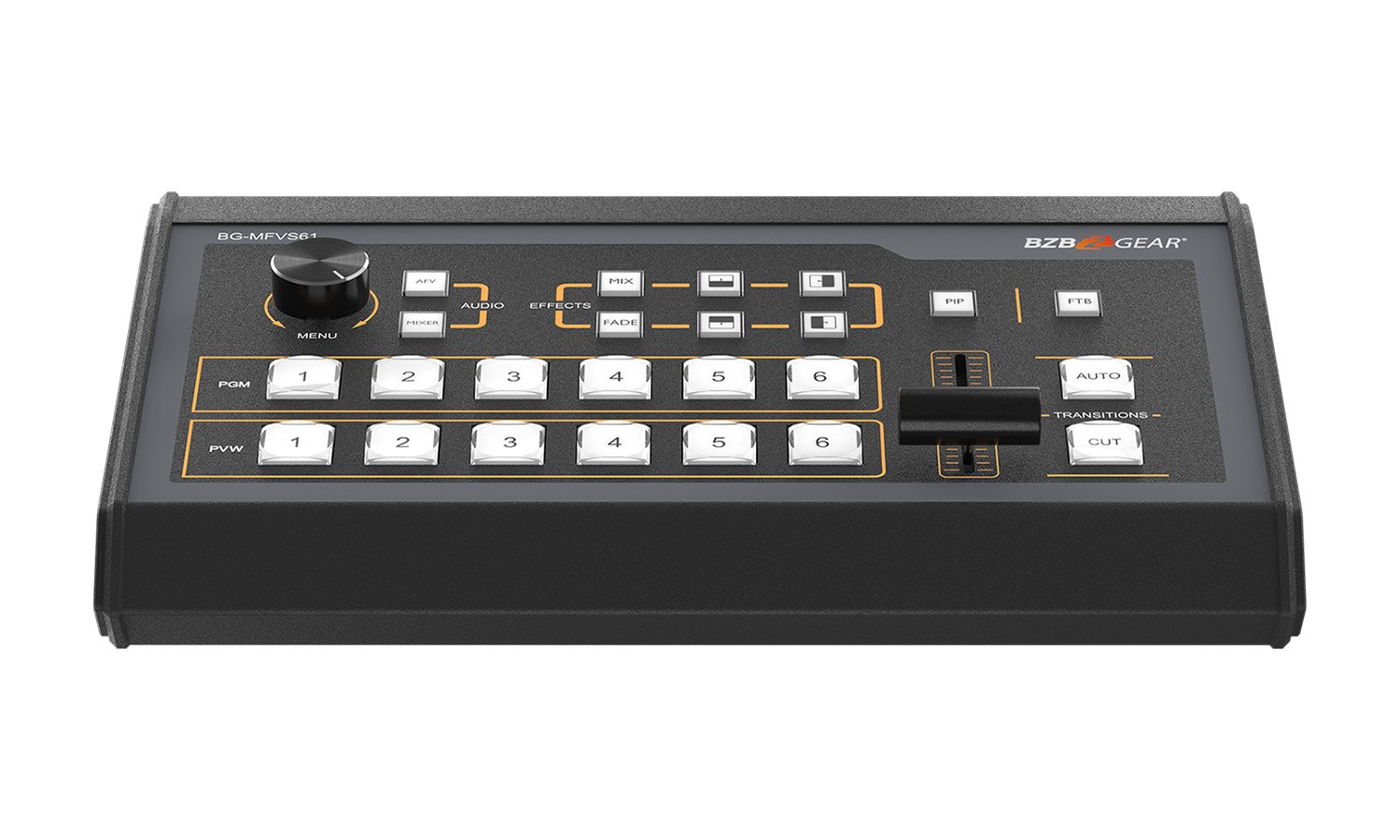

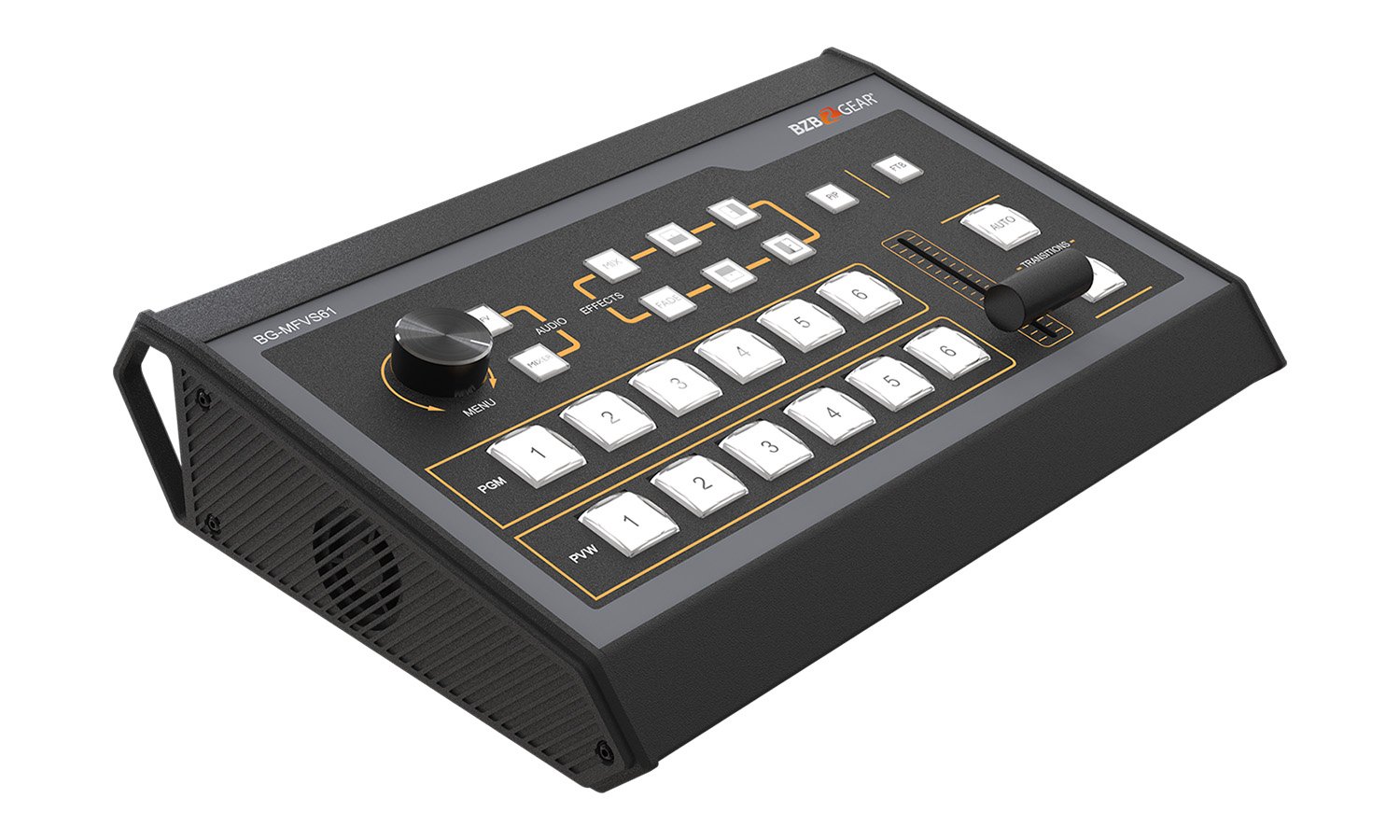

The BZBGEAR BG-MFVS61-G2 is a 6-channel 3G-SDI/HDMI live streaming video switcher, perfect for mobile or fixed production environments.

From the Manufacturer:

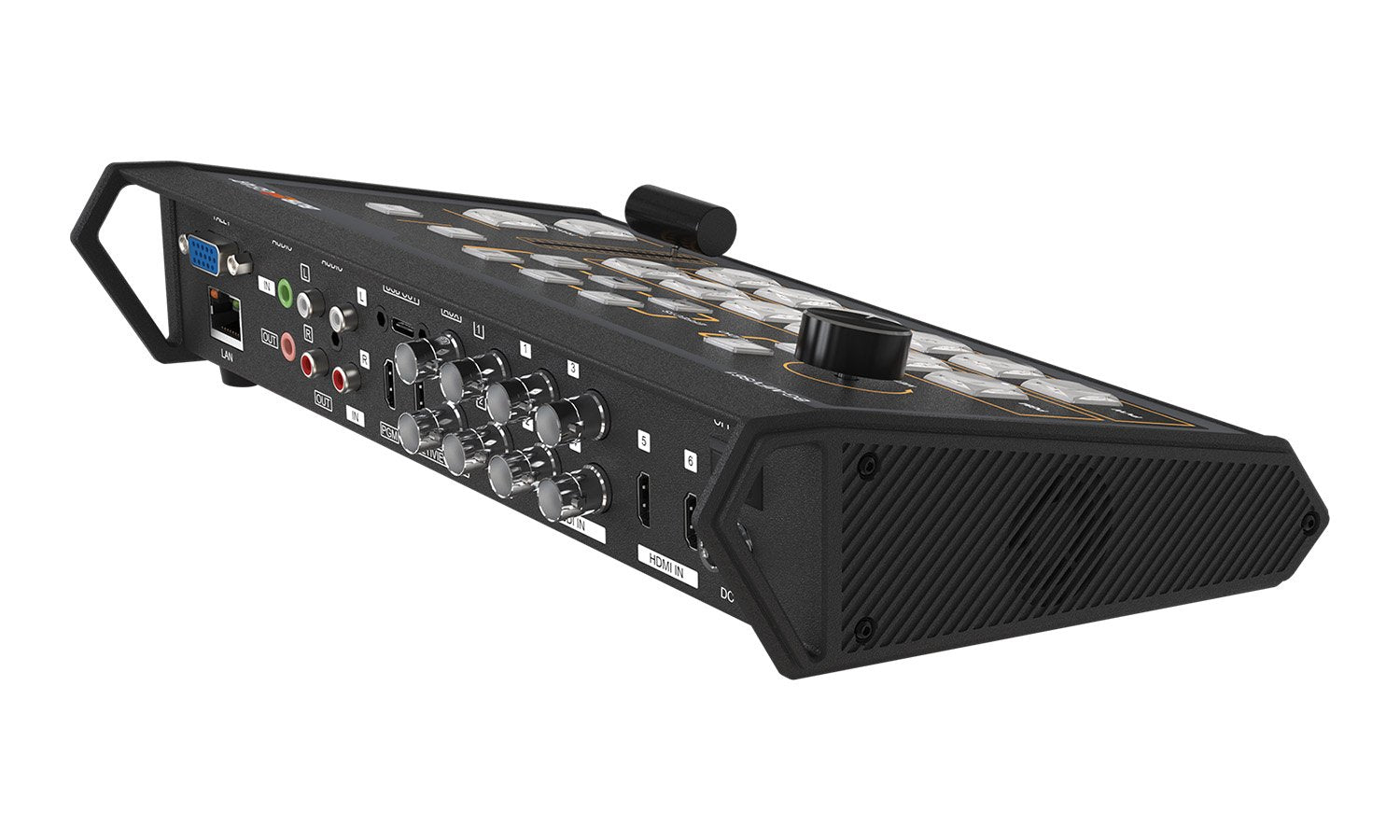

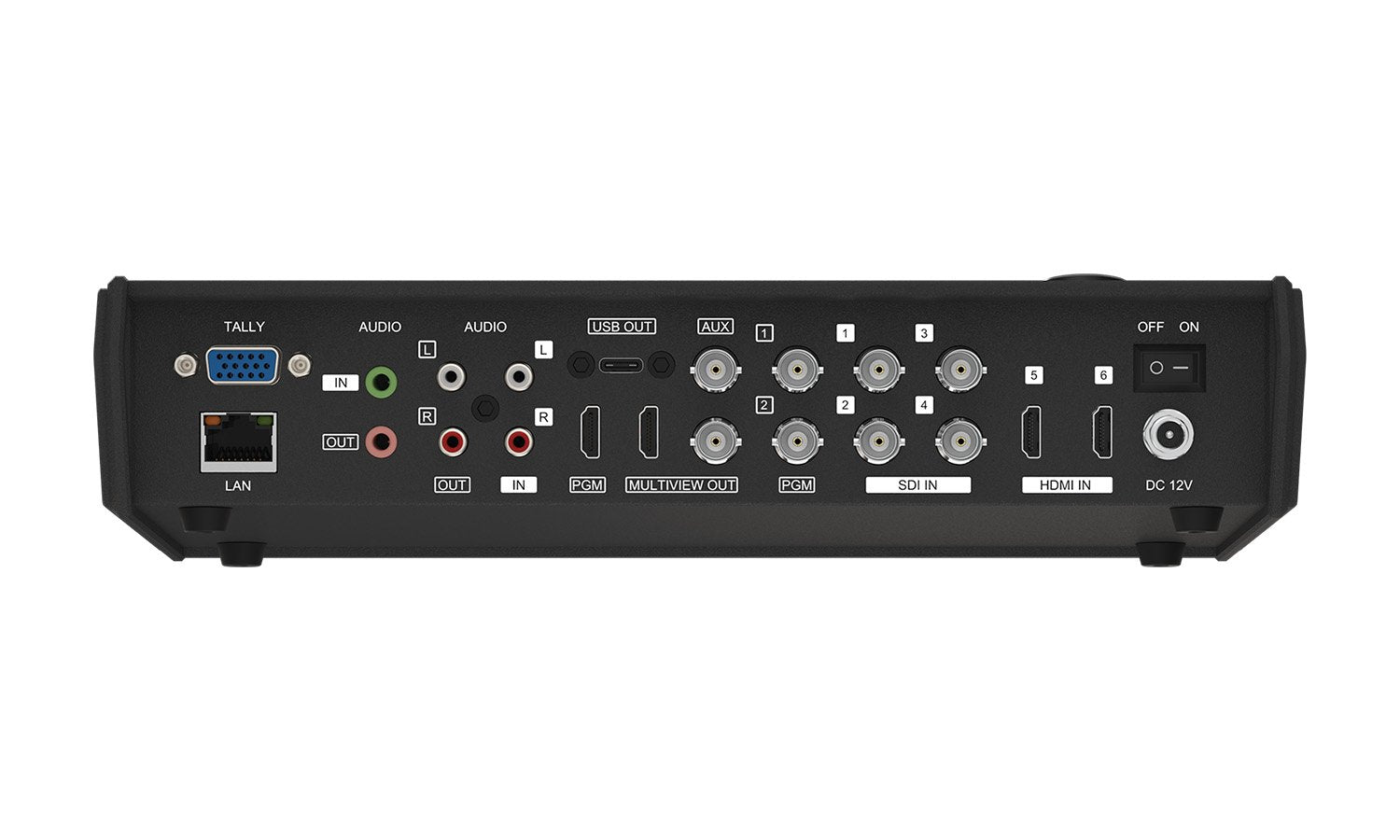

The BG-MFVS61-G2 is a 3G-SDI/HDMI video switcher with four 3G-SDI inputs, two HDMI inputs, four 3G-SDI outputs, two HDMI outputs, and one USB-C output. Durable and easy to use, this switcher is ideally suited for both mobile and fixed production environments.

Connectivity

The BG-MFVS61-G2 supports resolutions up to 1080p@60Hz. The integrated scaler provides compatibility with a large number of display resolutions. Featuring two multiview outputs (3G-SDI & HDMI) three program outputs (2 x 3G-SDI, HDMI), and one assignable 3G-SDI output this unit fits seamlessly in almost any production environment. The USB-C output allows a connected PC to be used to record or livestream the program output. The tally port (DB-15) provides support for compatible systems.

Audio can be de-embedded from all inputs and mixed with the 3.5mm and RCA analog inputs. Mixed audio can be output from the 3.5mm and RCA analog outputs, or embedded to the program output.

Control

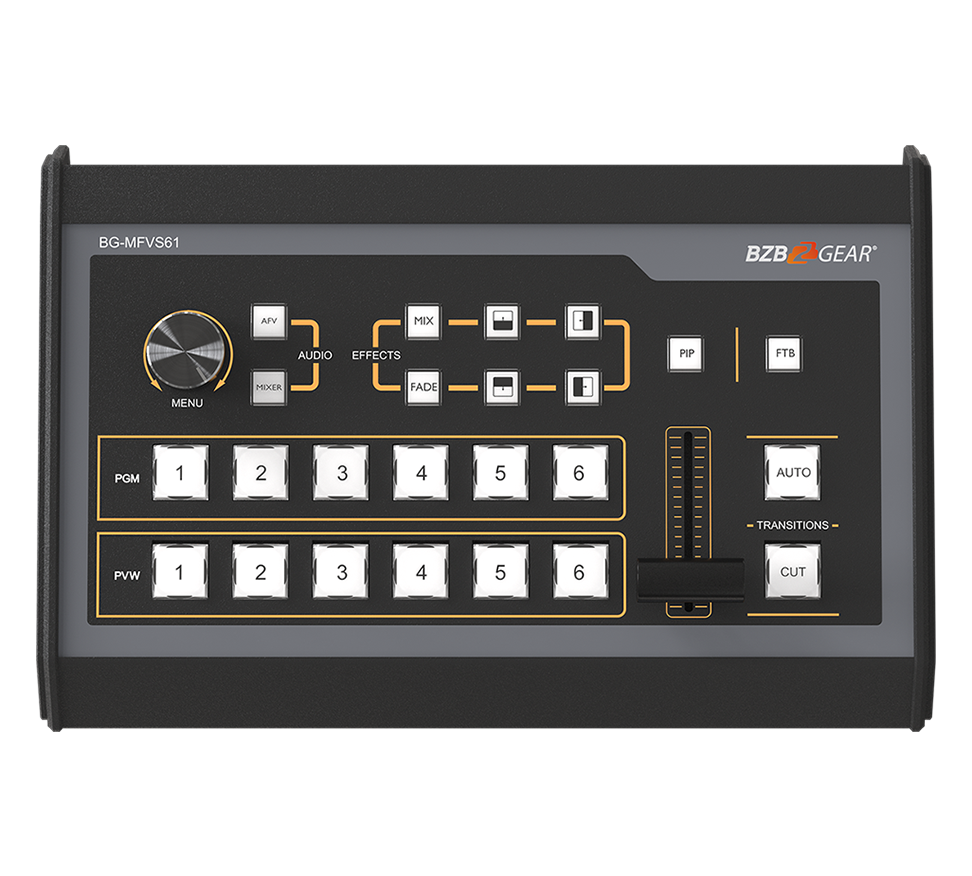

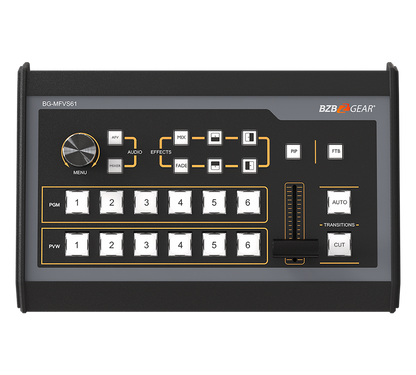

The T-bar slider, auto, and cut buttons provide control for transitions using the BG-MFVS61-G2’s various wipe, mix, and fade effects. Picture in Picture (PIP) mode allows userse to easily resize and reposition the PIP window. The easy to use control layout allows even novice users to acheive professional quality results.

Features:

• Integrated Audio Mixer: 3.5mm, RCA, HDMI Audio
• Picture in Picture Mode: Adjustable size and position
• Compact: Lightweight and portable
• Multiple Transition Options: T-Bar, Auto, and Cut controls for Mix, Wipe, and Fade effects
• Multiview Outputs: 1x SDI, 1x HDMI
• Crystal Clear Images: Supports resolutions up to 1080p@60Hz
• 6 Input Channels - 4x SDI and 2x HDMI
• Multiple Outputs - 2x SDI PGM, 1x HDMI PGM, 1x SDI AUX, 1x USB Type-C
• Integrated capture card

Specifications:

• Inputs:
  • Video Inputs: P4×3G/HD/SD-SDI, 2×HDMI
  • SDI Input Format:
    • 1080p 60/59.94/50/30/29.97/25/24/23.98
    • 1080psF 30/29.97/25/24/23.98
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/30/29.97/25/24/23.98
  • HDMI Input Format:
    • 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    • 1080i 50/59.94/60
    • 720p 60/59.94/50/30/29.97/25/24/23.98
    • 576i 50, 576p 50
  • SDI Video Rate: Auto detection, SD/HD/3G-SDI
  • SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
  • Color Space and Precision:
    • SDI: YUV 4:2:2, 10-bit;
    • HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit;
    • YUV 422 8/10/12bit
• Outputs:
  • PGM Output Format: 1080p 60/50/30/25/24; 1080i 50/60
  • Multiview Output: 1×3G-SDI; 1×HDMI Type A
  • Multiview Output Format: 1080p@60
• Audio:
  • Audio Input: 1×3.5mm Stereo audio; 1×RCA(L/R)
  • Audio Output: 1×3.5mm Stereo audio; 1×RCA(L/R)
• Others:
  • GPIO: Tally
  • LAN: RJ45
  • Power: DC 12V, 1.8A
  • Consumption: ≤ 22W
  • Operation Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Storage Temperature: -22°F ~ 158°F / -30°C ~ 70°C
  • Operation Humidity: 20%~70%RH
  • Dimension: 13 x 9.6 x 2.64in [330 x 244 x 67mm]
  • Weight: 2.2 lbs [1.0kg]
