4-Channel 4K UHD Live Streaming HDMI/DP Switcher Mixer with PIP and USB 3.0 Capture Card

The BZBGEAR BG-QuadFusion-4K is a 4-channel video production switcher designed for a range of live broadcasting applications, like sports events, concerts, and studio recordings.

From the Manufacturer:

Introducing the BG-QuadFusion-4K: A Feature Packed 4K UHD 4-CH Video Production Switcher. The BG-QuadFusion-4K is a versatile video production switcher designed for professional broadcast and TV stations. This switcher offers comprehensive control options, including keyboard-based special effects and transitions, and intuitive menu display functions. It supports up to 4-CH HDMI/DP (DisplayPort) inputs 4K60 signals, making it ideal for a wide range of live broadcasting applications, including sports events, concerts, and studio recordings.

Features:

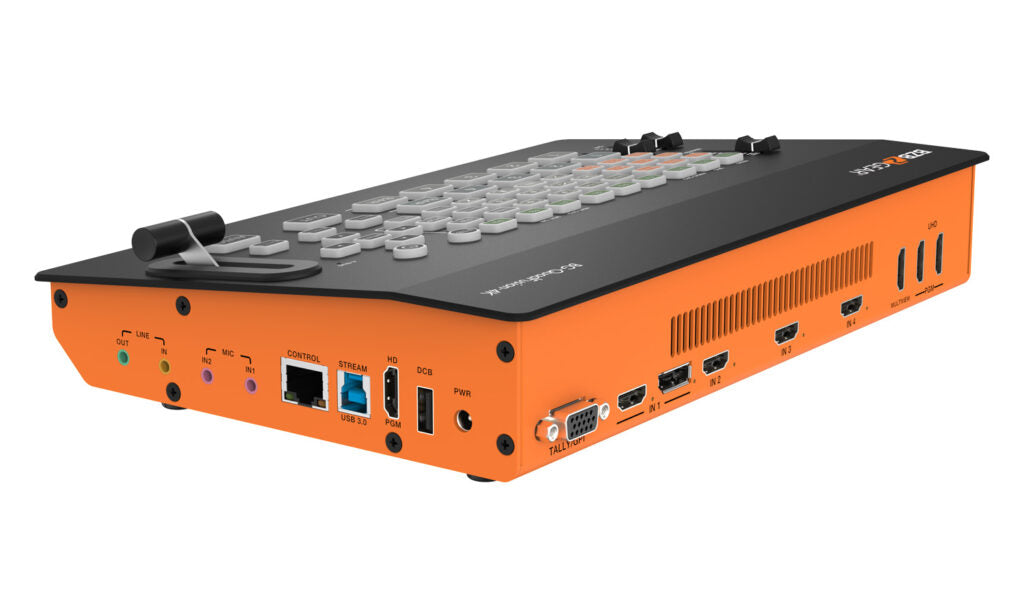

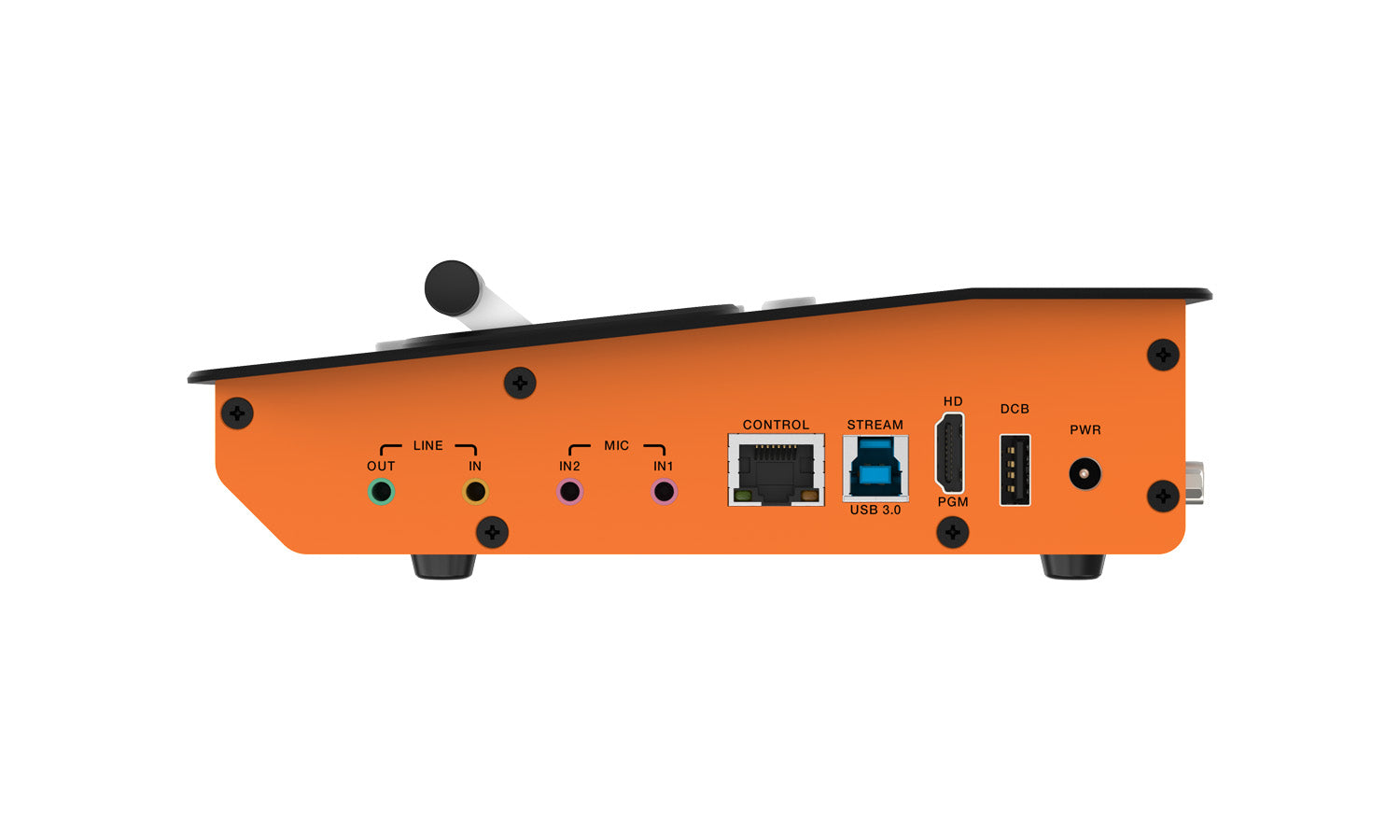

• Enhanced Audio Control: Achieve high-quality audio with 3.5mm stereo line output, input, and dual microphone inputs for immersive audio embedding.

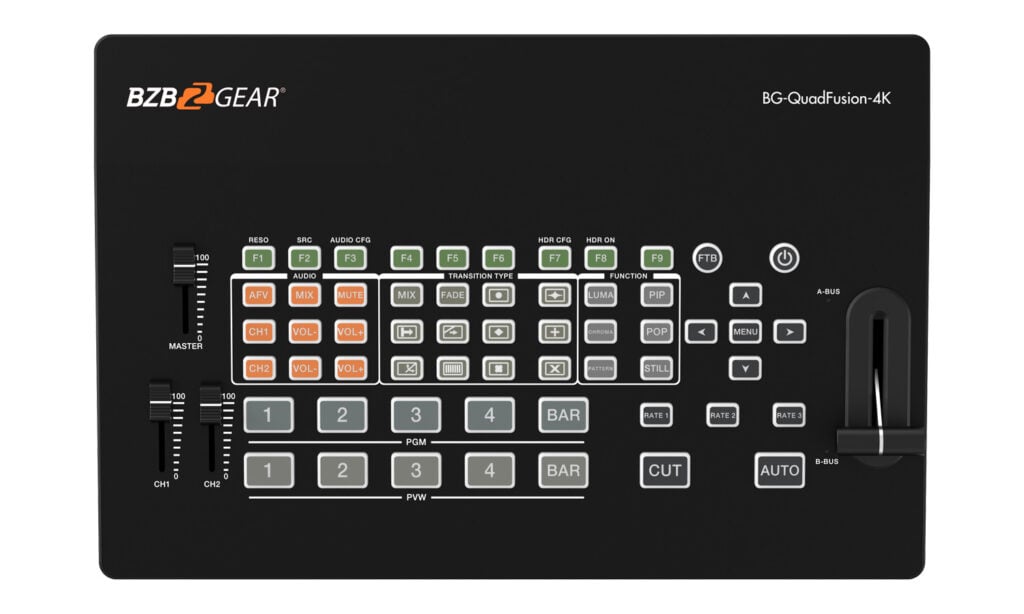

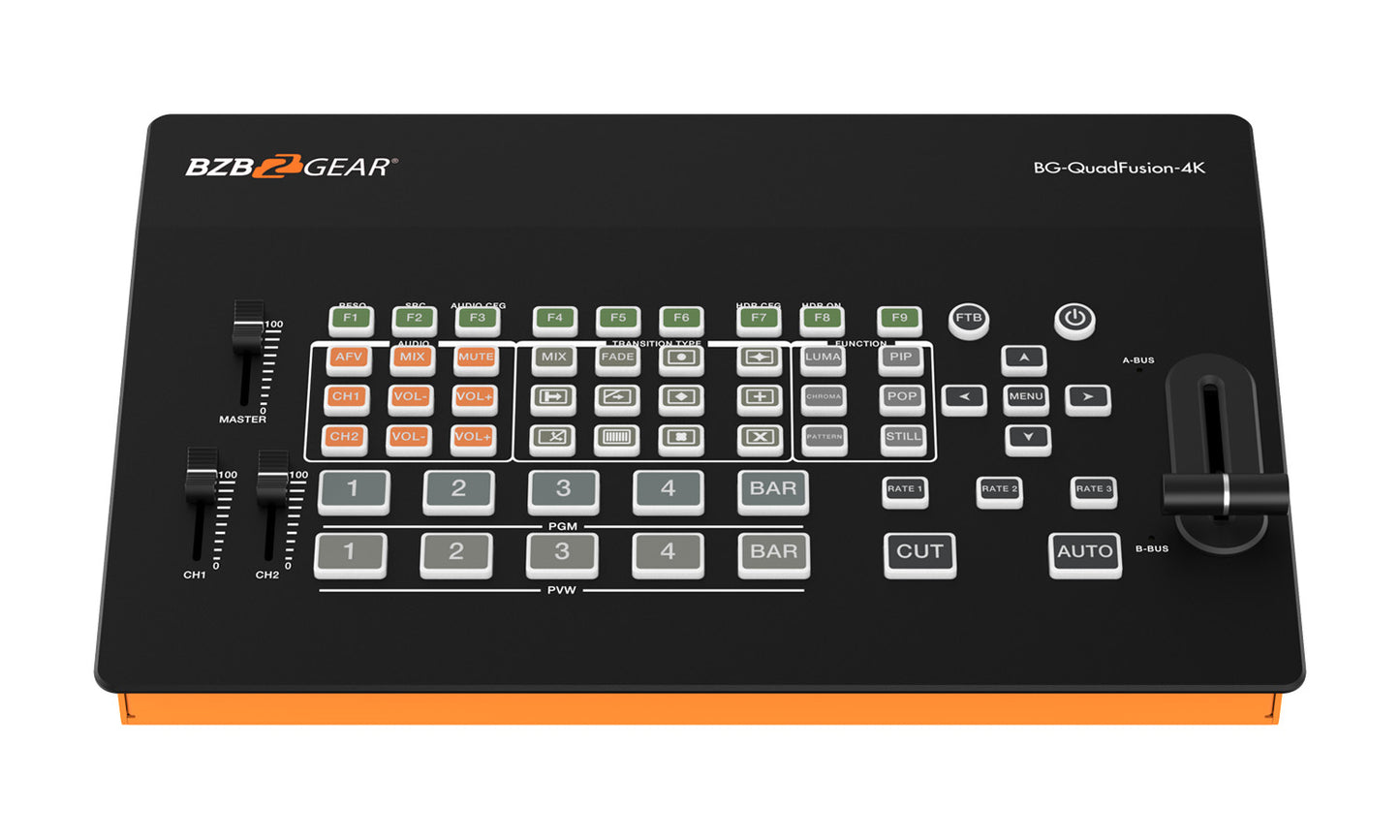

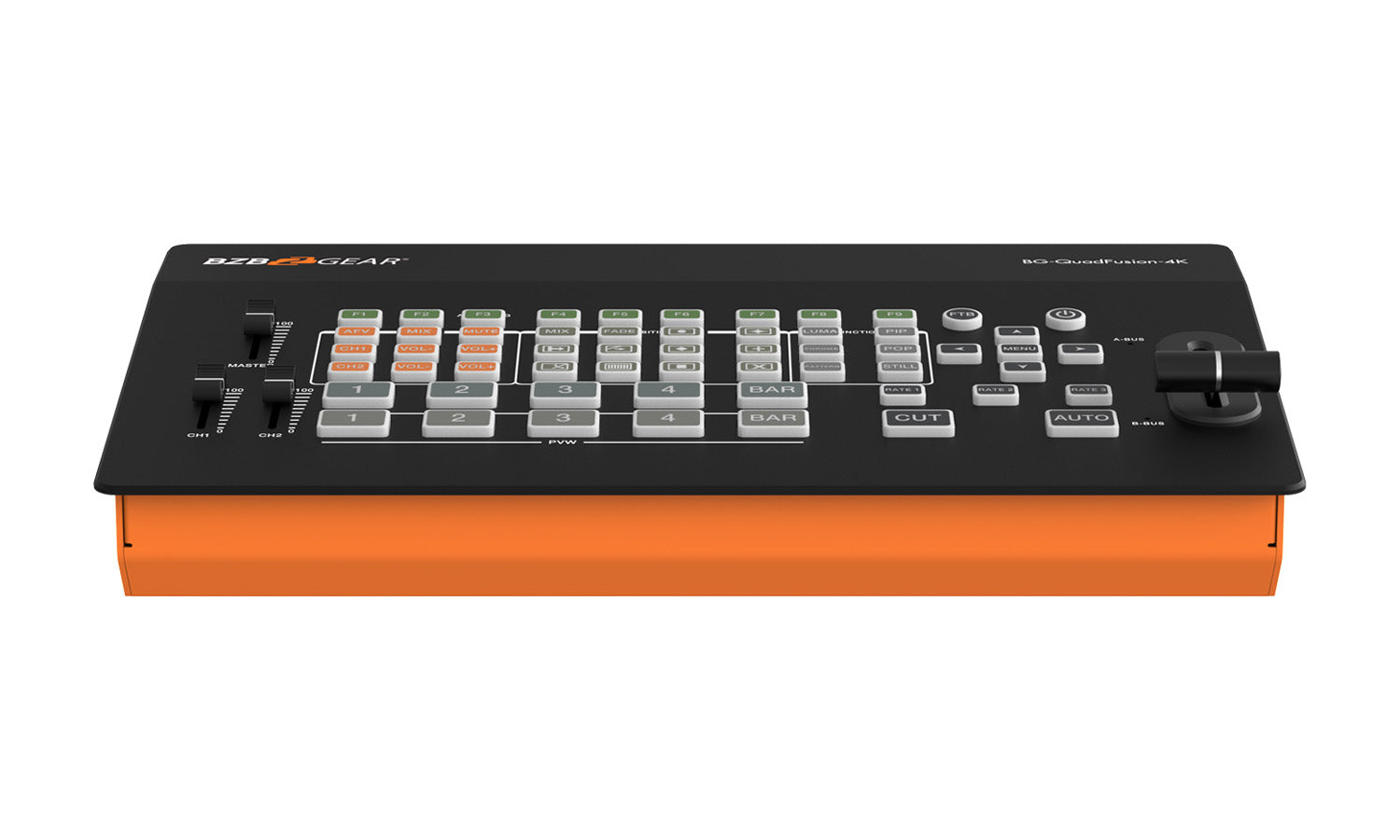

• User-Friendly Interface: Navigate easily with an intuitive button layout on the BG-QuadFusion-4K, featuring backlit buttons for improved visibility in low-light conditions.

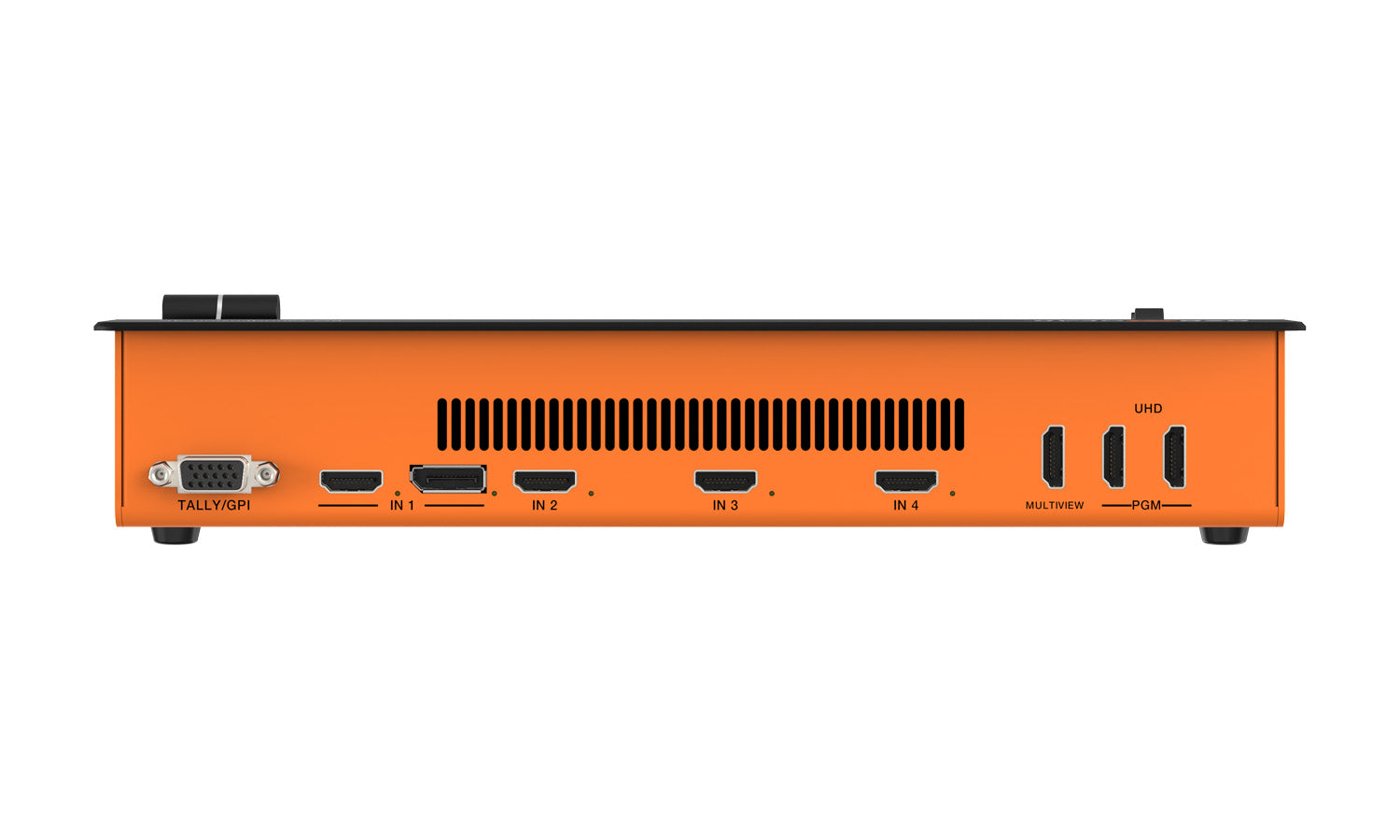

• Multiview Monitoring and Settings Management: Experience enhanced monitoring with HDMI multiview output displaying up to four inputs and device menu, simplifying settings management.
• HDMI Encoder & DP Decoder: Effortlessly manage multiple video sources
• Special Effects: Unlock creative potential with built-in effects
• Control Options: Convenient RJ45 remote, backlit buttons, and knobs for precise adjustments
• Immersive Audio: 2-CH MIC inputs, LINE OUT for rich soundscapes
• 4K Support: Present content in stunning, clear 4K resolution

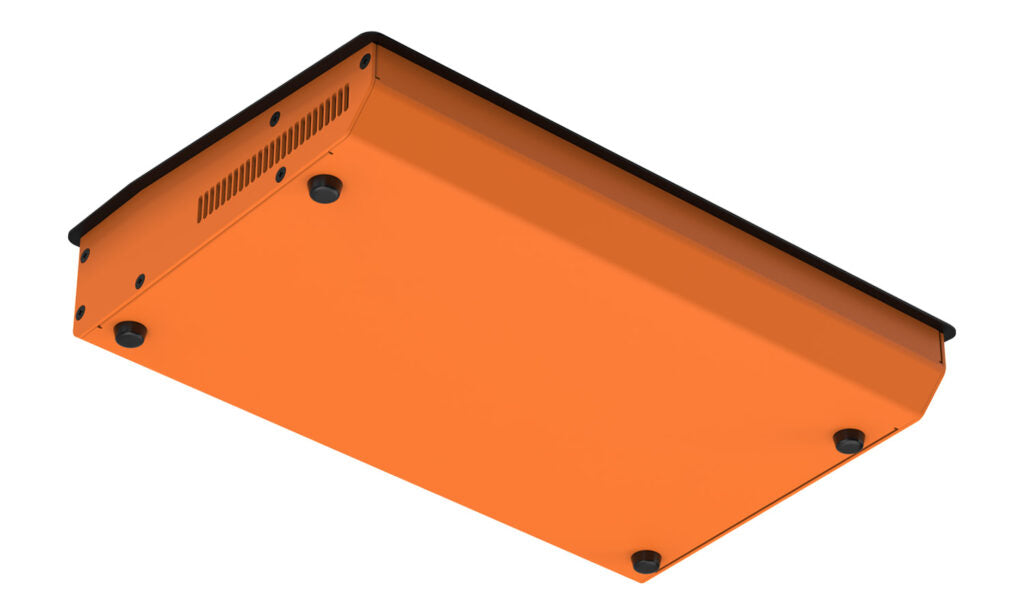

• Durable Mobility: High-strength aluminum alloy for lasting, portable use

Specifications:

Video Signal Input

• Input signal: HDMI / DP video signal
• Code rate: 270Mbps ~ 18Gbps
• Connector: Standard
• Signal amplitude: 800mV±10% (HDMI/DP)
• Impedance: 100Ω (HDMI), 100Ω (DP)
• Balance: Adaptive
• DVD input: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p
• HDMI/DP input support: 3840x2160, 1920x1080, 1680x1050, 1600x900,
• 1440x1050, 1366x768, 1360x768, 1280x102,
• 1280x960, 1280x800, 1280x768, 1280x720,
• 1280x600, 1152x864, 1024x768, 800x600

Video Signal Output

• Output signal: HDMI video output
• Code rate: 6Gbps ~ 18Gbps
• Connector: Standard
• Return Loss: >15dB 5MHz~3GHz
• Signal amplitude: 800mV±10%(HDMI/DP)
• Impedance: 100Ω (HDMI), 100Ω (DP)
• DC offset: 0V±0.5V
• Clock recovery: Support

General Parameters

• Power supply: 12V
• Power rate: <35W
• Size: 11.2in x 6.9in x 2.4in [284mm x 175mm x 60mm]
• Control panel: Support on-site production, integration of a variety of buttons
• Operating temperature: 32°F ~ 122°F / 0°C ~ 50°C, No condensation
• Storage temperature: -4°F ~ 167°F / -20°C ~ 75°C
• Working humidity: 20% ~ 70%RH
• Storage humidity: 0% ~ 90%RH, No condensation
