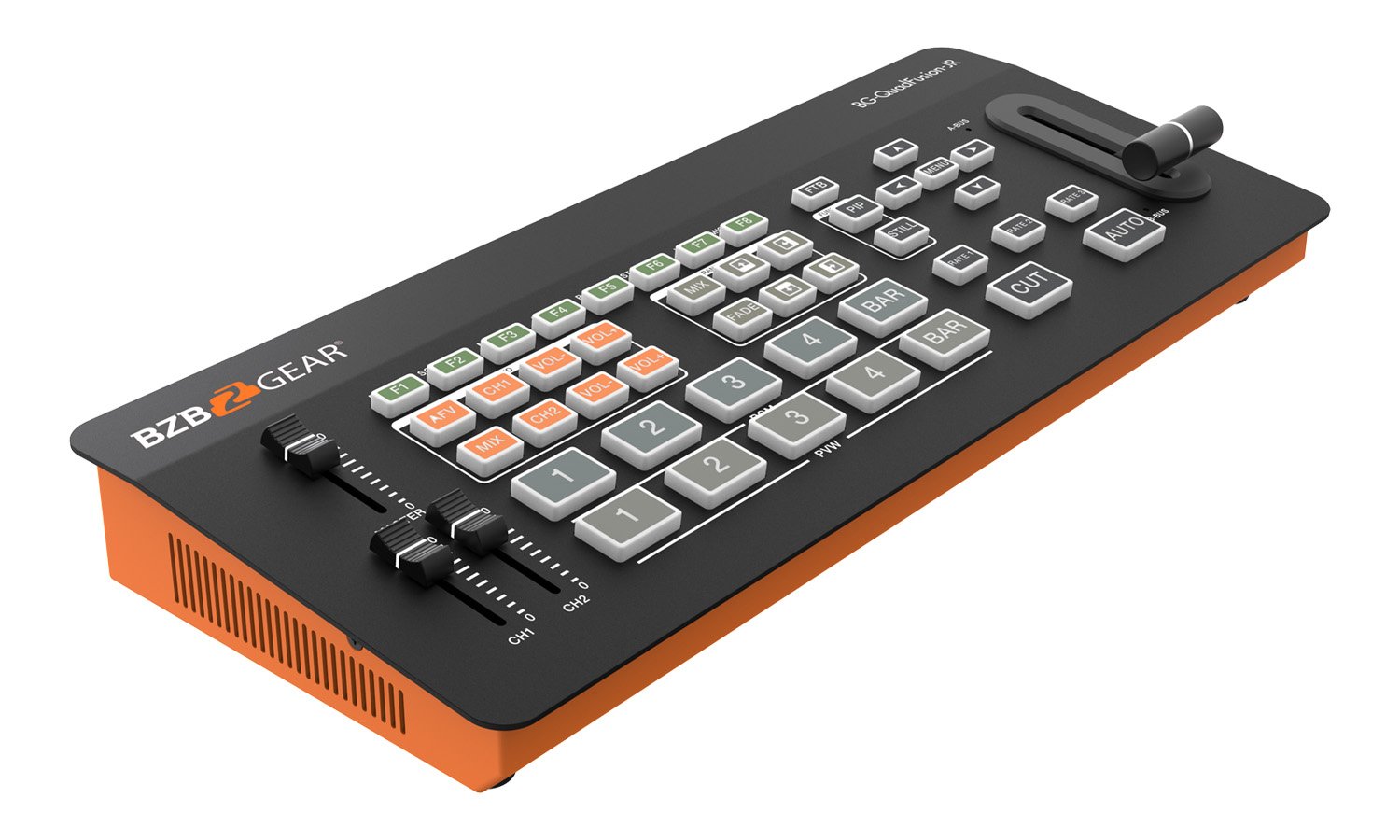

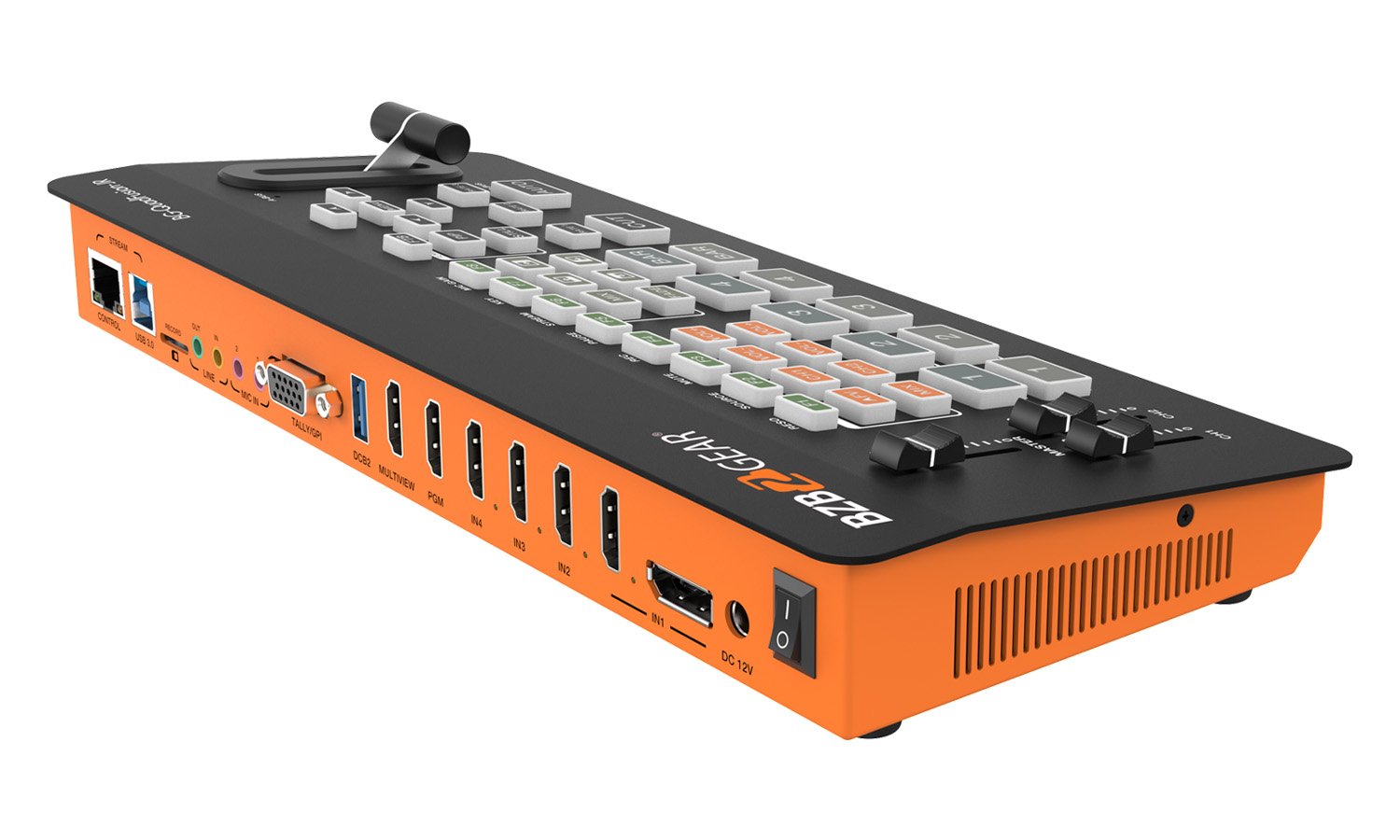

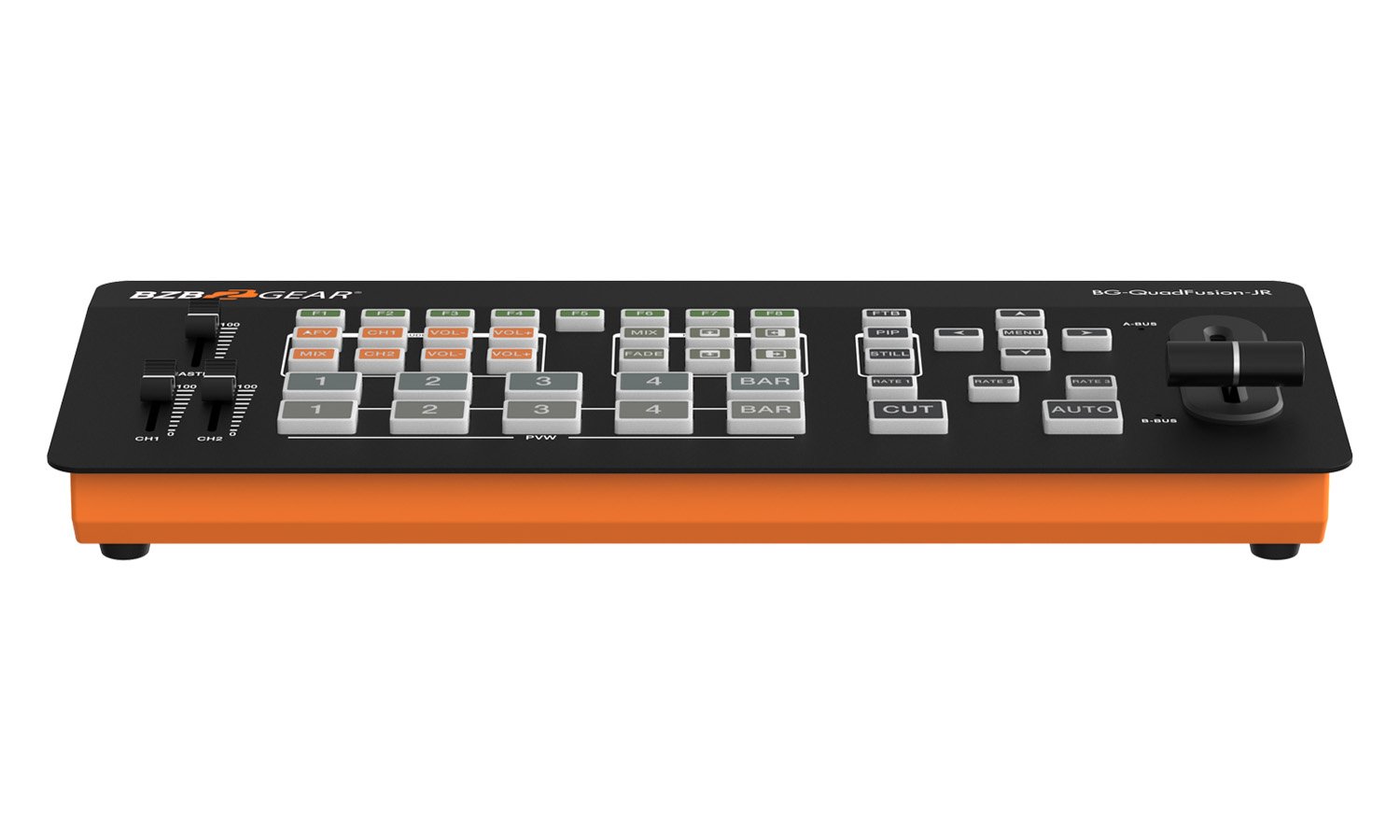

QuadFusion-JR: 4-Channel 1080P FHD Live Streaming HDMI/DP Switcher Mixer with PIP and USB 3.0 Capture Card

The BZBGEAR BG-QuadFusion-JR is a 1080p FHD video switcher solution for broadcast and TV applications.

From the Manufacturer:

Introducing the BG-QuadFusion-JR: Your Ultimate 1080p FHD Video Switcher Solution. Seamlessly integrating 3 HDMI inputs and 1 dual HDMI/DP input, this cutting-edge switcher redefines video content management for broadcast and TV. Elevate production quality, streamline setup, and embrace the future of visual communication with features including effortless source transition, intuitive control, support for 1080P@60Hz, USB 3.0 capture, SD card slot, versatile effects, durable mobility, immersive audio, and professional-grade quality.

Audio and Visual Excellence

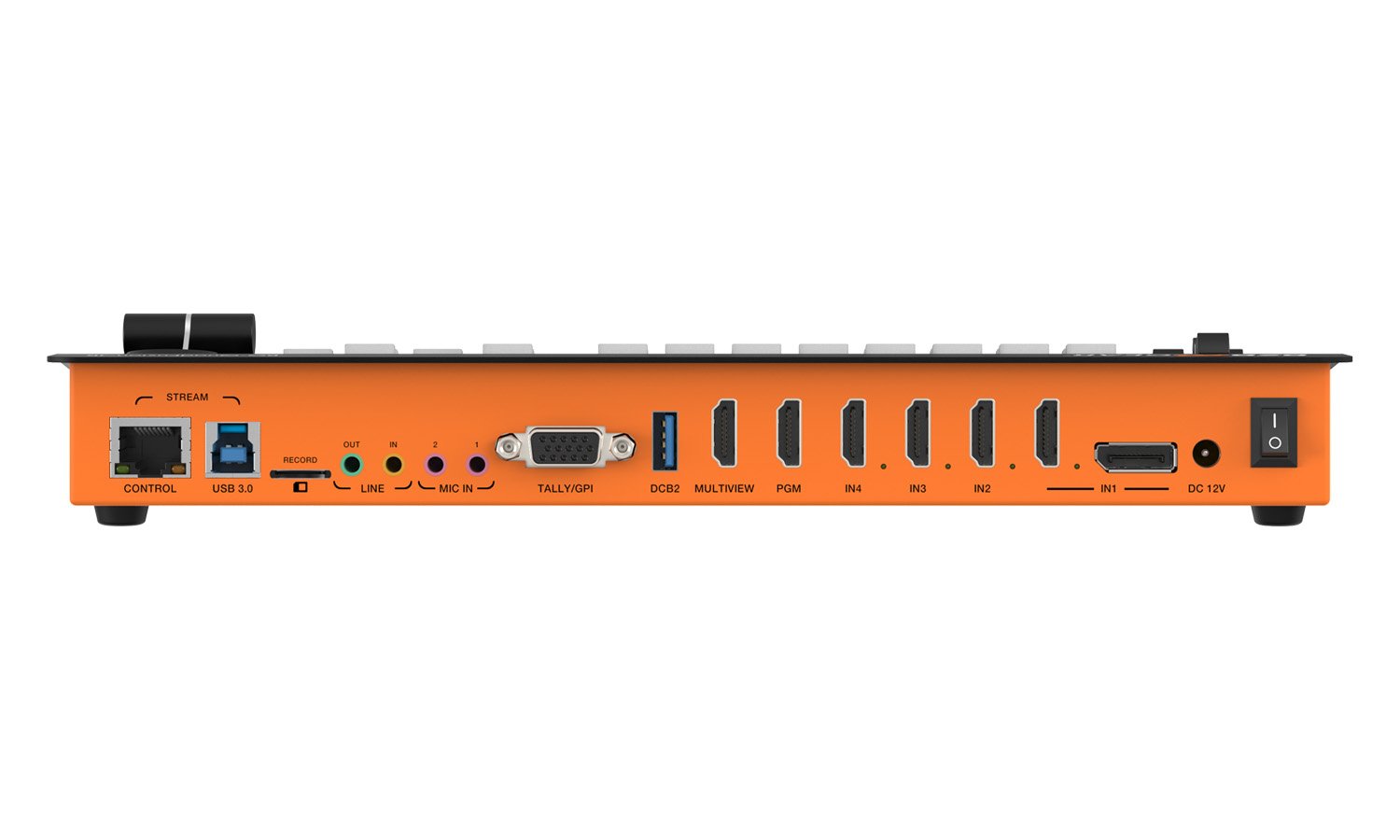

Seamless Integration, Unparalleled Versatility: The BG-QuadFusion-Jr introduces a new level of versatility to your AV setup. By incorporating 3 dedicated HDMI inputs and 1 dual HDMI/DP port, managing multiple video sources becomes effortless and tangle-free. Transition seamlessly between various sources, ensuring smooth content flow without interruptions.

Unleash Creative Potential: Equipped with a built-in format converter, special effect generator, and adaptive front-end video signal inputs, the BG-QuadFusion-Jr empowers you to explore endless creative avenues. Craft captivating visual experiences that elevate your content to unprecedented heights.

Immersive Audio Mastery: Immerse your audience in a captivating auditory journey. Featuring 2-CH MIC inputs and LINE OUT input and output, you possess the tools to fashion rich, immersive soundscapes that seamlessly complement your visuals.

Professional Quality with a Personal Touch: The BG-QuadFusion-Jr strikes the perfect equilibrium between professional-grade quality and a user-friendly interface. Boasting an array of special effect wipes, PIP/POP functionality, and support for MIX, FADE, and other transitions, your production acquires a polished finesse that leaves a lasting impact.

Elevate Every Visual Tale: From 4 HDMI and 1 DP input to the multiview output and PGM output, every facet of your visual narrative receives a boost. With provision for LUMA key, CHROMA key, and color bar output, you're armed to narrate your story in the most impactful manner possible.

Unmatched Management

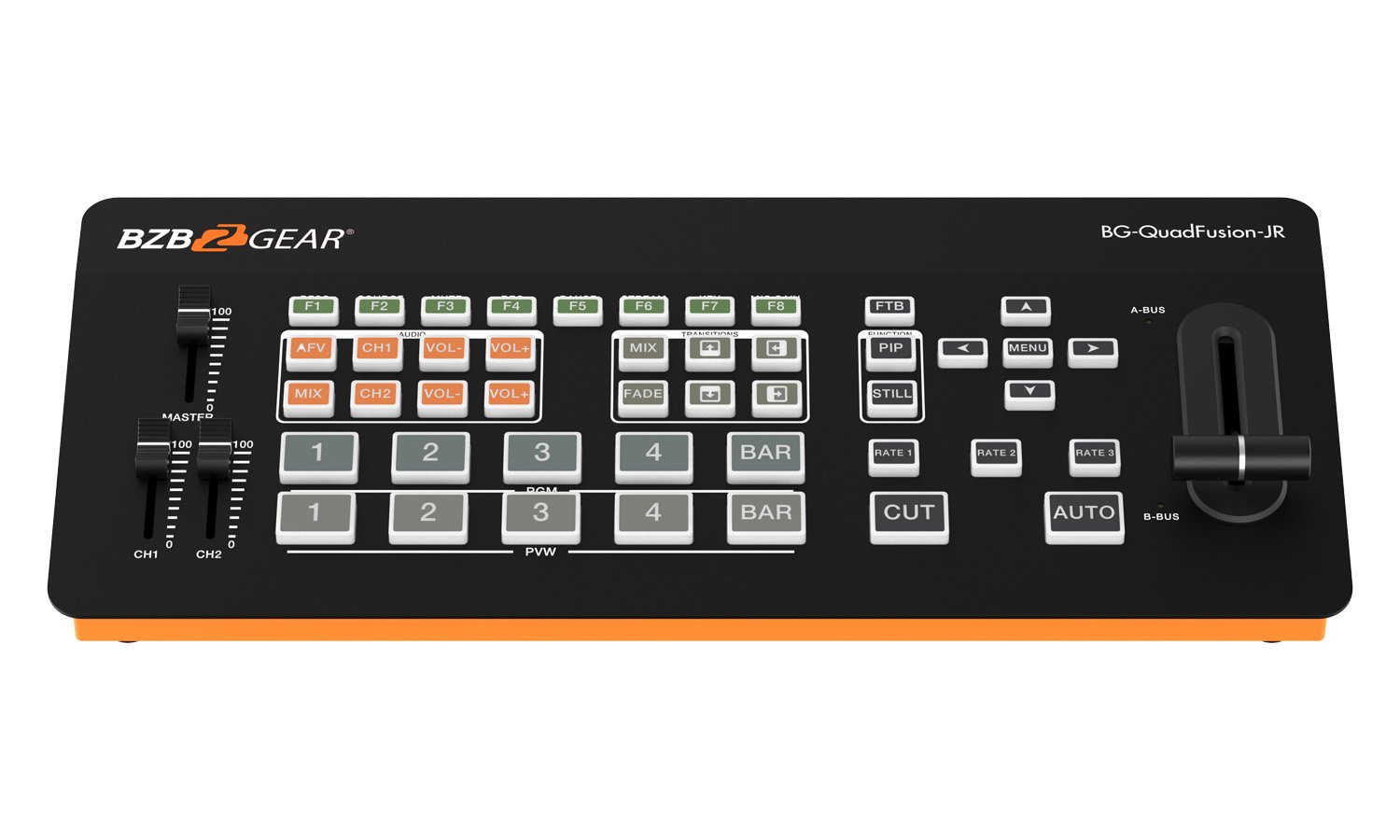

Mastery at Your Fingertips: Command your production like never before, courtesy of an array of control options. From the convenient RJ45 remote control to the user-friendly backlit buttons and knobs, precision control over settings, effects, and transitions is now at your fingertips.

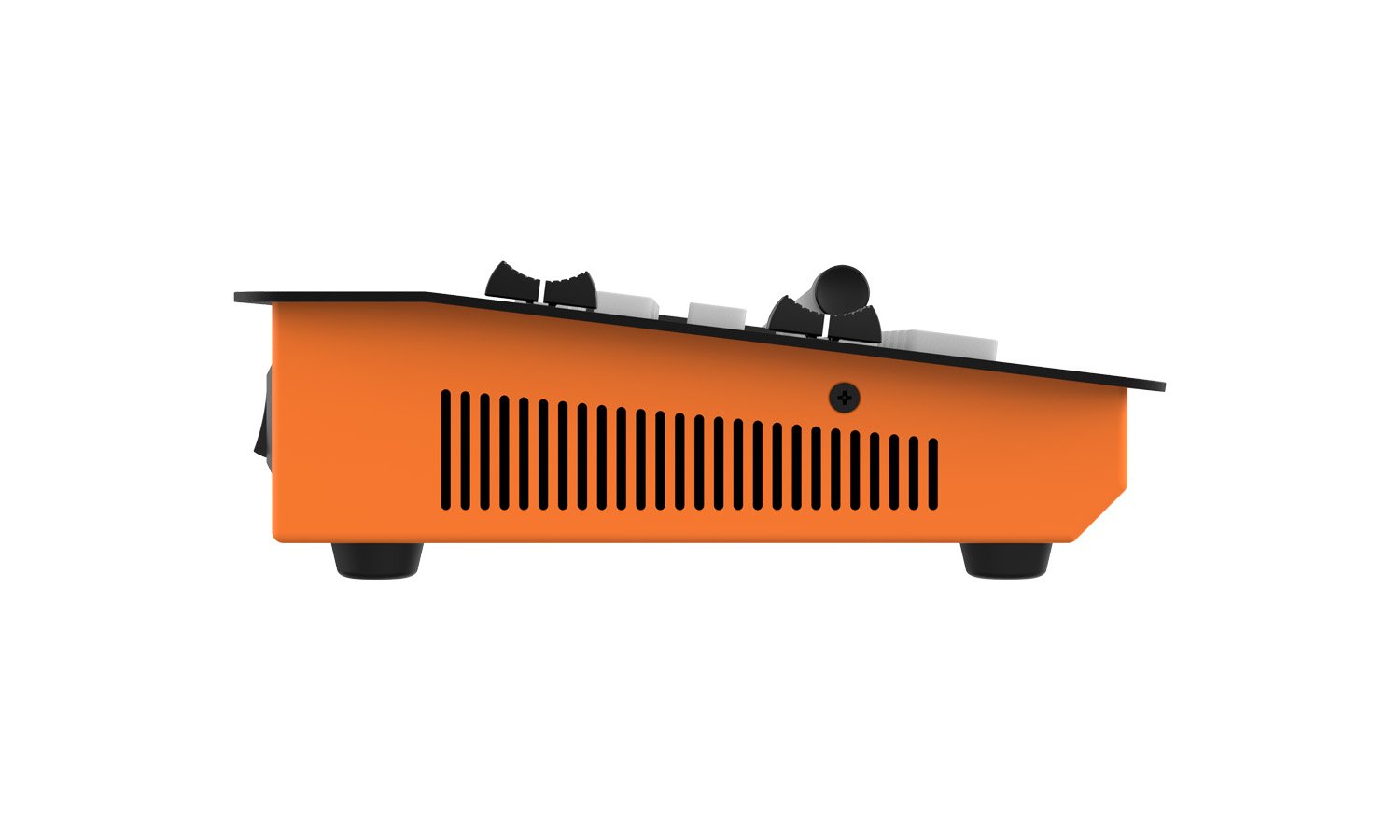

Sturdy Build, Effortless Portability: Constructed from high-strength aluminum alloy, the BG-QuadFusion-Jr embodies durability without compromising on portability. Its lightweight design facilitates seamless transport between setups, and the distinct PATTERN KEY enables the application of special-shaped patterns with utmost precision.

USB 3.0 Capture: USB 3.0 capture is a crucial feature due to its high data transfer rates, real-time video capture capabilities, and versatility in connecting various video sources like cameras and computers. It offers plug-and-play convenience, multi-platform compatibility, and cost-effectiveness, making it suitable for live events, remote shoots, and compact setups. USB 3.0 capture not only enables seamless switching between sources but also facilitates direct 1080p recording, enhancing its value for archiving and post-production tasks.

Features:

• HDMI Encoder & DP Decoder: Effortlessly handle multiple video sources
• Special Effects: Unlock your creative potential with inbuilt effects
• Control Options: Enjoy the convenience of a RJ45 remote, backlit buttons, and knobs for precise adjustments
• Immersive Audio: Harness 2-CH MIC inputs and LINE OUT for enriching soundscapes
• 1080p Excellence: Present your content in stunning, clear 1080p resolution
• Durability in Motion: Crafted from high-strength aluminum alloy for lasting, portable use

Specifications:

• Video Signal Input:
  • Input signal: HDMI 1.4 / DP 1.2 video signal
  • Connector: Standard
  • Reflection loss: >15dB 5MHz~3GHz
  • Signal amplitude: 800mV±10% (HDMI)
  • Impedance: 100Ω (HDMI)
  • Balance: Adaptive
  • DVD input HDMI support: 480i/576i, 480p/576p, 720p, 1080i, 1080p
  • Computer HDMI input support: 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600
• Video Signal Output:
  • Output signal: HDMI video output
  • Resolution: 1080P60Hz / 1080P50Hz / 1080P30Hz / 1080P25Hz / 1080P24Hz / 1080160Hz / 1080150Hz
  • Connector: Standard
  • Return Loss: >15dB 5MHz~3GHz
  • Signal amplitude: 800mV±10% (HDMI)
  • Impedance: 100Ω (HDMI)
  • DC offset: 0V±0.5V
  • Clock recovery: Support
• Control Parameters:
  • Control: 9600 baud, 8 bits, 1 stop bit, no parity
  • Connection: 15-pin D-port, 2-RX, 3-TX, 5-GND
  • Network control: RJ45, 100M
• General Parameters:
  • Power supply: 12V/DC
  • Power rate: <25W
  • Size: 11in x 4.3in x 1.4in [280mm x 110mm x 36mm]
  • Control panel: Support on-site production, integration of a variety of buttons
  • Operating temperature: 32°F ~ 122°F / 0°C ~ 50°C, No condensation
  • Storage temperature: -4°F ~ 167°F / -20°C ~ 75°C
  • Working humidity: 20% ~ 70%RH
  • Storage humidity: 0% ~ 90%RH, No condensation
