Sku: BG-UHD-1616M

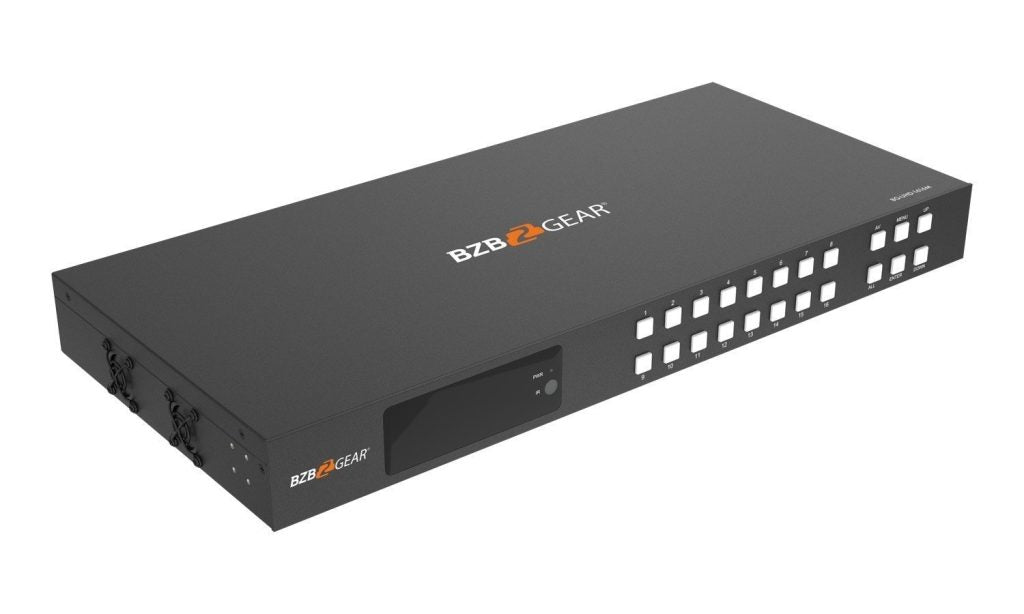

16x16 4K UHD HDMI Matrix with Advance EDID/Audio De-embedding/Downscaling and CEC

Regular price $2,999.00
Regular price Sale price $2,999.00
Sold out
Shipping calculated at checkout.
Vendor: BZBGEAR

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The BZBGEAR  BG-UHD-1616M is a 4K HDMI matrix switcher offering unparalleled control over multiple displays simultaneously, up to 16 inputs & outputs.

From the Manufacturer:

Introducing the BG-UHD-1616M, a cutting-edge 4K HDMI matrix switcher that delivers unparalleled control over multiple displays simultaneously. With support for up to 16 sources and 16 HDMI displays, this matrix offers an advanced solution for managing your video and audio needs.

The BG-UHD-1616M supports HDMI 2.0b and HDCP 2.2/1.x, enabling you to enjoy resolutions as high as 4K2K@60Hz (YUV 4:4:4) on all HDMI ports. The maximum video bandwidth of 18Gbps and the ability to downscale 4K video to 1080p ensure that your video quality remains crystal-clear on any display. You can rely on this matrix to deliver pristine uncompressed video transmission to all 16 displays.

In addition, the BG-UHD-1616M supports HDMI audio pass-through up to 7.1 CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). You can extract audio via corresponding digital coax ports for each HDMI output, giving you greater flexibility in sending audio to external devices in individual zones.

With multiple control options, the BG-UHD-1616M provides a customizable experience for any use case. You can switch inputs using front panel buttons, an IR remote, RS-232, IP commands, or the web interface, or use free BZBGEAR's Switching Control Application on any device. The matrix switcher also supports ARC, CEC, and smart EDID management, offering 21 factory-defined EDID settings, two user-defined EDID modes, and 16 copy EDID modes. This allows you to tailor the control experience to your specific needs.

Overall, the BG-UHD-1616M is a powerful and versatile HDMI matrix switcher that delivers exceptional performance and control for your AV setups.

Features:

  • STUNNING IMAGE QUALITY: Supports resolutions up to 4K@60Hz 4:4:4
  • 16X16 VIDEO MATRIX: View any source on any display
  • HDCP 2.2: High-Bandwidth Digital Content Protection Supported
  • HDR: Dolby Vision, HDR10+, and HLG support
  • AUDIO EXTRACTION: De-Embed audio using S/PDIF Digital Coax

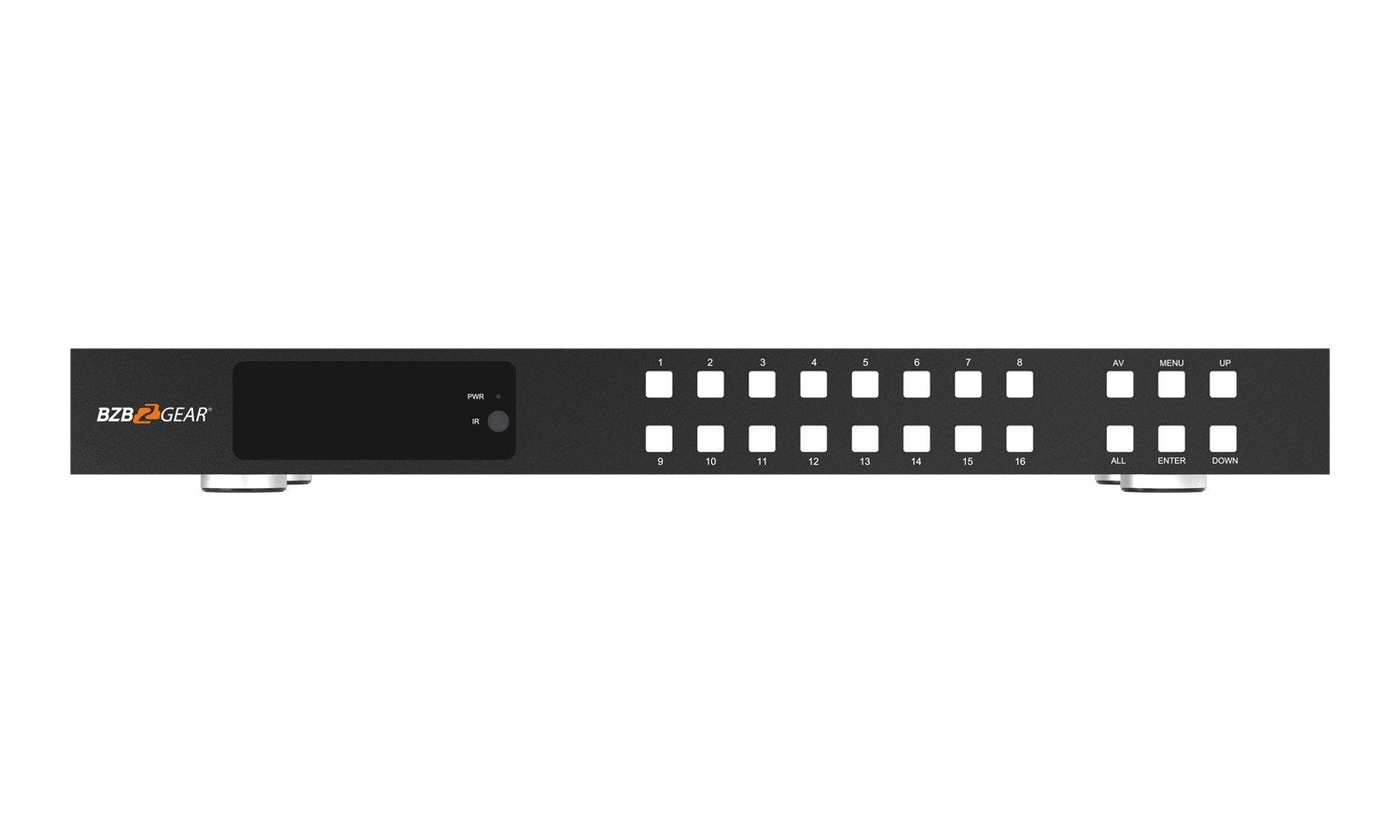

  • MULTIPLE CONTROL OPTIONS: Front panel buttons, RS232, IR, CEC, IP, and Web GUI
  • Support 4K-1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • ARC, CEC and smart EDID management are supported

Specifications:

Technical

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K@60Hz (4:4:4)
  • Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Coax Audio Formats: LPCM 2.0, Dolby Digital / Plus, DTS 5.1
  • HDR formats: HDR10, HDR10+, Dolby Vision, HLG
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

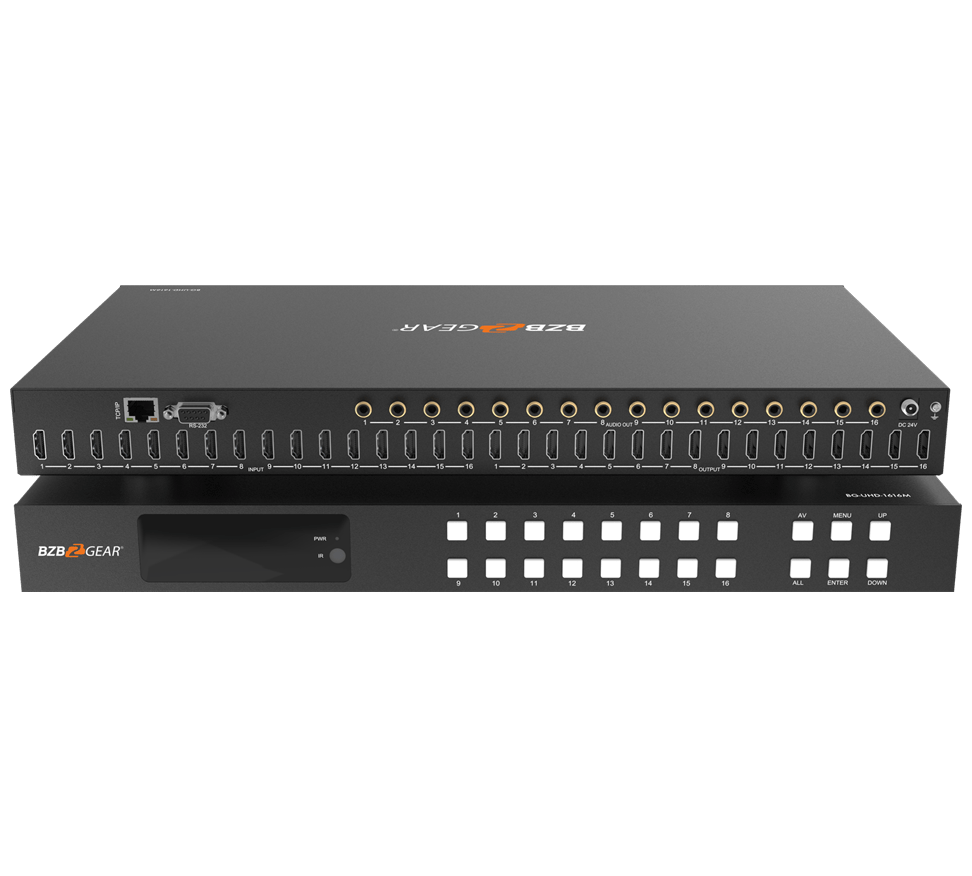

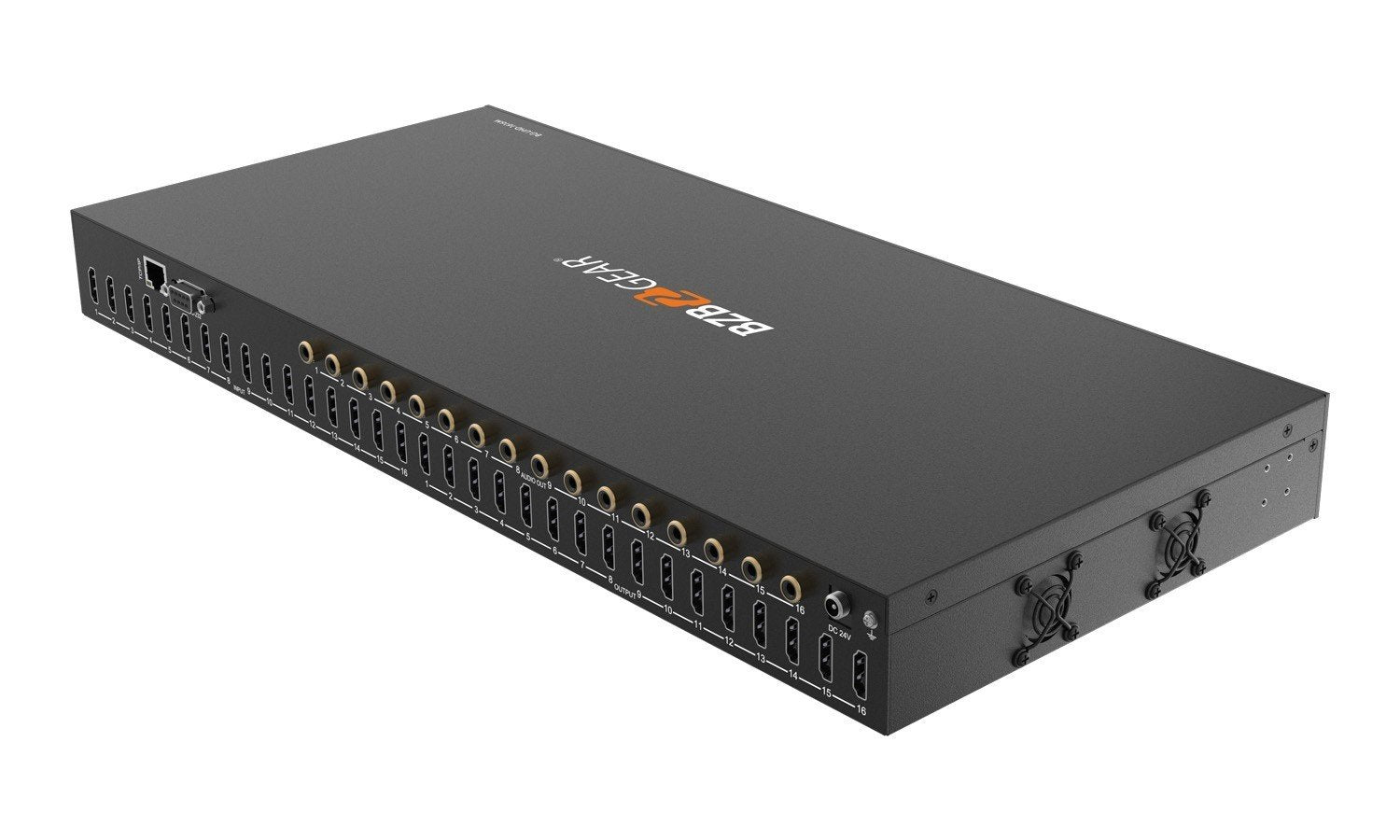

Connection

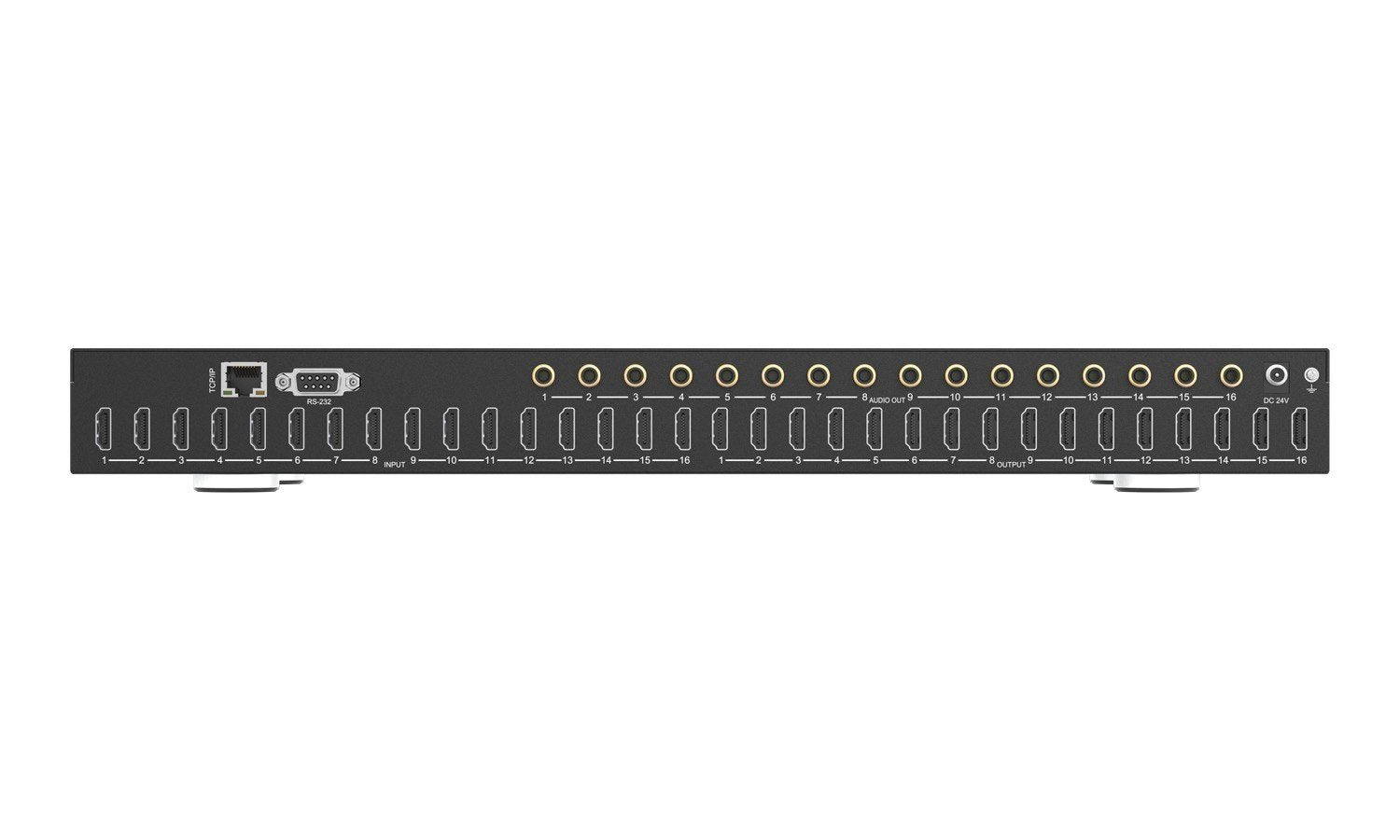

  • Input Ports: 16xHDMI Type A [19-pin female]
  • Output Ports:
    • 16xHDMI Type A [19-pin female]
    • 16xCoax Audio (RCA)
  • Control Ports:
    • 1xTCP/IP [RJ45]
    • 1xRS-232 [D-Sub 9]

Mechanical

  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 17.3" (W) x 7.9” (D) x 1.7" (H) [440mm (W) x 200mm (D) x 44mm (H)]
  • Weight: 6.83lbs [3.1kg]
  • Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/ULcertified)
  • Power Consumption: 76.8W
  • Operating Temperature: 14°F ~ 113°F / -10°C ~ 45°C
  • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Relative Humidity: 20~90% RH (non-condensing)
  • Resolution / Cable length: 4K60 - Feet / Meters: 4K30 - Feet / Meters: 1080P60 - Feet / Meters
  • HDMI IN / OUT: 16ft / 5M: 32ft / 10M: 50ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.
