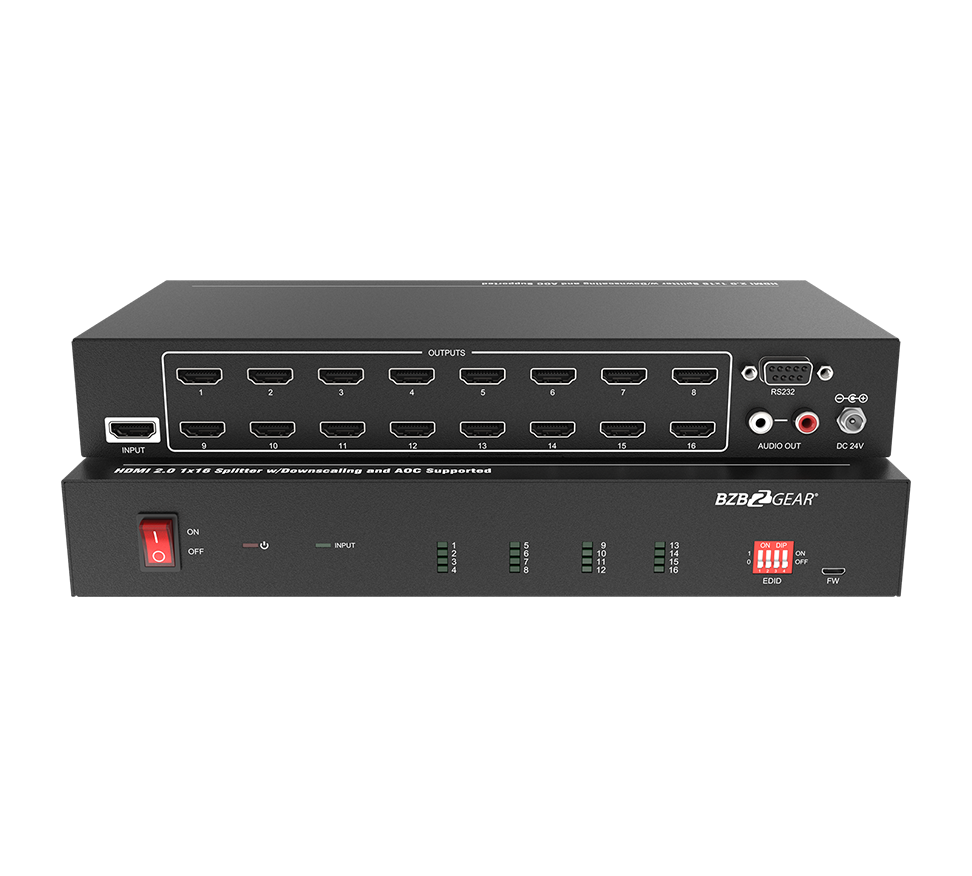

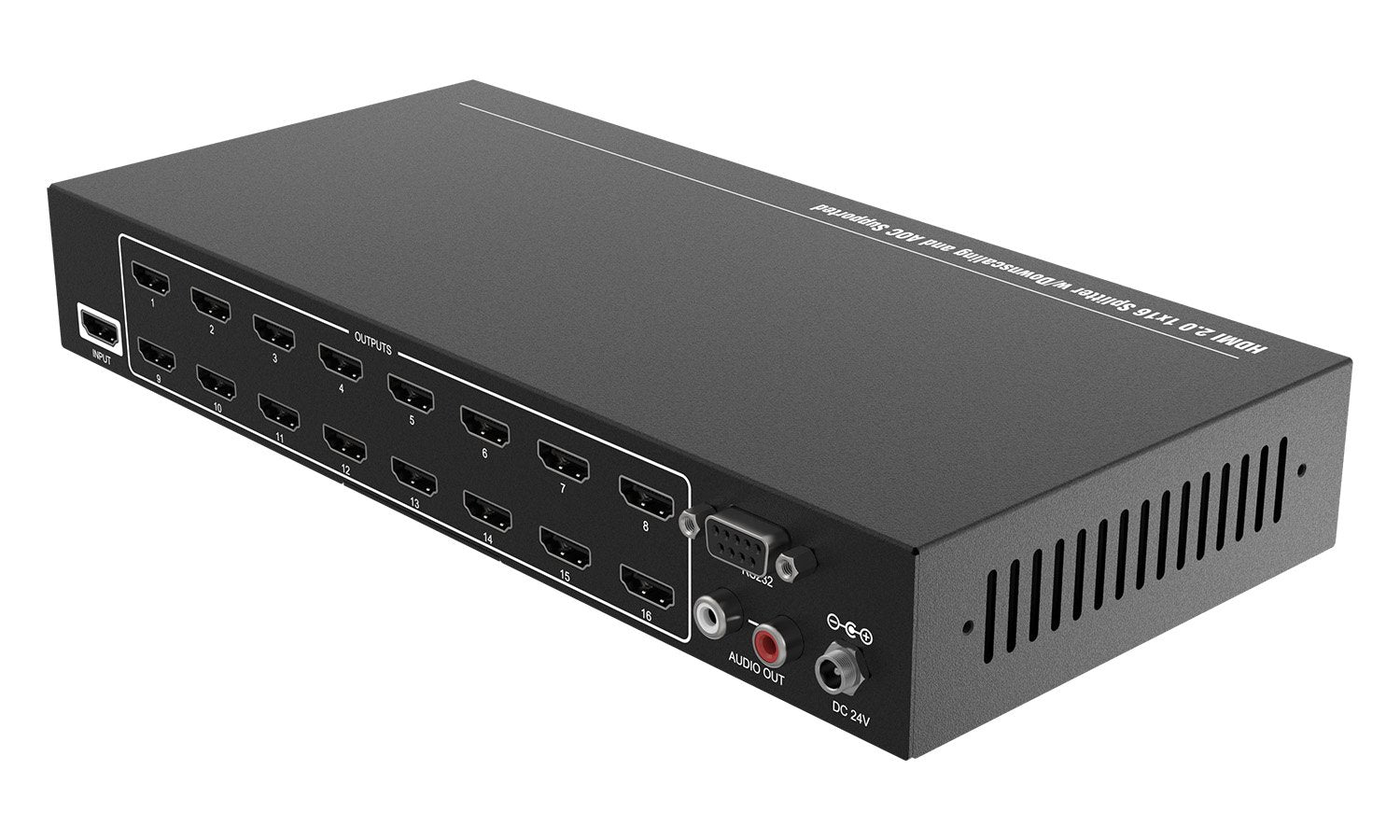

UHD-DA1X16: 4K UHD HDMI Splitter/Distribution Amplifier with Downscaling and AOC Cable Support

The BZBGEAR BG-UHD-DA1X16 is a sixteen port 4K HDMI splitter and distribution amplifier, ideal for larger venues like bars, restaurants, and retail stores.

From the Manufacturer:

The BG-UHD-DA1 is a 16/24 port 4K HDMI splitter. Providing connectivity for up to sixteen 4K displays, this device is perfect for large restaurants, bars, and retail spaces with multiple displays sharing a common video feed.

The BG-UHD-DA supports a maximum input resolution of 4K@60Hz 4:4:4. It is HDCP 2.2 compliant and supports enhanced video formats including HDR 10 and Dolby Vision. With active optical cable (AOC) HDMI support, this device can be used with long-distance AOC HDMI cable runs of up to 165 feet.

The auto-downscaling function of the BG-UHD-DA provides compatibility with legacy 1080P displays. This helps eliminate compatibility issues and helps the device play nice with lower resolution screens. The device is also HDCP 2.2 compliant. When used with compatible displays, the HDMI CEC control function of the BG-UHD-DA1 can control power on and off for connected displays.

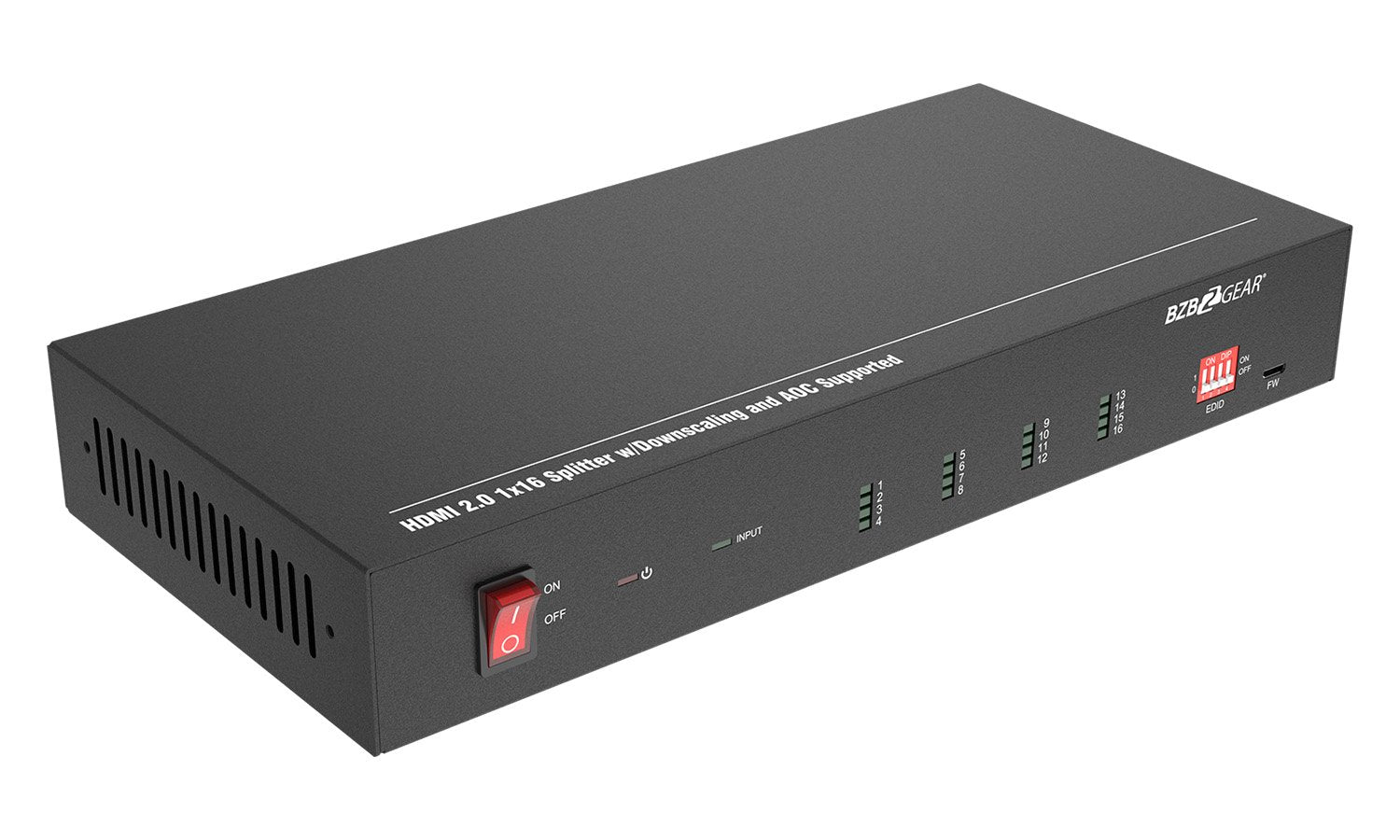

A set of DIP switches provide EDID management to stabilize the signal for connected devices. An analog RCA output provides audio extraction for connection to an external audio system. Essential system commands including EDID, HDCP, scaler settings, and reboot can be performed remotely via the RS232 input.

Features:

• Crystal Clear Images: Images with resolutions up to 4K@60Hz
• Multiple Outputs: Route once source to as many as 16/24 HDMI outputs
• Downscaling: Automatic downscaling to 1080p for legacy displays
• Durable: Sturdy metal structure built to withstand years of operation
• HDCP 2.2: High-Bandwidth Digital Content Protection Supported
• Audio De-embedding: De-embed audio from HDMI and output via Stereo RCA
• Supports 4:4:4 8bit, HDR 10, Dolby Vision
• Smart EDID management
• AOC HDMI supported for cable runs up to 165ft

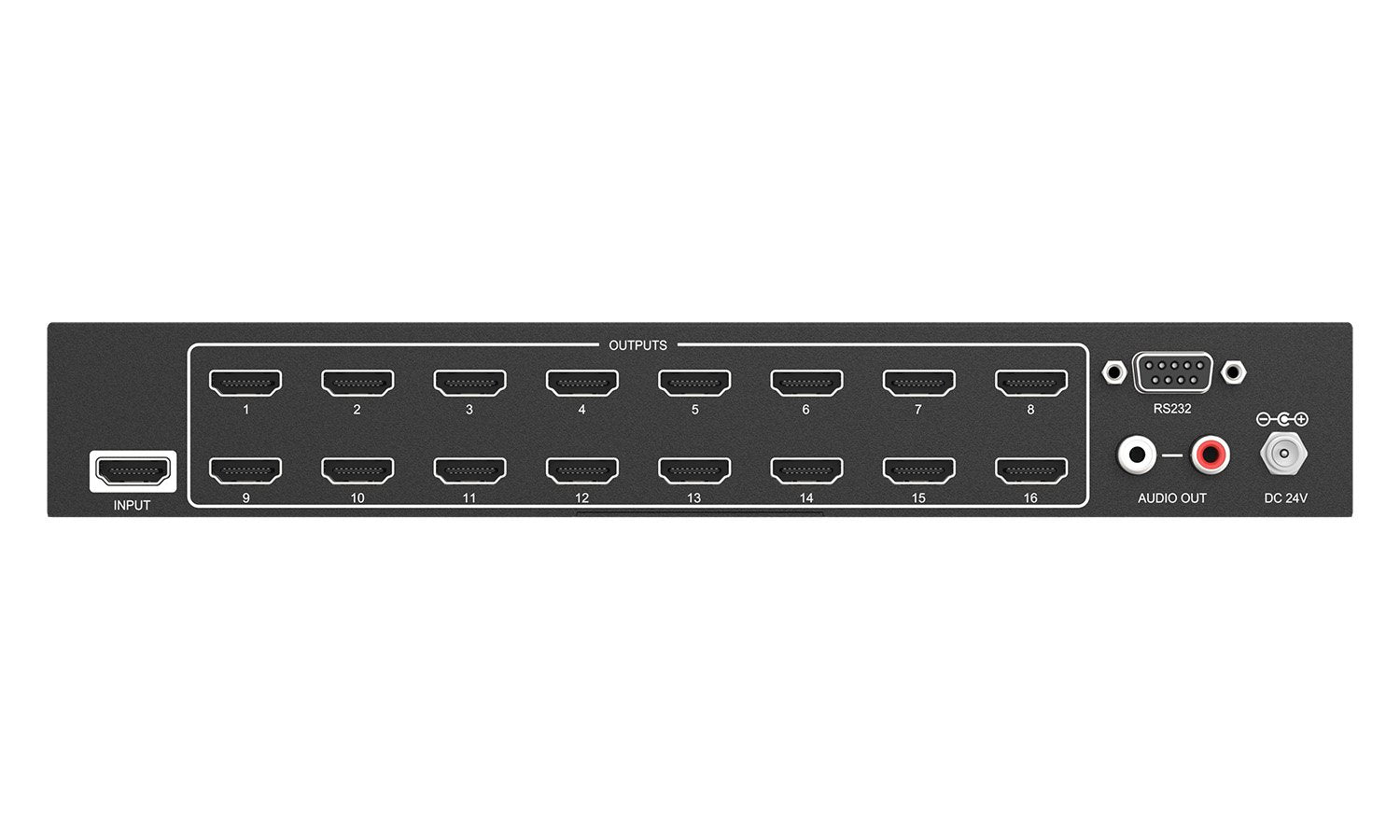

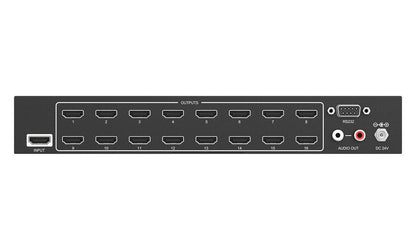

Specifications:

Video

• Input: 1x HDMI
• Input Connector: 1x Type-A female HDMI
• Input Video Resolution: Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision
• Output: 16/24 HDMI
• Output Connector: 16x Type-A female HDMI
• Output Video Resolution: Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling.
• HDMI Output: Supports up to 5V100mA power for AOC cable.
• HDMI Standard: V2.0
• HDCP Version: 2.2
• HDMI Audio Signal: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.

Analog Audio Output

• Output: 1x AUDIO
• Output Connector: 1x RCA (L+R)
• Frequency Response: 20Hz~20kHz, ±1dB
• Max output level: 2.0Vrms ± 0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal consumer line level signal
• THD+N: < 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
• SNR: > 80dB, 20Hz~20kHz bandwidth
• Crosstalk isolation: < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
• L-R level deviation: < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
• Output load capability: 1Kohm and higher (supports 10x paralleled 10Kohm loads)
• Noise Level: - 80dB

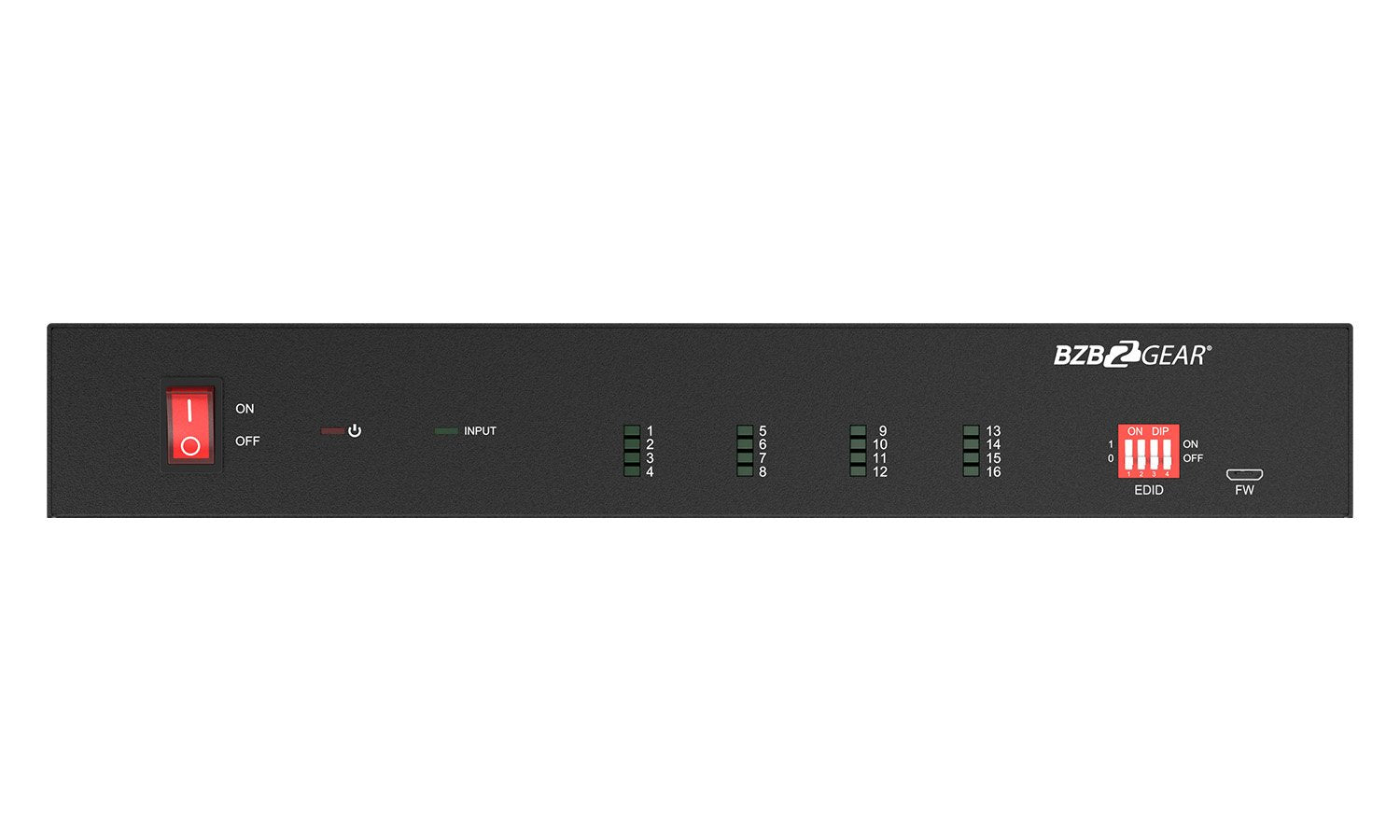

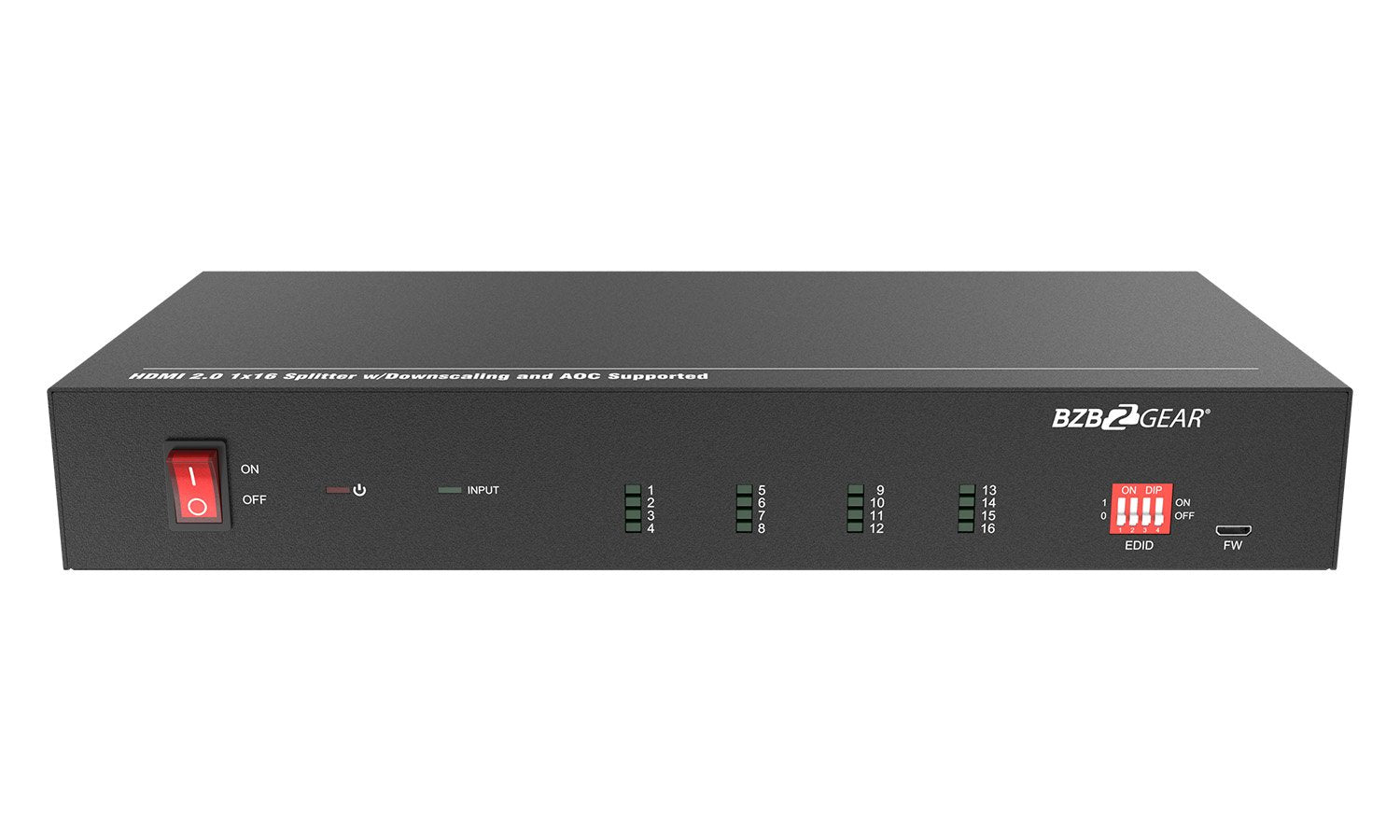

Control Part

• Control Port: 1x EDID Switch, 1x FW, 1x RS232
• Control Connector: 1x 4-pin DIP switch, 1x Micro-USB, 1x Female DB9

General

• Bandwidth: 18Gbps
• Operation Temperature: 23°F ~ 131°F / -5°C ~ +55°C
• Storage Temperature: -13°F ~ 158°F / -25°C ~ +70°C
• Relative Humidity: 10%-90%
• External Power Supply: Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
• Power Consumption: 26W (Max)
• Dimension (W*H*D): 10.5" x 1.6” x 4.9” [268mm x 40mm x 125mm]
• Net Weight: 2.5lbs [1.14Kg]
