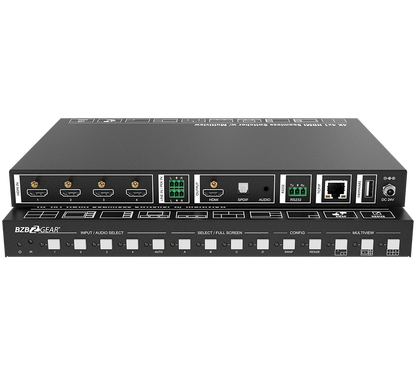

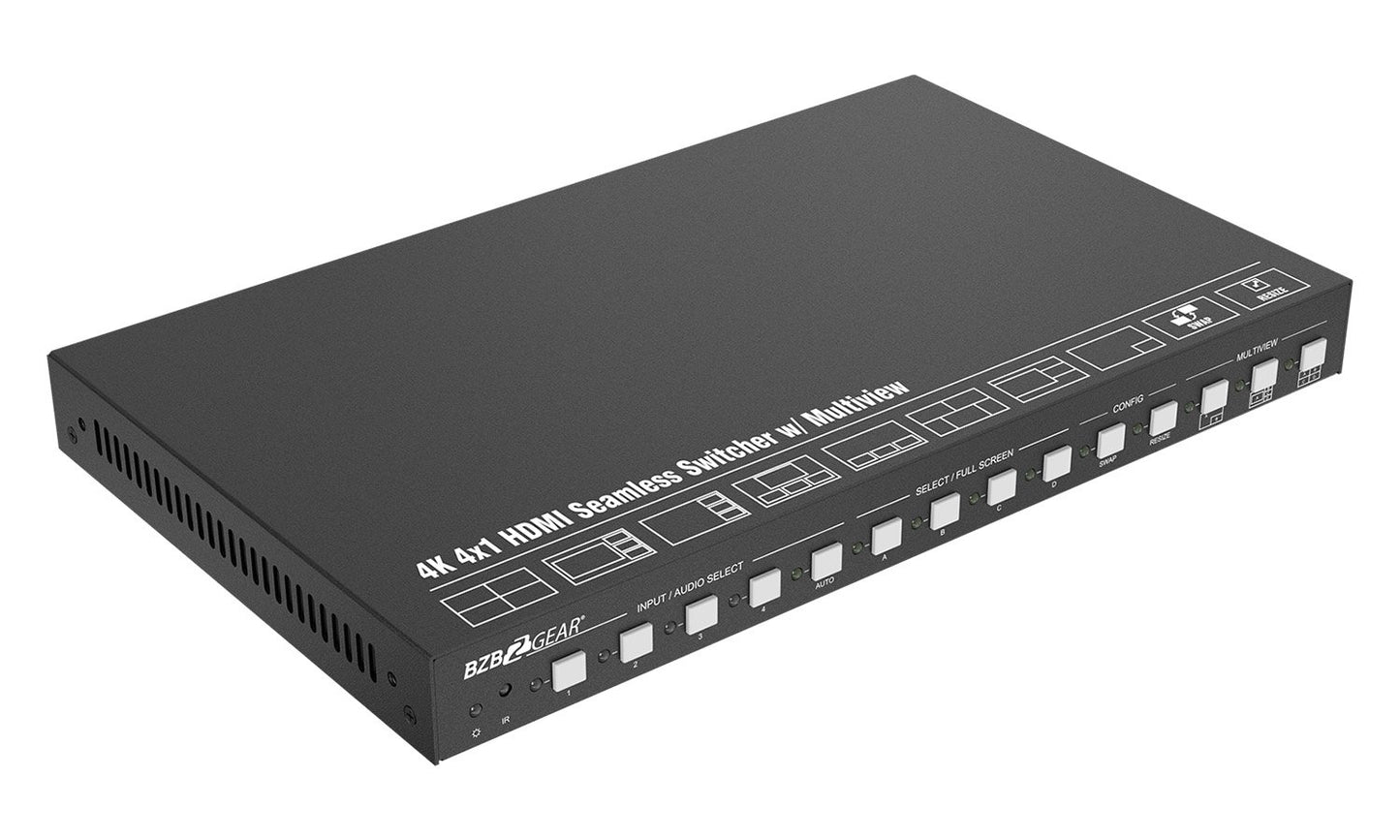

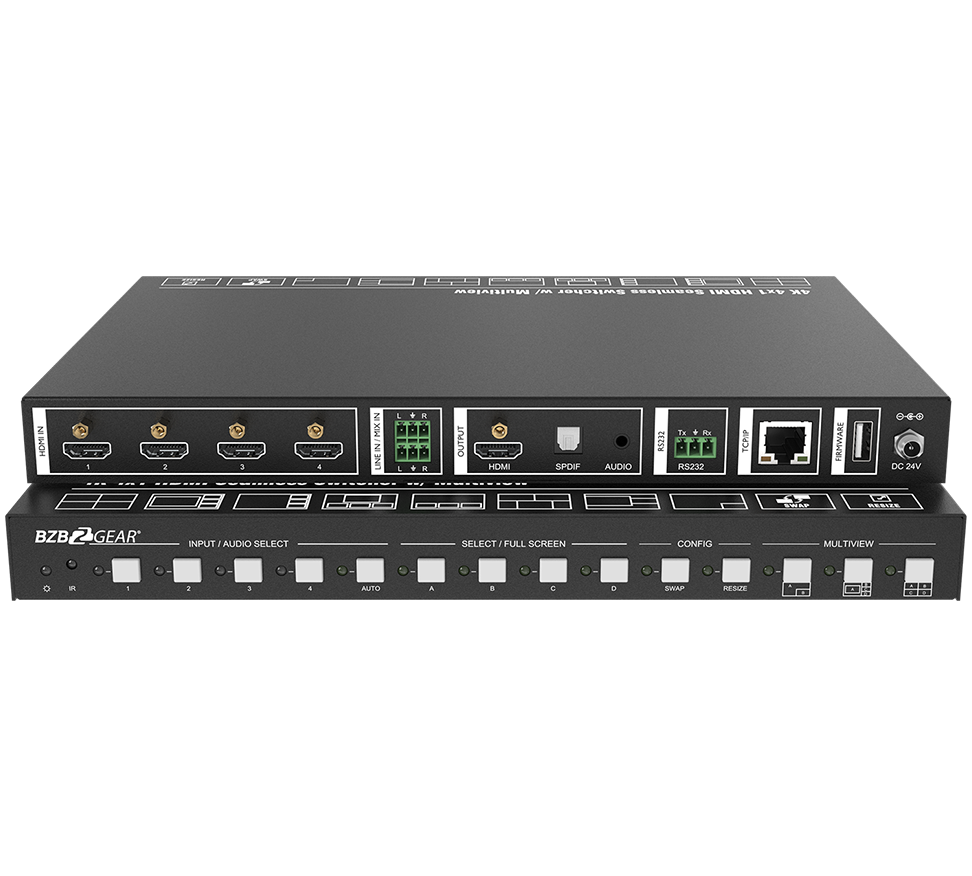

UMV-HA41: 4x1 4K UHD HDMI Seamless Switcher/Scaler/MultiViewer with IP/RS-232/Audio De-embedding

The BZBGEAR BG-UMV-HA41 is a 4x1 4K UHD HDMI switcher/scaler/multiviewer, for seamless presentation and video switching.

From the Manufacturer:

Introducing the BG-UMV-HA41: the ultimate 4K multi-view switcher for seamless presentation and video switching. This innovative device lets you view up to four video sources on a single HDMI output simultaneously, with the option to switch between full-screen mode or multi-view windows with just a push of a button. The result is a dynamic viewing experience that's perfect for conferences, presentations, and more.

Thanks to its 4K resolution, the BG-UMV-HA41 captures every detail from each video source, delivering stunning picture quality that's sure to impress. And with two audio outputs that support audio de-embedding, you can easily extract audio from your sources and customize your sound options to fit your needs.

The BG-UMV-HA41 is designed with connectivity and control in mind, featuring auto video scaling for each of the four HDMI inputs to ensure compatibility with 4K displays. The device also supports audio embedding via its dual audio input, allowing you to use external audio source as microphone or audio player for background music.

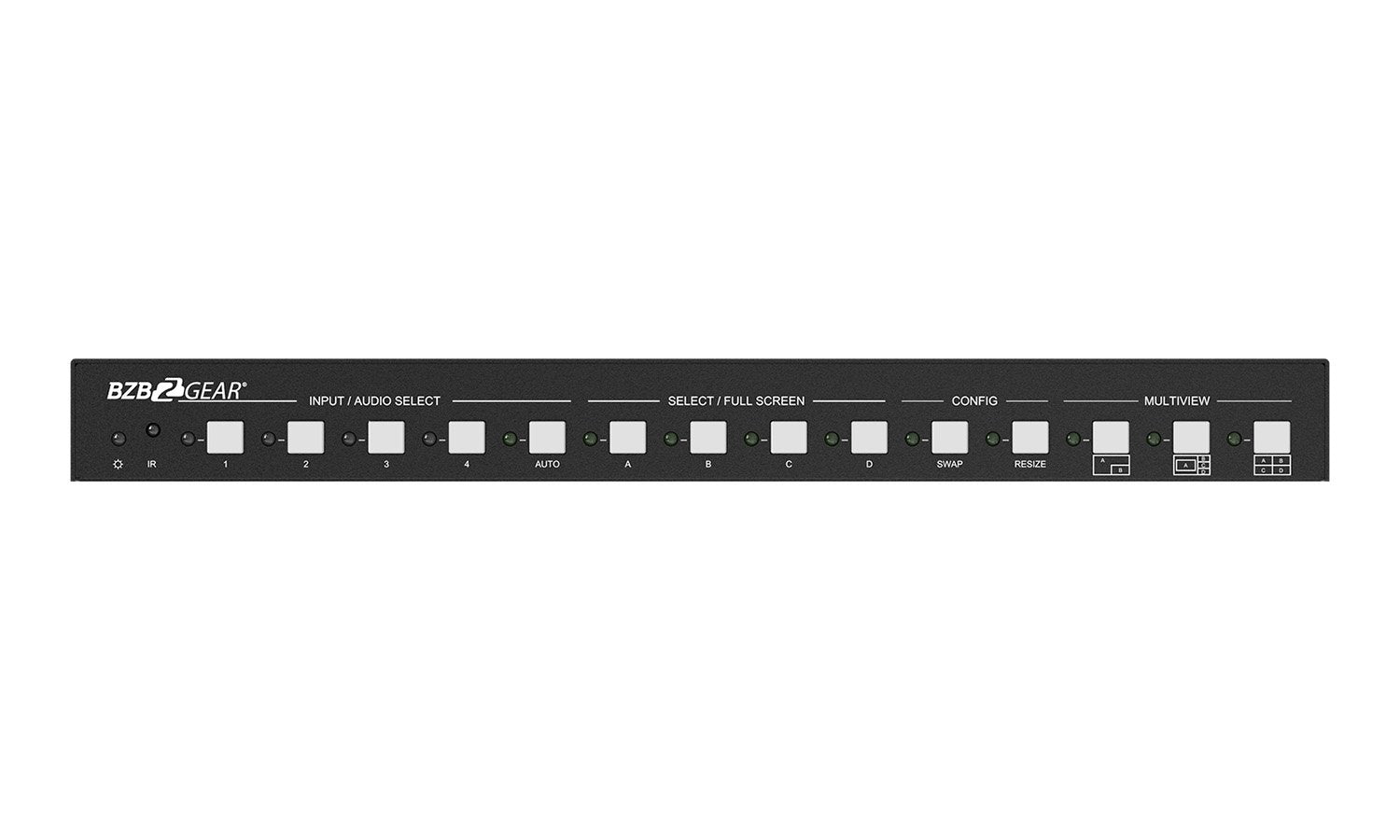

With its user-friendly control options, the BG-UMV-HA41 gives you complete command over your viewing experience. Control it with buttons on the front panel, the included IR remote, RS232, or through the web interface. You can even customize the layout and size of each display window to fit your needs, and choose from 16 preset layouts via the web interface.

And with the ability to easily rack mount the BG-UMV-HA41, this versatile device is perfect for use in any environment. So if you're looking for a 4K multi-view switcher that delivers exceptional performance and flexibility, look no further than the BG-UMV-HA41.

Features:

• High Resolution Inputs: Input Up To 4K@30Hz 4:4:4 Chroma

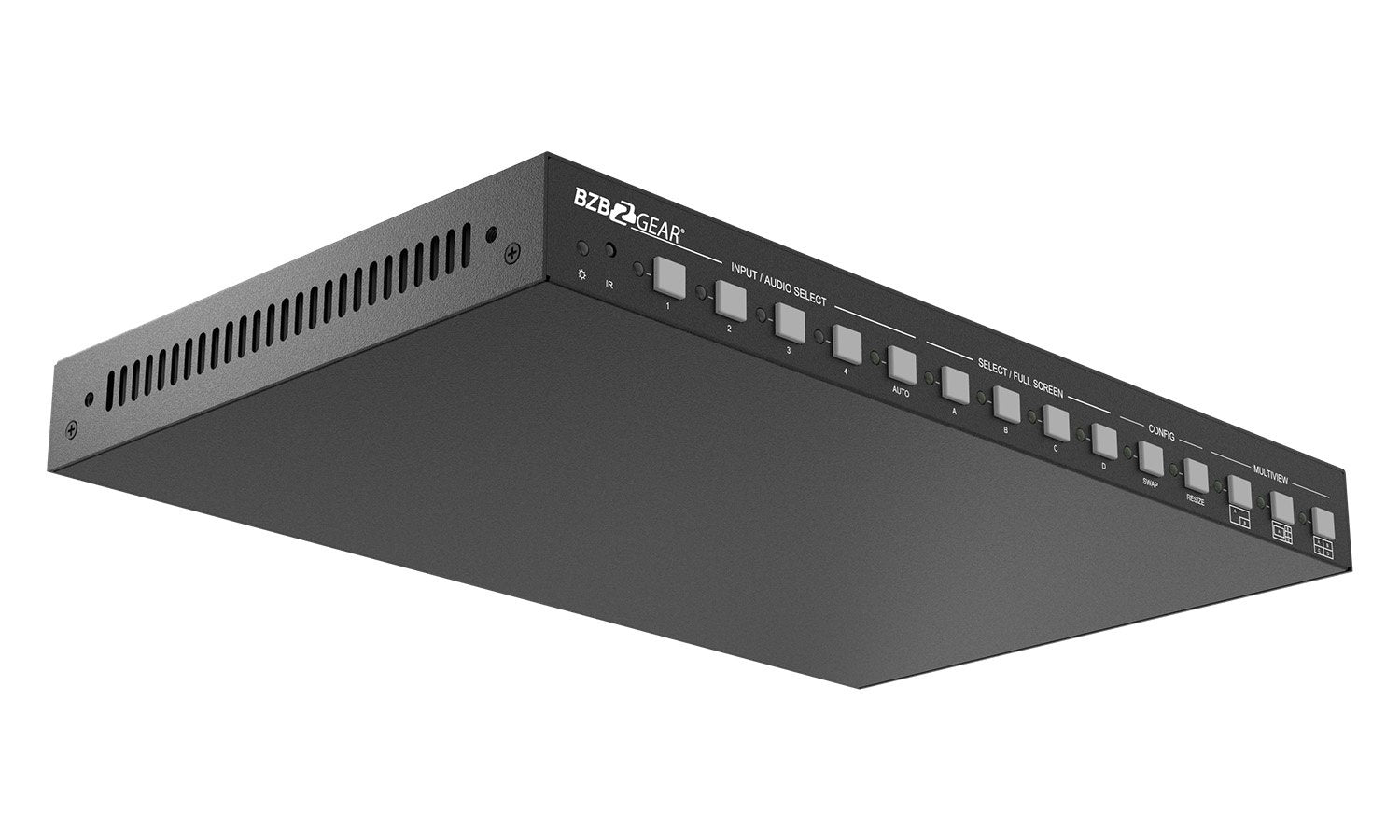

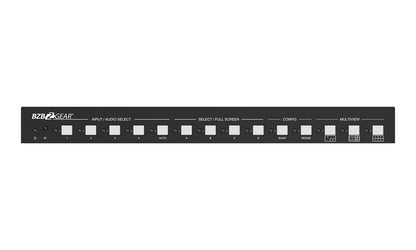

• Control Options: IR remote, RS-232, Web GUI, or Front Panel Buttons
• Seamless Switching: Quick And Easy Source Switching
• Audio Embedding: 3-Pin Line-In And Mix Inputs
• Audio De-embedding: 3.5mm Analog And TOSLINK Digital Outputs
• Multi-View: Simultaneously Display Multiple Inputs On A Single Monitor
• Based on FPGA technology
• SNR > 90dB, 20Hz-20 kHz bandwidth
• Resize the windows with 3 different options
• Upgradeable firmware
• Auto-scaling for each source input
• Single window auto-switching
• Rack mountable, all metal construction
• Cascadable for up to 16 screens on 1 display

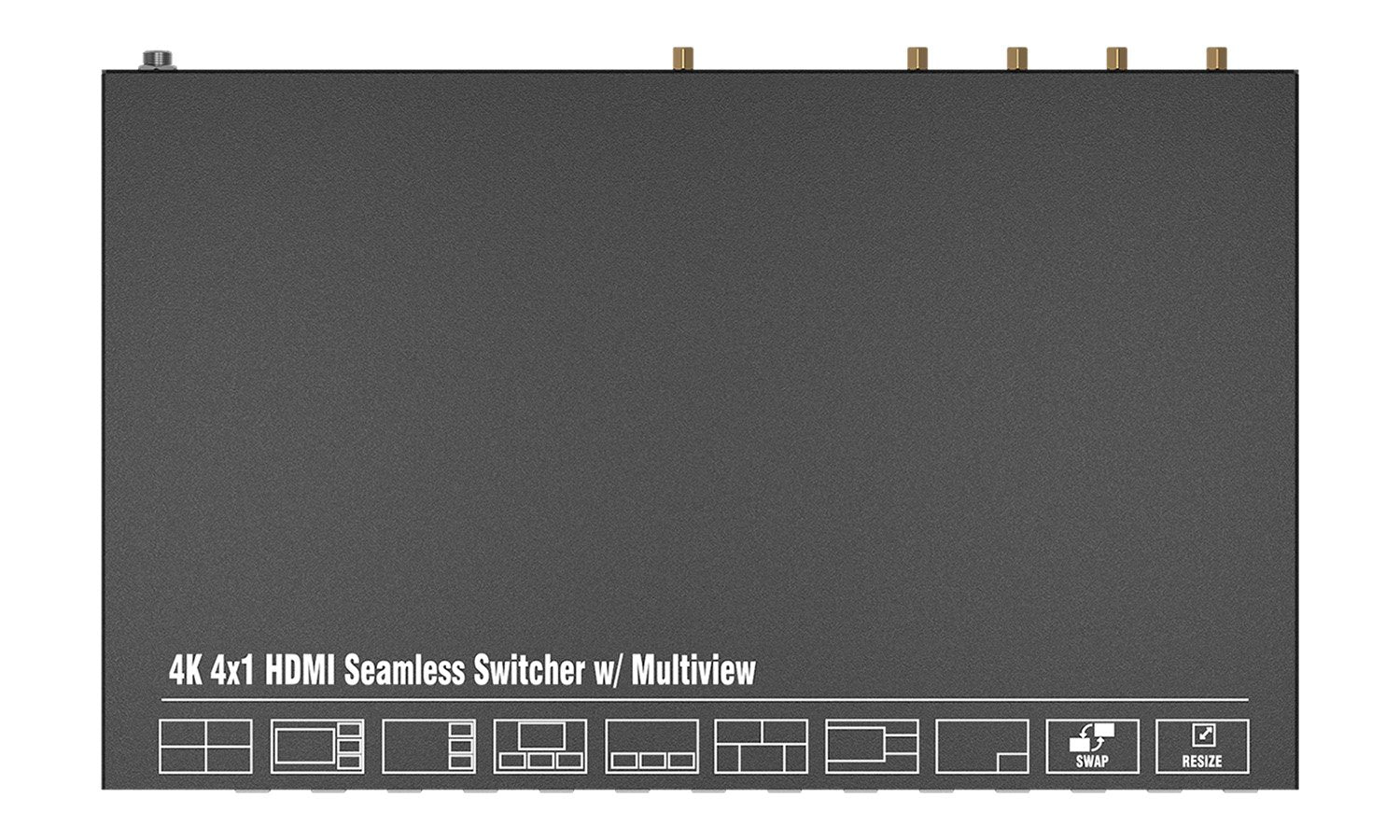

• 16 pre-defined layouts

Specifications:

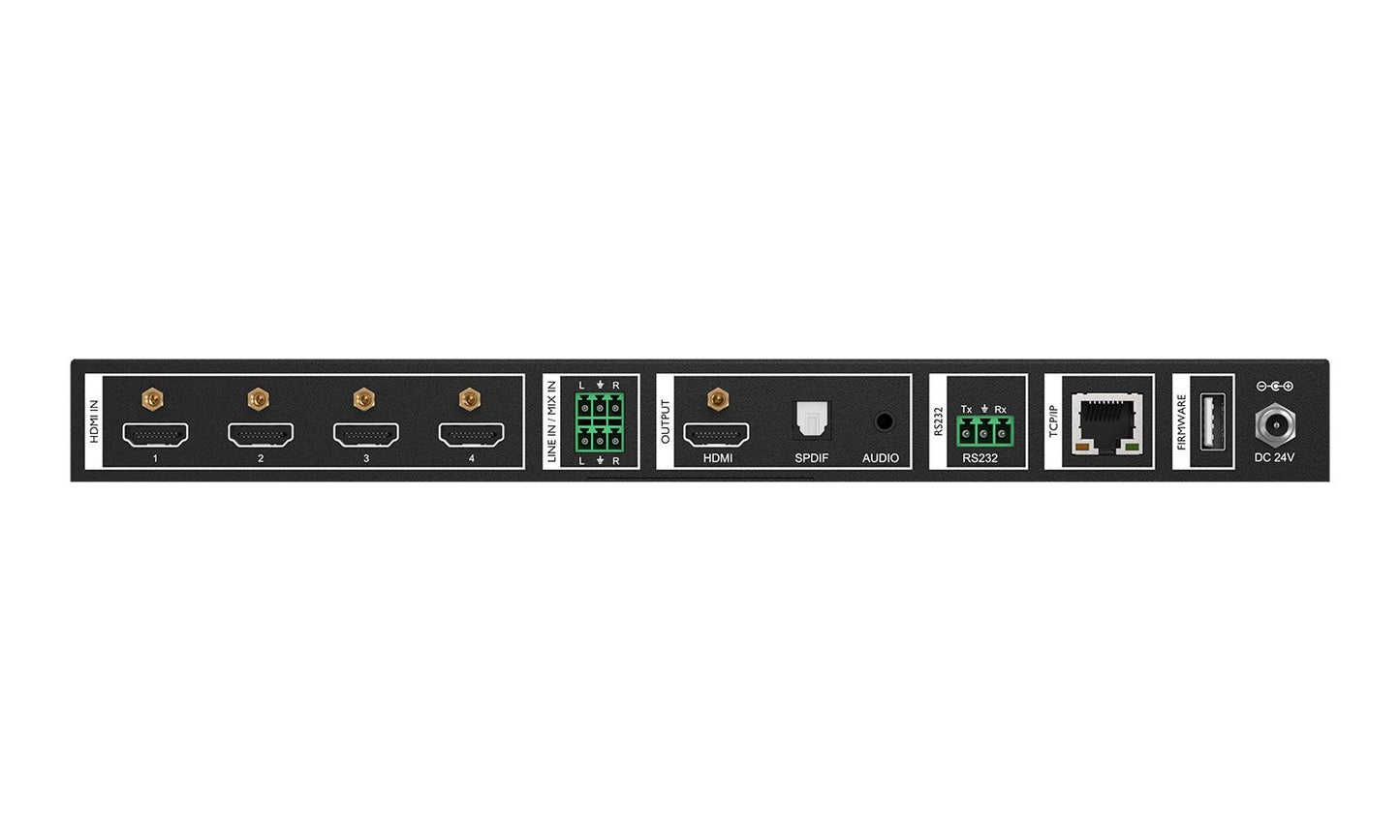

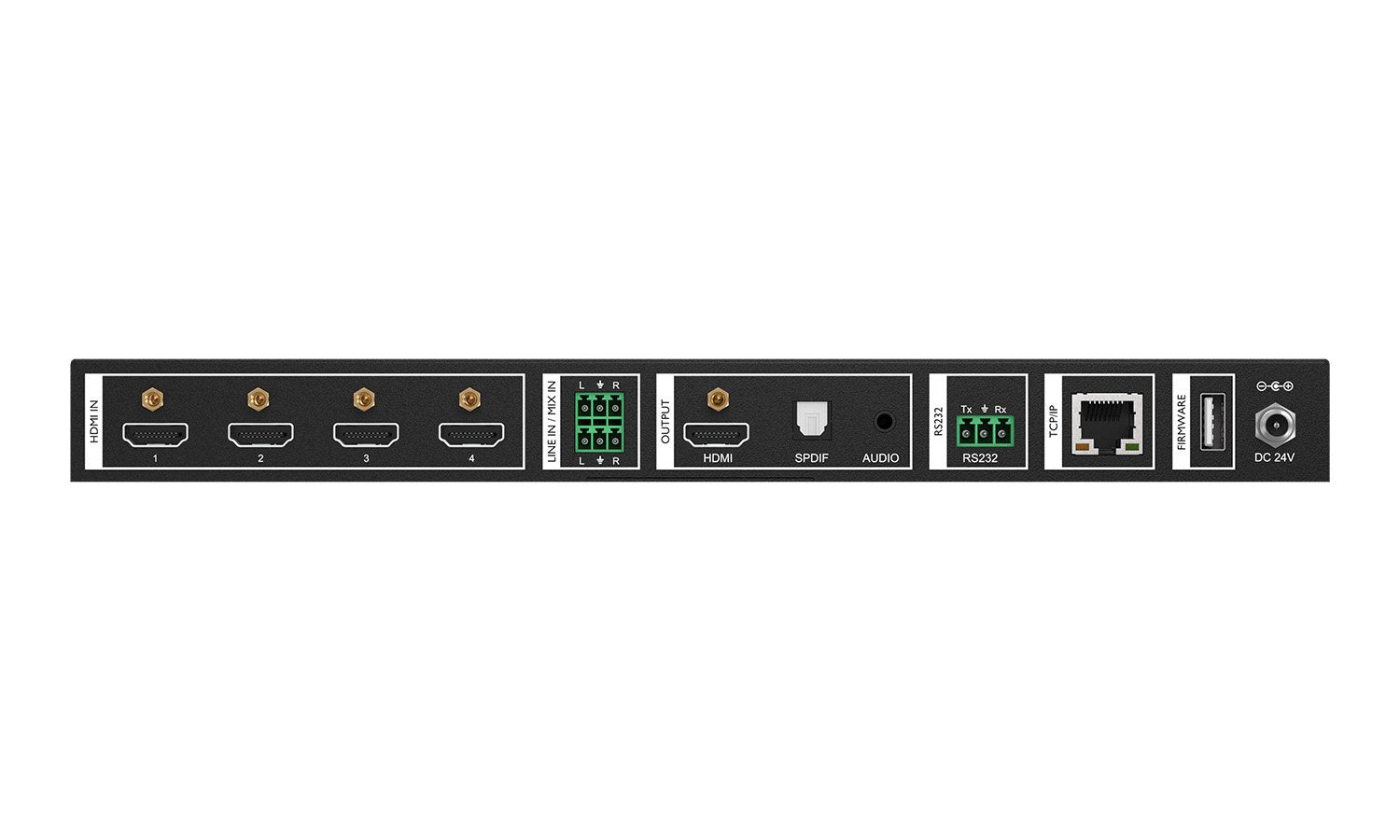

Video

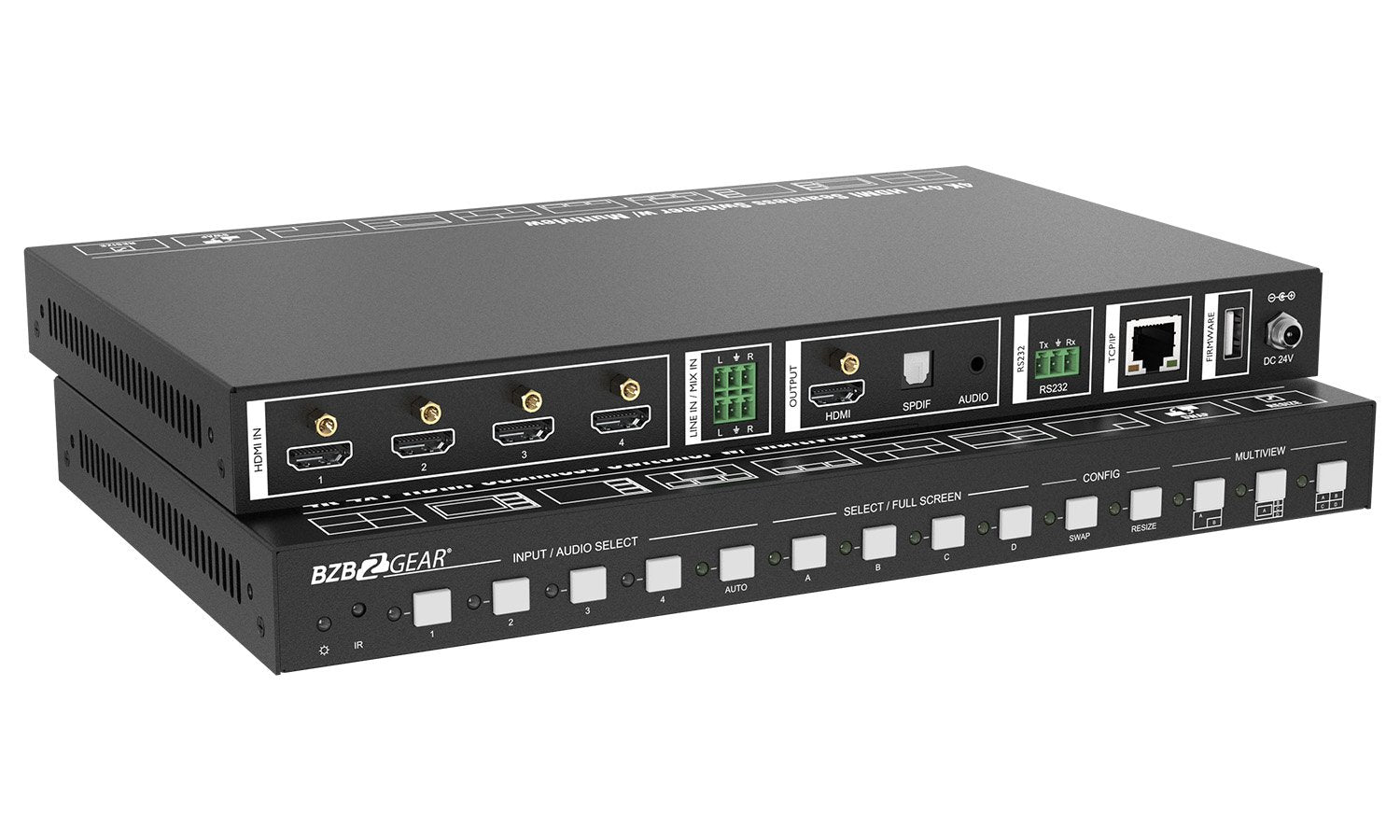

• Video Input: 4x HDMI IN (1~4)
• Video Input Connector: 4x Type-A female HDMI
• HDMI Input Resolution: Up to 4K@30Hz 4:4:4
• Video Output: 1x HDMI
• Video Output Connector: 1x Type-A female HDMI
• HDMI Output Resolution: Up to 4K@30Hz RGB
• HDMI Standard: HDMI 1.4
• HDCP Version: Up to HDCP 2.2

Audio IN

• Audio In: 1x LINE IN, 1x MIX IN
• Audio In Connector: 2x 3-pin terminal connectors
• Frequency Response: 20Hz to 20kHz, ±3dB
• Max Input Level: 2.0Vrms ± 0.5 dB. 2V=16 B headroom above -10dBV (316 mV) nominal consumer line level signal
• L-R level deviation: < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
• Input Impedance: > 10kohm
• Audio Format: PCM 2CH

SPDIF OUT

• SPDIF Out: 1x SPDIF
• Audio Out Connector: 1x Toslink
• Max Output level: ±0.05dBFS
• Frequency Response: 20Hz ~ 20kHz, ±1dB
• THD+N: < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0 dBFS level (or max level)
• Signal-to-Noise Ratio: > 90dB, 20Hz-20 kHz bandwidth
• Crosstalk isolation: < -70dB, 10kHz sine at 0dBFS level (or max level before clipping)
• Noise: -90dB
• Audio Format: PCM 2CH

Audio OUT

• Audio Out: 1x AUDIO
• Audio Out Connector: 1x 3.5mm mini jack
• Frequency Response: 20Hz ~ 20kHz, ±1dB
• Max Output Level: 2.0Vrms ± 0.5dB. 2V=16dB headroom above -10dBV (316 mV) nominal consumer line level signal
• THD+N: < 0.05%, 20Hz ~ 20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)
• Signal-to-Noise Ratio: > 80dB, 20Hz ~ 20kHz bandwidth
• Crosstalk Isolation: < -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
• L-R Level Deviation: < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
• Output Load Capability: 1kohm and higher (supports 10x paralleled 10kohm loads)
• Noise: -80dB

Control

• Control port: 1x RS232, 1x TCP/IP
• Control Connector: 1x 3-pin terminal connector, 1x RJ45

General

• Operation Temperature: 5°F to 131°F / -5°C to +55°C
• Storage Temperature: -13°F to 158°F / -25°C to +70°C
• Relative Humidity: 10% ~ 90%
• External Power Supply: Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
• Power Consumption: 13W (Max)
• Dimension (W*H*D): 11.2" x 1” x 6.8” [285mm x 27mm x 172.5mm]
• Net Weight: 2.731bs [1.24Kg]
