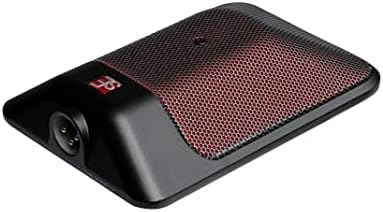

BL8

The SE Electronics BL8 is a boundary layer microphone featuring a half-cardioid true condenser capsule for kick drums, floor miking, and high SPL applications.

From the Manufacturer

Bullet-proof, built like a tank and ready for the road, your secret weapon for a variety of applications such as kick drums and other high SPL sources. Featuring our renowned 1/2" true-condenser cardioid sE8 capsule, the BL8 delivers transformerless Class-A circuitry that ensures plentiful headroom without distortion. Low-noise electronics deliver transparency and clarity while reproducing low frequencies with stunning accuracy. The character switch provides classic and modern voicings, while the integrated low-cut filter and pre-attenuation pad enable a variety of applications. Compatible with our sE8 omni capsule and The Kelly Shu Flatz™ Isolation System.

Features

• Featuring 1/2" true-condenser cardioid sE8 capsule
• Transformerless Class-A circuitry ensures plentiful headroom without distortion
• Low-noise electronics deliver transparency and clarity
• Reproduces low frequencies with stunning accuracy
• Character switch provides classic & modern voicings
• Integrated low-cut filter & pre-attenuation pad enable a variety of applications
• Compatible with our sE8 omni capsule & The Kelly Shu Flatz™ Isolation System
• Recommended use: Kick drum, cajon, piano, speech, conferencing, room miking / ambience, stage floor miking

Specifications

Components

• Capsule: Hand-crafted small-diaphragm true-condenser capsule

Power

• Powering: 48 Volts according to IEC 61938
• Electrical Impedance: 60 Ohms
• Current Consumption: 5.0 mA
• Connectivity: 3-pin male XLR connector

Sound

• Polar Pattern: Half-cardioid
• Frequency Range: 20 – 20,000 Hz
• Sensitivity: 25 mV/Pa (-32 dBV)
• Max. SPL (0.5% THD): 143 / 153 / 163 dB SPL (0/10/20 dB attenuation pad)
• Equivalent Noise Level: 14 dB(A)
• Dynamic Range: 129 / 139 / 149 dB (0/10/20 dB attenuation pad)
• Signal-to-Noise Ratio: 80 dB
• Low-Cut Filter: 80 / 160 Hz, 6 dB/oct, switchable
• Attenuation Pad: 10 / 20 dB, switchable
• Recommended Load Impedance: >1k Ohms

Dimensions

• Mic Length: 139 mm (5.47 in.)
• Mic Width: 95 mm (3.74 in.)
• Mic Height: 28.5 mm (1.12 in.)
• Mic Weight: 538 g (18.98 oz.)

What's in the Box

• BL8 microphone
• Pouch
