Sku: MAR-91700003

BreakInOut Cable Power-DMX to PDE

Regular price
$126.00
Regular price
Sale price
$126.00
Shipping calculated at checkout.
Vendor: Martin

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

A cable that can be connected to Martin Fixtures with PDE connector to give the, Power, DMX and a DMX thru connections.

From the Manufacturer:

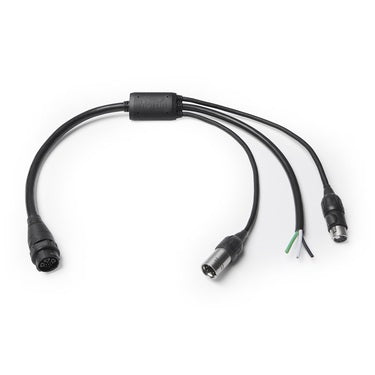

The Martin PDE BreakInOut Cable can be fitted to Martin fixtures with PDE connector to give them Power input, DMX input and DMX thru connections.

The bare power input cable allows any type of power connector to be fitted.

The male and female XLR 5 connectors enable easy daisy-chaining of fixtures (female PDE connector on fixture not used in this case).

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features:

  • Bare cable for power input

  • XLR 5 TOP DMX input

  • XLR 5 TOP DMX thru

  • Martin PDE Hybrid output

  • IP65 rated

Specifications:

  • Physical

    • Length: 500 mm (19.7 in.)

    • Weight: 325 g (0.52 lbs.)

  • Construction

    • Housing: PVC

    • Color: Black

    • Protection rating: IP65

    • Cable Jacket: PVC

  • Installation

    • Location: indoor or temporary outdoor use

    • Orientation: Any

  • Connections

    • AC power input: Bare cable (allows any type of male power connector to be fitted)

    • DMX input: Neutrik XLR 5-pin Male TOP (IP65)

    • DMX thru: Neutrik XLR 5-pin Female TOP (IP65)

    • AC Power and DMX out: PDE hybrid connector (IP65)

  • Electrical

    • AC power: 100-240V AC nominal, 50/60Hz

  • Thermal

    • Maximum ambient temperature (Ta max.): 75° C

    • Minimum ambient temperature (Ta min.): -15° C

  • Environmental

    • RoHS: Compliant

    • REACH: Compliant

  • Related Items

    • Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002

    • Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001

    • BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000

    • BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001

    • VDO Atomic Dot CLD in cardboard: P/N 90357701

    • VDO Atomic Dot WRM in cardboard: P/N 90357702

    • VDO Atomic Bold in cardboard: P/N MAR-90357703
