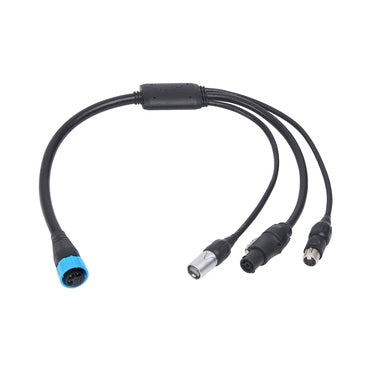

A cable that splits Power, DMX and Ethernet signals from a single connector.

From the Manufacturer:

The Martin PDE BreakOut Cable splits Power, DMX & Ethernet signals out from a single connector and cable system as used by the Martin VDO Atomic family of fixtures.

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features:

  • Martin PDE Hybrid input

  • powerCON TRUE1 TOP power output

  • XLR 5 TOP DMX output

  • etherCON TOP Ethernet output

  • IP65 rated

Specifications:

  • Physical

    • Length: 500 mm (19.7 in.)

    • Weight: 325 g (0.52 lbs.)

  • Construction

    • Housing: PVC

    • Color: Black

    • Protection rating: IP65

    • Cable Jacket: PVC

  • Installation

    • Location: indoor or temporary outdoor use

    • Orientation: Any

  • Connections

    • AC Power, DMX and Network input: PDE Hybrid Connector (IP65)

    • AC Power out: Neutrik powerCON TRUE1 TOP (IP65)

    • Ethernet out: Neutrik etherCON TOP (IP65)

    • DMX out: Neutrik XLR 5-pin Female TOP (IP65)

(All connections hot plugging compatible)

  • Electrical

    • AC power: 100-240V AC nominal, 50/60Hz

  • Thermal

    • Maximum ambient temperature (Ta max.): 75° C

    • Minimum ambient temperature (Ta min.): -15° C

  • Environmental

    • RoHS: Compliant

    • REACH: Compliant

  • Related Items

    • Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002

    • Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001

    • BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000

    • BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003

    • VDO Atomic Dot CLD in cardboard: P/N 90357701

    • VDO Atomic Dot WRM in cardboard: P/N 90357702

    • VDO Atomic Bold in cardboard: P/N MAR-90357703
