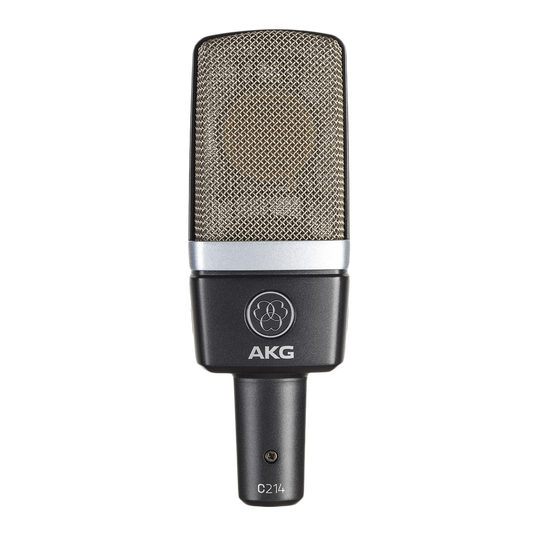

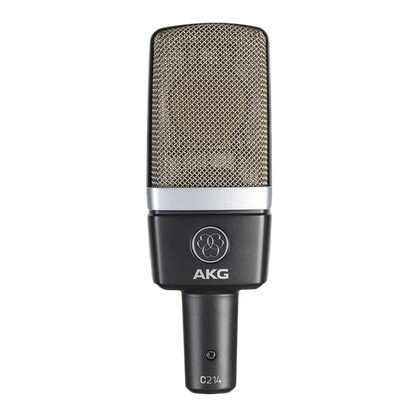

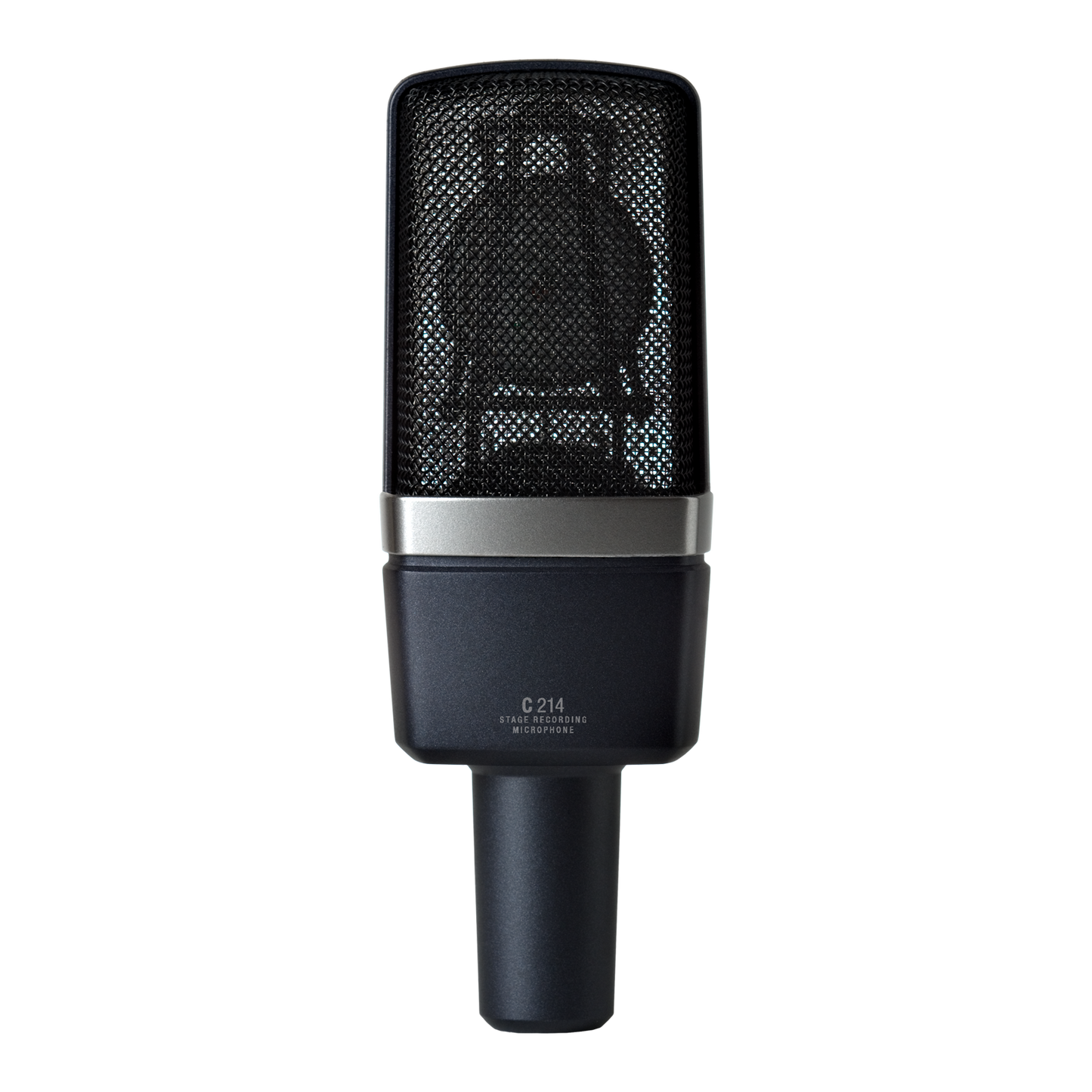

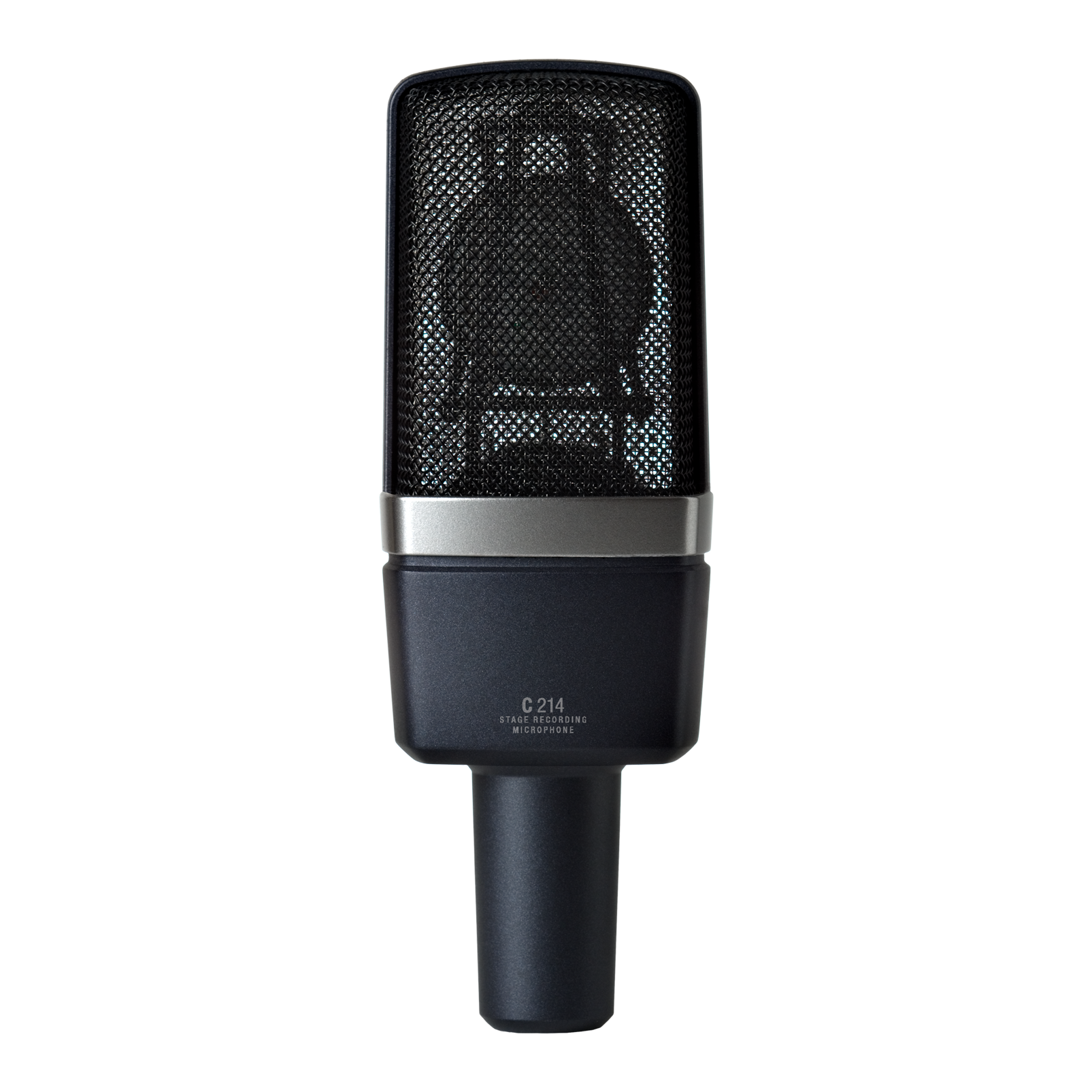

C214

Large diaphragm studio microphone based on C414 capsule. Cardioid only.

The AKG C214 is a large diaphragm studio microphone for professionals looking for a cost-effective alternative to the C414 that still offers outstanding performance.

From the Manufacturer:

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect. The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.

Features:

• AKG’s legendary 1” edge-terminated large diaphragm sound
• Incredible 143dB dynamic range (up to 156 dB SPL)

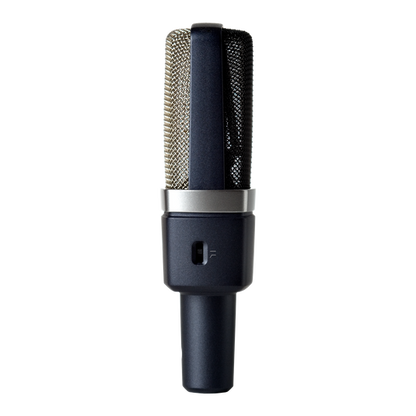

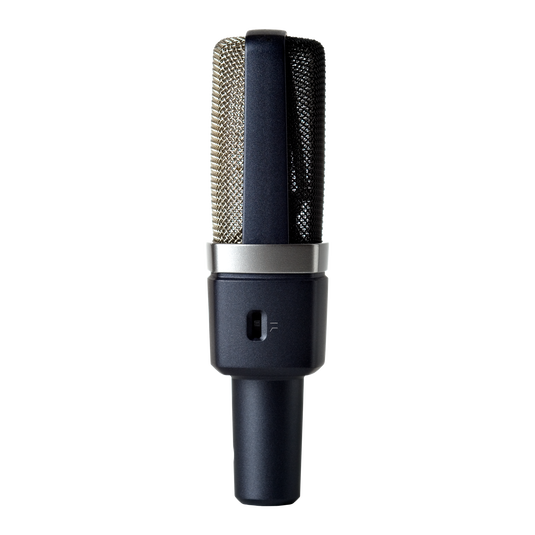

• Switchable 20 dB attenuation pad and low cut switch

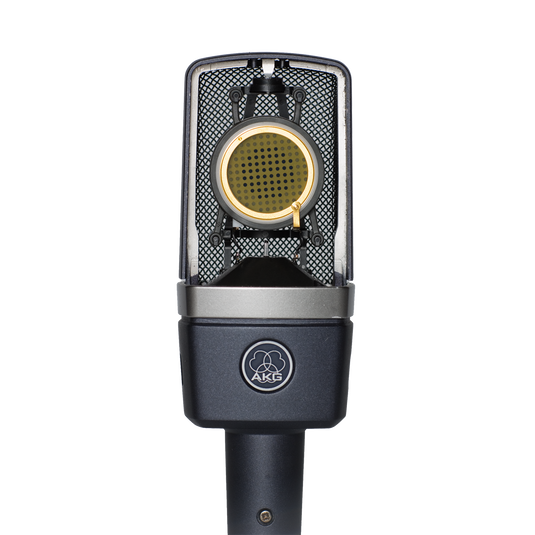

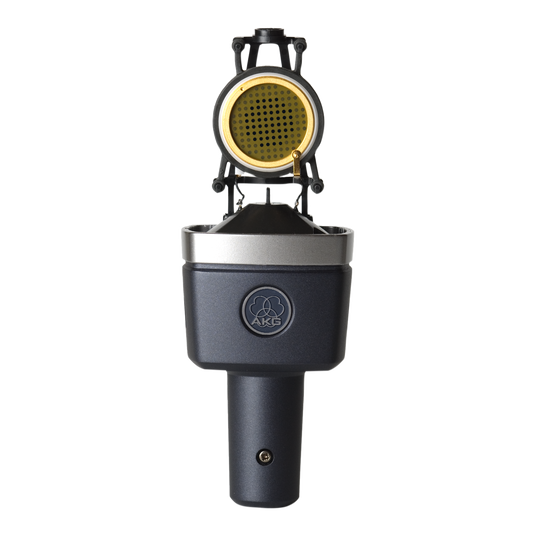

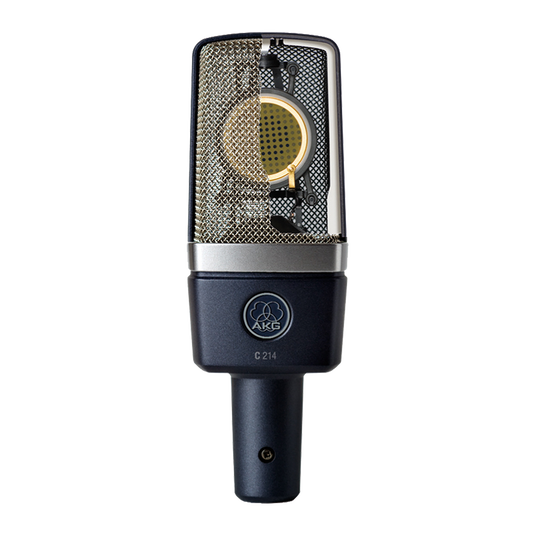

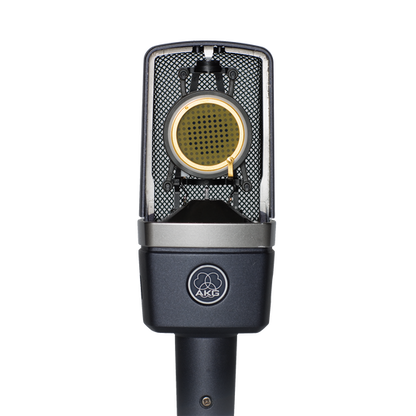

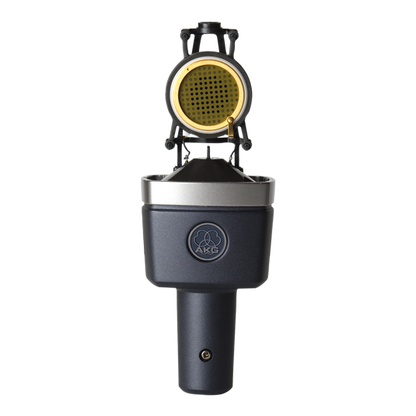

• Integrated capsule suspension to reduce mechanical noise
• Rugged double mesh grill for high RF immunity but unaffected acoustics

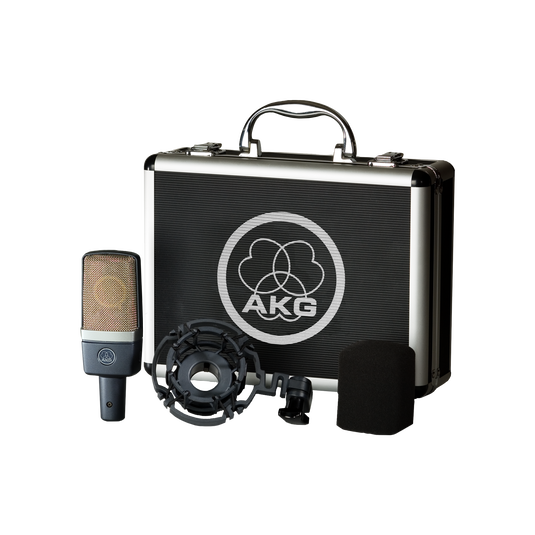

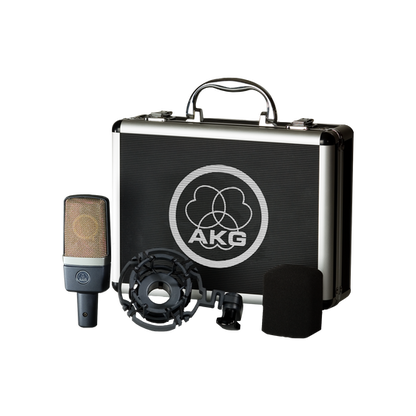

• Spider-type shock mount, windscreen and metal carrying case included
• All-metal die-cast body with shock- and scratch-resistant finish
• 3-year parts and labor warranty

Specifications:

• General Specifications
  • Polar Pattern: Cardioid
  • Audio frequency bandwidth: 20 - 20000 Hz
  • Equivalent noise level: 13 dB-A
  • Sensitivity: 20 mV/Pa
  • Signal to Noise: 81 dB-A
  • Preattenuation Pad: -20 dB
  • Bass cut filter: 160 Hz
  • Electrical impedance: 200 Ohms
  • Recommended load impedance: 1000 Ohms
• Dimensions
  • Width: 56 mm
  • Height: 160 mm
  • Net Weight: 280 g
• Design
  • Finish: matte grayish blue
• Audio Output
  • Type: Balanced XLR
  • Gender: Male
  • Contacts: 3-pin
• Powering Interface
  • Voltage: 9 to 52 V
  • Current: 2 mA
• Application: Pro Studio
• Instrument
  • Vocals
  • Piano / Strings
  • Horns / Woodwinds
  • Drums / Percussion
