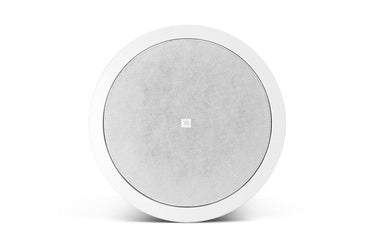

Control 26CT-LS

The JBL Control 26CT-LS compact ceiling speaker for life safety applications performs equally well for background or foreground music systems.

From the Manufacturer:

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Features:

• UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.

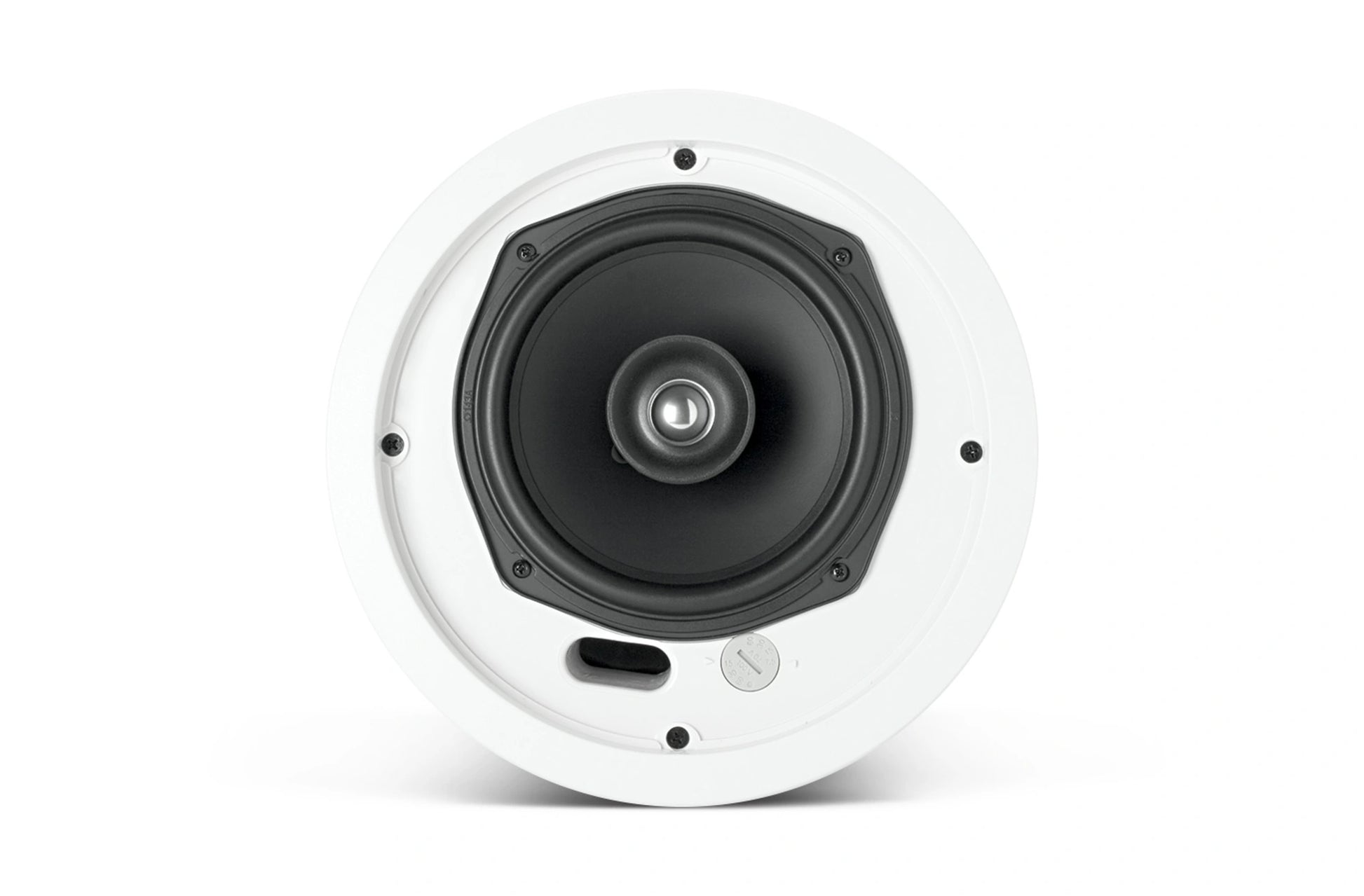

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
• High power, wide frequency response and low distortion for high sound level capability
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Specifications:

• Frequency Range: 80 Hz - 20 kHz
• Power Rating:
  • IEC System Long-Term Ratings (low-Z direct):
    • 150 Watts Continuous Program Power
    • 75 Watts Continuous Pink Noise (300W peak), 100 hrs
• Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
• Coverage Angle: 110° conical
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
• Maximum SPL (1m): 107 dB (top 70V/100V tap)
• Drivers:
  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 19 mm (¾ in)
• Input Connectors: Removable locking connector with screw-down terminals.
• Outside Dimensions (H x Dia): 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
• Net Weight (each): 4.2 kg (10 lb)
• Shipping Weight (pair): 9.7 kg (21 lb)
• Sensitivity: 89 dB (100 Hz - 10 kHz)
• Color: White
• Safety Agency: UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 220 mm (8.75 in) diamter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
• Plenum Usage: Yes, backcan included
